Plan 710178BTZ
Traditional House Plan with an Open Floor Plan
Heated S.F.
3,710
Beds
4-5
Baths
4.5
Stories
2
Cars
2
What's Included
Plan Details
  • This classic brick beauty has elegant columns and plenty of square footage.
  • The open floor plan on the main level creates an ideal space for entertaining.
  • A vaulted family room, eat-in kitchen and breakfast area are reached just through the foyer. A vaulted keeping room with its own fireplace is found off the kitchen and offers a cozy retreat.
  • Across the home, the vaulted master suite awaits and includes a spacious bath and walk-in closet.
  • The second floor houses three more bedrooms, two baths and an optional bonus room located just above the two-car garage.
  • Related Plans: Get an alternate exterior with house plan 710179BTZ and 710180BTZ.
What's Included
The plans include the following:
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional House Plan with an Open Floor Plan

  • 3,710

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

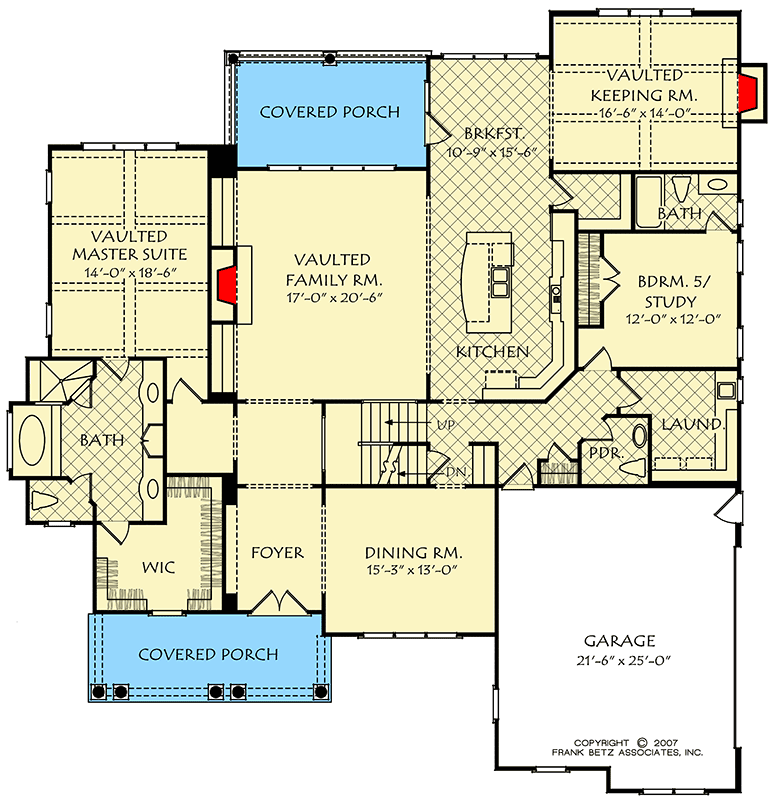

Floor Plan

  • Main Level

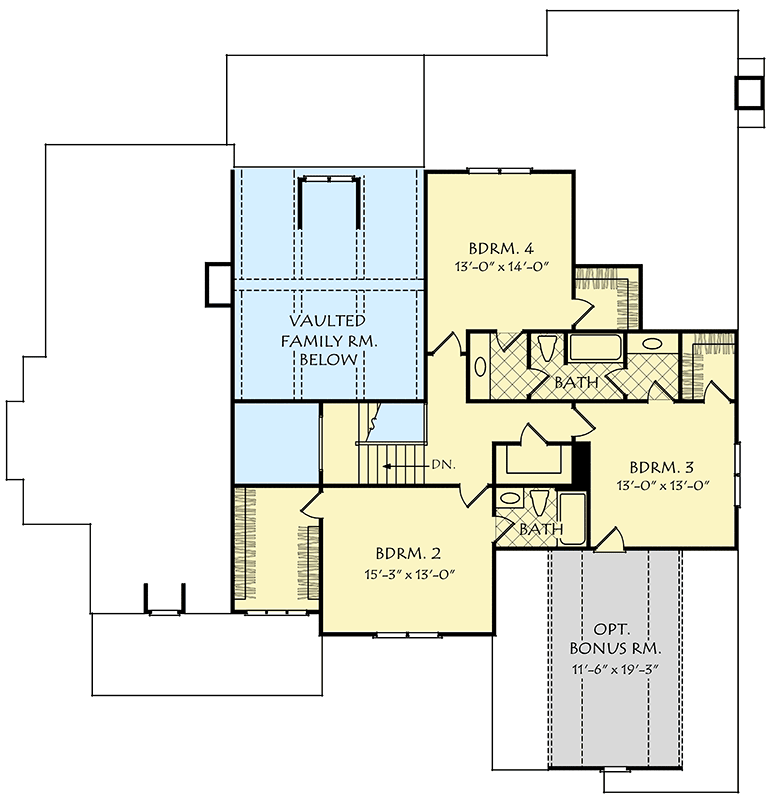

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,710 sq. ft.
  • 1st Floor: 2,658 sq. ft.
  • 2nd Floor: 1,052 sq. ft.

Dimensions

  • Width: 67' 10"
  • Depth: 70' 0"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 577 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
