Plan 710180BTZ Tudor Home Plan with 4 or 5 Bedrooms

3,700 4-5 4.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Tudor Home Plan with 4 or 5 Bedrooms

Plan 710180BTZ

  • 3,700

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Tudor features were thoughtfully added to the exterior of this attractive 4 or 5 bed home plan.
  • The open floor plan on the main level creates an ideal space for entertaining.
  • A vaulted family room, eat-in kitchen and breakfast area are reached just through the foyer. A vaulted keeping room with its own fireplace is found off the kitchen and offers a cozy retreat.
  • Across the home, the vaulted master suite awaits and includes a spacious bath and walk-in closet.
  • The second floor houses three more bedrooms, two baths and an optional bonus room located just above the two-car garage.
  • Related Plans: Get an alternate exterior with house plan 71078BTZ and 710179BTZ.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

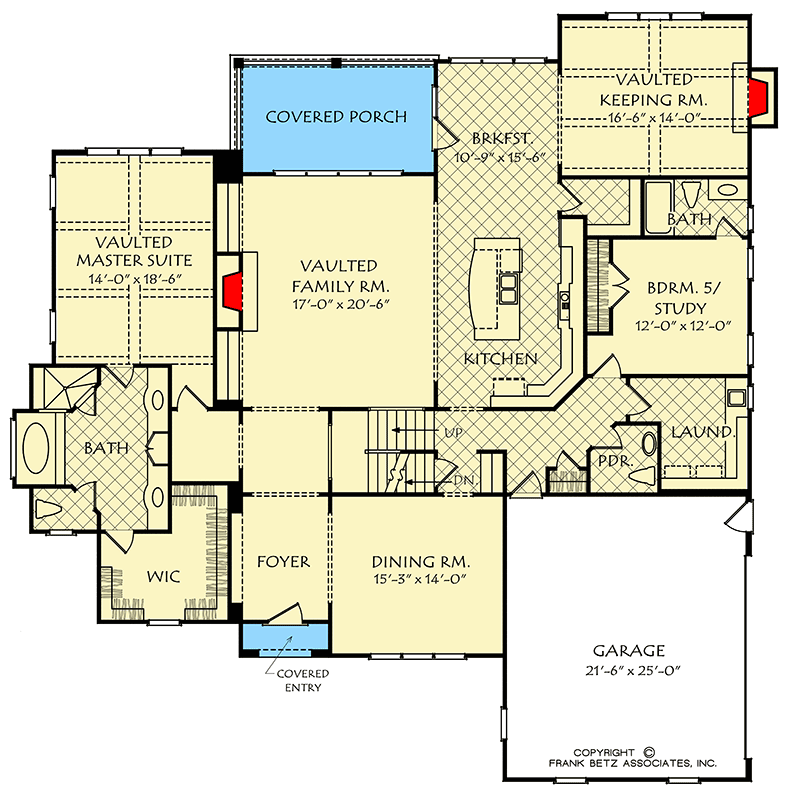

Tudor Home Plan with 4 or 5 Bedrooms - 710180BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

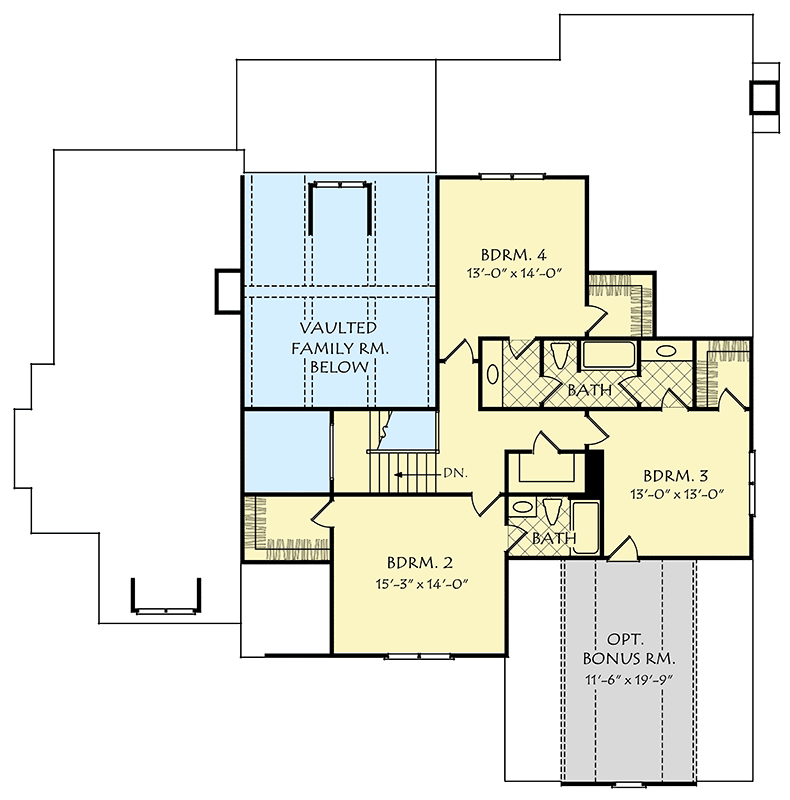

Tudor Home Plan with 4 or 5 Bedrooms - 710180BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,700 sq. ft.
  • 1st Floor: 2,674 sq. ft.
  • 2nd Floor: 1,026 sq. ft.
  • Bonus: 241 sq. ft.
  • Basement Unfinished: 2,674 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 67' 10"
  • Depth: 68' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 552 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

Tudor Home Plan with 4 or 5 Bedrooms

  • 3,700

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • 5 Sets + PDF $2,175
  • PDF - Unlimited Build $2,195
  • PDF - Unlimited Build + 5-sets $2,475
  • CAD - Unlimited Build $3,595
  • View all purchase option online

About This Plan

  • Tudor features were thoughtfully added to the exterior of this attractive 4 or 5 bed home plan.
  • The open floor plan on the main level creates an ideal space for entertaining.
  • A vaulted family room, eat-in kitchen and breakfast area are reached just through the foyer. A vaulted keeping room with its own fireplace is found off the kitchen and offers a cozy retreat.
  • Across the home, the vaulted master suite awaits and includes a spacious bath and walk-in closet.
  • The second floor houses three more bedrooms, two baths and an optional bonus room located just above the two-car garage.
  • Related Plans: Get an alternate exterior with house plan 71078BTZ and 710179BTZ.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,700 sq. ft.
  • 1st Floor: 2,674 sq. ft.
  • 2nd Floor: 1,026 sq. ft.
  • Bonus: 241 sq. ft.
  • Basement Unfinished: 2,674 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 67' 10"
  • Depth: 68' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 552 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
Plan 710180BTZ
