Plan 290071IY
Traditional House Plan with Open Layout
Heated S.F.
2,161
Beds
3-5
Baths
2.5 - 3.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS

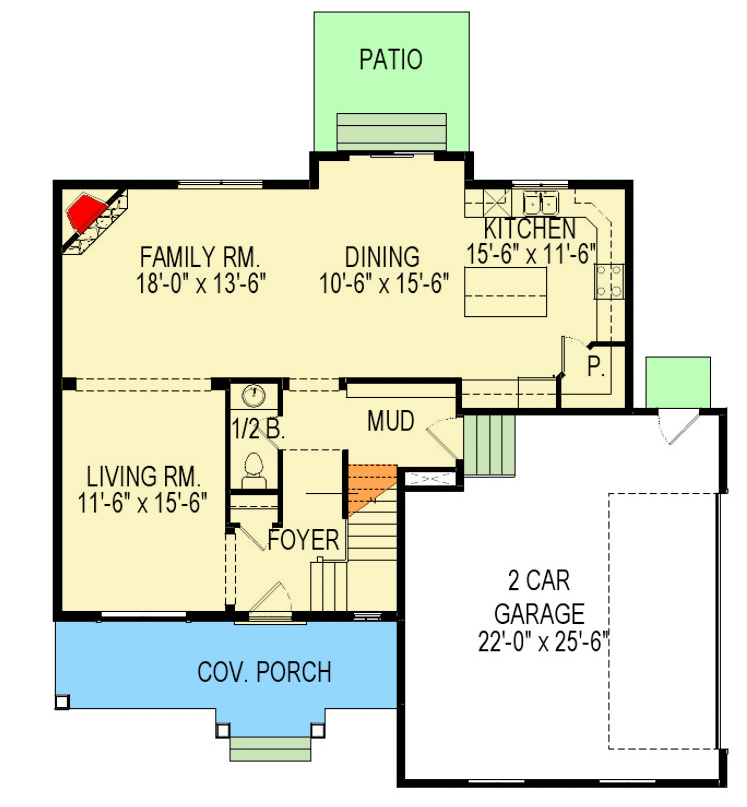

Main Level
Reverse Floor Plan
Traditional House Plan with Open Layout - 290071IY floor plan - Main Level

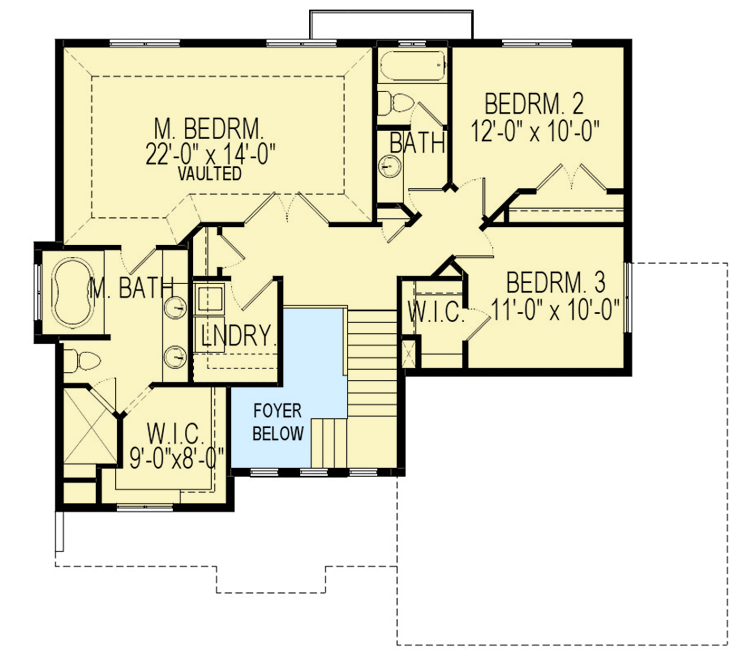

2nd Floor
Reverse Floor Plan
Traditional House Plan with Open Layout - 290071IY floor plan - 2nd Floor

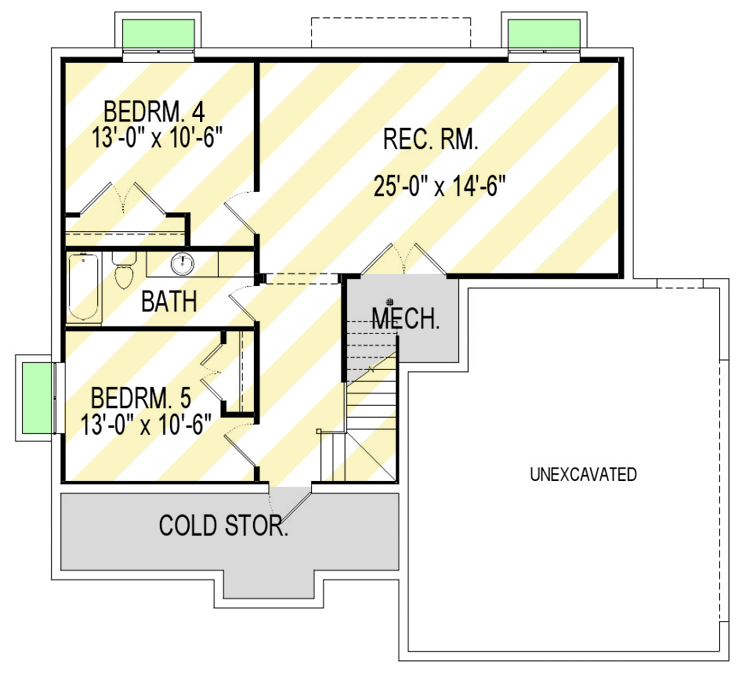

Optional Lower Level
Reverse Floor Plan
Traditional House Plan with Open Layout - 290071IY floor plan - Optional Lower Level
Plan Details
  • This Traditional house plan is ideal for entertaining with its open, flowing layout.
  • You can start off in the formal living room and spread out to the big family room with its corner fireplace.
  • Head outside through the sliding glass doors in the dining area.
  • The kitchen benefits from a big island, walk-in pantry and double windows by the sink that overlook the back yard.
  • On the upper floor you get a second floor laundry room and a gorgeous, large master suite with a vaulted ceiling.
  • Finish the optional lower level to gain two more bedrooms  and a huge rec room that the whole family will enjoy.
What's Included
This plan set has 26 pages as follows:
  • Cover Page
  • Project Notes
  • Complete Schedule
  • Lower level floor plan (2 Pages)
  • Main level floor plan (2 Pages)
  • Upper level floor plan (2 Pages)
  • Reflected floor plans (3 Pages)
  • Front and rear elevations
  • Side elevations
  • Perspective Views
  • Building Section (2 Pages)
  • Architectural Details (2 Pages)
  • Roof Plan
  • Electrical plans (6 Pages)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional House Plan with Open Layout

  • 2,161

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,161 sq. ft.
  • 1st Floor: 1,058 sq. ft.
  • 2nd Floor: 1,103 sq. ft.

Dimensions

  • Width: 47' 1"
  • Depth: 44' 5"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 574 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
