Plan 42383DB

  • 1,995

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This traditional 3 bed house plan has an added bonus of an optional 4th bedroom on the second floor. Combined with the flex room on the main floor the house can suit all kinds of families.
  • A covered front porch greets you as you enter the home. A bench and coat closet inside help reduce clutter. French doors on the right go to the flex room which could make a great den or home office.
  • The back of the home has an open floor plan. The kitchen has views that extend across the eating area and family room with 2-sided fireplace.
  • The master bedroom is on the main floor and there is laundry and a drop zone off the garage entrance as well.
  • Upstairs you'll find two bedrooms and a Jack-and-Jill bath plus that optional 4th bedroom.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Plan details



Traditional House Plan with Optional 4th Bedroom and Flex Room

  • 1,995

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $975
  • 5 Sets $1,100
  • 8 Sets $1,170
  • PDF - multi-use $1,475
  • CAD $1,706
  • CAD - multi-use $2,206
  • View all purchase option online

About This Plan

  • This traditional 3 bed house plan has an added bonus of an optional 4th bedroom on the second floor. Combined with the flex room on the main floor the house can suit all kinds of families.
  • A covered front porch greets you as you enter the home. A bench and coat closet inside help reduce clutter. French doors on the right go to the flex room which could make a great den or home office.
  • The back of the home has an open floor plan. The kitchen has views that extend across the eating area and family room with 2-sided fireplace.
  • The master bedroom is on the main floor and there is laundry and a drop zone off the garage entrance as well.
  • Upstairs you'll find two bedrooms and a Jack-and-Jill bath plus that optional 4th bedroom.

Floor Plans

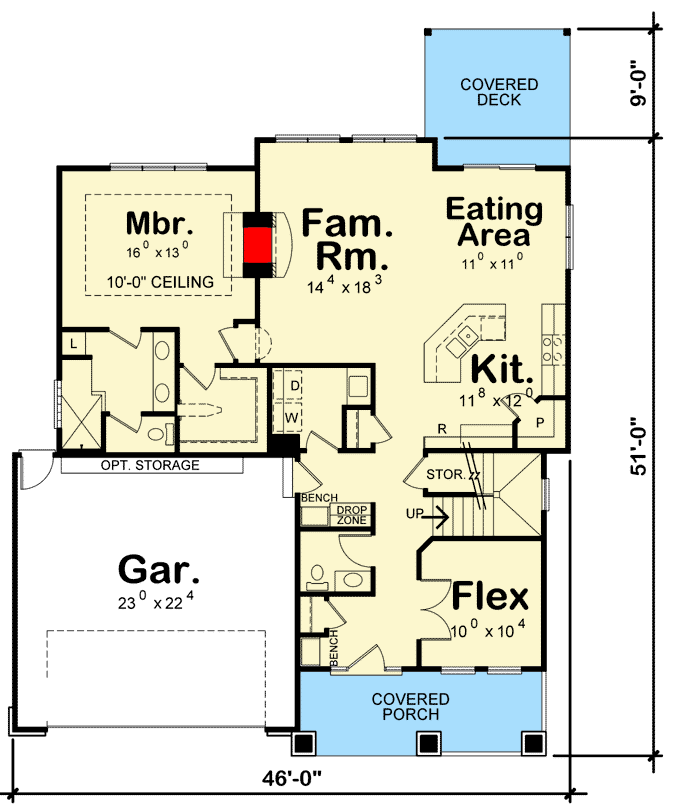

  • Main Level

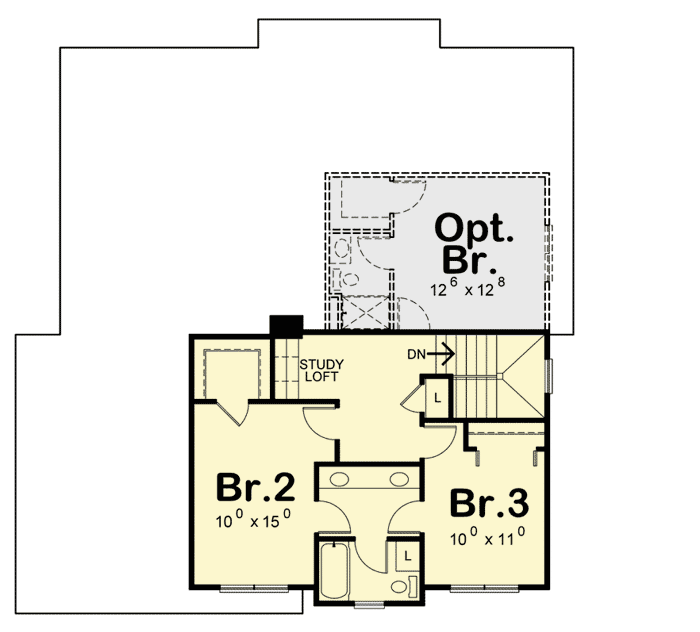

  • 2nd Floor

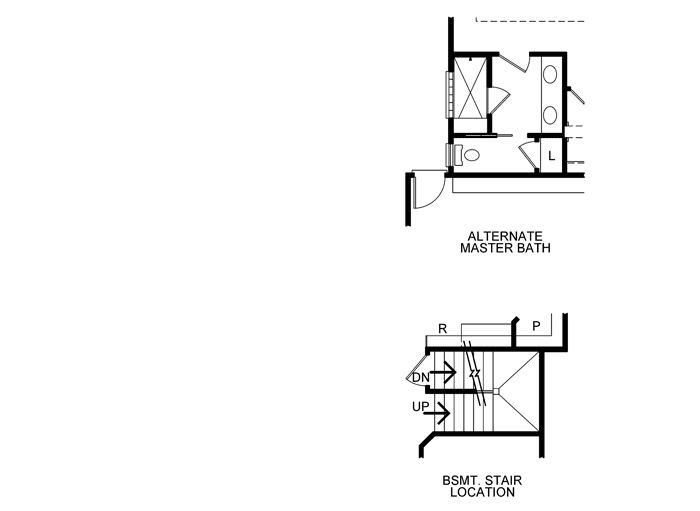

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,995 sq. ft.
  • 1st Floor: 1,415 sq. ft.
  • 2nd Floor: 580 sq. ft.
  • Bonus: 239 sq. ft.
  • Porch, Combined: 279 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 46' 0"
  • Depth: 60' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 532 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12

Architectural Style

  • Traditional

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • PDF
