Plan 42628DB Split Bedroom One-Story House Plan with Side Wraparound Porch

Split Bedroom One-Story House Plan with Side Wraparound Porch

Plan 42628DB

  • 1,359

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • This split bedroom one-story house plan has a porch that wraps around the right side of the home and a 3-car garage.
  • The family room is open to the kitchen and dining room and has views to the porch in back.
  • The master suite is separated from the other bedrooms for privacy and has a walk-in closet. Across the home, two bedrooms are separated by a shared bath.
  • Sliding glass doors in the dining room lead out to the rear of your lot.
  • Related Plans: Get a 2-car garage and an alternate exterior with house plans 42283DB and 42284DB (1,265 sq. ft).

Most plans include the following:


Cover Page:
Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

Elevations:
Scaled elevations for the front, rear, and sides are provided. All elevations are detailed, and an aerial view of the roof is provided.

Foundations:
Foundations are fully engineered for each design, whether slab or basement.

Main Level Floor Plan:
The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact us to clarify the standard exterior wall thickness for the plan(s) you are interested in.

Second Level Floor Plan (if any):
Dimensioned and drafted to the same degree of detail as the main level floor plan*.

Electrical and Sections:
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

Full technical support is provided to purchasers of each plan to answer your plan-related questions.

*Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

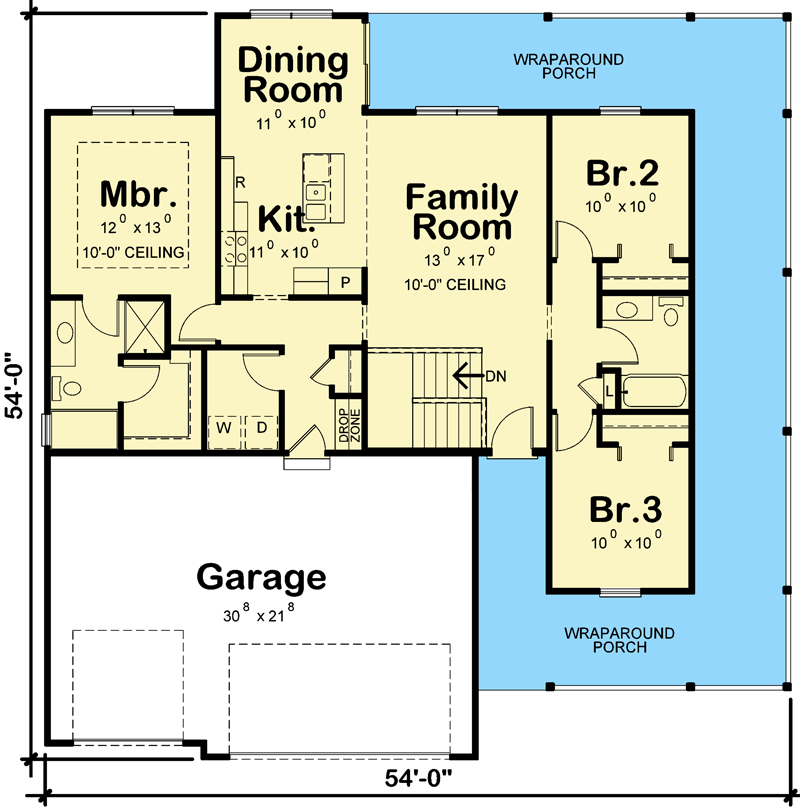

Split Bedroom One-Story House Plan with Side Wraparound Porch - 42628DB floor plan - Main Level

Plan details

Split Bedroom One-Story House Plan with Side Wraparound Porch

  • 1,359

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $620
  • PDF - Single-Build $955
  • PDF - Unlimited Build $1,455
  • CAD - Single-Build $1,650
  • CAD - Unlimited Build $2,150
  • View all purchase option online

About This Plan

  • This split bedroom one-story house plan has a porch that wraps around the right side of the home and a 3-car garage.
  • The family room is open to the kitchen and dining room and has views to the porch in back.
  • The master suite is separated from the other bedrooms for privacy and has a walk-in closet. Across the home, two bedrooms are separated by a shared bath.
  • Sliding glass doors in the dining room lead out to the rear of your lot.
  • Related Plans: Get a 2-car garage and an alternate exterior with house plans 42283DB and 42284DB (1,265 sq. ft).

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,359 sq. ft.
  • 1st Floor: 1,359 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 54' 0"
  • Max ridge height: 22' 4"

Garage

  • Type: Attached
  • Area: 678 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
