Plan 370003SEN

Traditional House Plan with Optional Finished Lower Level

2,403 3-5 3 + 1 3
Pageloader

Traditional House Plan with Optional Finished Lower Level

Plan 370003SEN

  • 2,403

    Heated s.f.

  • 3-5

    Beds

  • 3 +

    Baths

  • 1

    Stories

  • 3

    Cars

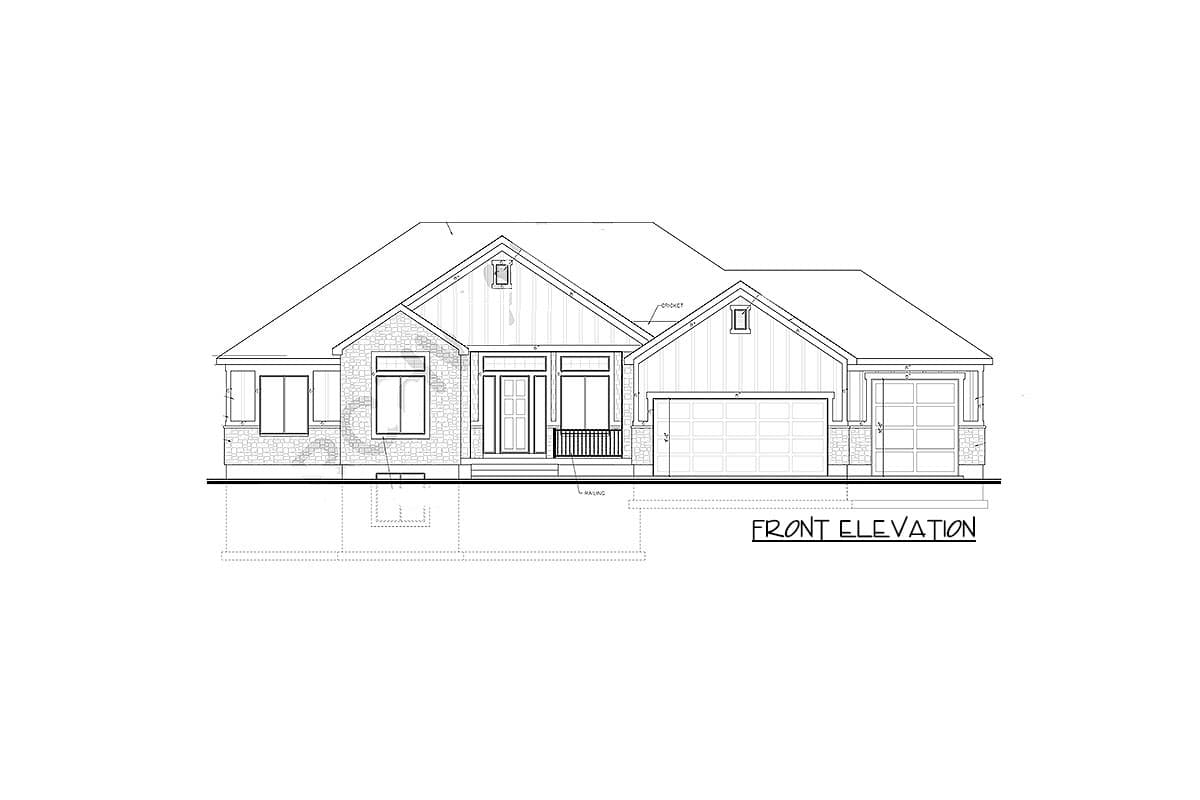

  • Prominent, forward-facing gable roofs draw your eye upward when gazing at this traditional house plan, while stone accents add character to the timeless facade.
  • Upon entering, the shared living spaces are combined providing an open-concept floor plan, and the sleeping rooms can be found to the left.
  • The eat-in kitchen offers additional seating at the oversized island and the U-shaped counters provide ample workspace. Allow guests to spill out to the covered deck when entertaining or unwind near the fireplace.
  • The main-level, master bedroom provides views of the backyard, and an ensuite with a garden tub, toilet room with a pocket door, and a walk-in closet.
  • Two secondary bedrooms reside across the hall and share a full bathroom.
  • The optional, walk-out basement makes this perfect for a sloped lot, and features a sizable family room with a kitchenette, recreation room, and craft room. Two additional bedrooms and a full bathroom are also included on the lower level.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

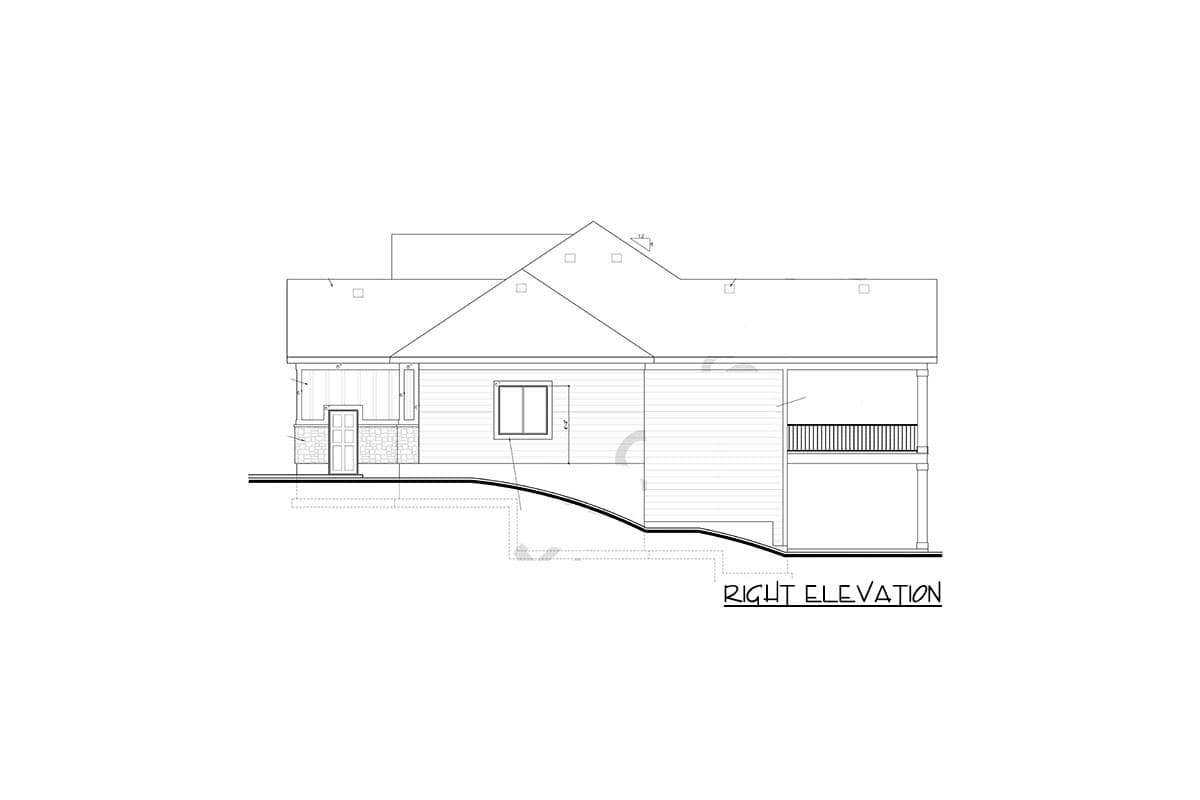

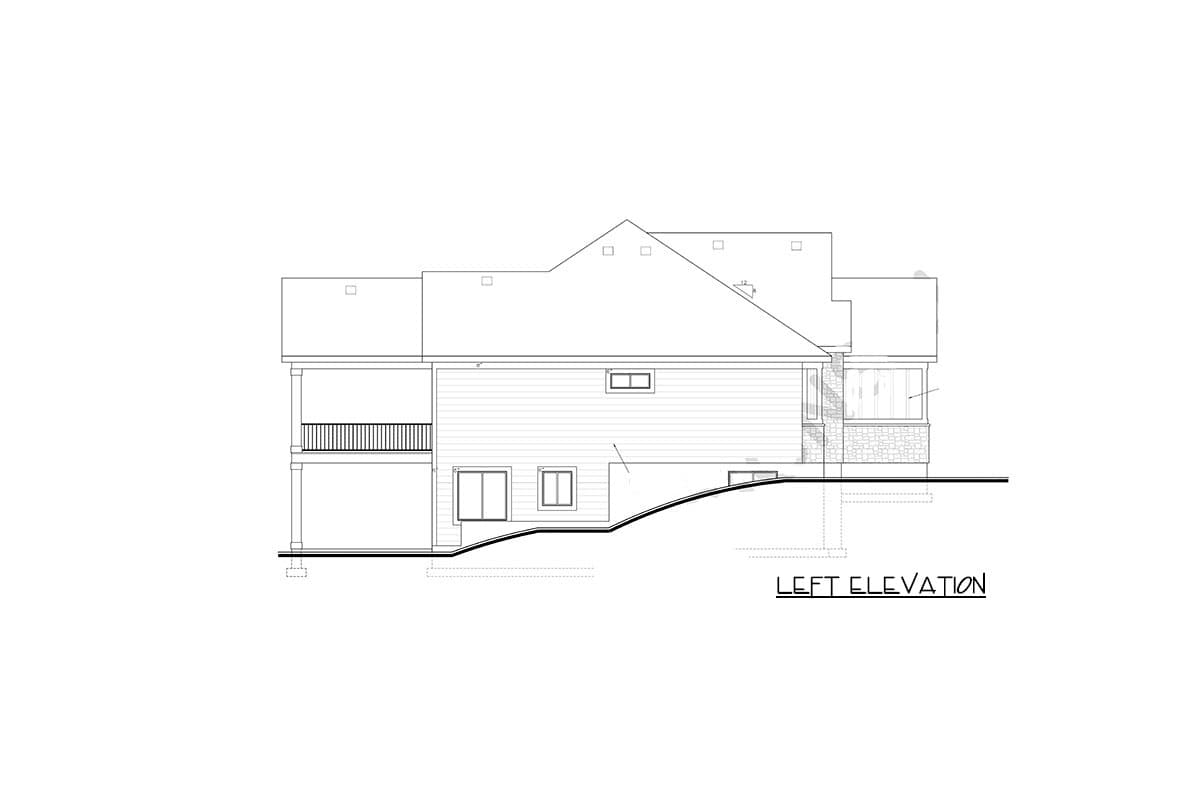

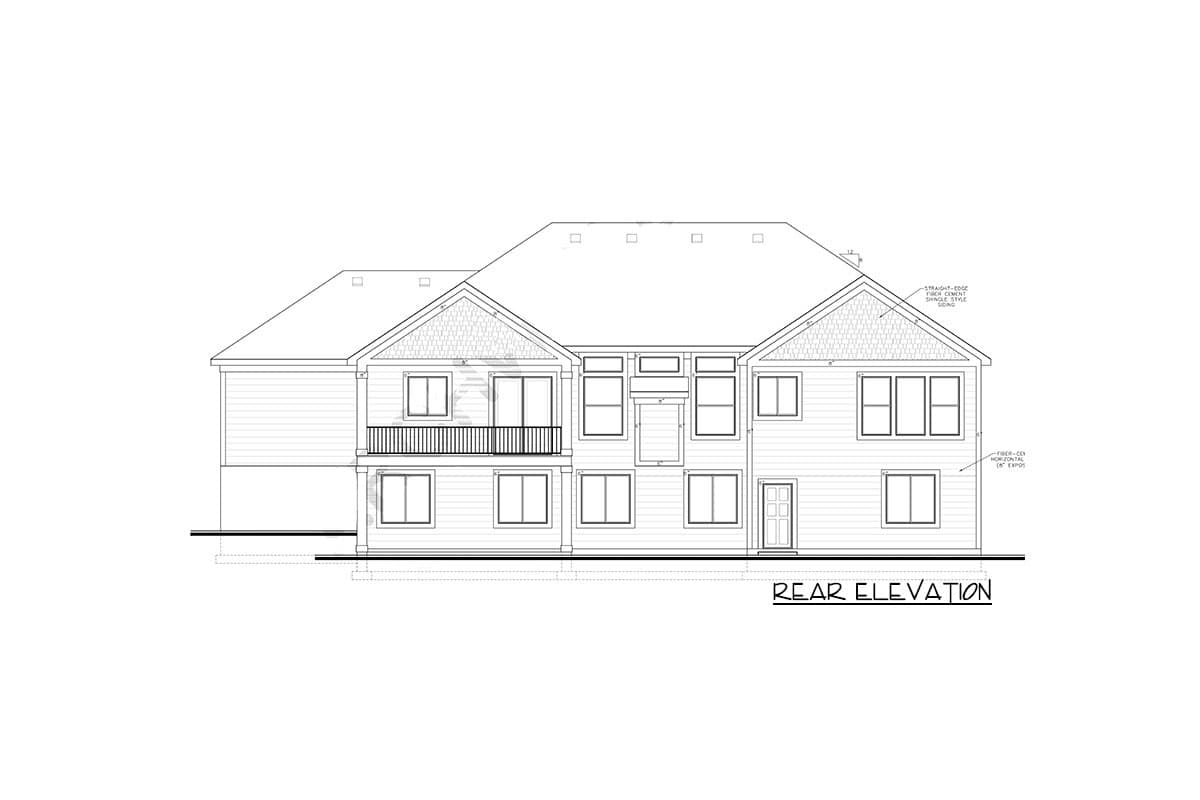

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Exterior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

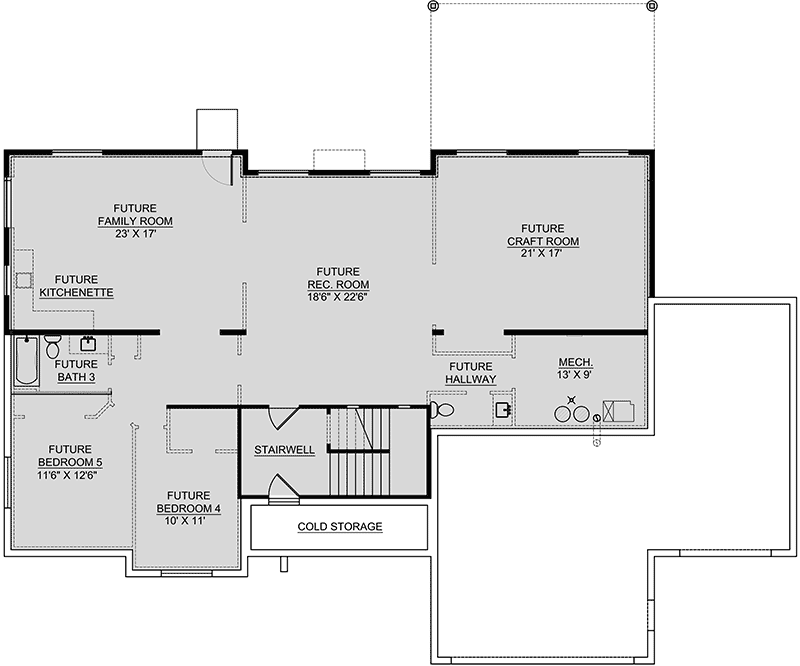

Optional Lower Level

Pinit white
Traditional House Plan with Optional Finished  Lower Level - 370003SEN floor plan - Optional Lower Level

Plan details



Traditional House Plan with Optional Finished Lower Level

  • 2,403

    Heated s.f.

  • 3 - 5

    Beds

  • 3 +

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,201
  • 5 Sets $1,301
  • CAD $1,701
  • View all purchase option online

About This Plan

  • Prominent, forward-facing gable roofs draw your eye upward when gazing at this traditional house plan, while stone accents add character to the timeless facade.
  • Upon entering, the shared living spaces are combined providing an open-concept floor plan, and the sleeping rooms can be found to the left.
  • The eat-in kitchen offers additional seating at the oversized island and the U-shaped counters provide ample workspace. Allow guests to spill out to the covered deck when entertaining or unwind near the fireplace.
  • The main-level, master bedroom provides views of the backyard, and an ensuite with a garden tub, toilet room with a pocket door, and a walk-in closet.
  • Two secondary bedrooms reside across the hall and share a full bathroom.
  • The optional, walk-out basement makes this perfect for a sloped lot, and features a sizable family room with a kitchenette, recreation room, and craft room. Two additional bedrooms and a full bathroom are also included on the lower level.

Floor Plans

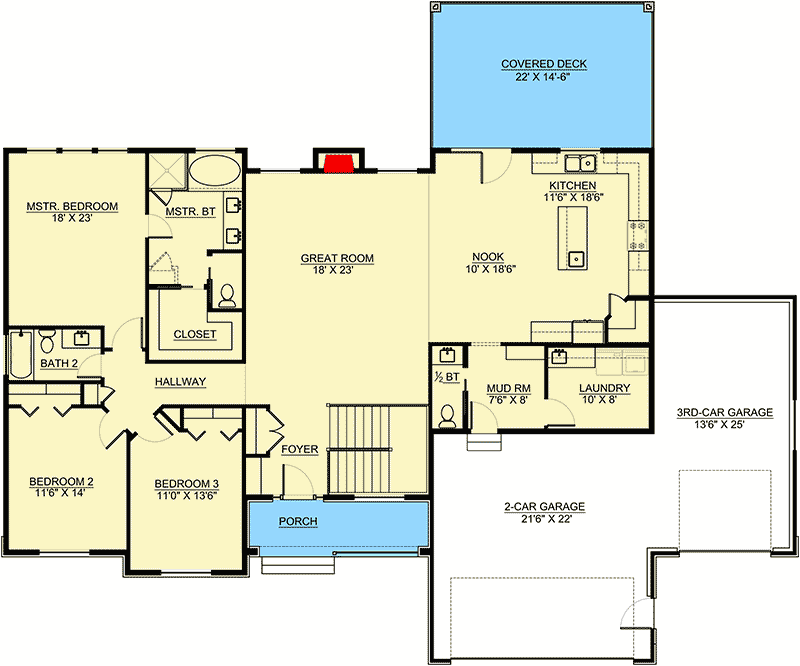

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,403 sq. ft.
  • Lower Level: 192 sq. ft.
  • 1st Floor: 2,211 sq. ft.
  • Deck: 319 sq. ft.
  • Optional Lower Level: 2,007 sq. ft.
  • Cold Storage: 94 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 0"
  • Depth: 58' 7"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 850 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 1"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

  • Ranch
  • Traditional

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Media-Game-Home Theater
  • PDF
