Plan 40631DB

Traditional House Plan with Options

2,155 3 2.5 2 2
Pageloader

Traditional House Plan with Options

Plan 40631DB

  • 2,155

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

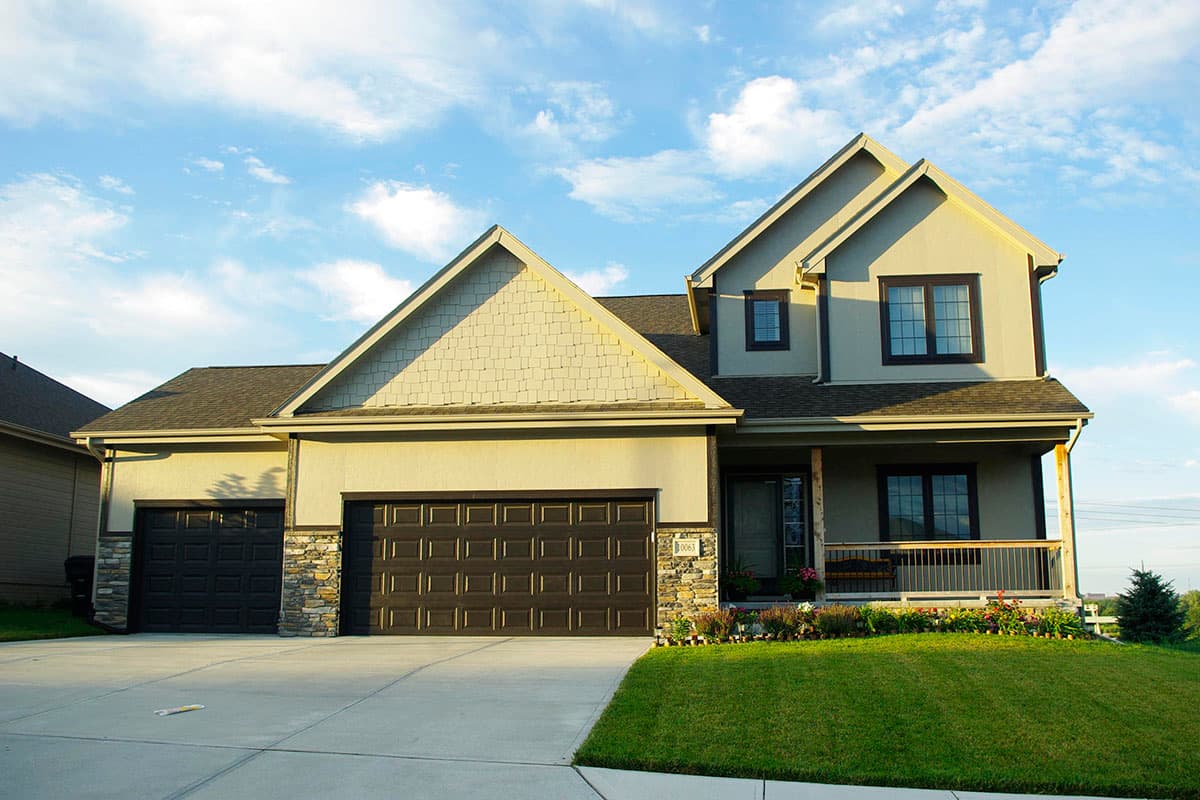

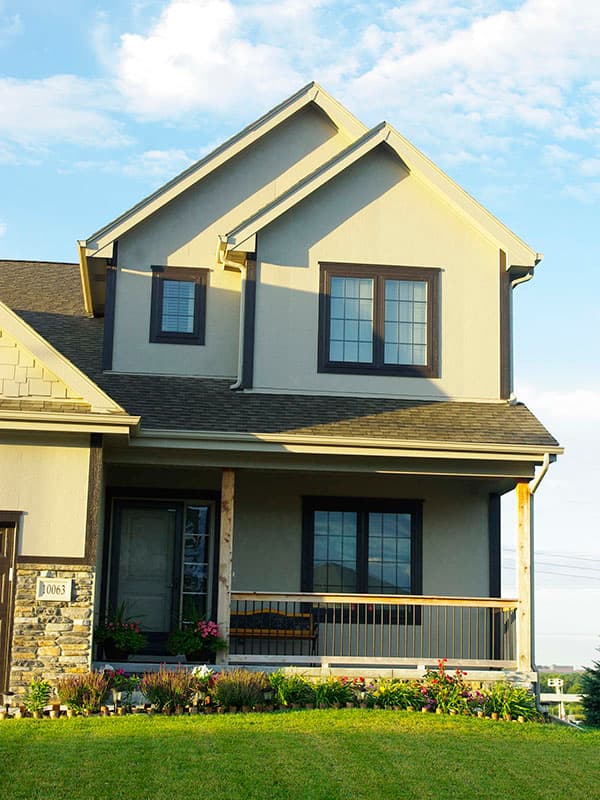

  • Thoughtfully designed, this Traditional house plan comes with extra features like a giant walk-in pantry off the kitchen, bench seating in the mud room, a built-in entertainment center and built-in desk on the second floor.
  • The main living area is one long, open expanse that stretches the full 40' width of the house so you can see the family room fireplace all the way from the kitchen.
  • Upstairs, all three bedrooms receive walk-in closets.
  • The plan comes with an optional master bathroom layout and an optional music room instead of den.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

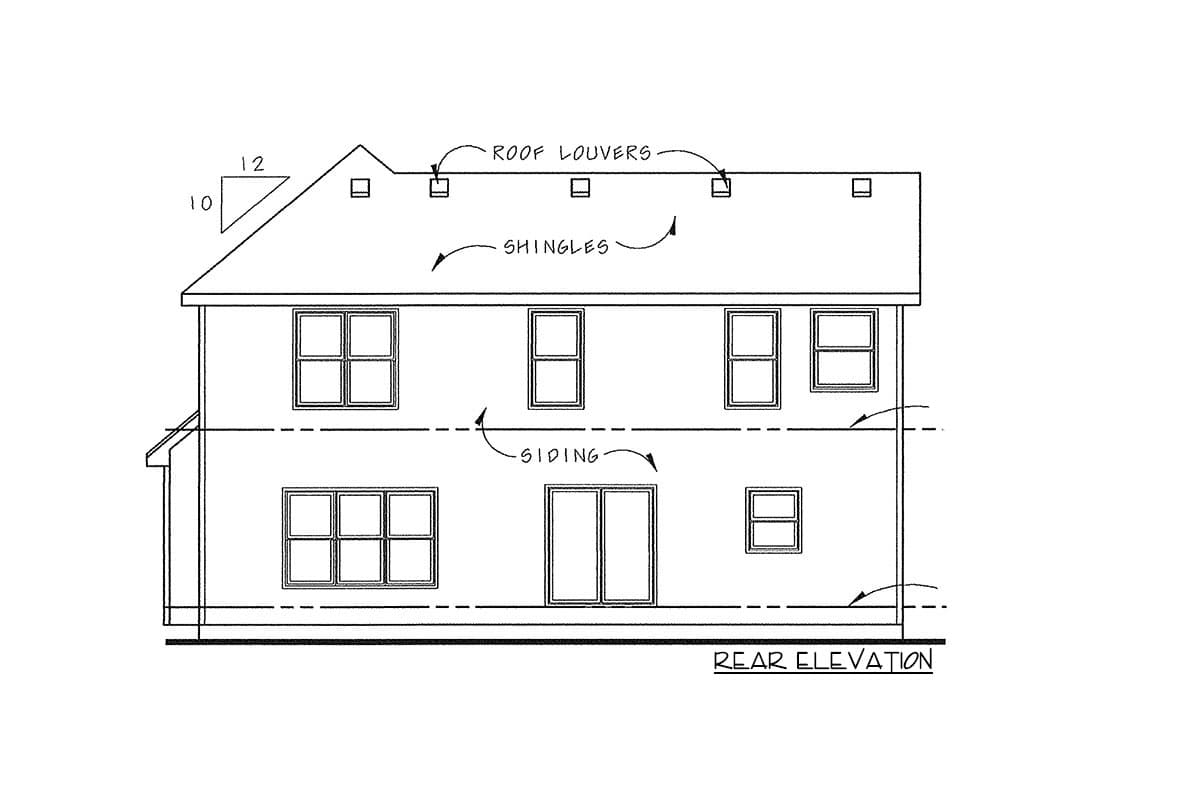

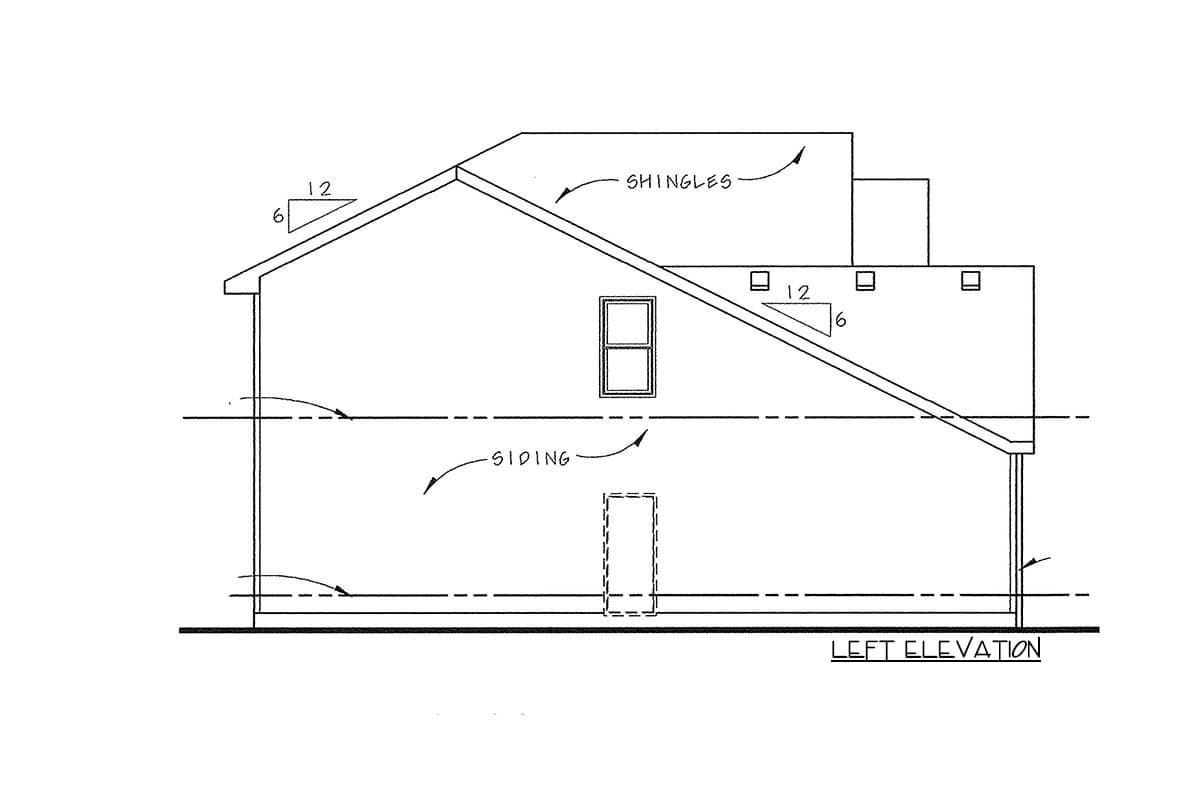

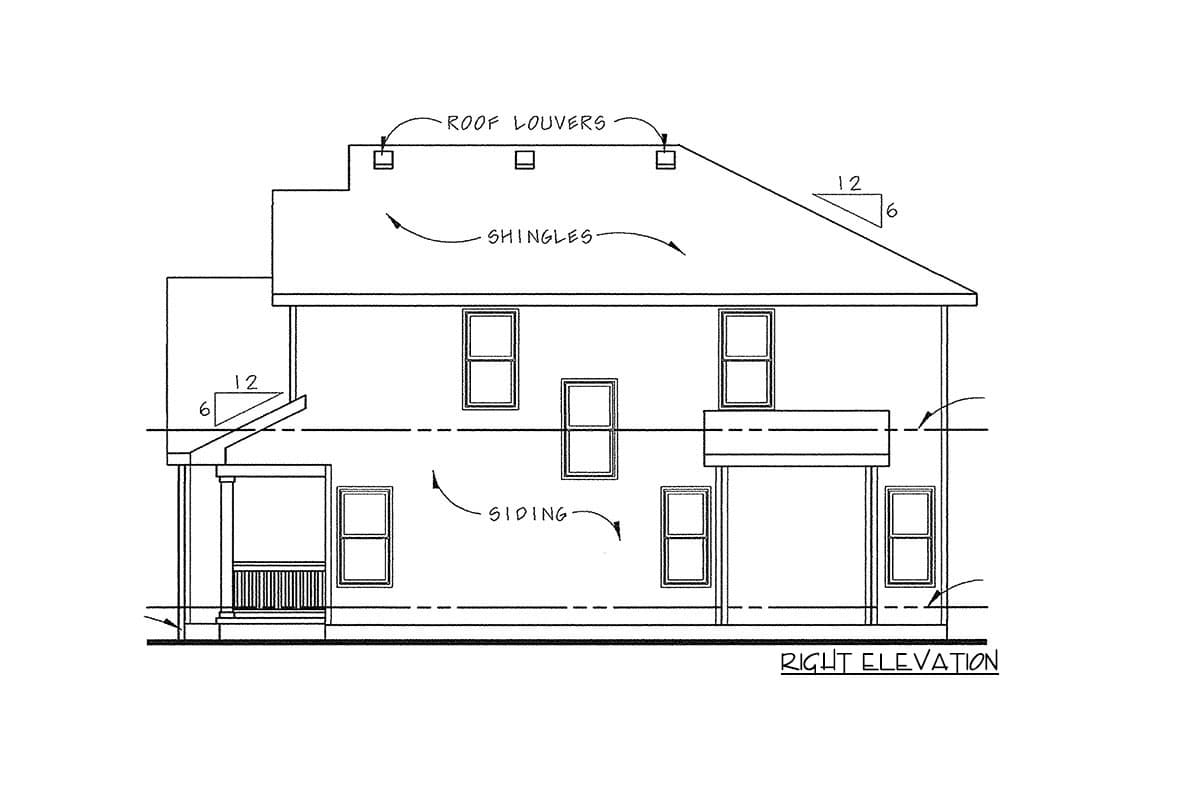

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Plan details



Traditional House Plan with Options

  • 2,155

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $650
  • PDF - single-use $995
  • 5 Sets $1,120
  • 8 Sets $1,190
  • PDF - multi-use $1,495
  • View all purchase option online

About This Plan

  • Thoughtfully designed, this Traditional house plan comes with extra features like a giant walk-in pantry off the kitchen, bench seating in the mud room, a built-in entertainment center and built-in desk on the second floor.
  • The main living area is one long, open expanse that stretches the full 40' width of the house so you can see the family room fireplace all the way from the kitchen.
  • Upstairs, all three bedrooms receive walk-in closets.
  • The plan comes with an optional master bathroom layout and an optional music room instead of den.

Floor Plans

  • Main Level

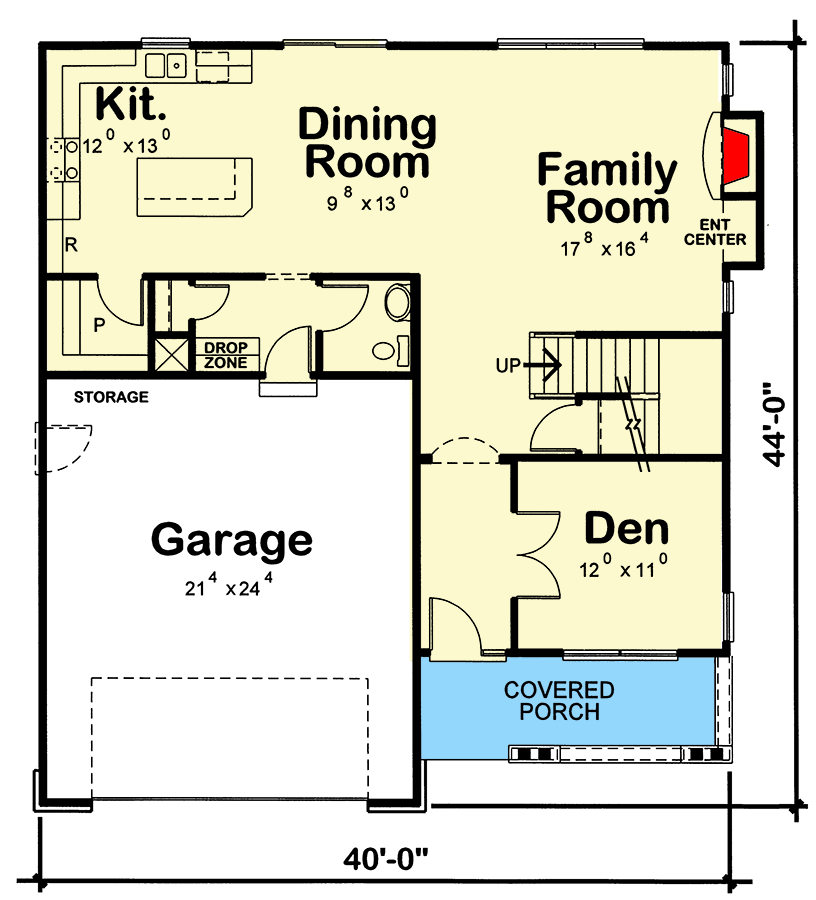

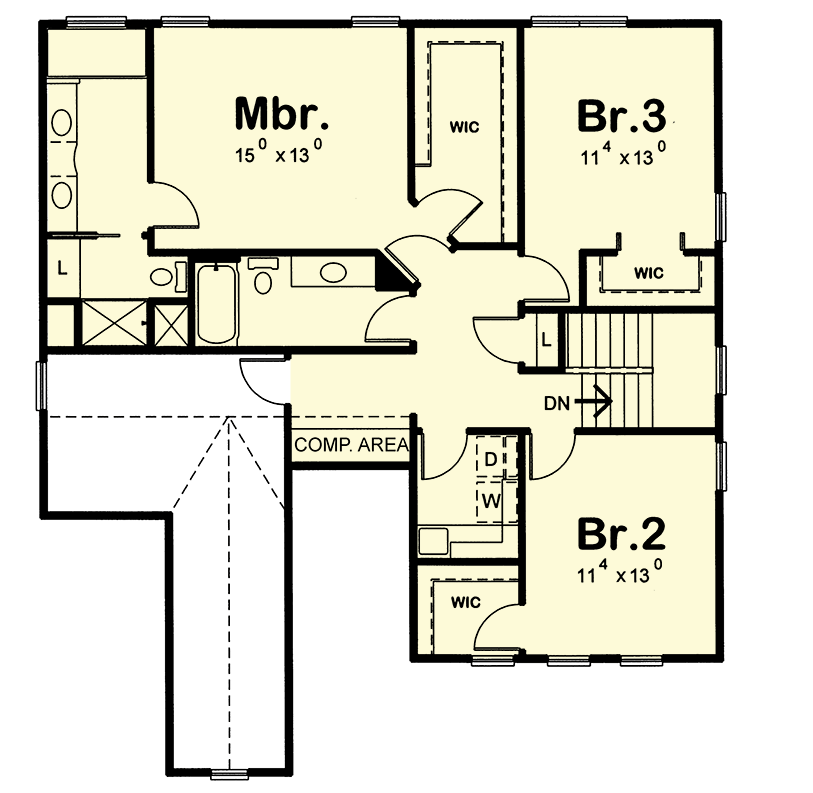

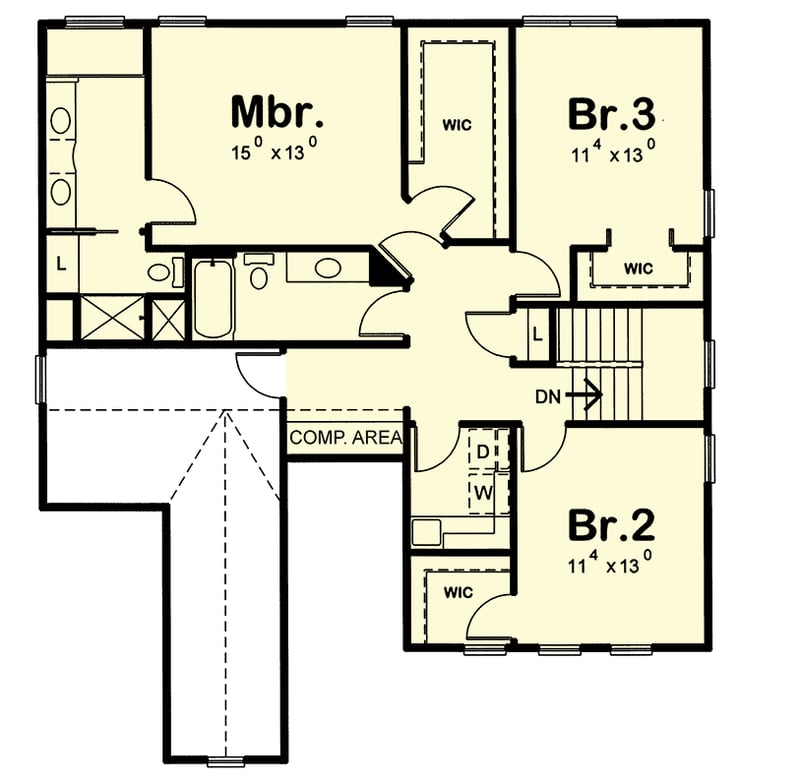

  • 2nd Floor

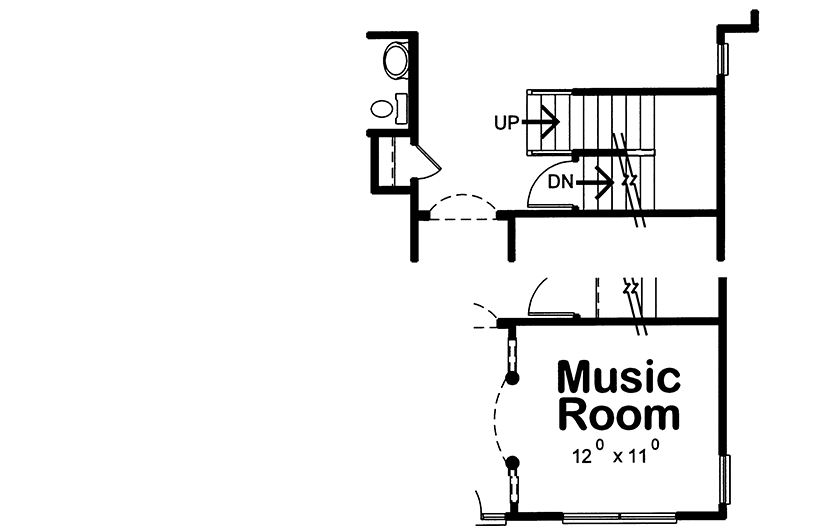

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,155 sq. ft.
  • 1st Floor: 1,075 sq. ft.
  • 2nd Floor: 1,080 sq. ft.
  • Porch, Front: 108 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 44' 0"

Garage

  • Type: Attached
  • Area: 537 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
