Traditional House Plan with Stately Presence

3,209 4 4 2 3
Pageloader

Traditional House Plan with Stately Presence

Plan 42391DB

  • 3,209

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • Brick and stone on the exterior give this Traditional house plan a stately presence.
  • Both the foyer and the family room have ceilings that rise up for two stories.
  • The home comes with a library and formal living room plus the informal family room that is open to the kitchen.
  • On the second floor, an open rail balcony lets you see down into the foyer and family room.
  • A gorgeous master suite boasts a double tray ceiling and an enormous walk-in closet.
  • Bedroom 4 offers a private bathroom while bedrooms 2 and 3 share a hall bathroom.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

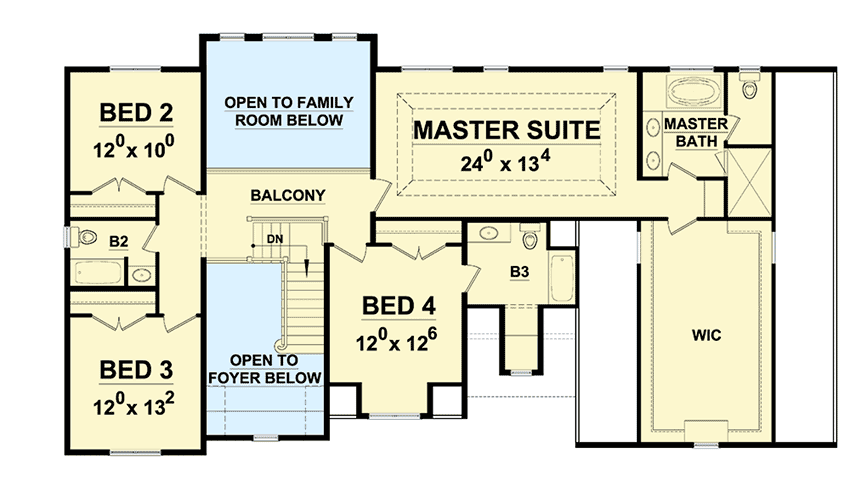

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



Traditional House Plan with Stately Presence

  • 3,209

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,105
  • 5 Sets $1,230
  • 8 Sets $1,300
  • PDF - multi-use $1,605
  • CAD $1,934
  • CAD - multi-use $2,434
  • View all purchase option online

About This Plan

  • Brick and stone on the exterior give this Traditional house plan a stately presence.
  • Both the foyer and the family room have ceilings that rise up for two stories.
  • The home comes with a library and formal living room plus the informal family room that is open to the kitchen.
  • On the second floor, an open rail balcony lets you see down into the foyer and family room.
  • A gorgeous master suite boasts a double tray ceiling and an enormous walk-in closet.
  • Bedroom 4 offers a private bathroom while bedrooms 2 and 3 share a hall bathroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,209 sq. ft.
  • 1st Floor: 1,550 sq. ft.
  • 2nd Floor: 1,659 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): Unknown

Dimensions

  • Width: 71' 0"
  • Depth: 38' 0"
  • Max ridge height: 36' 7"

Garage

  • Type: Attached
  • Area: 829 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Architectural Style

  • European
  • Traditional

Special features

  • 2nd Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • PDF
