Plan 62460DJ Traditional House Plan with Stone Accents

Traditional House Plan with Stone Accents

Plan 62460DJ

  • 3,887

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Stone accents, gentle arches, and subtly flared gables lend distinct European influences to this otherwise traditional-style, 1-1/2 story house plan.
  • A spacious entry hall greets guests with immediate vistas of the cathedral ceiling great room, brightened by a stunning array of windows on the rear wall.  Almost unnoticed, but greatly appreciated, is the entry hall's walk-in coat closet with built-in seat.
  • To the side of the great room, an expansive kitchen and dining area are flooded with natural light from large windows with views to the rear.  The kitchen boasts generous counter space, an island breakfast bar/workspace, and a pantry.  The dining area accesses the rear deck, which spans the entire width of the house.  Two portions of the deck are covered, allowing expanded options for outdoor entertaining.
  • Just off the kitchen, a sunlit hobby room with plenty of counter space awaits the next project.  On the other side of the kitchen, an alcove leads to the secluded reception area that accesses the 3-car garage.  This space includes two coat closets, a built-in seat, powder bath and stairway to the upper level.
  • On the opposite side of the home, the master suite is privately situated from the main living areas.  The bedroom is adorned by a cathedral ceiling and looks out onto the covered rear deck.   Double doors lead to a pampering bath area that features his-and-her vanities, a soaking tub, walk-in shower, compartmented toilet and large walk-in closet with built-in dresser.  Bedroom 2 resides down a hallway and has its own bath and a walk-in closet.  Both bedrooms are served by a centrally located laundry room with counter space and soaking sink.
  • The upper level primarily resides atop the garage and features a large office space brightened by dormer windows.  Adjacent to the office is a sunny library with built-in bookshelves.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.

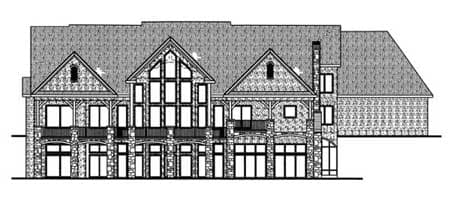

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

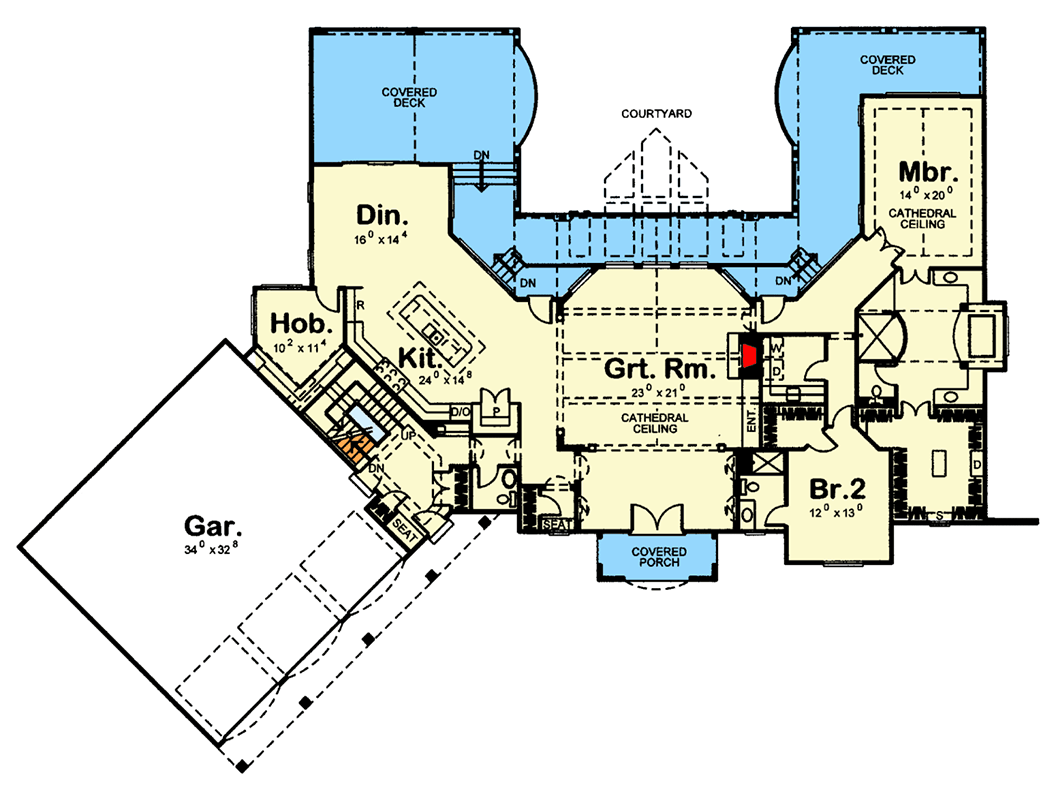

Traditional House Plan with Stone Accents - 62460DJ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

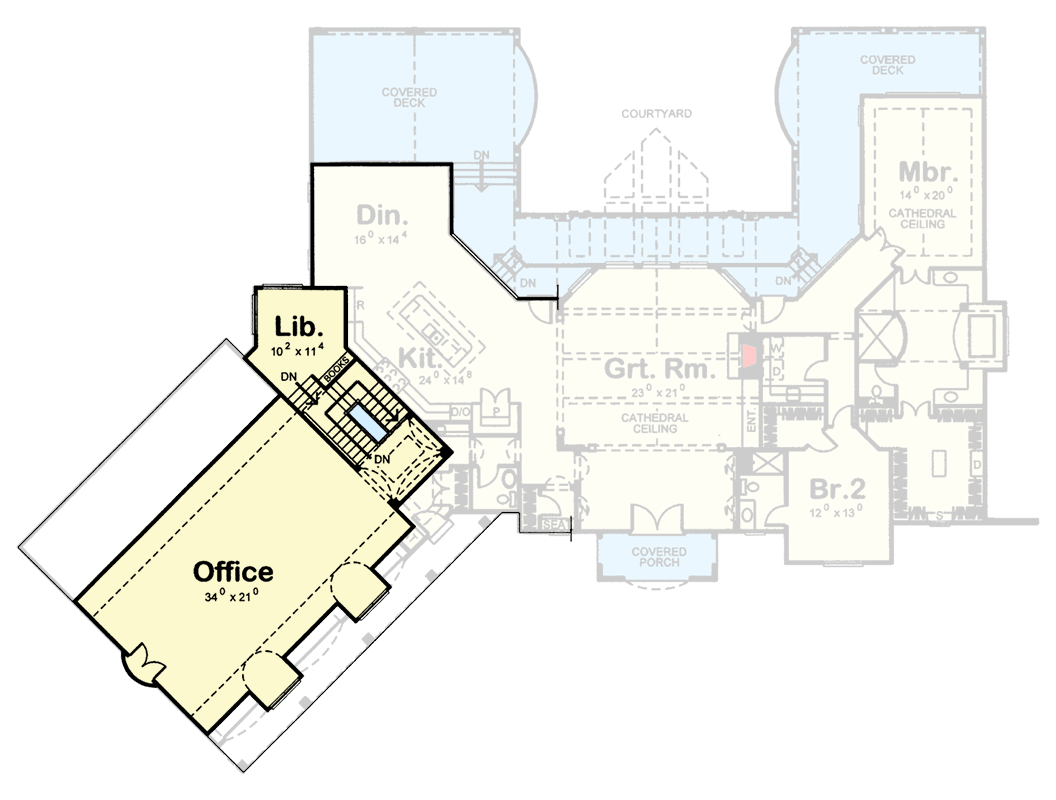

Traditional House Plan with Stone Accents - 62460DJ floor plan - 2nd Floor

Plan details

Architectural Style

Plan Collections

Traditional House Plan with Stone Accents

  • 3,887

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,500
  • 5 Sets + PDF $1,750
  • PDF - Unlimited Build $2,000
  • CAD - Single-Build $2,000
  • CAD - Unlimited Build $2,500
  • View all purchase option online

About This Plan

  • Stone accents, gentle arches, and subtly flared gables lend distinct European influences to this otherwise traditional-style, 1-1/2 story house plan.
  • A spacious entry hall greets guests with immediate vistas of the cathedral ceiling great room, brightened by a stunning array of windows on the rear wall.  Almost unnoticed, but greatly appreciated, is the entry hall's walk-in coat closet with built-in seat.
  • To the side of the great room, an expansive kitchen and dining area are flooded with natural light from large windows with views to the rear.  The kitchen boasts generous counter space, an island breakfast bar/workspace, and a pantry.  The dining area accesses the rear deck, which spans the entire width of the house.  Two portions of the deck are covered, allowing expanded options for outdoor entertaining.
  • Just off the kitchen, a sunlit hobby room with plenty of counter space awaits the next project.  On the other side of the kitchen, an alcove leads to the secluded reception area that accesses the 3-car garage.  This space includes two coat closets, a built-in seat, powder bath and stairway to the upper level.
  • On the opposite side of the home, the master suite is privately situated from the main living areas.  The bedroom is adorned by a cathedral ceiling and looks out onto the covered rear deck.   Double doors lead to a pampering bath area that features his-and-her vanities, a soaking tub, walk-in shower, compartmented toilet and large walk-in closet with built-in dresser.  Bedroom 2 resides down a hallway and has its own bath and a walk-in closet.  Both bedrooms are served by a centrally located laundry room with counter space and soaking sink.
  • The upper level primarily resides atop the garage and features a large office space brightened by dormer windows.  Adjacent to the office is a sunny library with built-in bookshelves.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,887 sq. ft.
  • 1st Floor: 2,872 sq. ft.
  • 2nd Floor: 1,015 sq. ft.
  • Deck: 1,085 sq. ft.
  • Porch, Rear: 79 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 116' 2"
  • Depth: 87' 8"
  • Max ridge height: 30' 7"

Garage

  • Type: Attached
  • Area: 1128 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
