Plan 623349DJ
Traditional House Plan with Three Gabled Dormers Above Front Porch - 1874 Sq Ft
Heated S.F.
1,874
Beds
3
Baths
2
Stories
1
Cars
2
Tour
Floor Plan

Plan 623349DJ

Main Level
slide image 0

Plan 623349DJ

1-800-854-7852

1-262-521-4596

Main Level

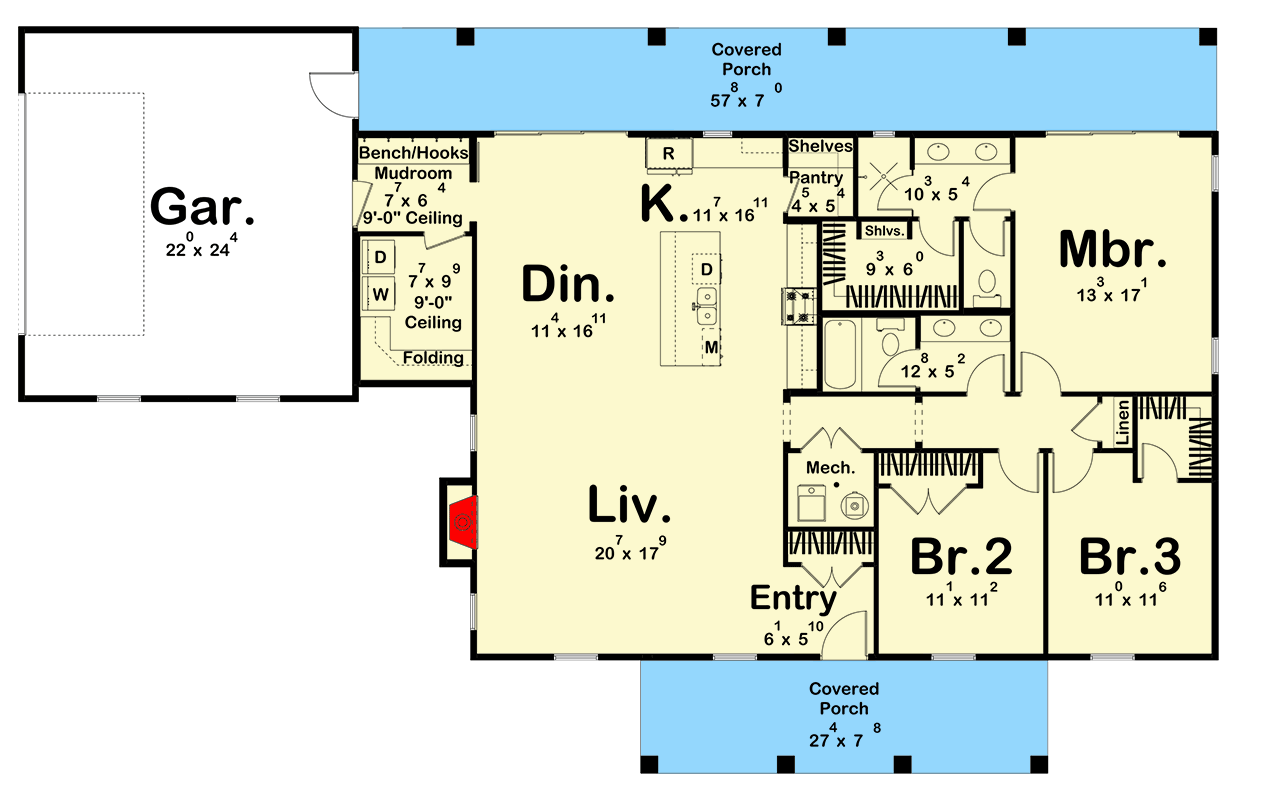

floor plan image Main Level
Plan Details

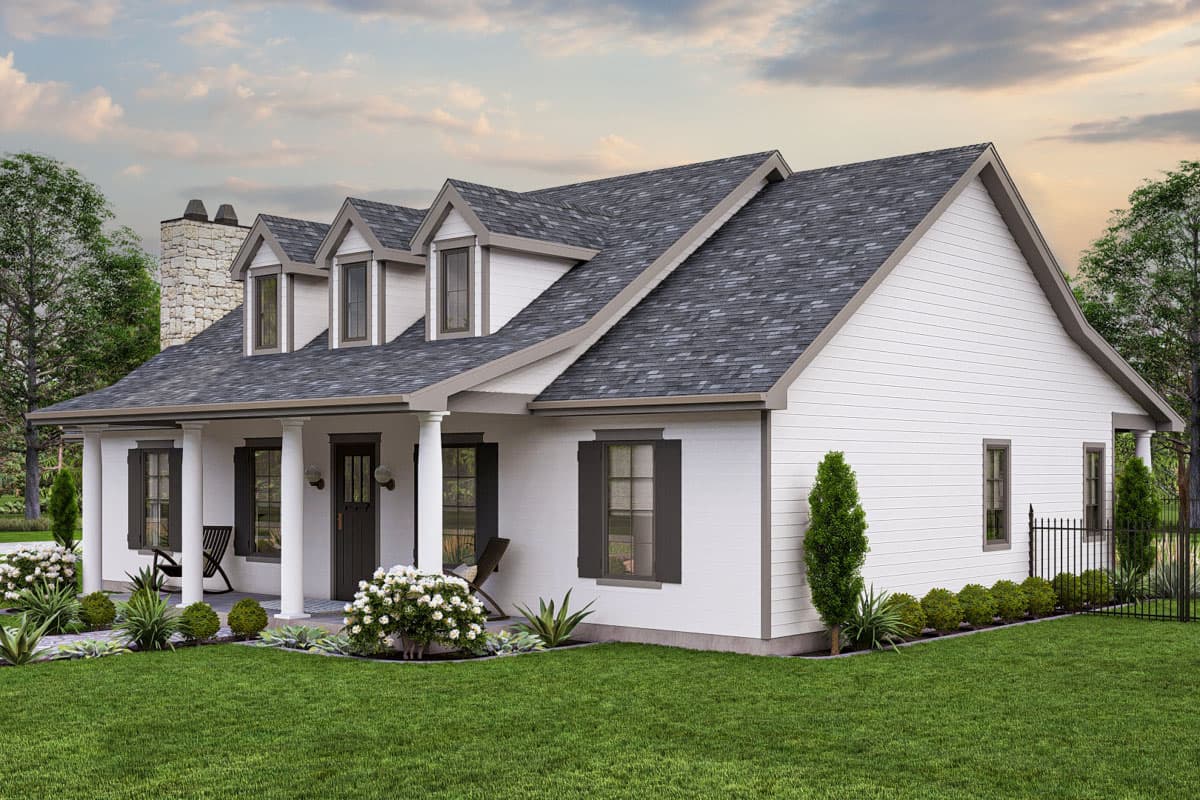

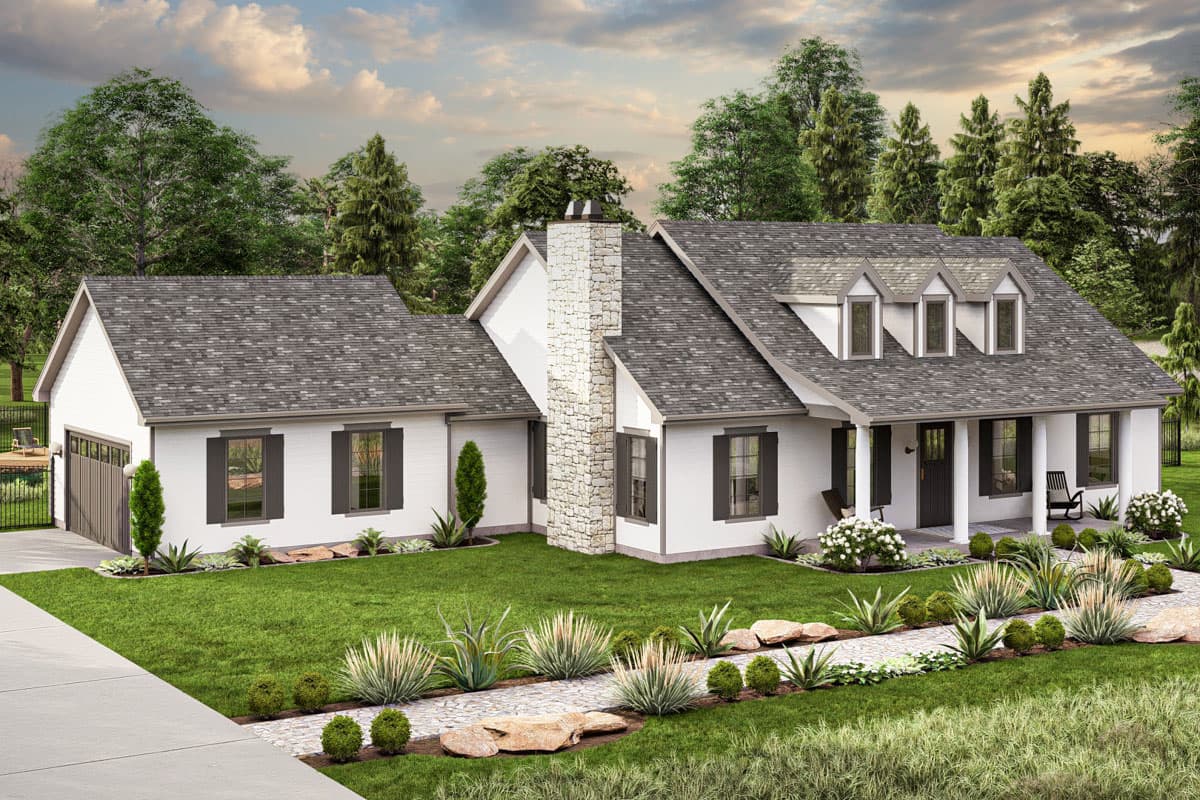

  • This 3 bed, 2 bath house plan gives you 1,874 square feet of heated living. The front door is centered on the 27'4" by 7'8" front porch with three gabled dormers (there for aesthetics) above adding to the curb appeal.

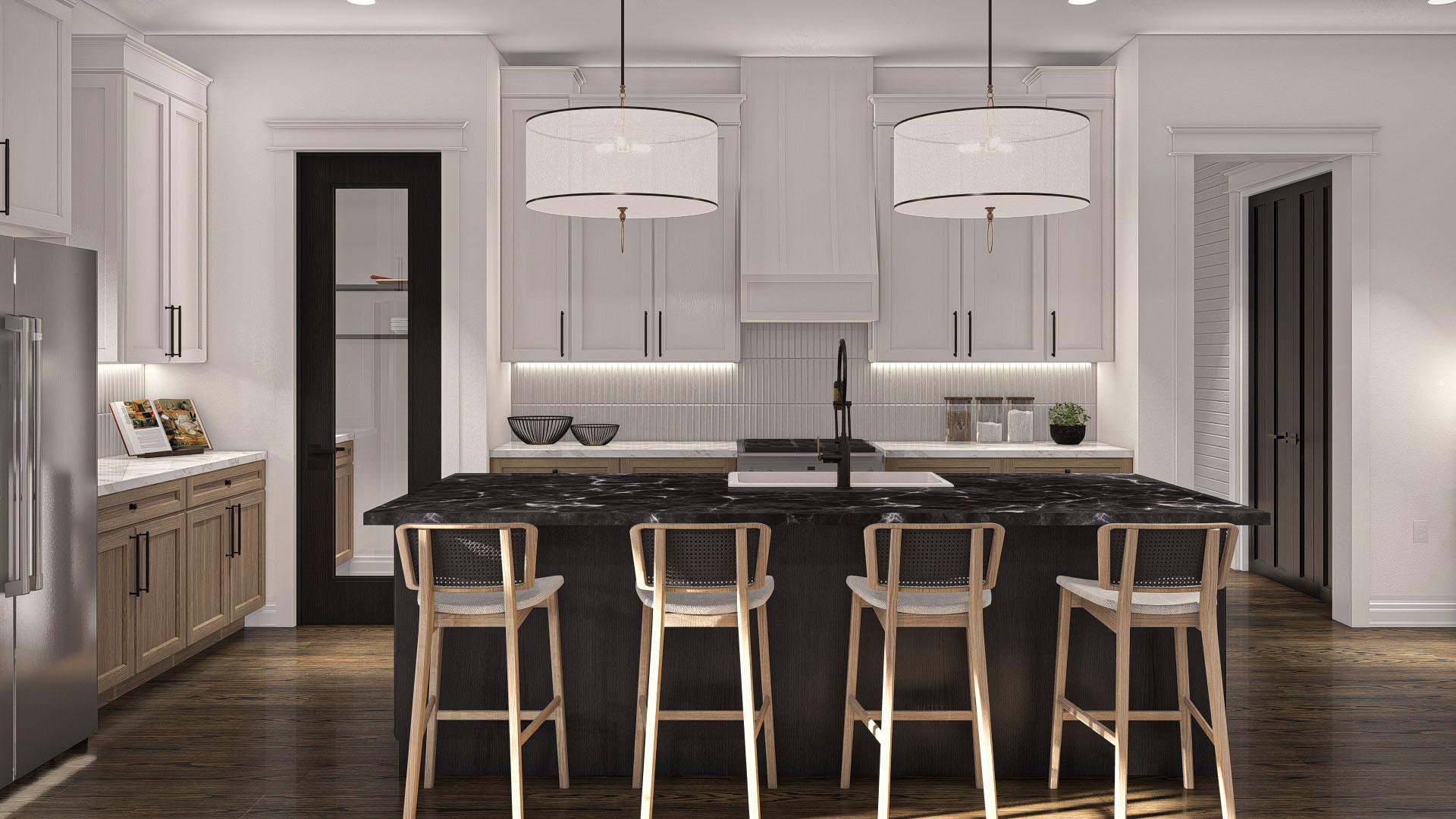

  • The open concept layout seamlessly combines the living room, dining area, and kitchen, creating a spacious and inviting atmosphere. This design fosters connectivity and makes entertaining a breeze, allowing family members and guests to interact effortlessly.

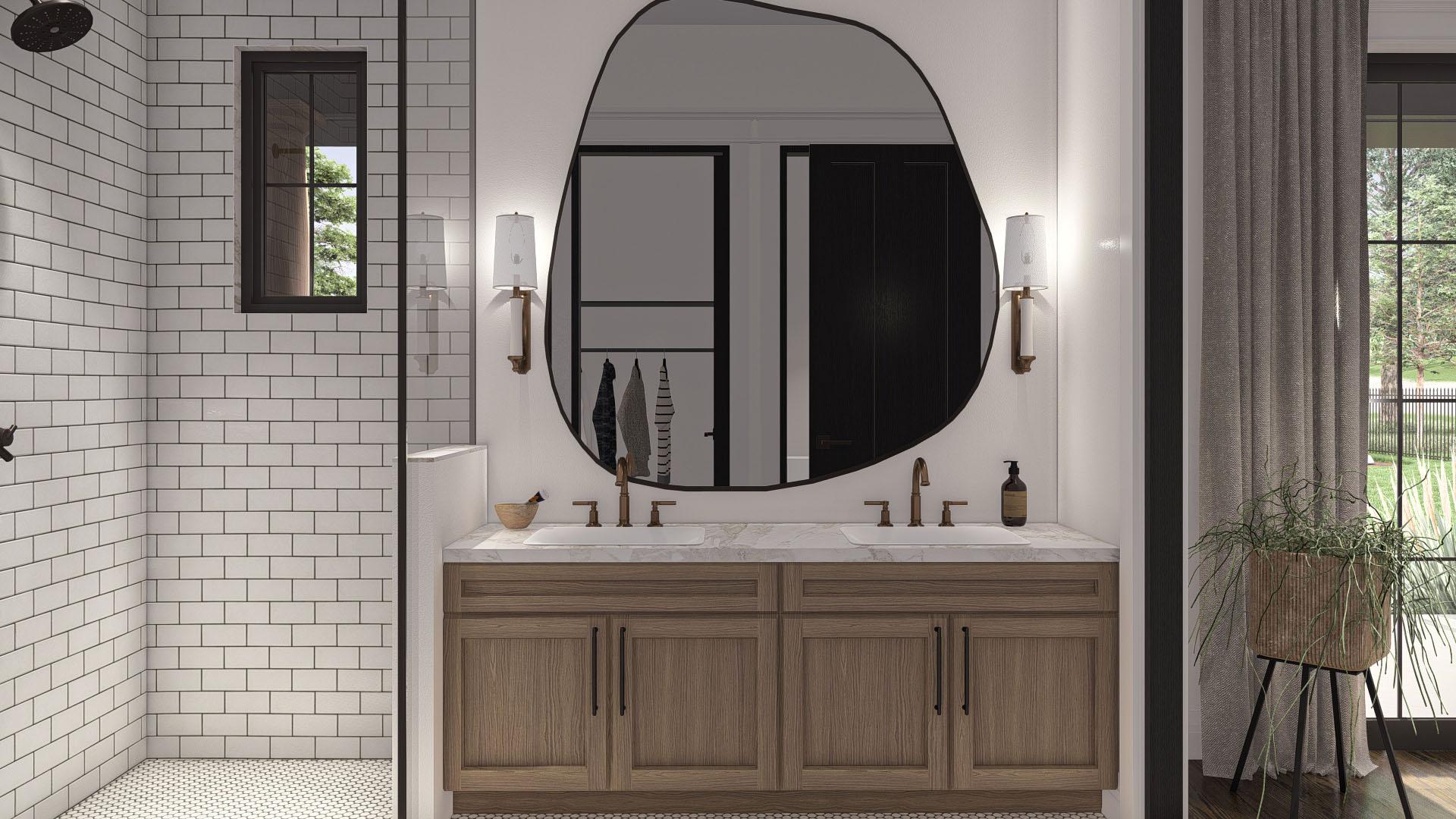

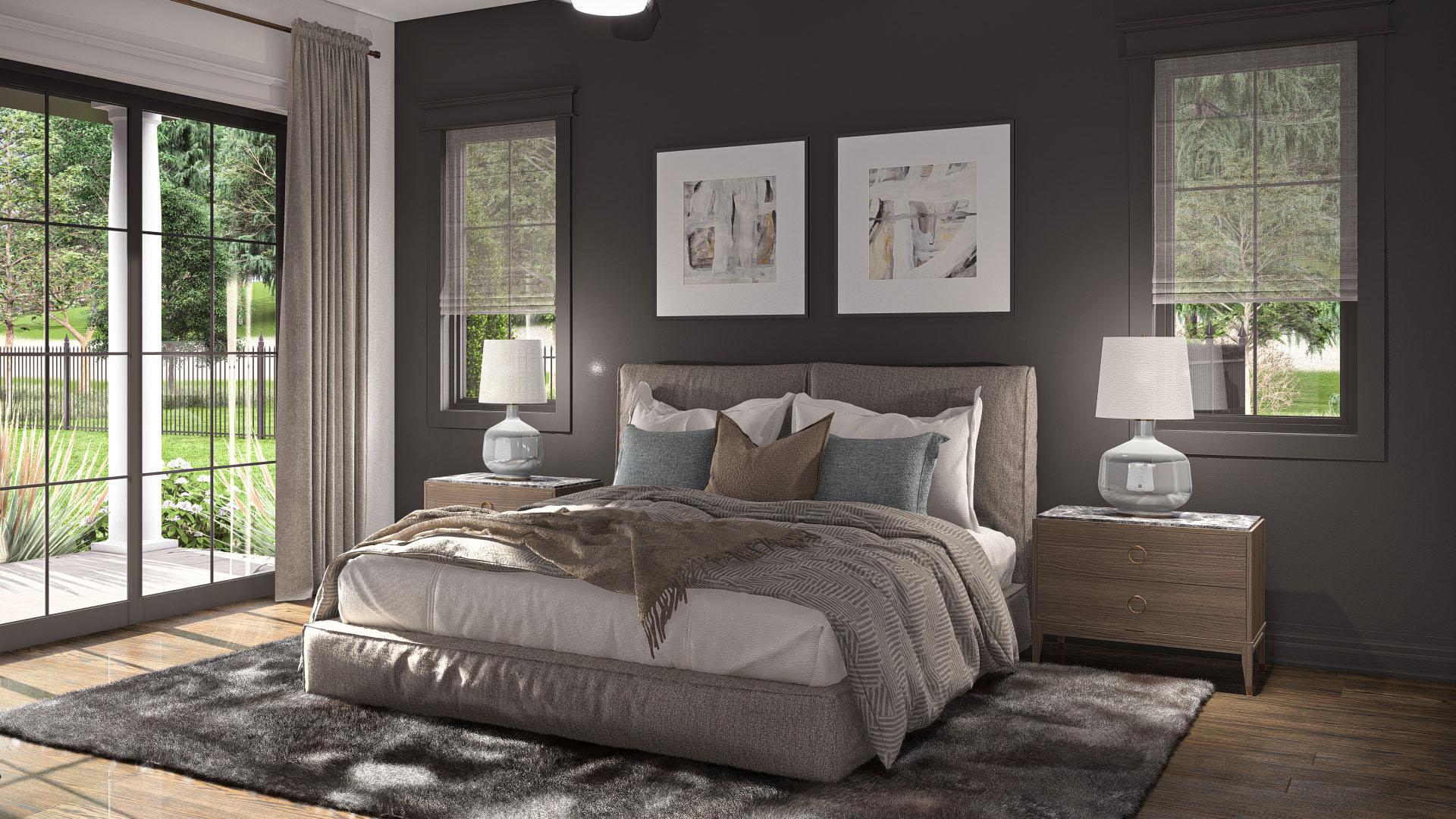

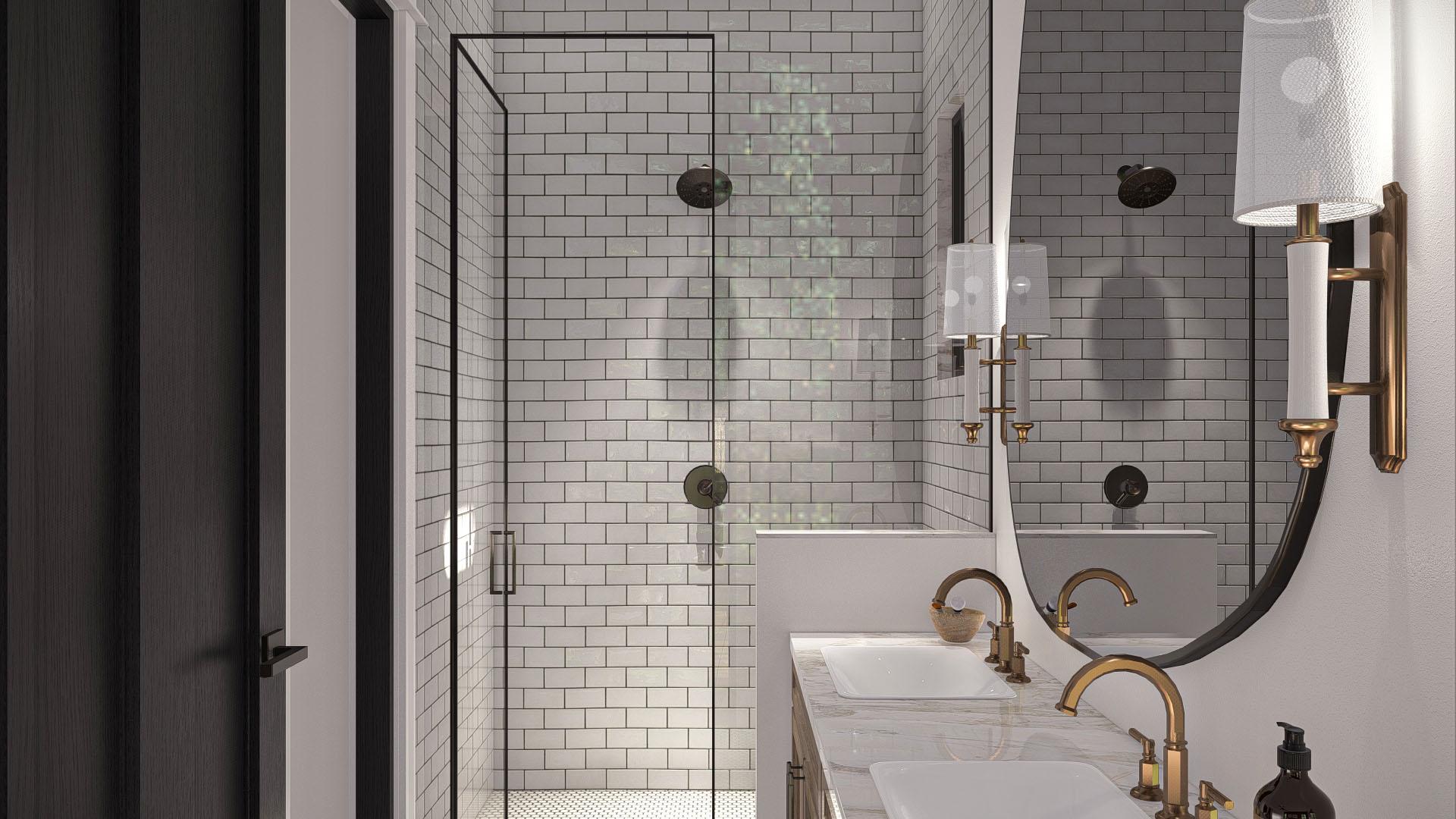

  • The house plan includes three comfortable bedrooms clustered on the right with two bathrooms - including one ensuite in the master bedroom - for convenience.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,874 sq. ft.

1st Floor

1,874 sq. ft.

Porch, Combined

614 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 4"

Depth

50' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

561 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,874 sq. ft.

1st Floor

1,874 sq. ft.

Porch, Combined

614 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 4"

Depth

50' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

561 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
