Plan 770009CED Traditional House Plan with Two-Story Ceilings

Traditional House Plan with Two-Story Ceilings

Plan 770009CED

  • 2,505

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

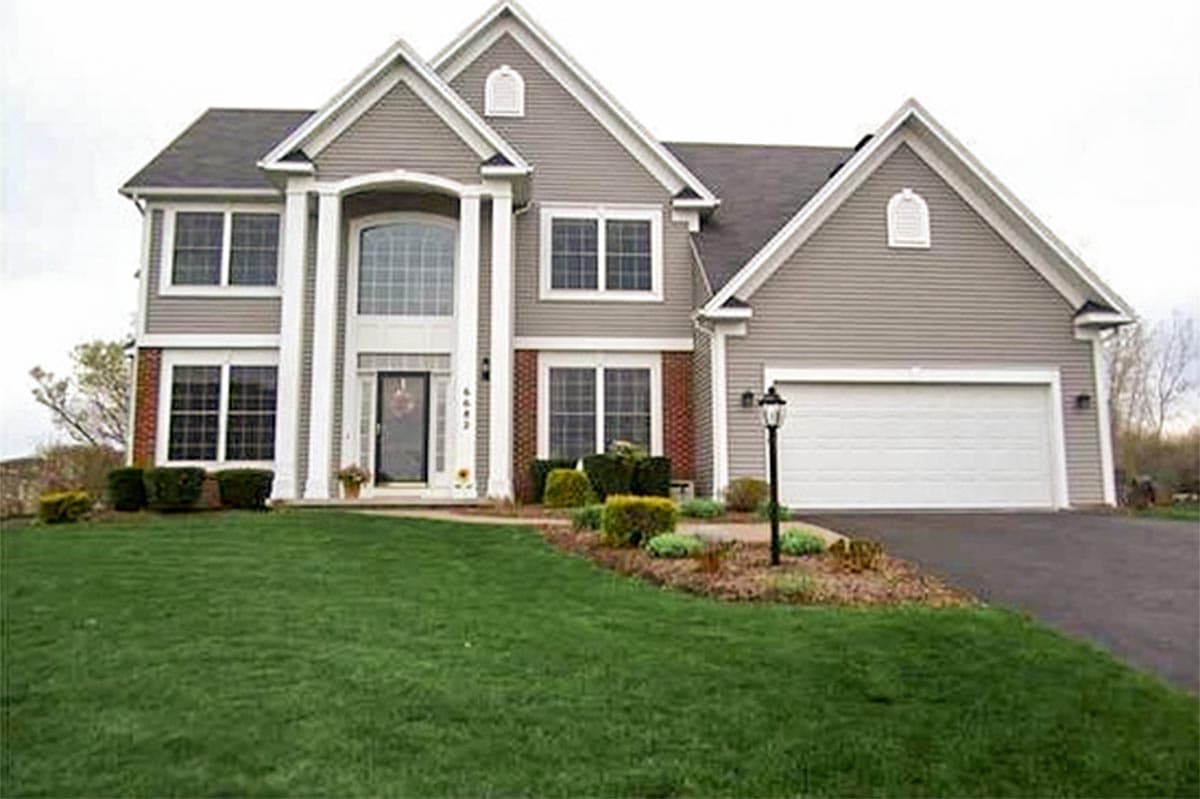

  • The two-story tall entry porch of this Traditional house plan showcases the grand transom window over the front door.
  • Elegant interior columns add a custom touch and keep the sight lines flowing.
  • Both the foyer and the back half of the great room have dramatic two-story ceilings.

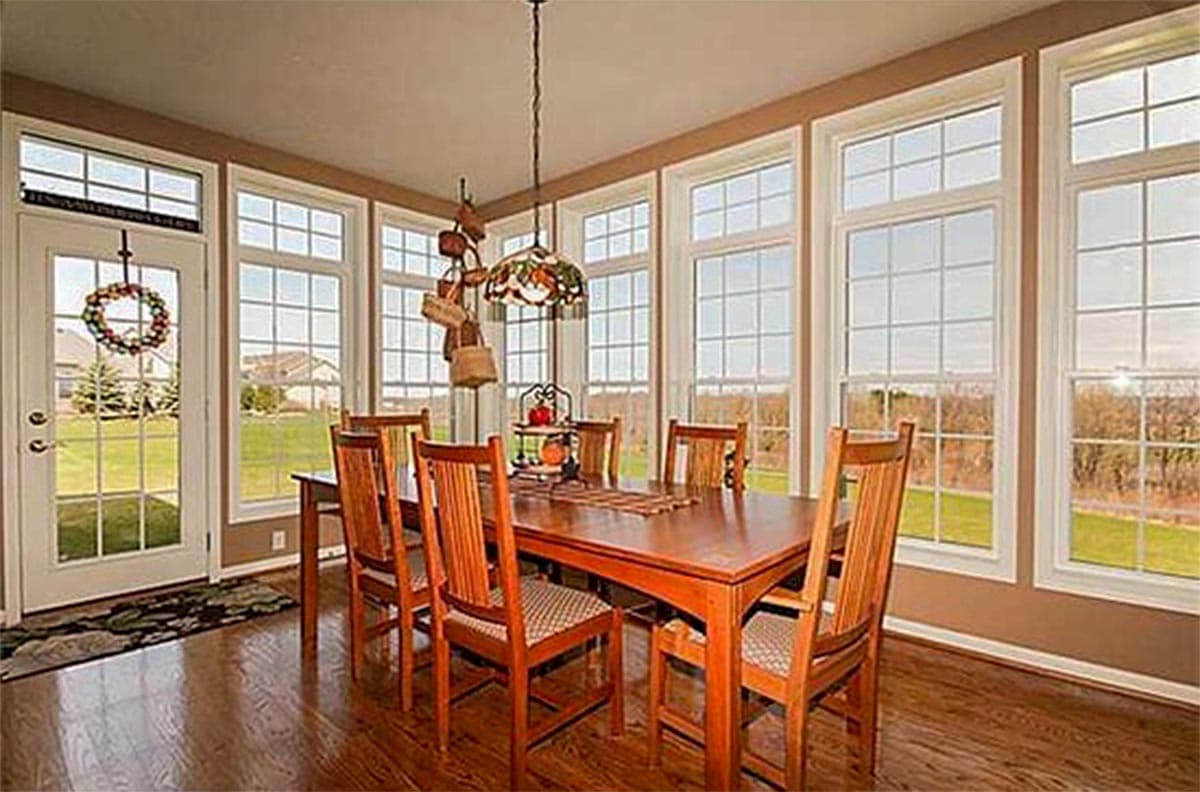

  • There's glass on three sides of the dining room, including a sliding glass doors that takes you outside quickly.
  • The big great room fireplace can be seen all the way to the kitchen.
  • Upstairs, the master bedroom features a lovely tray ceiling and big walk-in closet.
  • In the 2 car garage, you get a big storage area at the back for bikes and lawn equipment.
  • Built-ins in the mud room are great organizers.

This designer's house plans consist of the following elements:

  • Cover sheet with general notes
  • Elevations
  • Foundation plan
  • Floor plan(s)
  • Roof framing plan
  • Sections
What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations



Floor Plan

Plan details

Architectural Style

Plan Collections



Traditional House Plan with Two-Story Ceilings

  • 2,505

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $920
  • 5 Sets $1,020
  • PDF - Unlimited Build $1,515
  • CAD - Single-Build $1,840
  • View all purchase option online

About This Plan

  • The two-story tall entry porch of this Traditional house plan showcases the grand transom window over the front door.
  • Elegant interior columns add a custom touch and keep the sight lines flowing.
  • Both the foyer and the back half of the great room have dramatic two-story ceilings.
  • There's glass on three sides of the dining room, including a sliding glass doors that takes you outside quickly.
  • The big great room fireplace can be seen all the way to the kitchen.
  • Upstairs, the master bedroom features a lovely tray ceiling and big walk-in closet.
  • In the 2 car garage, you get a big storage area at the back for bikes and lawn equipment.
  • Built-ins in the mud room are great organizers.

Floor Plans

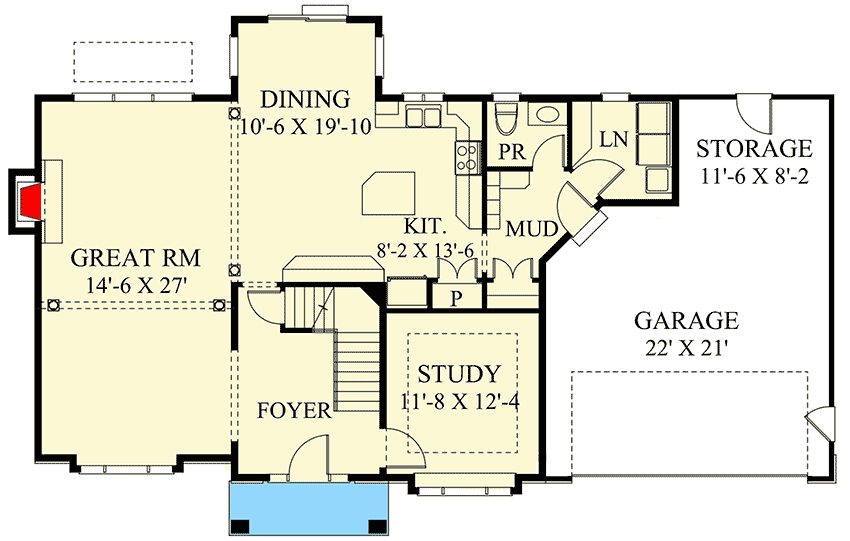

  • Main Level

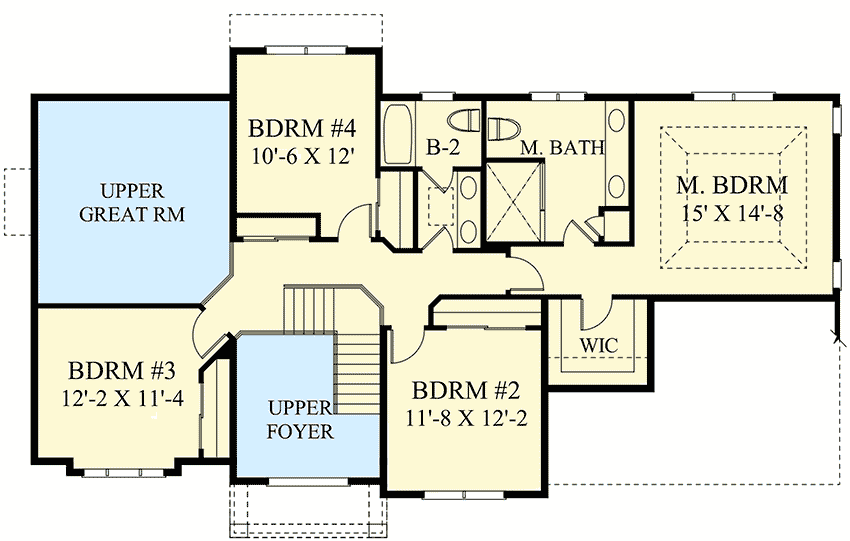

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,505 sq. ft.
  • 1st Floor: 1,300 sq. ft.
  • 2nd Floor: 1,205 sq. ft.
  • Basement Unfinished: 1,292 sq. ft.
  • Porch, Front: 50 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 61' 0"
  • Depth: 39' 6"
  • Max ridge height: 31' 8"

Garage

  • Type: Attached
  • Area: 553 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
