Traditional House Plan with Upstairs Master Suite

Pageloader

Traditional House Plan with Upstairs Master Suite

Plan 710202BTZ

  • 2,582

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Here is the perfect home for a family that seeks both a traditional exterior and the openness of modern design. The foyer is flanked by formal living and dining rooms, but its two-story height prevents it from feeling enclosed. It leads to a similarly lofty family room, whose grand fireplace will likely become the focal point of family gatherings.
  • An informal breakfast room adjoins an up-to-date island kitchen. The first floor includes an additional room with a closet and nearby full bath, perfect for a guest suite, study, or exercise room.
  • The master bedroom and bath are upstairs, conveniently adjacent to the laundry room. Three family bedrooms share a bath.
  • Related Plan: Get a side-entry garage with house plan 710102BTZ.

The plans include the following:

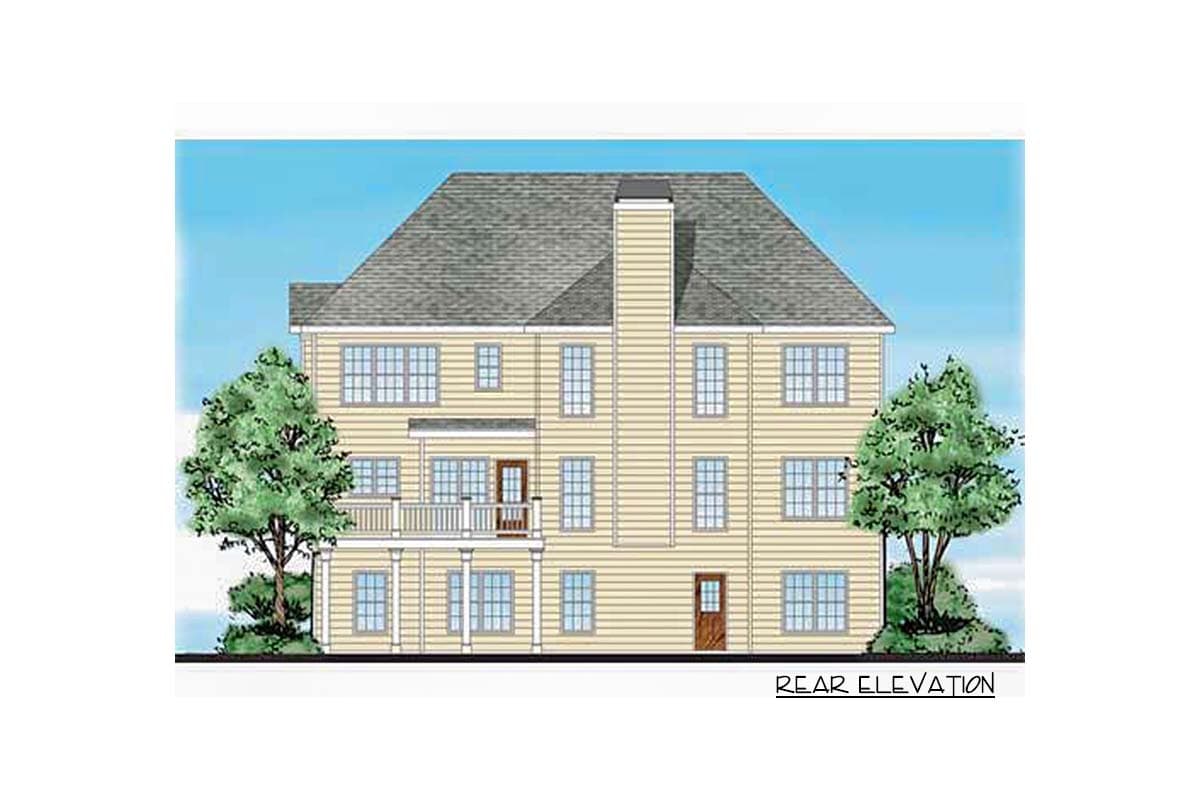

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details



Traditional House Plan with Upstairs Master Suite

  • 2,582

    Heated s.f.

  • 4 - 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,280
  • 8 Sets $1,380
  • Reproducible Set $1,490
  • PDF - multi-use $1,565
  • CAD - multi-use $2,850
  • View all purchase option online

About This Plan

  • Here is the perfect home for a family that seeks both a traditional exterior and the openness of modern design. The foyer is flanked by formal living and dining rooms, but its two-story height prevents it from feeling enclosed. It leads to a similarly lofty family room, whose grand fireplace will likely become the focal point of family gatherings.
  • An informal breakfast room adjoins an up-to-date island kitchen. The first floor includes an additional room with a closet and nearby full bath, perfect for a guest suite, study, or exercise room.
  • The master bedroom and bath are upstairs, conveniently adjacent to the laundry room. Three family bedrooms share a bath.
  • Related Plan: Get a side-entry garage with house plan 710102BTZ.

Floor Plans

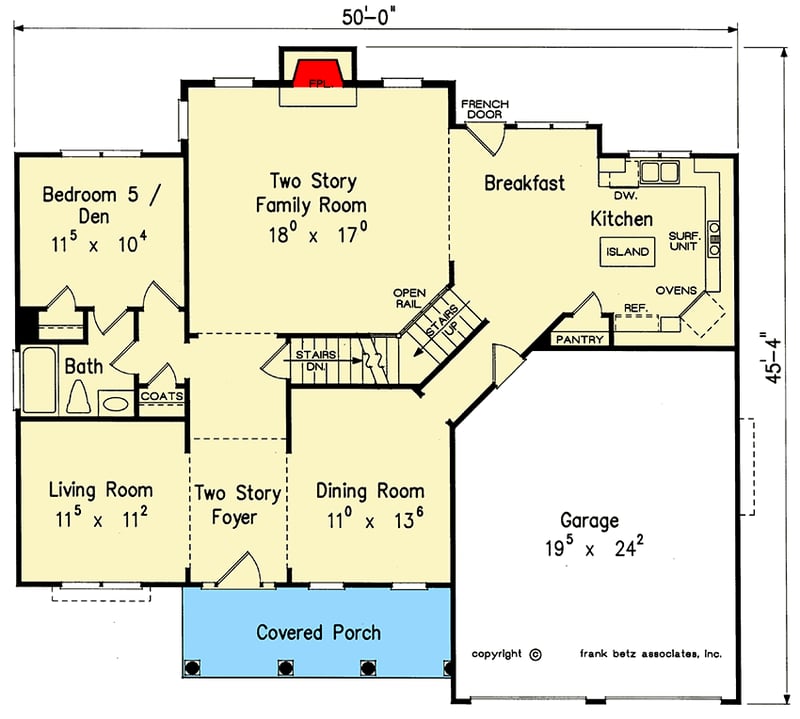

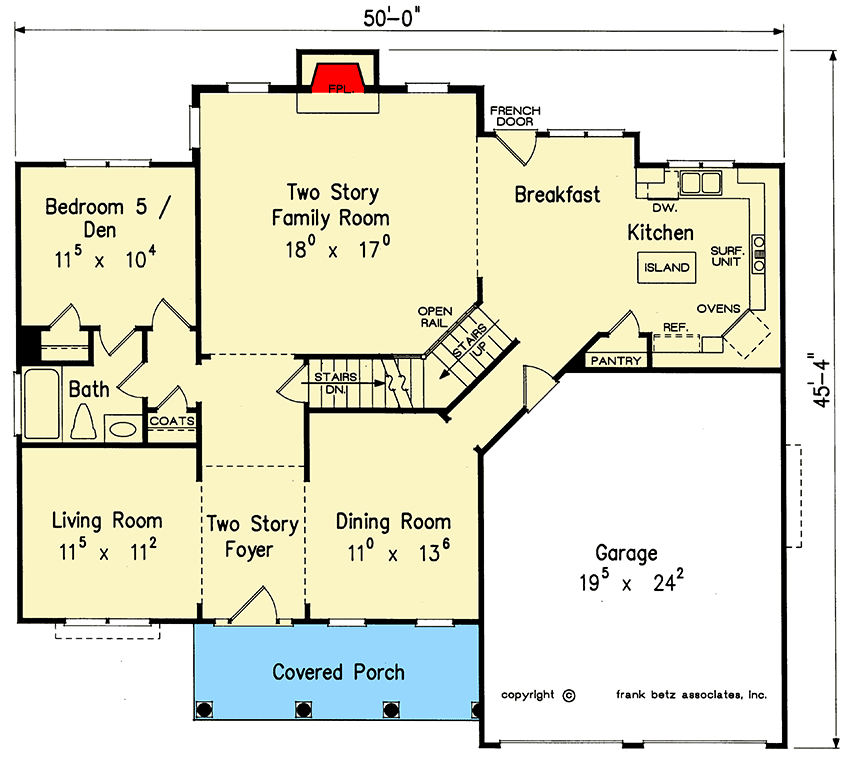

  • Main Level

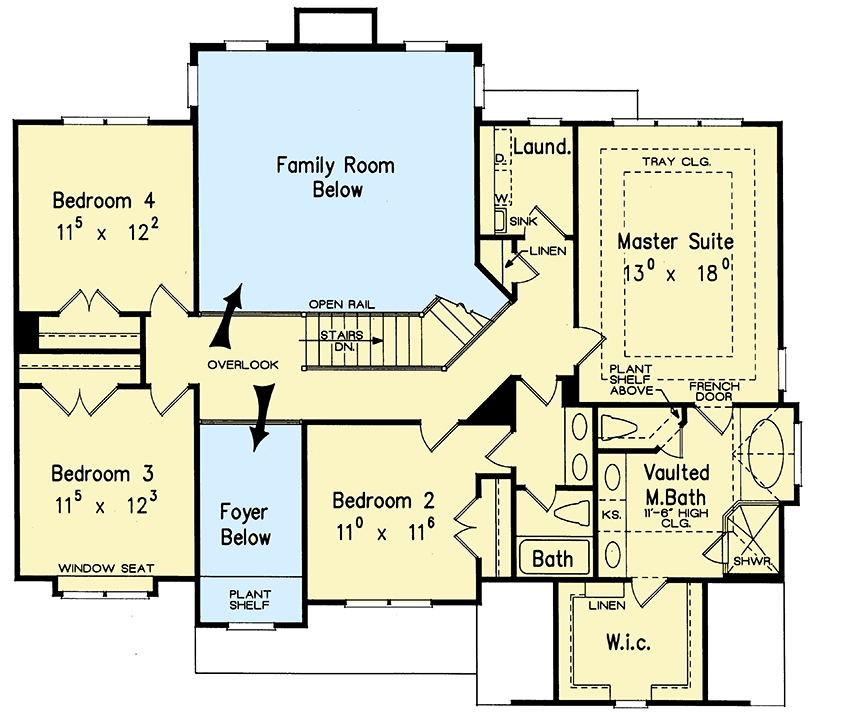

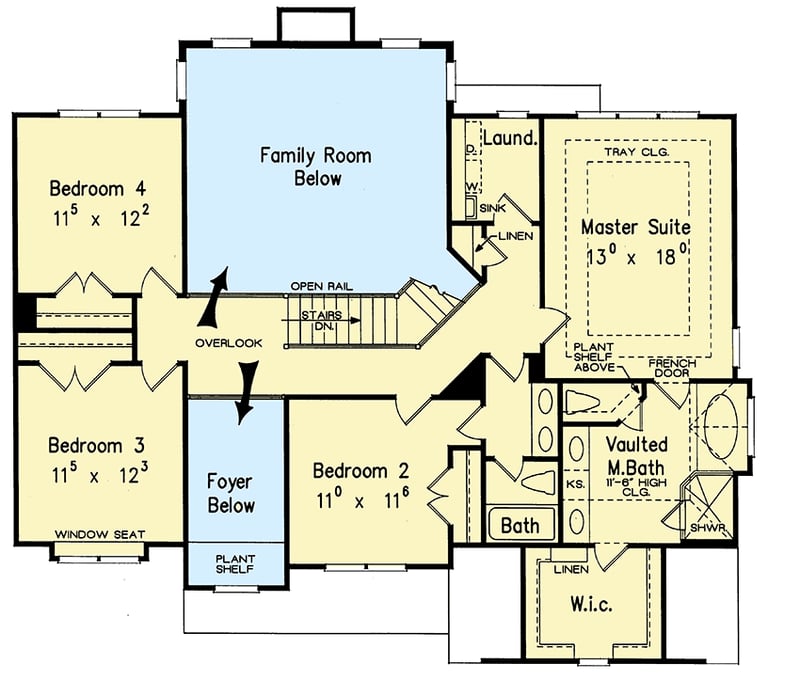

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,582 sq. ft.
  • 1st Floor: 1,306 sq. ft.
  • 2nd Floor: 1,276 sq. ft.
  • Basement Unfinished: 1,306 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 0"
  • Depth: 45' 4"
  • Max ridge height: 31' 10"

Garage

  • Type: Attached
  • Area: 469 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
