Traditional House Plan with Vaulted Family Room

Plan 36041DK

  • 2,066

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

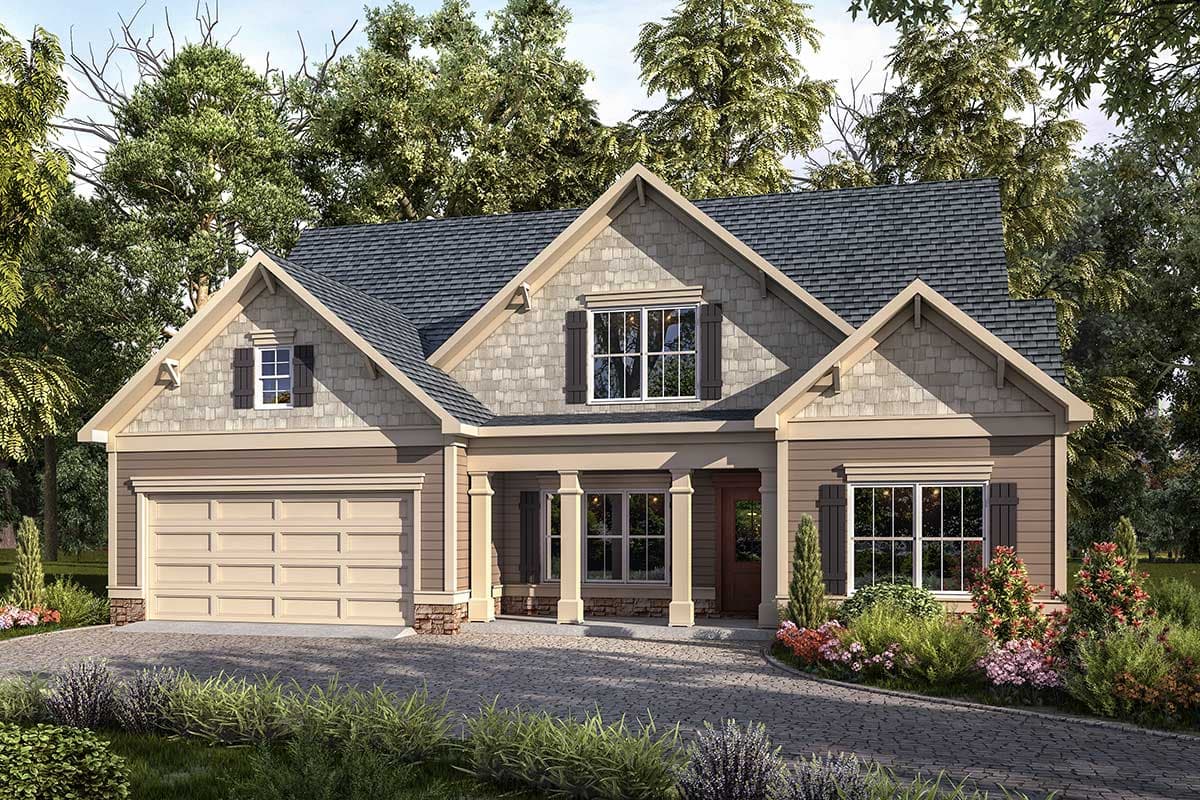

  • A charming center gable gives this Traditional house plan lots of curb appeal as well as brings light into bedroom 3.
  • The formal dining room is open to the foyer, making it feel larger.
  • In back, the heart of the home is the huge vaulted family room that has a big fireplace that can be seen all the way from the kitchen.
  • A bar top island lets people sit and chat while dinner is cooking.
  • The breakfast nook opens to an optional covered terrace where you can grill or just relax in the shade.
  • The two bedrooms on the main floor are on opposite sides of the home, giving privacy to the master suite.
  • An additional bedroom can be found on the upper floor.
  • Related Plans: Get alternate exteriors with house plans 36040DK and 36042DK. Get 4-beds with house plans 36038DK.

This plan includes the following elements:

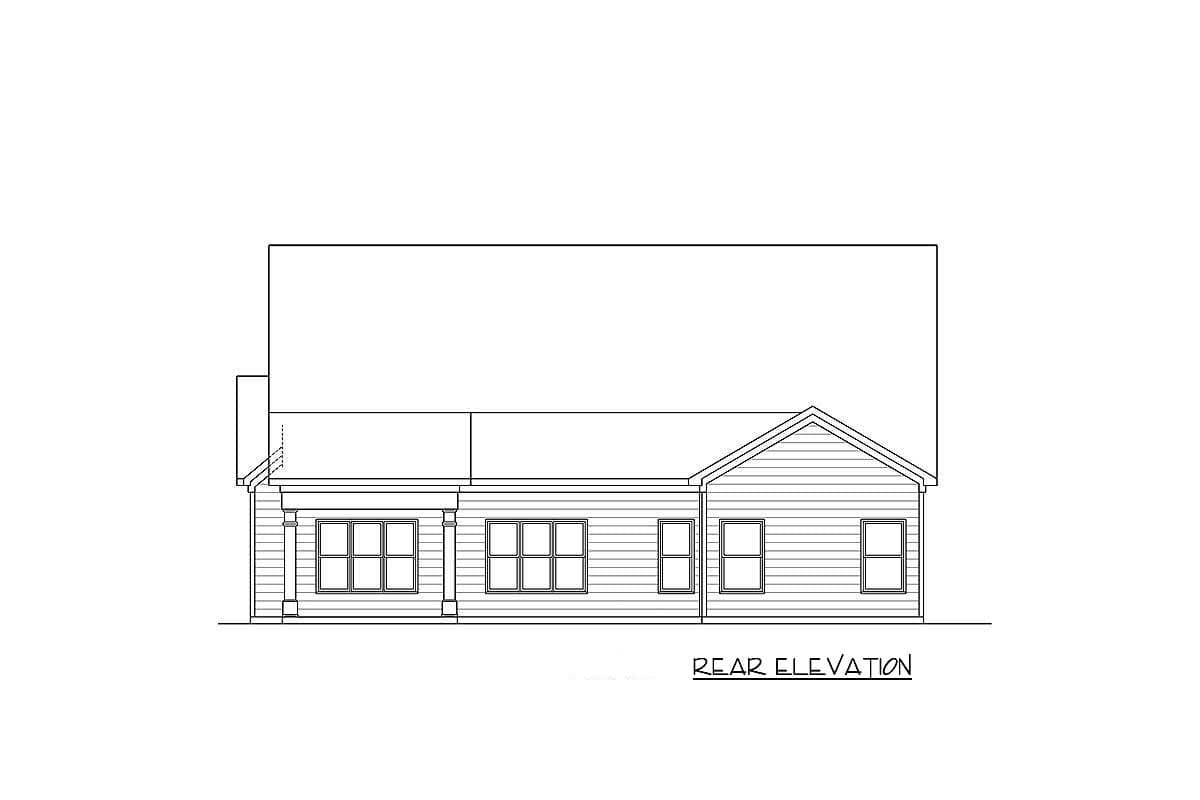

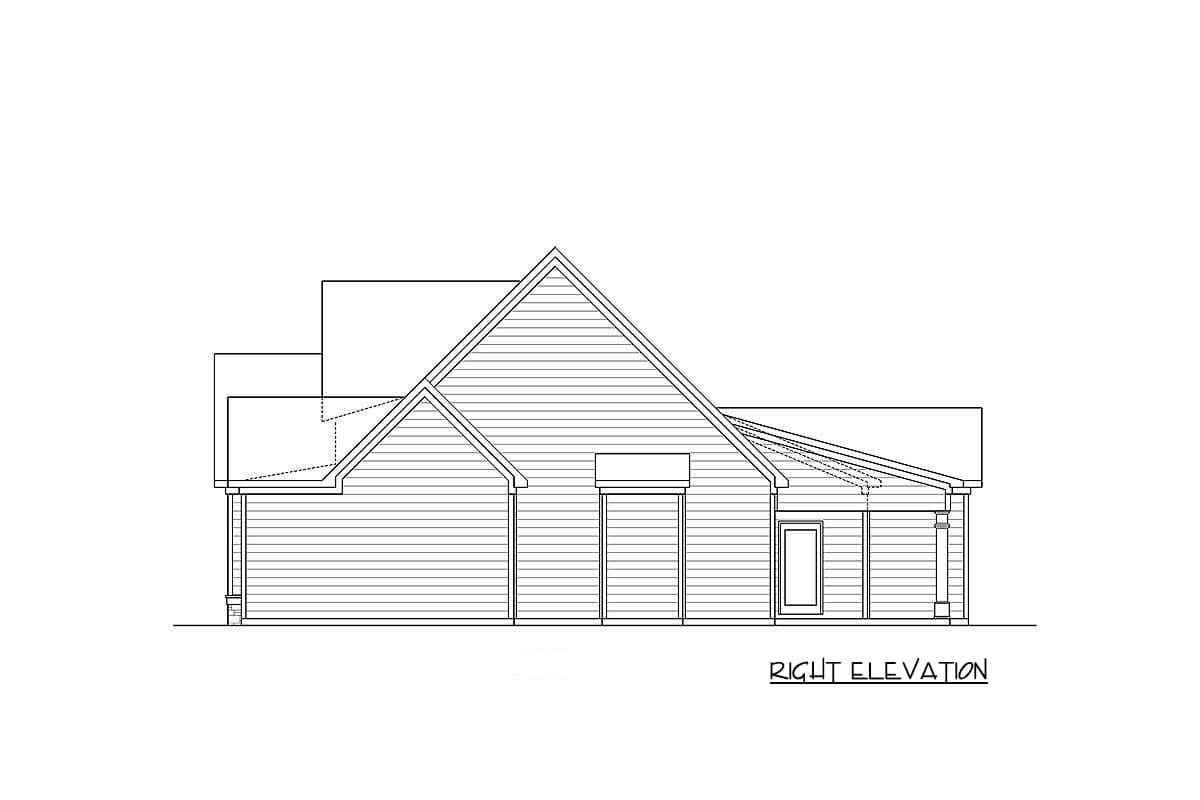

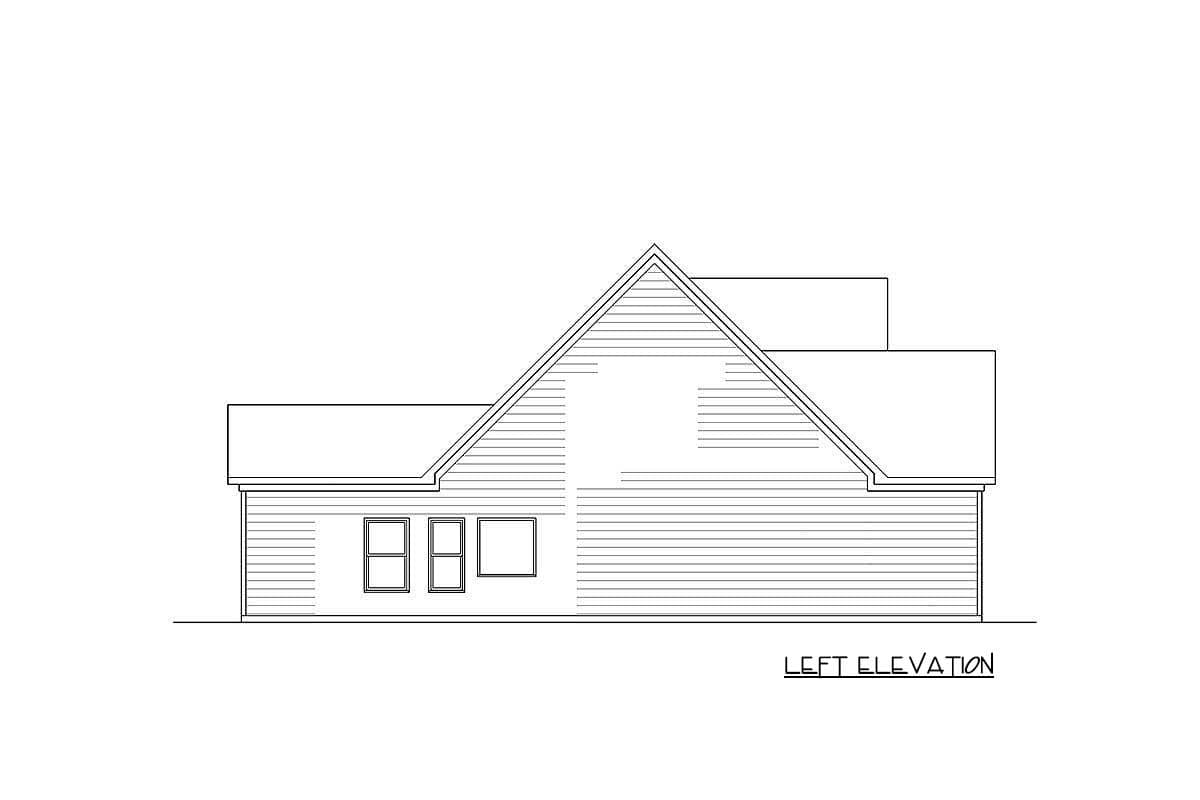

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

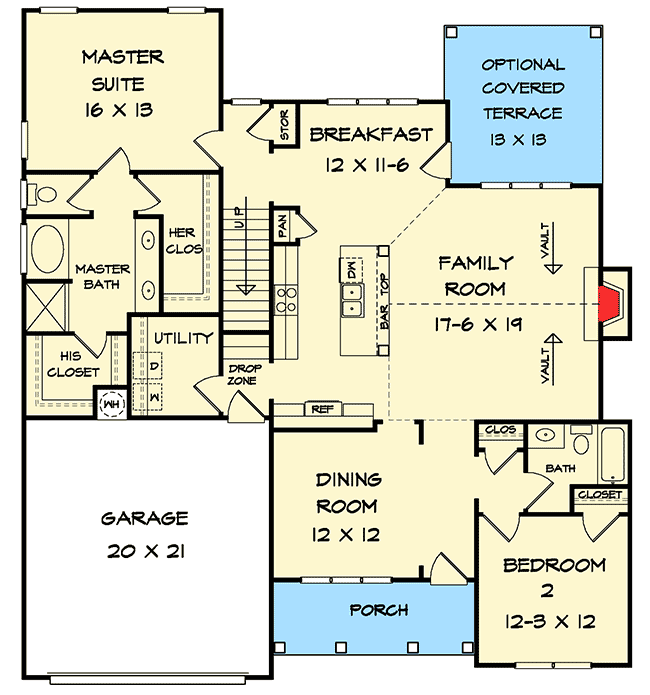

Traditional House Plan with Vaulted Family Room - 36041DK floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

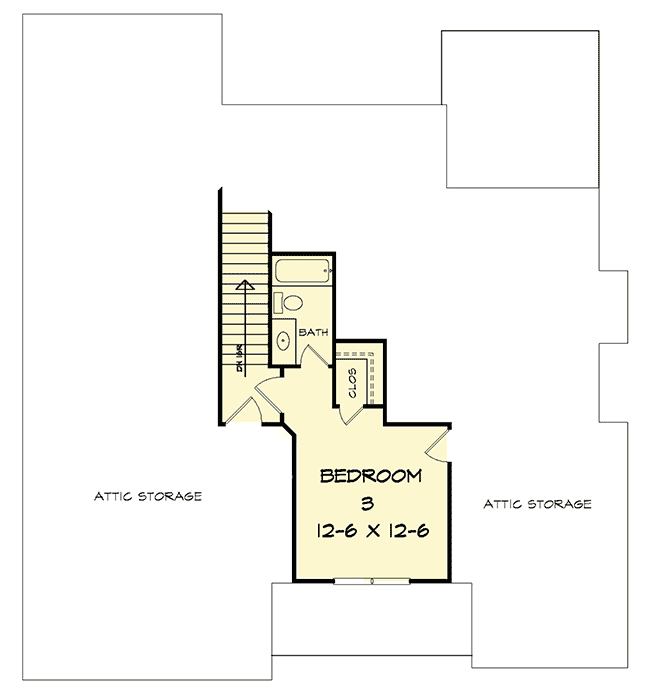

Traditional House Plan with Vaulted Family Room - 36041DK floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,066 sq. ft.
  • 1st Floor: 1,764 sq. ft.
  • 2nd Floor: 302 sq. ft.
  • Porch, Combined: 169 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 0"
  • Depth: 55' 0"
  • Max ridge height: 27' 3"

Garage

  • Type: Attached
  • Area: 420 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
