Plan 850055PKE

Traditional Multi-Family Duplex House Plan with Three Bedrooms

Heated S.F.
3,084
Units
2
Width
Depth

Floor Plan

Plan 850055PKE

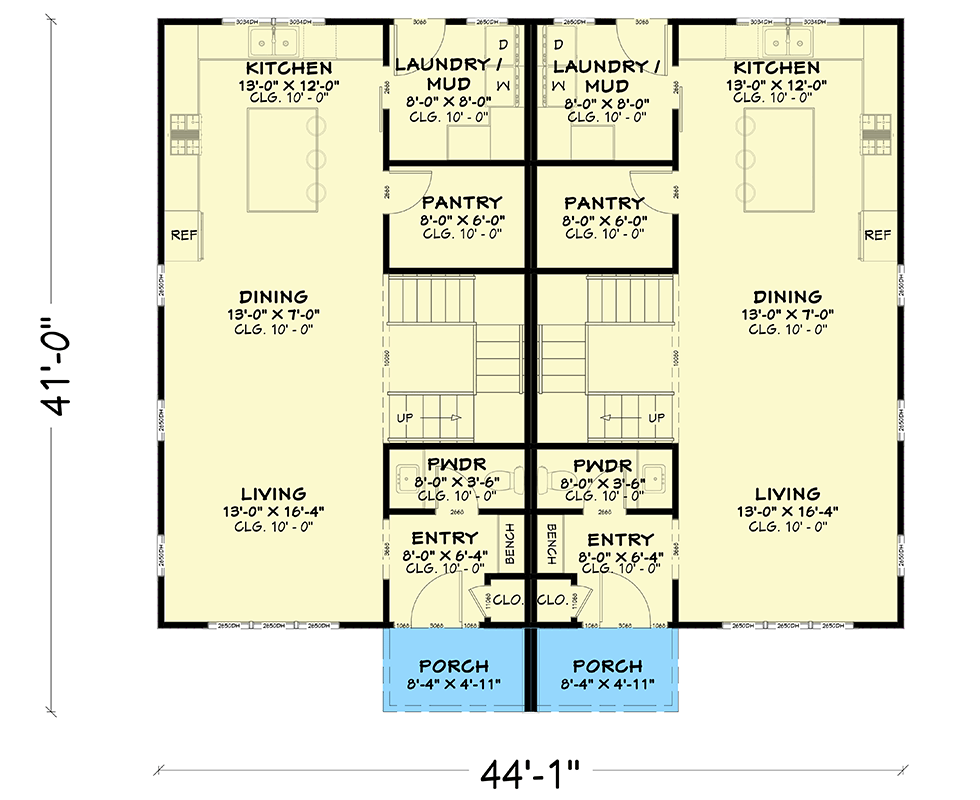

Floor Plan 1

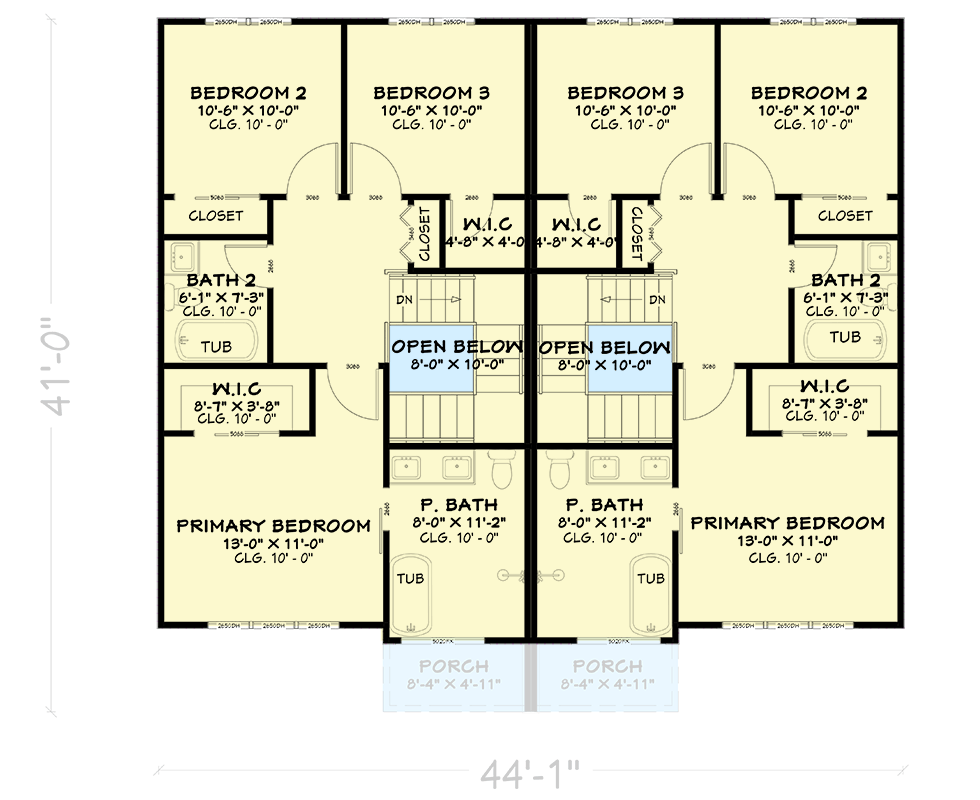

Floor Plan 2

Plan 850055PKE

M-F 9am-5pm EST |

1-203-761-8500

Plan 850055PKE: Traditional Multi-Family Duplex House Plan with Three Bedrooms - Floor Plan - - Traditional

Plan 850055PKE: Traditional Multi-Family Duplex House Plan with Three Bedrooms - Floor Plan - - Traditional

Plan Details

  • This traditional duplex unit offers 1,542 square feet of living space, featuring three bedrooms and 2.5 bathrooms across two well-planned levels.
  • Upon entering, residents are greeted by a functional layout that includes a convenient mudroom to help keep the home organized from the start.
  • The main floor is designed for effortless daily living, centered around an open living area that flows into a kitchen equipped with a spacious walk-in pantry.
  • A dedicated main-level laundry room adds practicality to the floor plan, ensuring household chores are handled with ease.
  • The primary bedroom suite is situated on the upper level, providing a private retreat away from the secondary bedrooms.
  • A charming front porch offers a welcoming entrance, completing this efficient and comfortable multi-family residence.
Unit A & B
Heated Area
1,542Sq. Ft.
809 Sq. Ft. 1st
733 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
22'width
41'depth
Unfinished Areas
42 Sq. Ft. Porch, Front

What's Included

  • Cover Sheet
  • Dimensioned Floor Plan(s)
  • Foundation Plan
  • Exterior Elevations
  • Roof Plan
  • Building Sections and Details
  • Window and Door Schedule with Kitchen Elevations
  • Electrical Power & Lighting Layout Plan(s)
  • General Notes and Details

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

3,084 sq. ft.

1st Floor

1,618 sq. ft.

2nd Floor

1,466 sq. ft.

Porch, Front

48 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 1"

Depth

41' 0"

Max Ridge Height

31' 4"

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Framing Type

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Plan Collections

Unlimited Build License

Square Footage Breakdown

Total Heated Area

3,084 sq. ft.

1st Floor

1,618 sq. ft.

2nd Floor

1,466 sq. ft.

Porch, Front

48 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 1"

Depth

41' 0"

Max Ridge Height

31' 4"

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Framing Type

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Plan Collections

Unlimited Build License
