Plan 135314GRA

Traditional Multi-Family House Plan with 3 Bedrooms and Under 1600 Sq Ft Per Unit

Heated S.F.
3,192
Units
2
Width
Depth

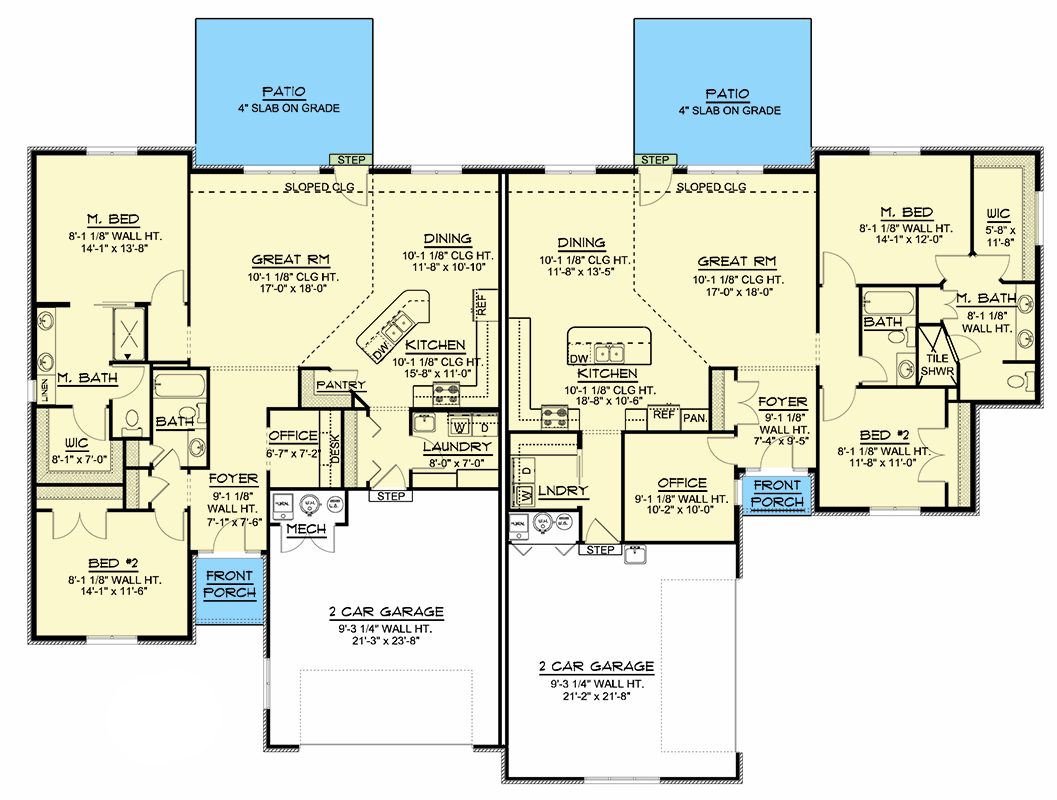

Floor Plan

Plan 135314GRA

Main Level
Main Level

Plan 135314GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 135314GRA: Traditional Multi-Family House Plan with 3 Bedrooms and Under 1600 Sq Ft Per Unit - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This expansive 3,192 sq. ft. Traditional Ranch house plan offers four bedrooms, four full bathrooms, and a generous 1039 sq. ft. four-car attached garage, designed for comfortable, flexible living.
  • Step into one of two welcoming foyers, each leading directly to a dedicated home office—perfect for quiet work or study—before revealing an open-concept great room, dining area, and kitchen, fostering a sense of spacious connectivity.
  • Each unit boasts a bright great room with a sloped ceiling, seamlessly flowing into the dining area and a well-appointed kitchen featuring a generous pantry, creating an effortless environment for daily living and shared meals.
  • The plan features two distinct master suites, each offering a serene retreat with a private master bath and a spacious walk-in closet, thoughtfully separated from the secondary bedrooms which also enjoy their own private bathrooms, ensuring comfort and privacy for all.
  • Beyond the primary living spaces, each side of the residence includes a dedicated home office for focused productivity and a convenient main-level laundry room, while one unit benefits from an expansive butler walk-in pantry, ideal for culinary enthusiasts.
  • Enjoy moments outdoors on the inviting front porches, or extend your living space to the rear patios, perfect for morning coffee or evening relaxation.
Unit A
Heated Area
1,598Sq. Ft.
1598 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
534 Sq. Ft.
Dimensions
47'width
58' 9"depth
21' 8"height
Unfinished Areas
534 Sq. Ft. Garage
45 Sq. Ft. Porch, Front
231 Sq. Ft. Porch, Rear
Unit B
Heated Area
1,594Sq. Ft.
1594 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
505 Sq. Ft.
Dimensions
47'width
58' 9"depth
21' 8"height
Unfinished Areas
505 Sq. Ft. Garage
29 Sq. Ft. Porch, Front
231 Sq. Ft. Porch, Rear

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,192 sq. ft.

1st Floor

3,192 sq. ft.

Porch, Front

74 sq. ft.

Porch, Rear

231 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

94' 0"

Depth

58' 9"

Max Ridge Height

21' 8"

Garage

Type

Attached

Area

1039 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

7 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
