Plan 69312AM

Traditional Plan with Bonus Room

2,803 3 2.5 2 3
Pageloader

Traditional Plan with Bonus Room

Plan 69312AM

  • 2,803

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

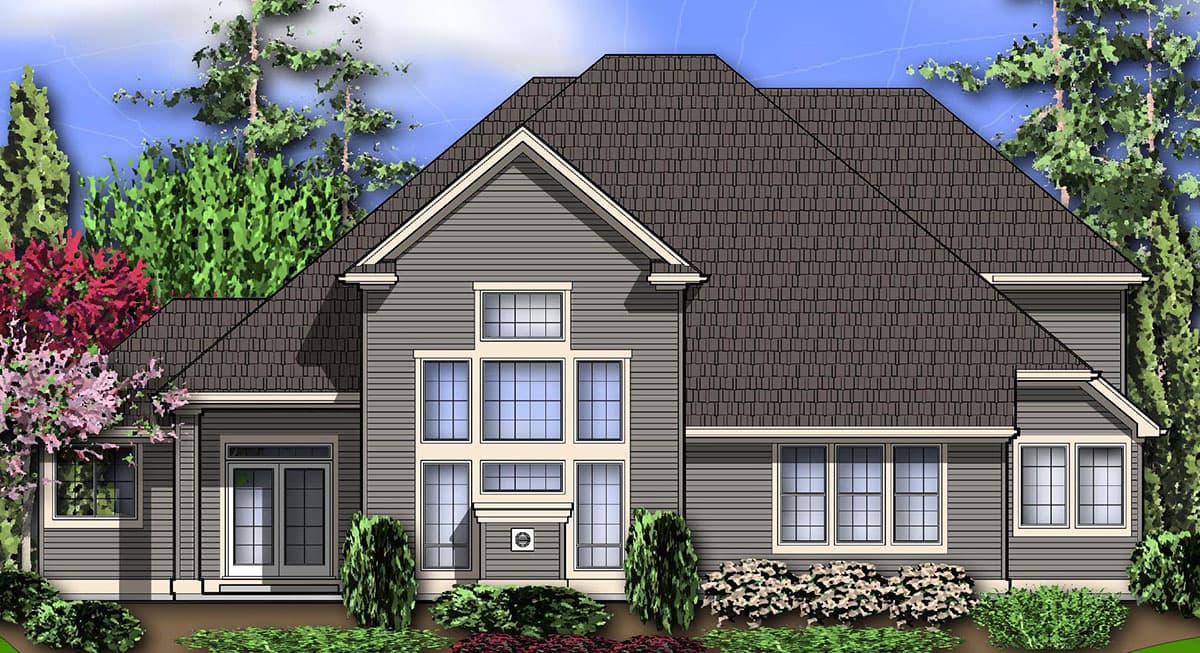

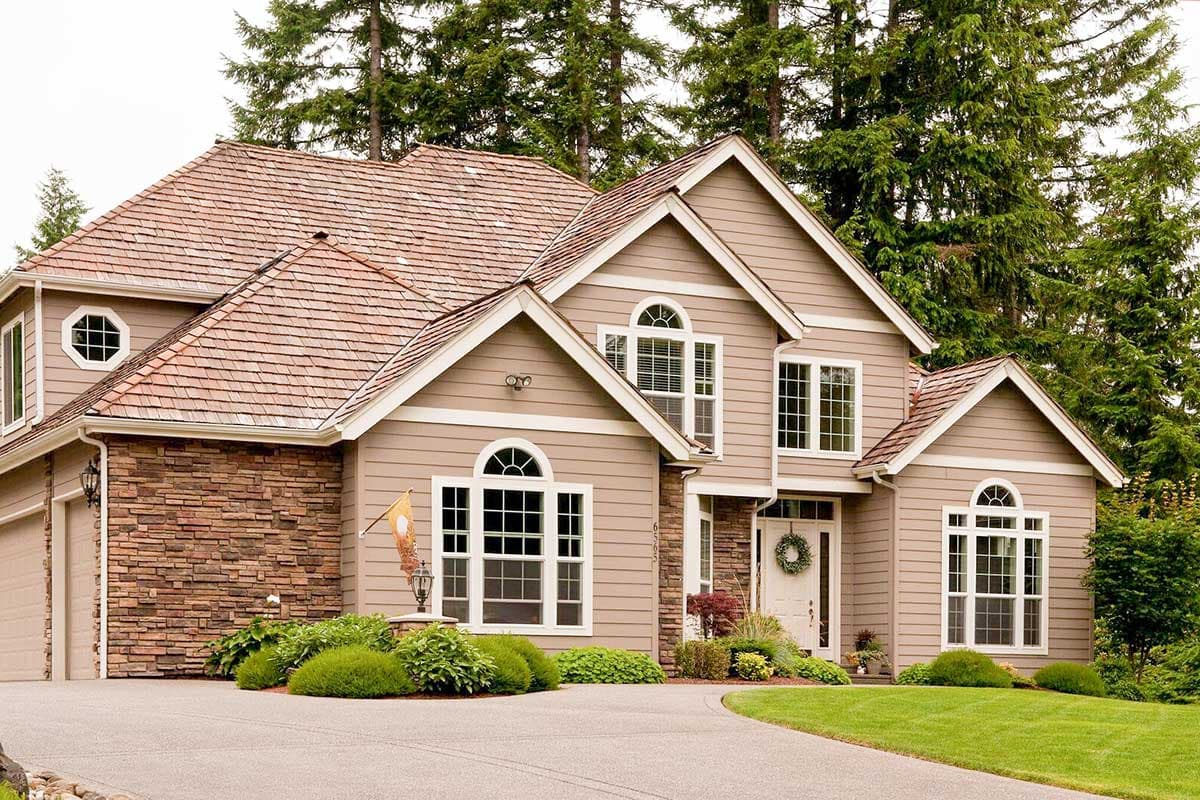

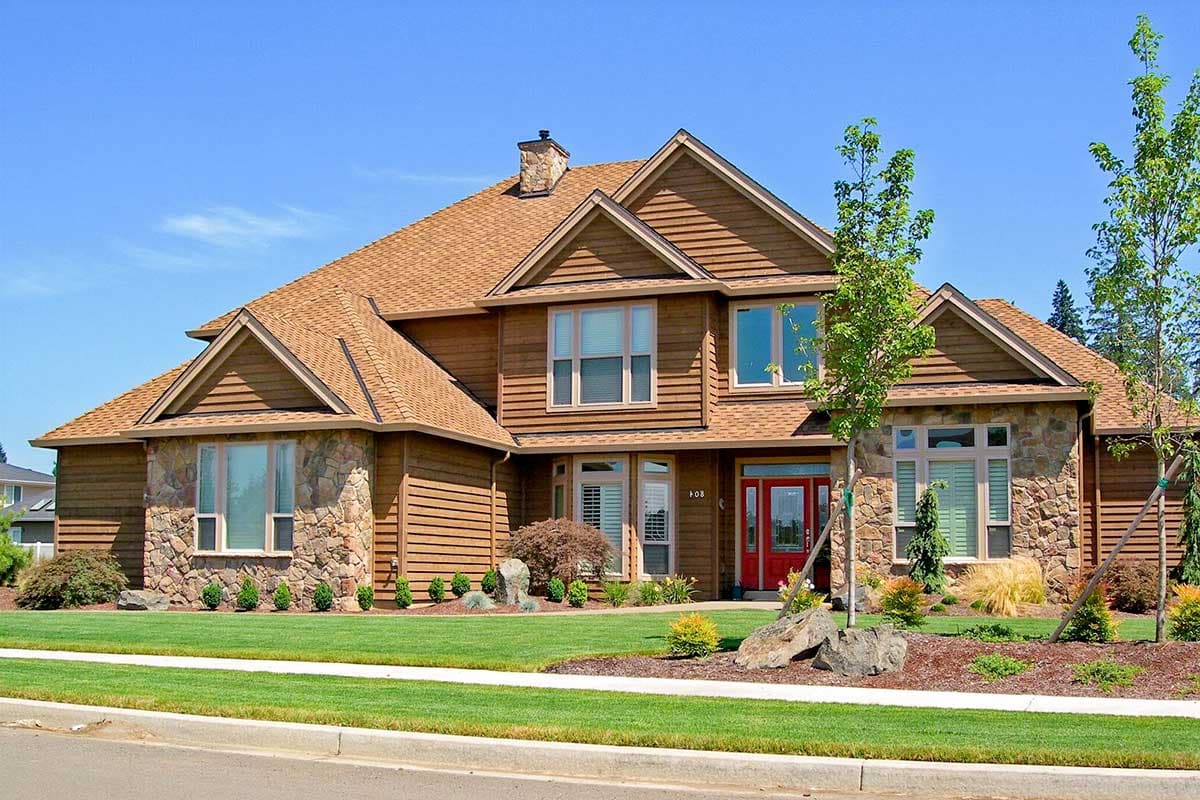

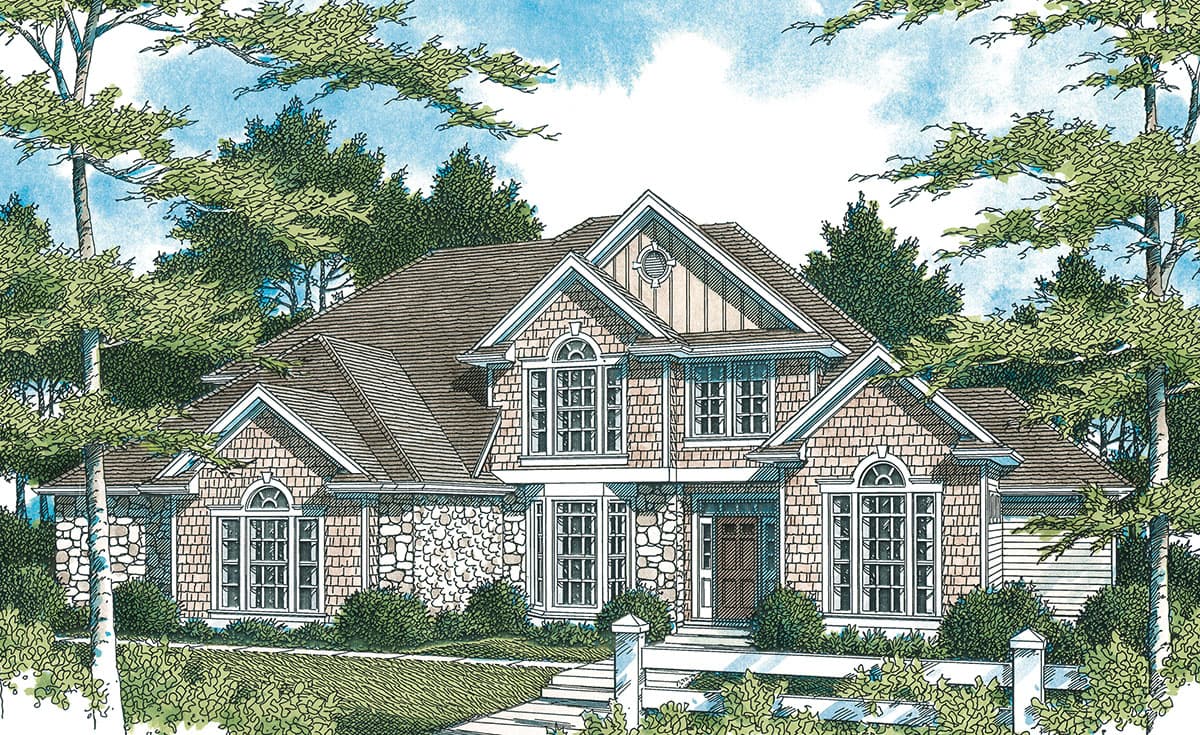

  • Nothing is plain on this plan - inside or out. The exterior is enlivened by cedar shingles, stonework detailing, Palladian windows and an entry with sidelights and a transom.
  • Inside, the floor plan offers great living spaces and a split bedroom design that works well for families. The entry hall is flanked by a den with fireplace on the left and a formal dining room on the right. A butler's pantry with added storage pantry connects the dining room to the island kitchen. Less formal eating space near the kitchen opens out to a covered porch in the back. The great room rises a full two-stories and features built-ins.
  • The master suite is contained on the main level and has a walk-in closet and a bath with separate tub and shower and double sinks. Two family bedrooms and a full bath are upstairs, along with bonus space over the three-car garage.
  • Related Plans: See these alternate versions - 6838AM, 6853AM.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Traditional Plan with Bonus Room

  • 2,803

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $1,046
  • PDF - single-use $1,396
  • 5 Sets $1,546
  • 5 Sets PLUS $1,596
  • CAD - multi-use $2,792
  • View all purchase option online

About This Plan

  • Nothing is plain on this plan - inside or out. The exterior is enlivened by cedar shingles, stonework detailing, Palladian windows and an entry with sidelights and a transom.
  • Inside, the floor plan offers great living spaces and a split bedroom design that works well for families. The entry hall is flanked by a den with fireplace on the left and a formal dining room on the right. A butler's pantry with added storage pantry connects the dining room to the island kitchen. Less formal eating space near the kitchen opens out to a covered porch in the back. The great room rises a full two-stories and features built-ins.
  • The master suite is contained on the main level and has a walk-in closet and a bath with separate tub and shower and double sinks. Two family bedrooms and a full bath are upstairs, along with bonus space over the three-car garage.
  • Related Plans: See these alternate versions - 6838AM, 6853AM.

Floor Plans

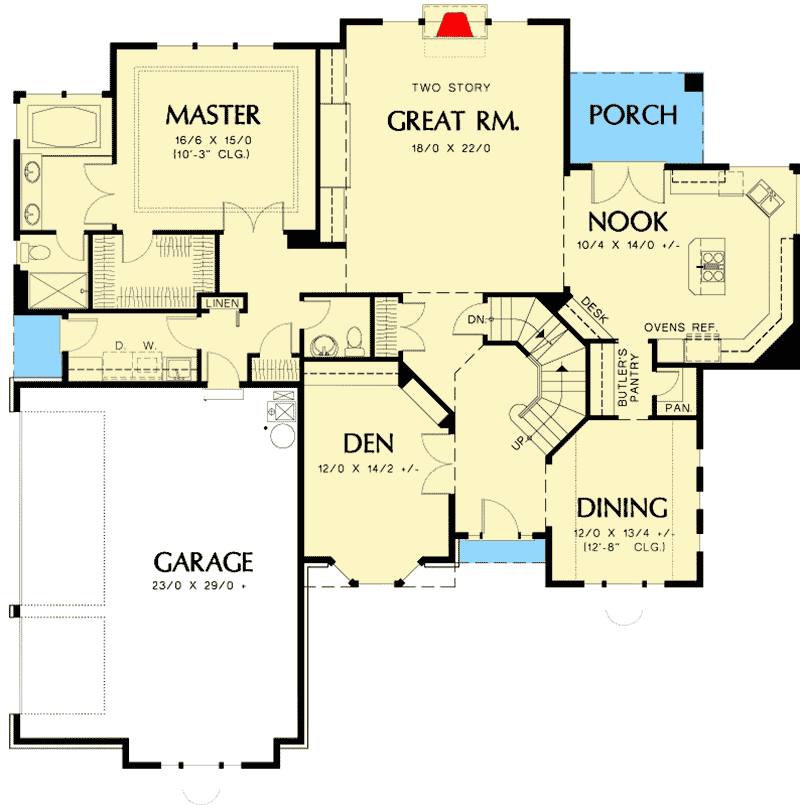

  • Main Level

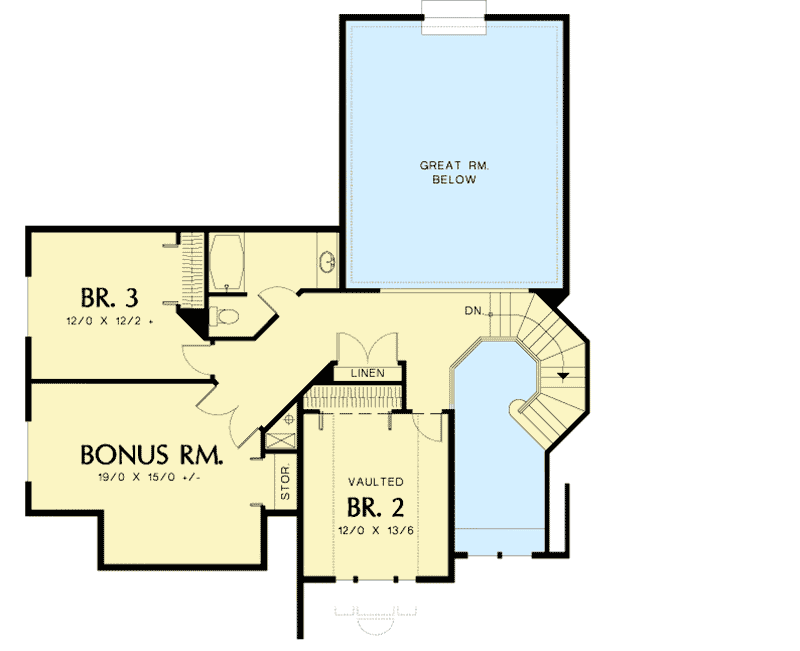

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,803 sq. ft.
  • 1st Floor: 2,141 sq. ft.
  • 2nd Floor: 662 sq. ft.
  • Bonus: 287 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 65' 0"
  • Depth: 63' 0"
  • Max ridge height: 30' 7"

Garage

  • Type: Attached
  • Area: 729 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Roof

  • Framing Type: Stick
