Plan 490171NAH

Traditional Pool House Plan with Integrated Garage

Heated S.F.
331
Beds
0
Baths
1
Stories
1
Cars
1

Floor Plan

Plan 490171NAH

Main Level
Main Level

Plan 490171NAH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

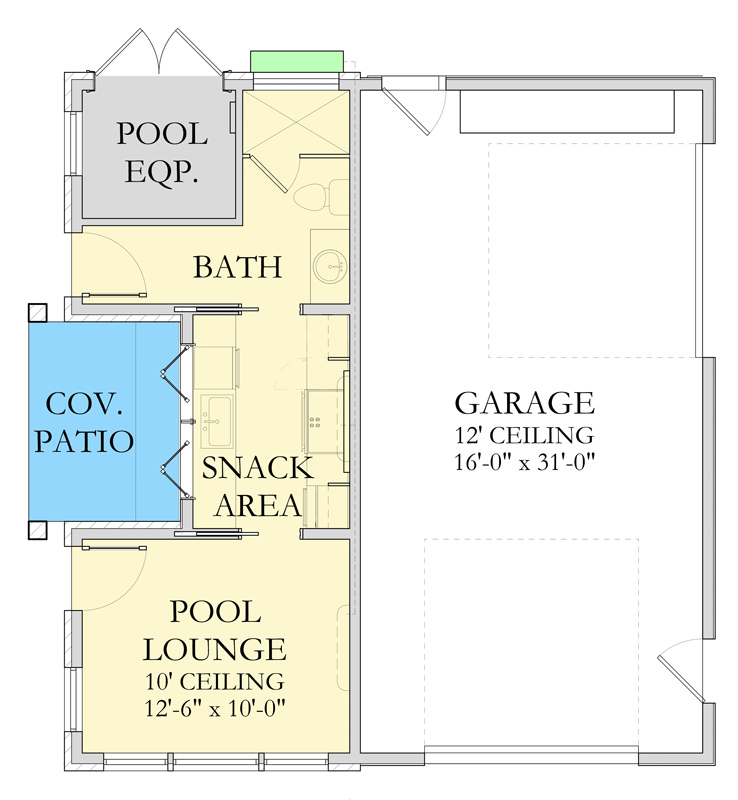

Plan 490171NAH: Traditional Pool House Plan with Integrated Garage - Floor Plan - Main Level - Traditional

Plan Details

  • This 331 sq. ft. pool house plan features a stylish design with a full bathroom and an integrated garage measuring 496 sq. ft.
  • Enter through the covered patio, leading directly to a compact snack area flanked by a spacious pool lounge with 10-foot ceilings.
  • Enjoy the seamless flow from indoor relaxation spaces to the outdoor covered patio for poolside lounging.
  • A well-equipped bath adjacent to the pool lounge adds convenience, while a dedicated pool equipment room enhances functionality.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

331 sq. ft.

1st Floor

331 sq. ft.

Covered Patio

67 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

32' 0"

Max Ridge Height

18' 1"

Garage

Type

Attached

Area

528 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Architectural Style

Traditional

Plan Collections

Pool House

Square Footage Breakdown

Total Heated Area

331 sq. ft.

1st Floor

331 sq. ft.

Covered Patio

67 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

32' 0"

Max Ridge Height

18' 1"

Garage

Type

Attached

Area

528 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Architectural Style

Traditional

Plan Collections

Pool House
