Plan 89253AH

Traditional Ranch Duplex

Heated S.F.
3,000
Units
2
Width
Depth

Floor Plan

Plan 89253AH

Main Level
Main Level

Plan 89253AH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

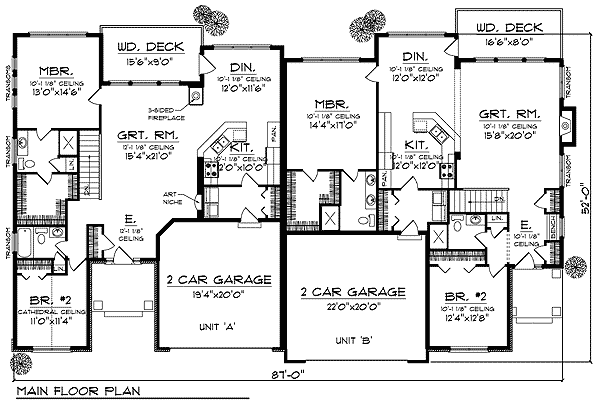

Plan 89253AH: Traditional Ranch Duplex - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This traditional ranch duplex was designed so that each unit is slightly different from the other.
  • Inside each unit features an open floor plan where the kitchen opens to the great room and dining room.
  • Each master suite has tall ceilings in the bedroom and a spacious walk-in closet.
  • Each unit has an attached two-car garage.
Unit A
Heated Area
1,440Sq. Ft.
1440 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
402 Sq. Ft.
Dimensions
43' 6"width
52'depth
26' 4"height
Unfinished Areas
402 Sq. Ft. Garage
Unit B
Heated Area
1,440Sq. Ft.
1440 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
402 Sq. Ft.
Dimensions
43' 6"width
52'depth
26' 4"height
Unfinished Areas
402 Sq. Ft. Garage

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,000 sq. ft.

1st Floor

3,000 sq. ft.

Porch, Front

140 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

87' 0"

Depth

52' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

804 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

3,000 sq. ft.

1st Floor

3,000 sq. ft.

Porch, Front

140 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

87' 0"

Depth

52' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

804 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
