Plan 51248MM

Traditional Ranch Duplex House Plan with Split Bedrooms and Front Porches

Heated S.F.
2,728
Units
2
Width
Depth

Floor Plan

Plan 51248MM

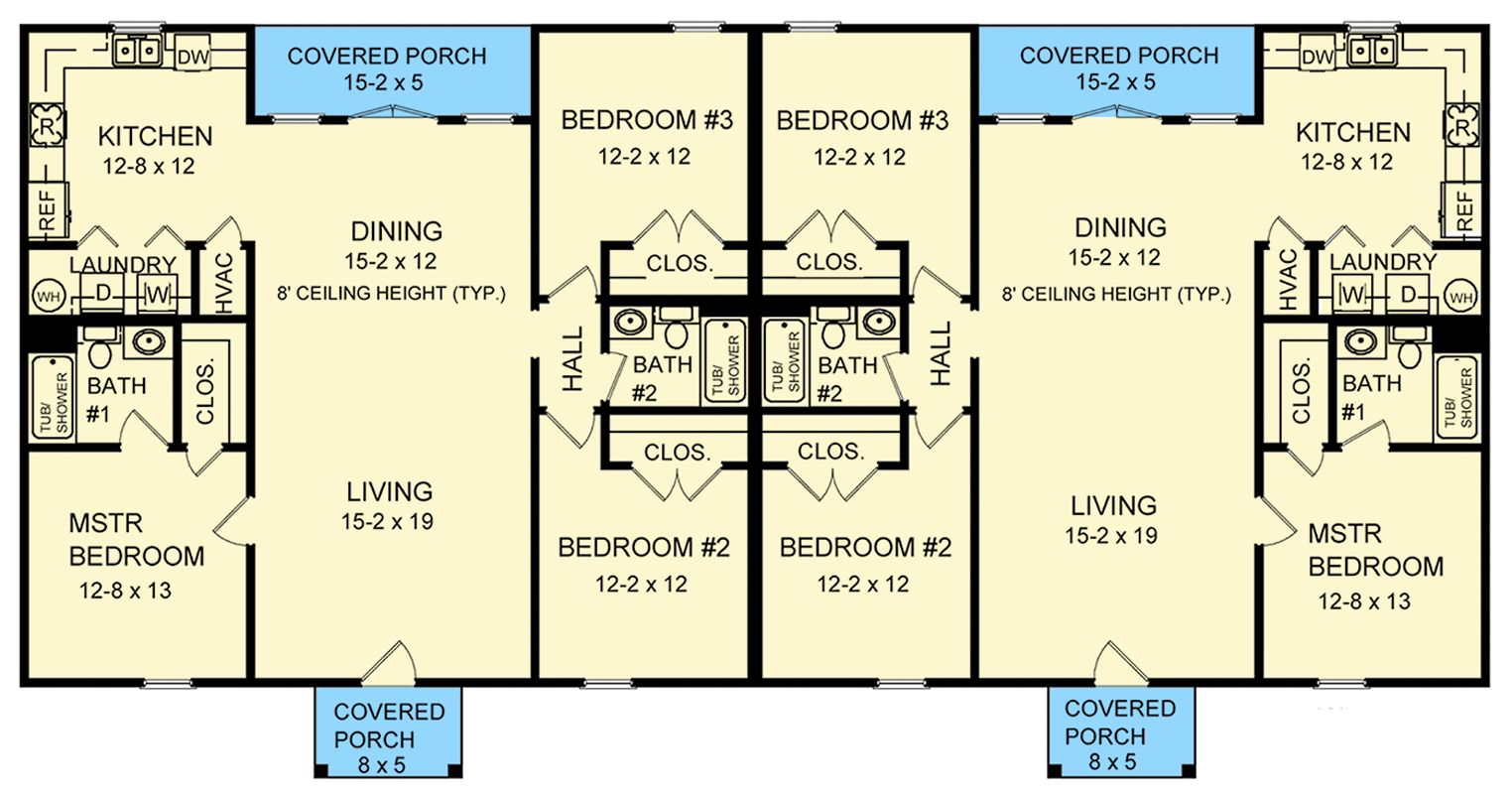

Main Level
Main Level

Plan 51248MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

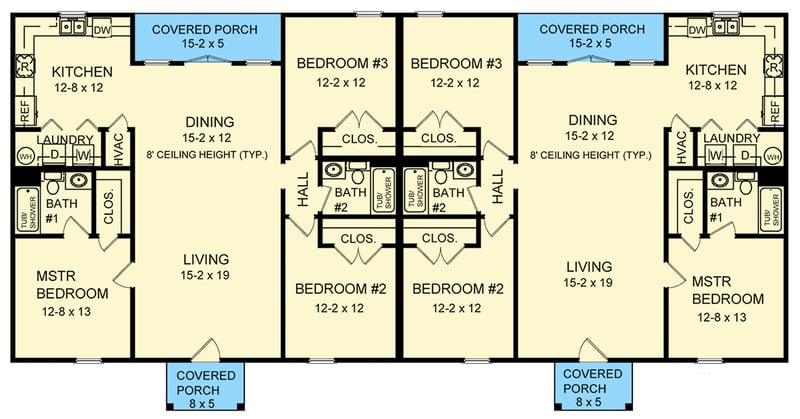

Plan 51248MM: Traditional Ranch Duplex House Plan with Split Bedrooms and Front Porches - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This 1,364 sq. ft. duplex design plan features 3 bedrooms and 2 bathrooms per unit, offering comfortable single-level living.
  • The entrance leads into a spacious living room that seamlessly connects to the dining area and kitchen.
  • The master suite is located on the first floor, offering privacy and convenience with quick access to the main level laundry.
  • Split bedroom layout provides additional privacy for family or guests, with each unit having its own dedicated space.
  • Front and rear covered porches provide outdoor living areas, perfect for relaxation or social gatherings.
Unit A & B
Heated Area
1,368Sq. Ft.
1368 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Dimensions
40'width
41'depth
Unfinished Areas
40 Sq. Ft. Porch, Front
76 Sq. Ft. Porch, Rear

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

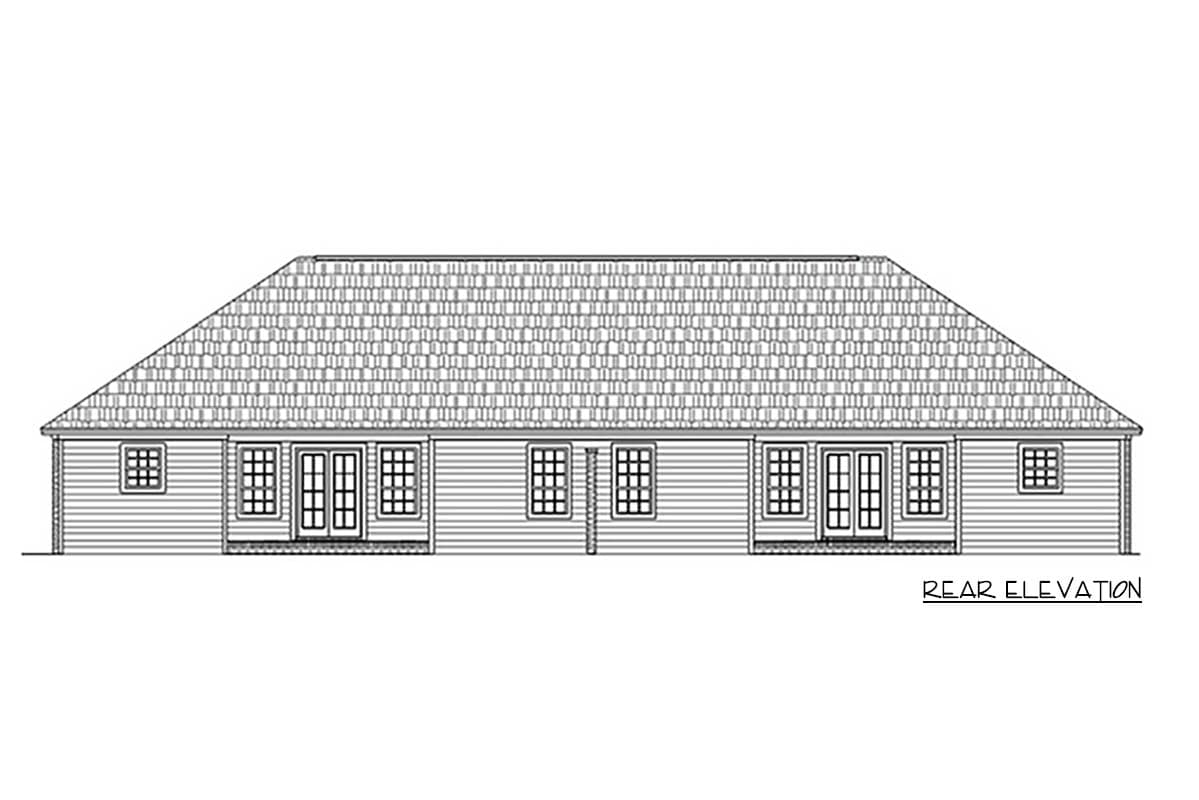

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,728 sq. ft.

1st Floor

2,728 sq. ft.

Porch, Front

80 sq. ft.

Porch, Rear

152 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 0"

Depth

41' 0"

Max Ridge Height

21' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,728 sq. ft.

1st Floor

2,728 sq. ft.

Porch, Front

80 sq. ft.

Porch, Rear

152 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 0"

Depth

41' 0"

Max Ridge Height

21' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
