Traditional Ranch Home Plan with Huge Hidden Pantry

Pageloader

Traditional Ranch Home Plan with Huge Hidden Pantry

Plan 890100AH

  • 1,736

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • The traditional, ranch design stands the test of time by remaining a best seller over the years.
  • The floor plan is very spacious and offers a covered porch, and large windows oriented to take advantage of rear-facing views.

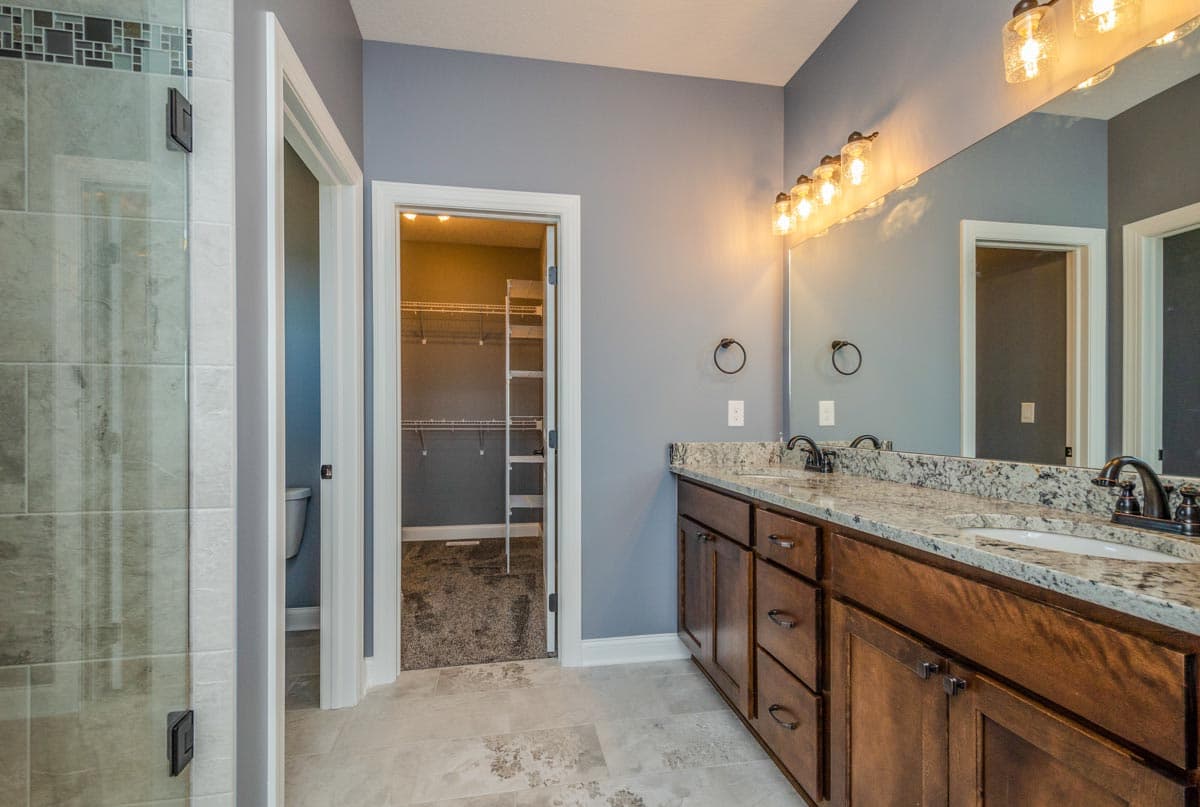

  • Keeping the bedrooms split, the master bedroom is located to the right for added privacy. The master bath features dual sinks with plenty of counter space and access to the walk-in closet.
  • A secondary bedroom sits next to a full bathroom and linen closet.

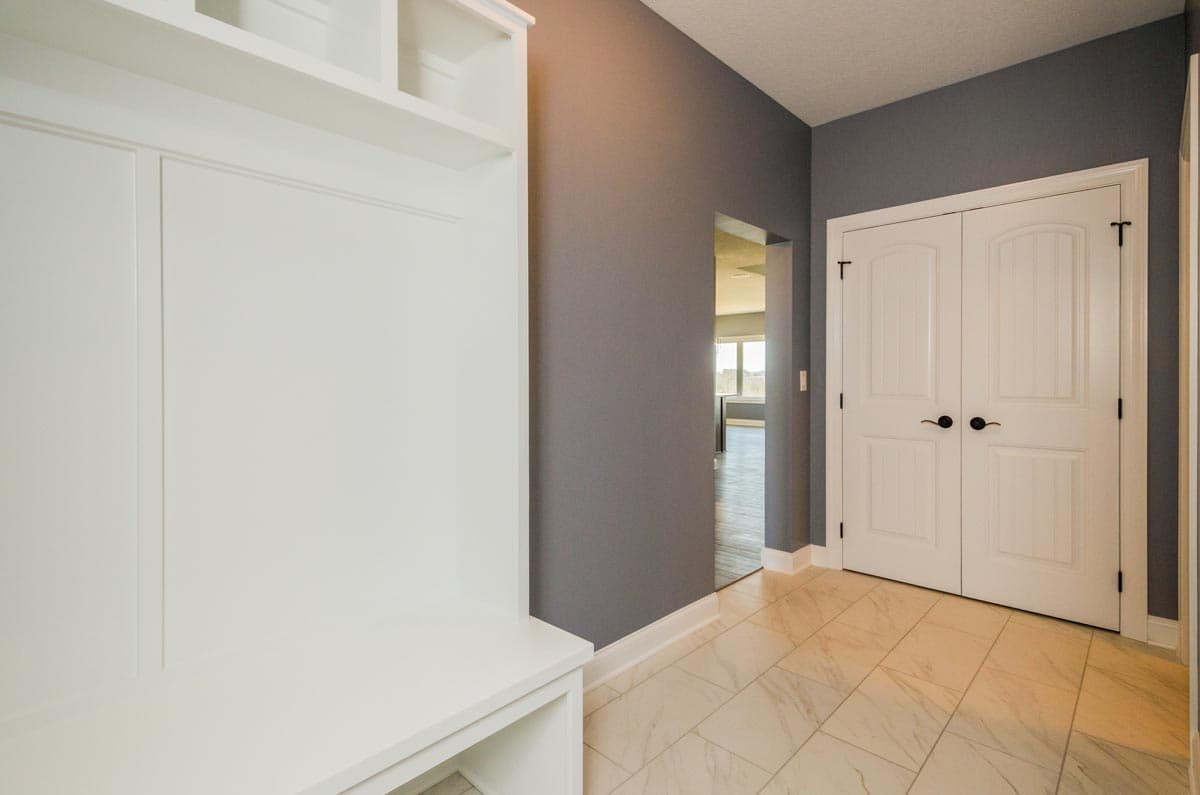

  • This plan is complete with a three-stall front load garage, with built-in lockers in the adjacent mudroom.

Plans include the following

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

Framing plans are NOT included.

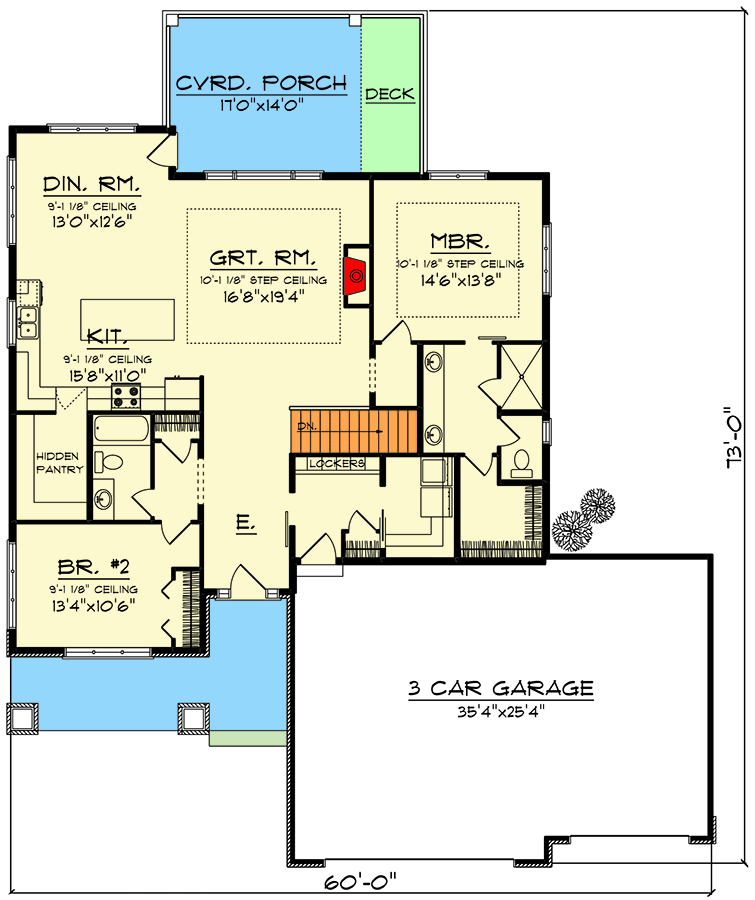

Floor Plan

Plan details



Traditional Ranch Home Plan with Huge Hidden Pantry

  • 1,736

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $900
  • 8 Sets $940
  • Reproducible Set $1,125
  • PDF - single-use $1,125
  • CAD $1,775
  • View all purchase option online

About This Plan

  • The traditional, ranch design stands the test of time by remaining a best seller over the years.
  • The floor plan is very spacious and offers a covered porch, and large windows oriented to take advantage of rear-facing views.
  • Keeping the bedrooms split, the master bedroom is located to the right for added privacy. The master bath features dual sinks with plenty of counter space and access to the walk-in closet.
  • A secondary bedroom sits next to a full bathroom and linen closet.
  • This plan is complete with a three-stall front load garage, with built-in lockers in the adjacent mudroom.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,736 sq. ft.
  • 1st Floor: 1,736 sq. ft.
  • Porch, Combined: 406 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 73' 0"
  • Max ridge height: 21' 8"

Garage

  • Type: Attached
  • Area: 904 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
