Plan 22174SL
Traditional Ranch Home Plan with Open Concept Living Space
Heated S.F.
2,065
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This charming and traditional ranch home plan delivers 3 bedrooms, an open concept living space, and a flexible dining room or home office.
  • A fireplace, framed by windows, anchors the rear wall of the great room. Minimal walls in the shared living spaces create the desirable open concept layout many homeowners seek.
  • L-shaped cabinets and counters form the kitchen with a nearby pantry providing additional storage space.
  • Three bedrooms are clustered on the right side of the home with the master towards the front and joined by a 4-fixture bathroom and walk-in closet.
  • Access the double garage from the front of the home and discover a laundry room with a coat closet just inside.
  • Related Plan: Get an alternate version with house plan 22181SL.
What's Included
  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional Ranch Home Plan with Open Concept Living Space

  • 2,065

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

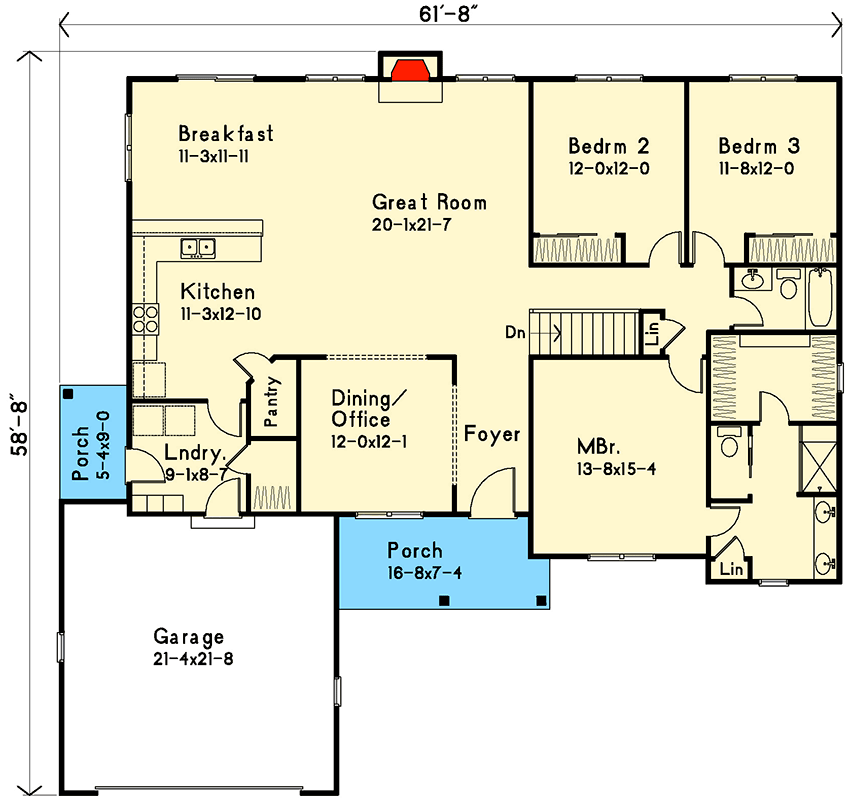

Floor Plan
