Plan 61351UT

Traditional Ranch Home Plan with Optional Finished Basement

Traditional Ranch Home Plan with Optional Finished Basement

Plan 61351UT

  • 1,660

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

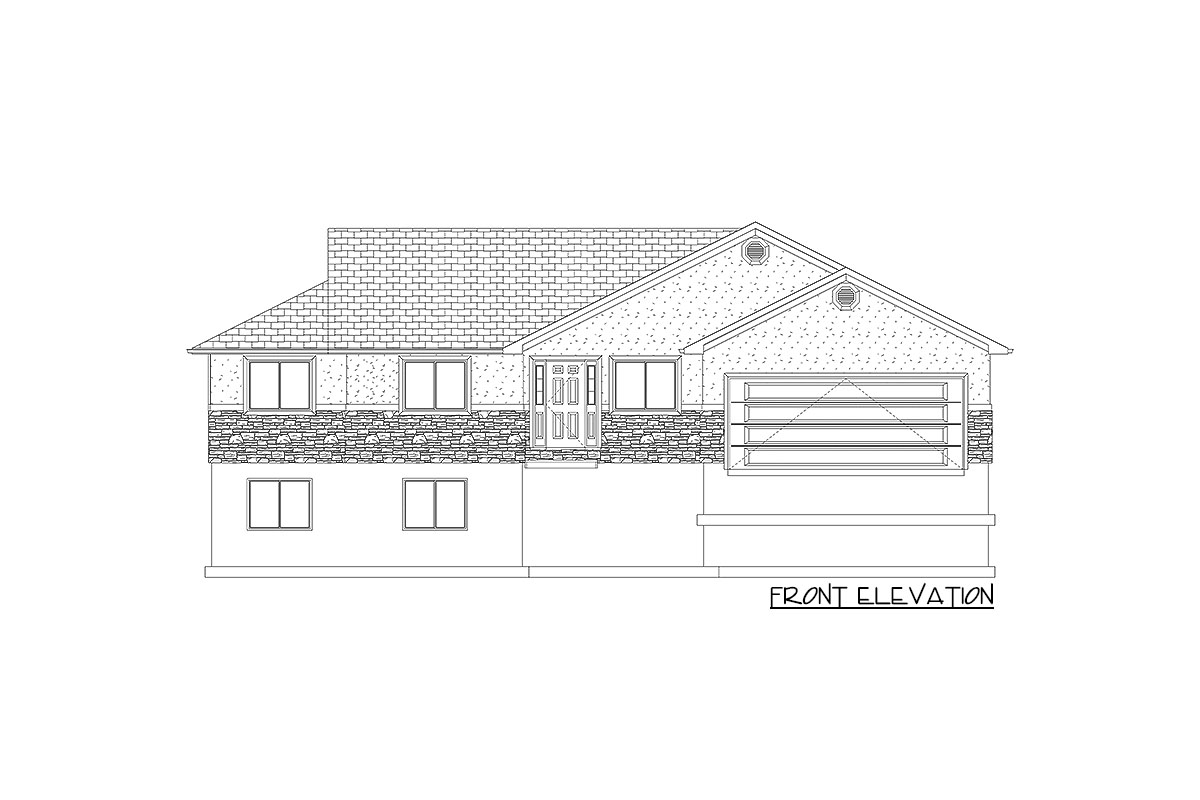

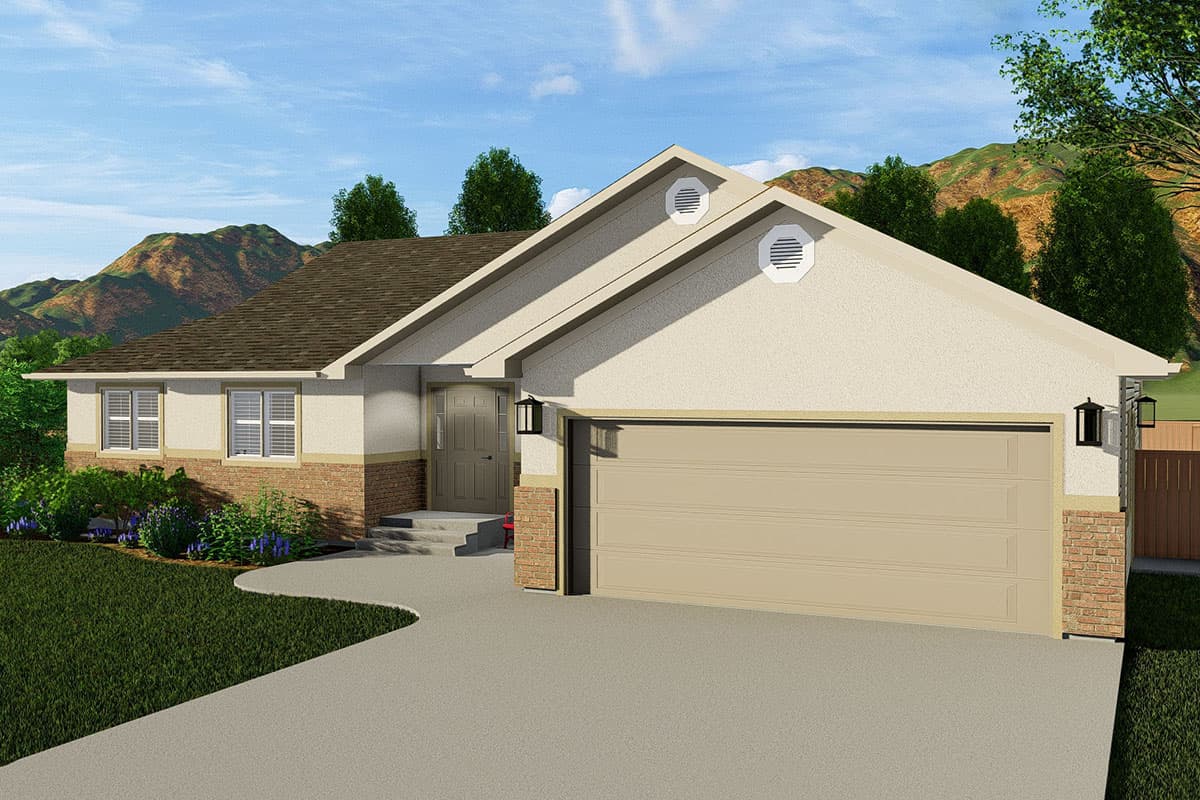

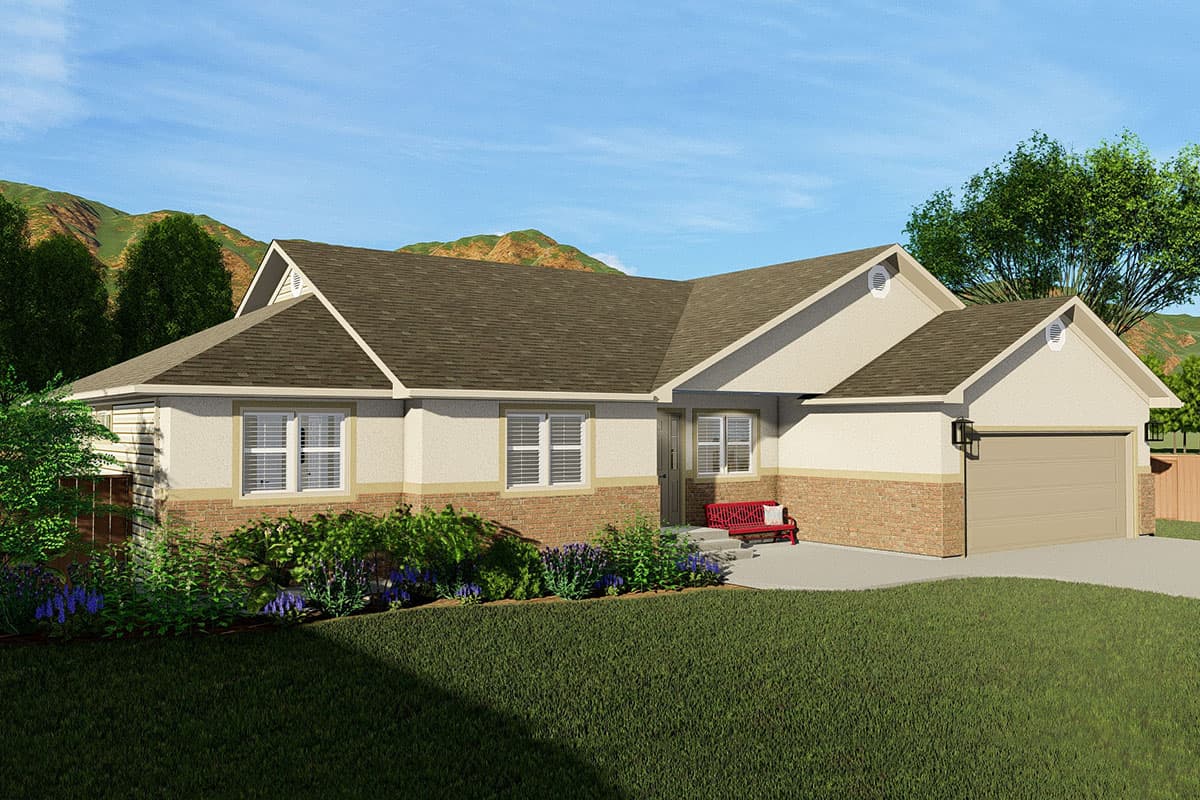

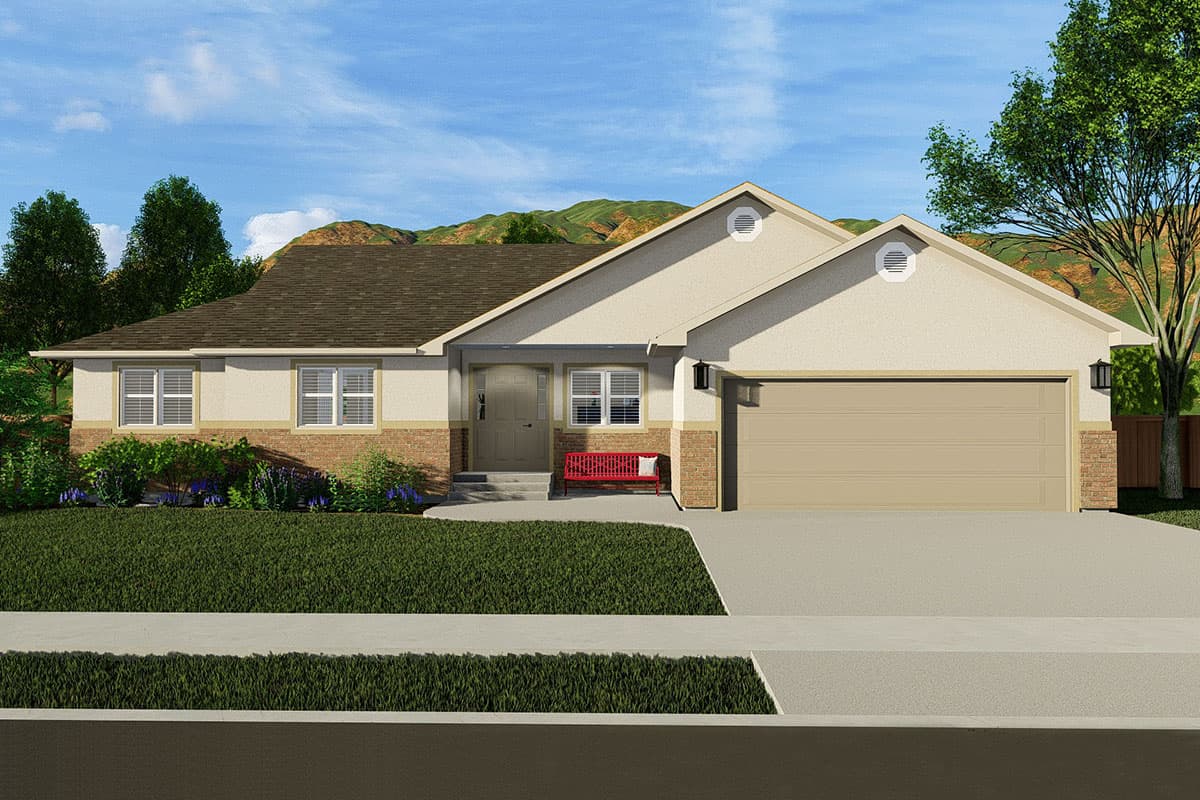

  • Brick and stucco adorn the facade of this traditional, ranch home plan, complete with forward-facing gables above the 2-car garage.

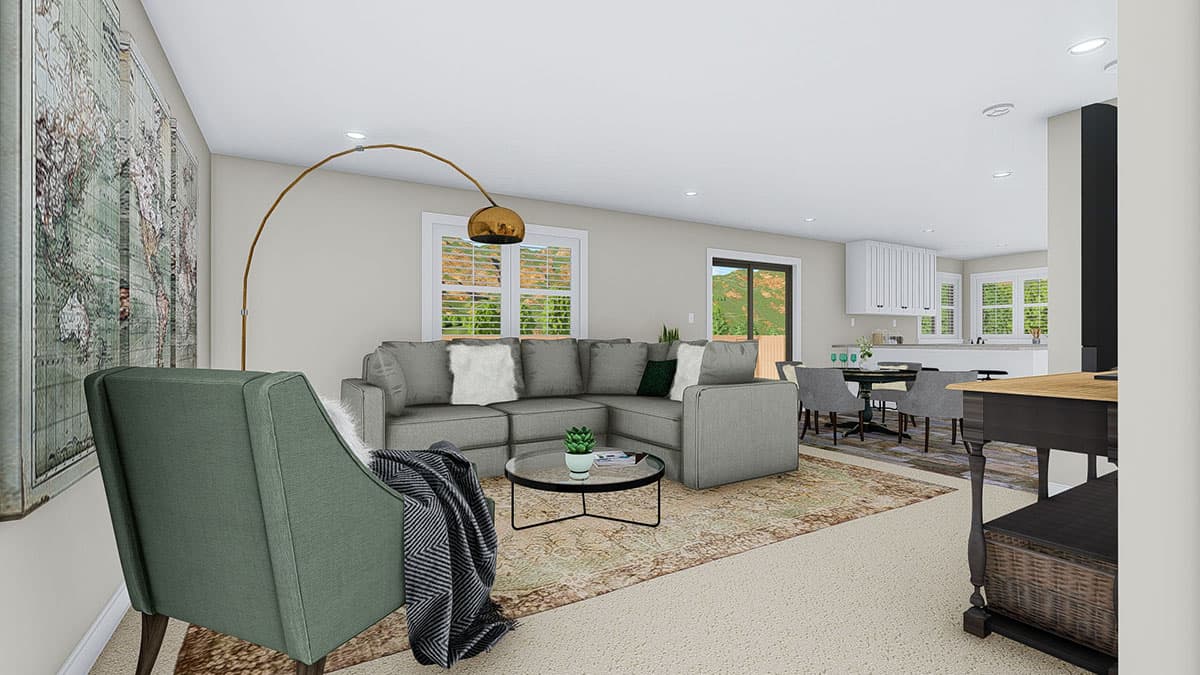

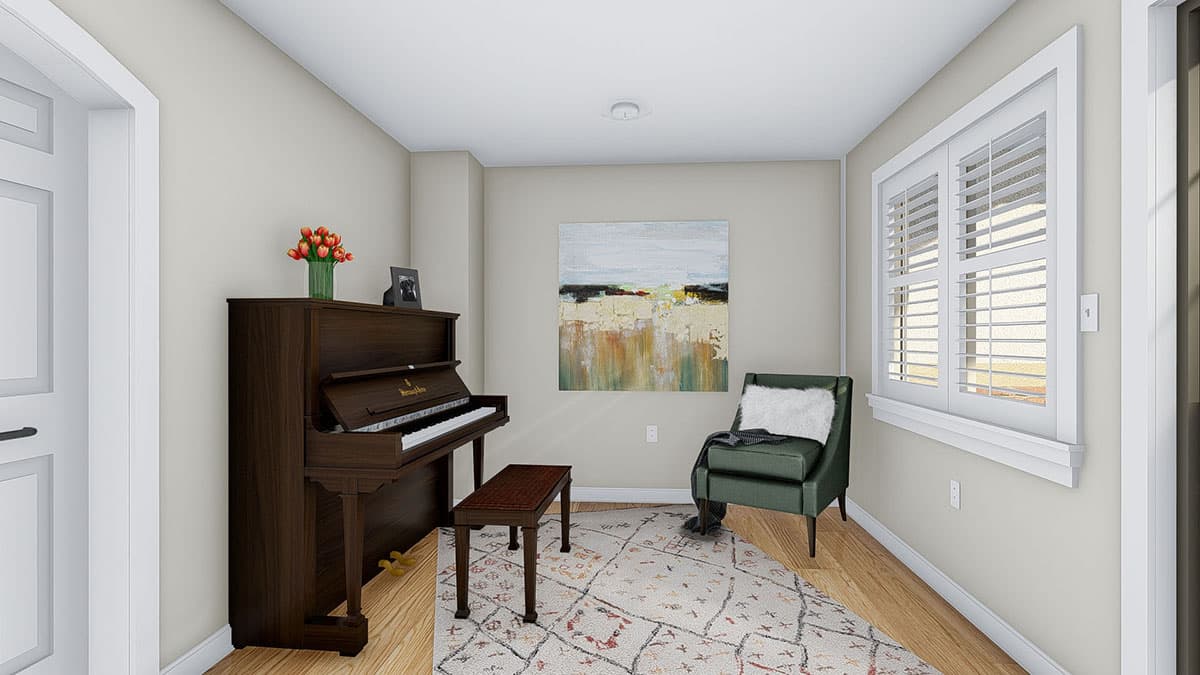

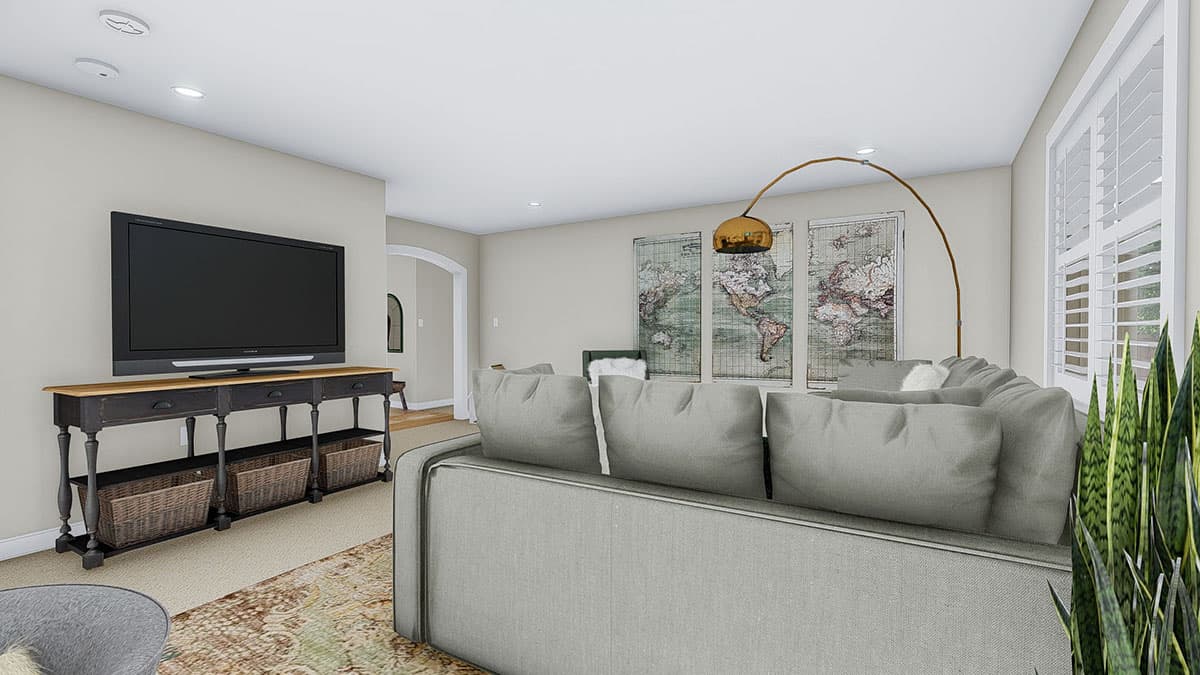

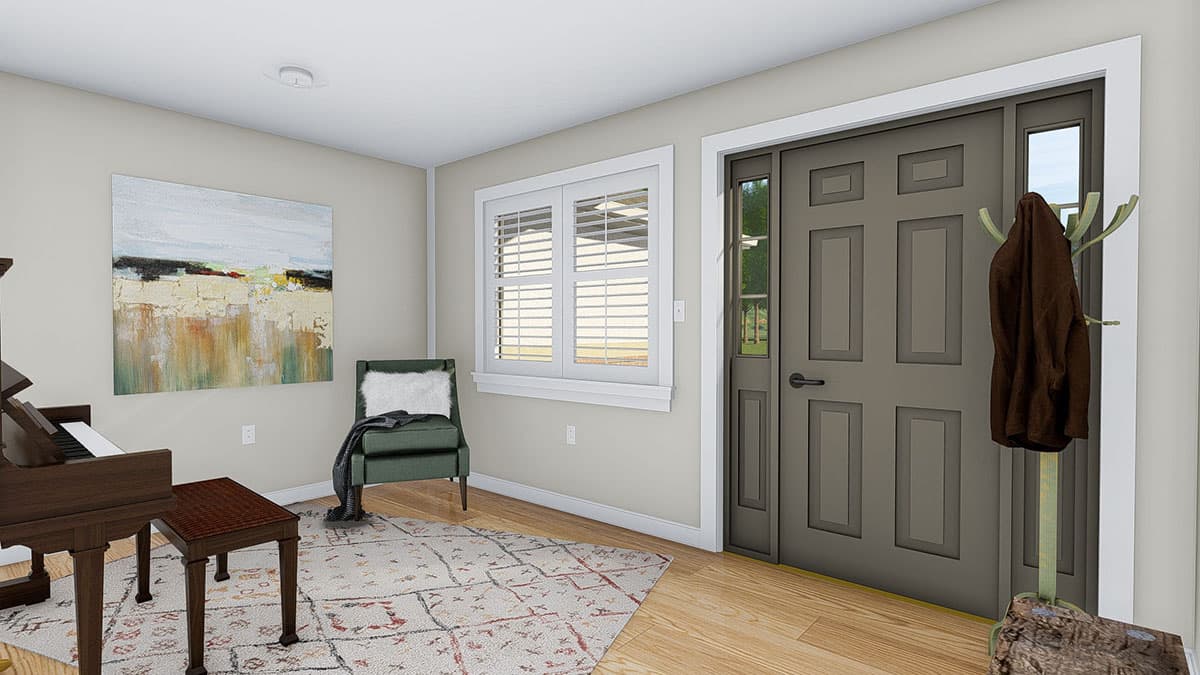

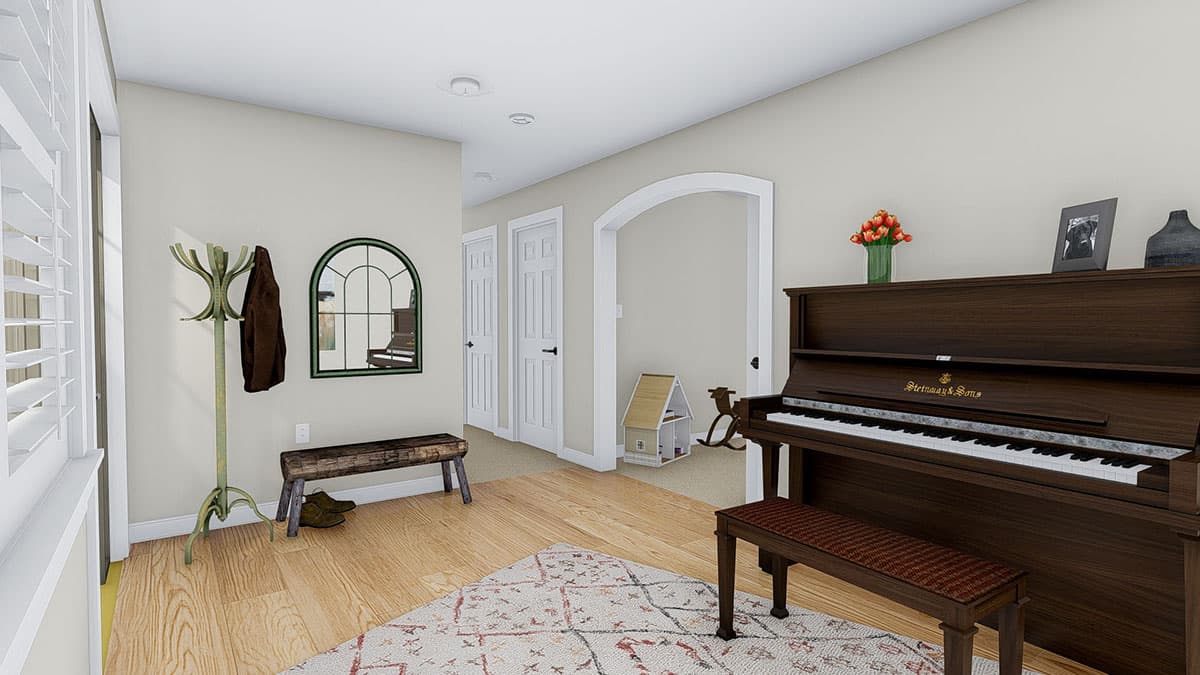

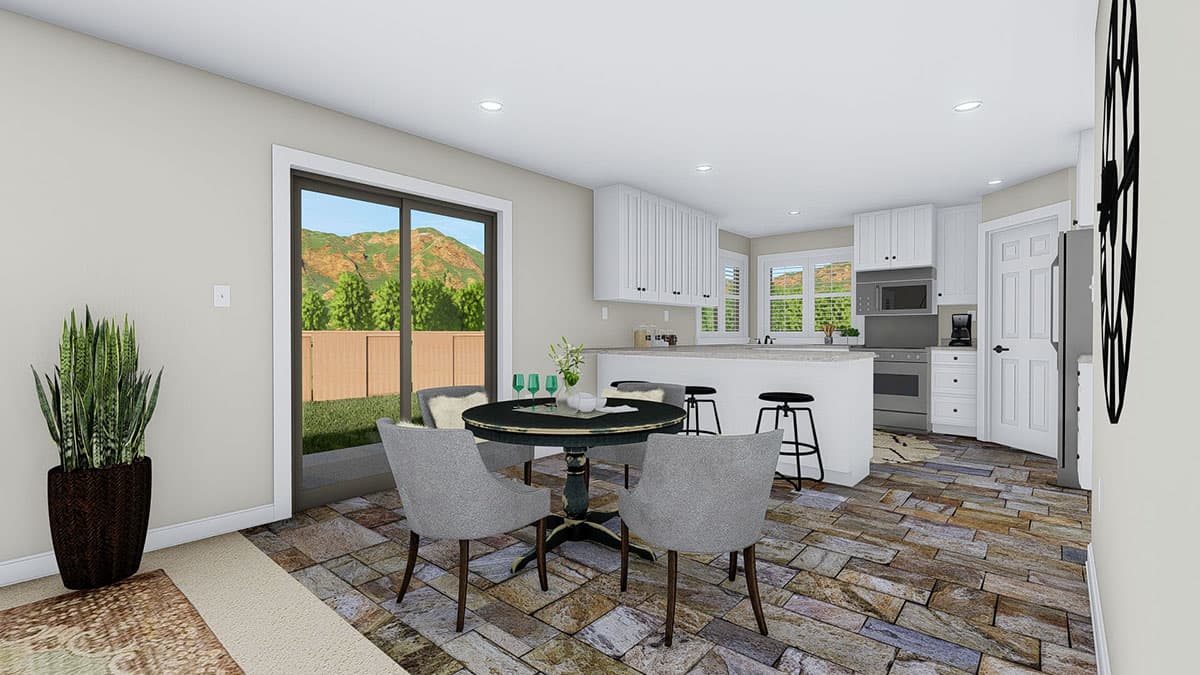

  • Once past the threshold, a formal living room greets you, with two coat closets available in the nearby hallway. The open, shared living spaces reside behind the 2-car garage, providing a comfortable flow for everyday living.

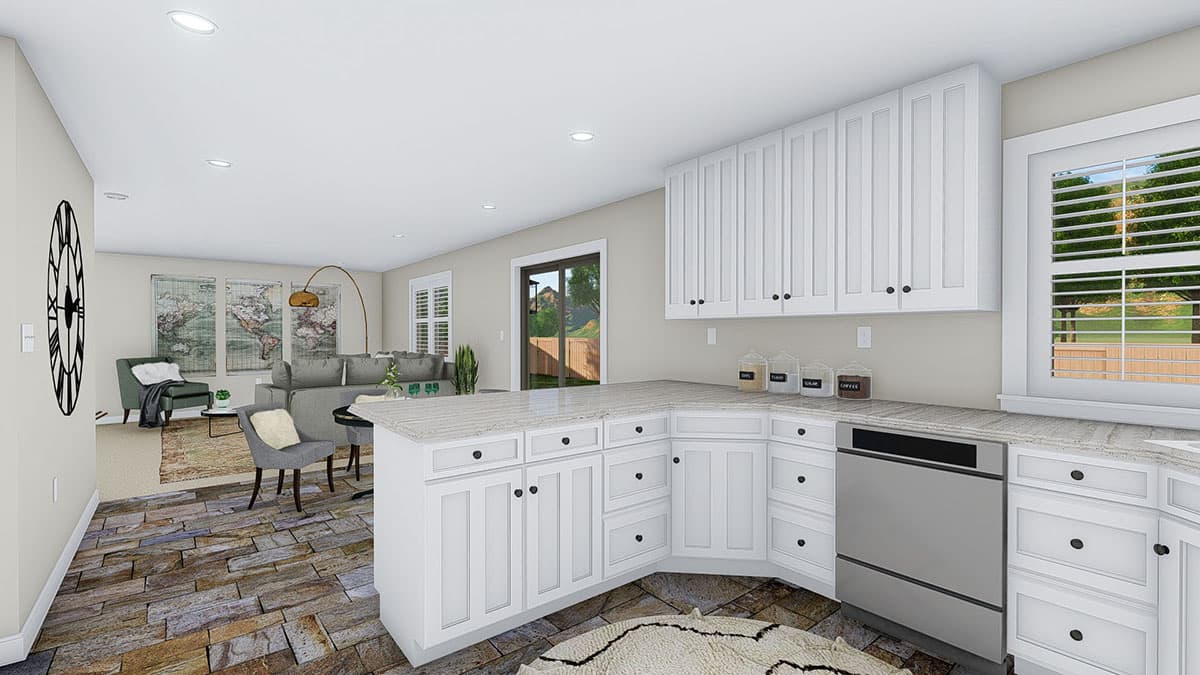

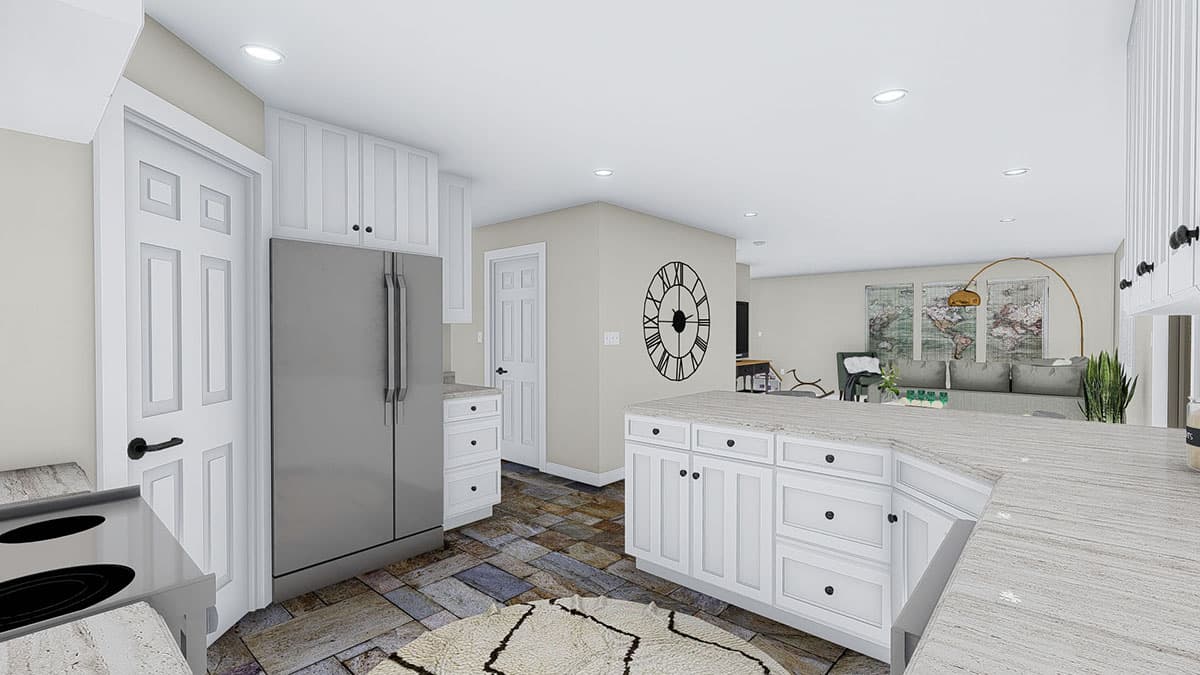

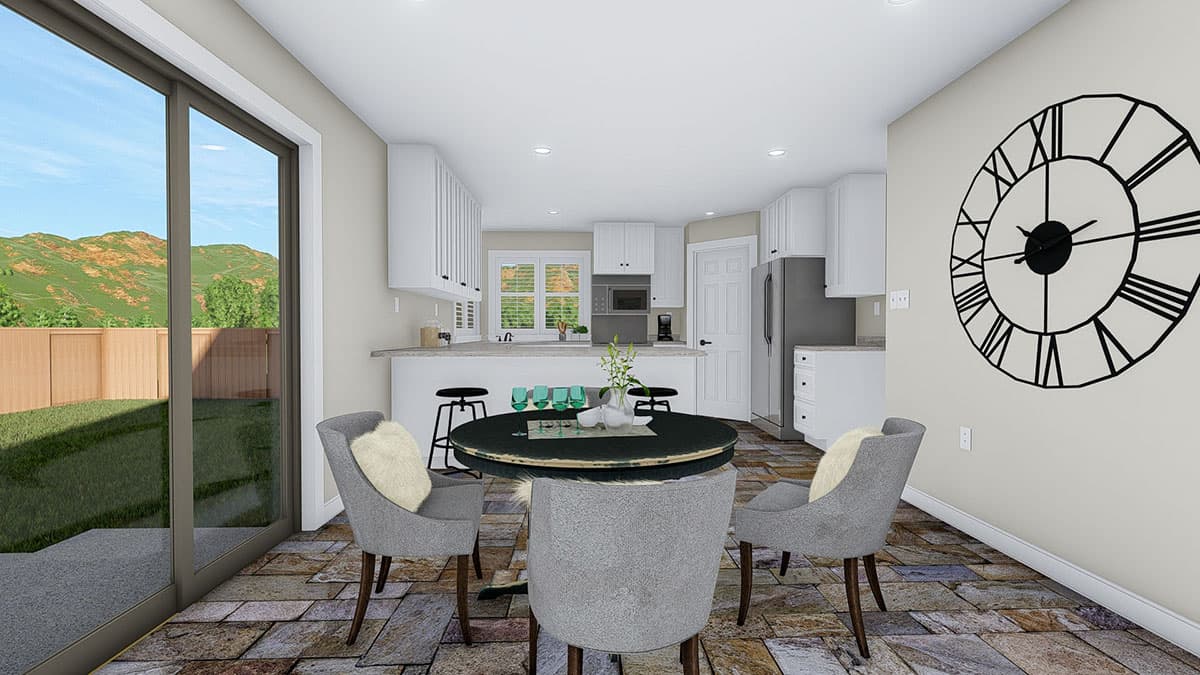

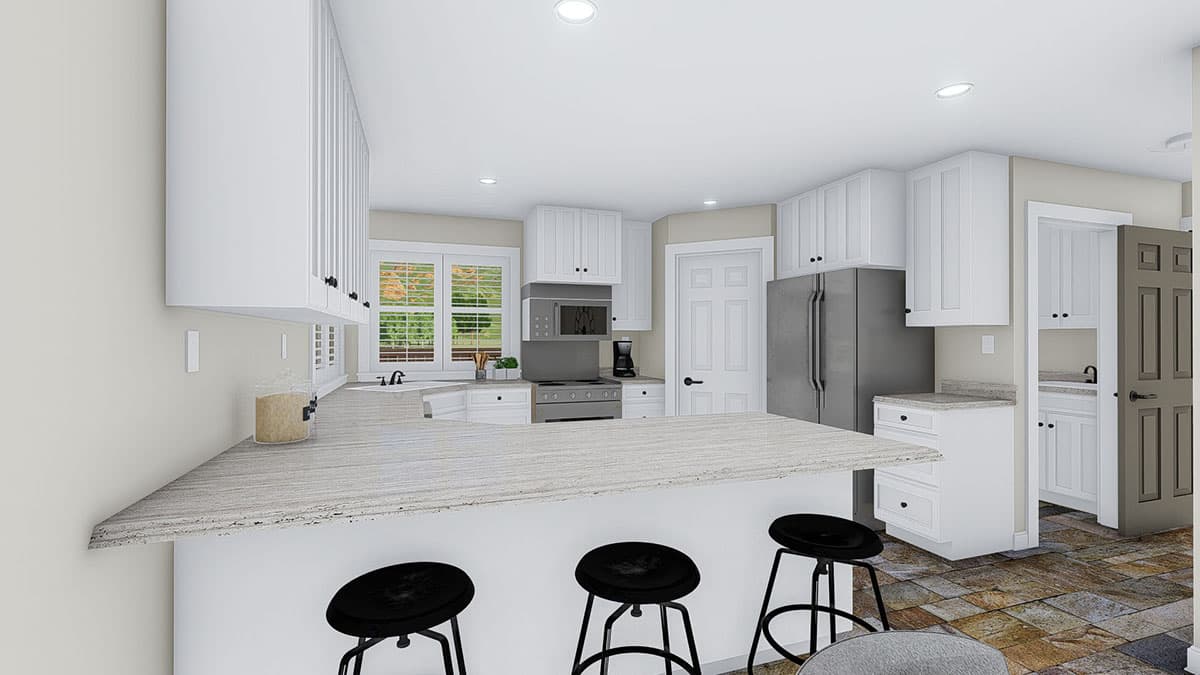

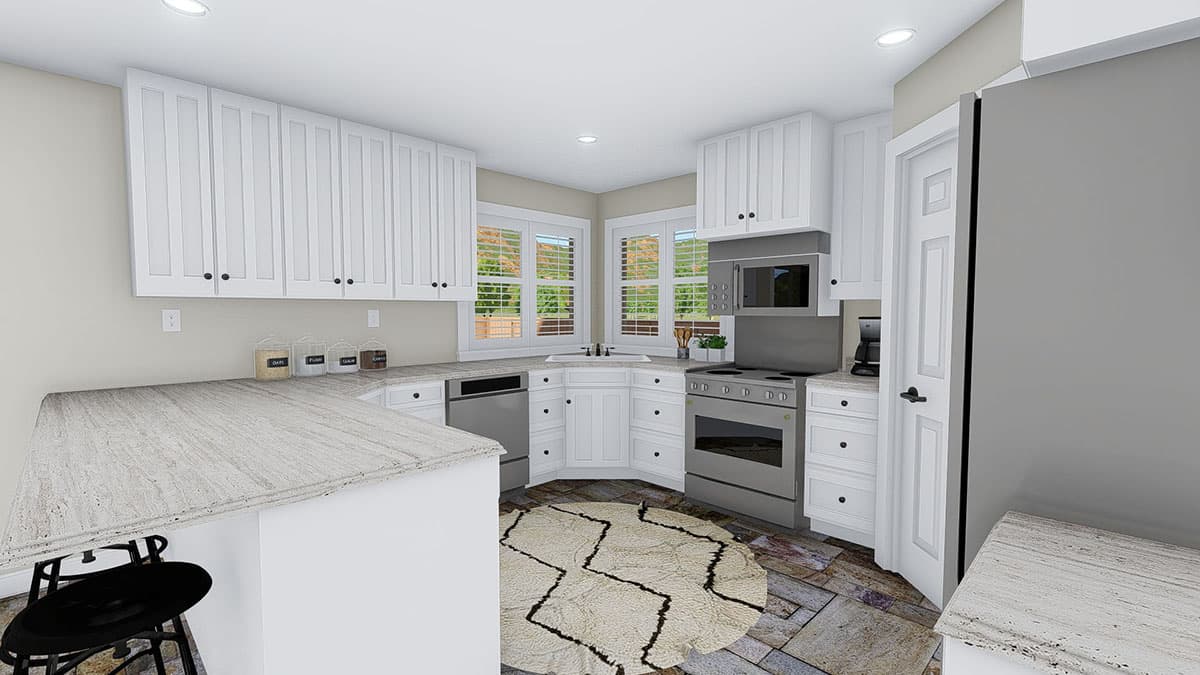

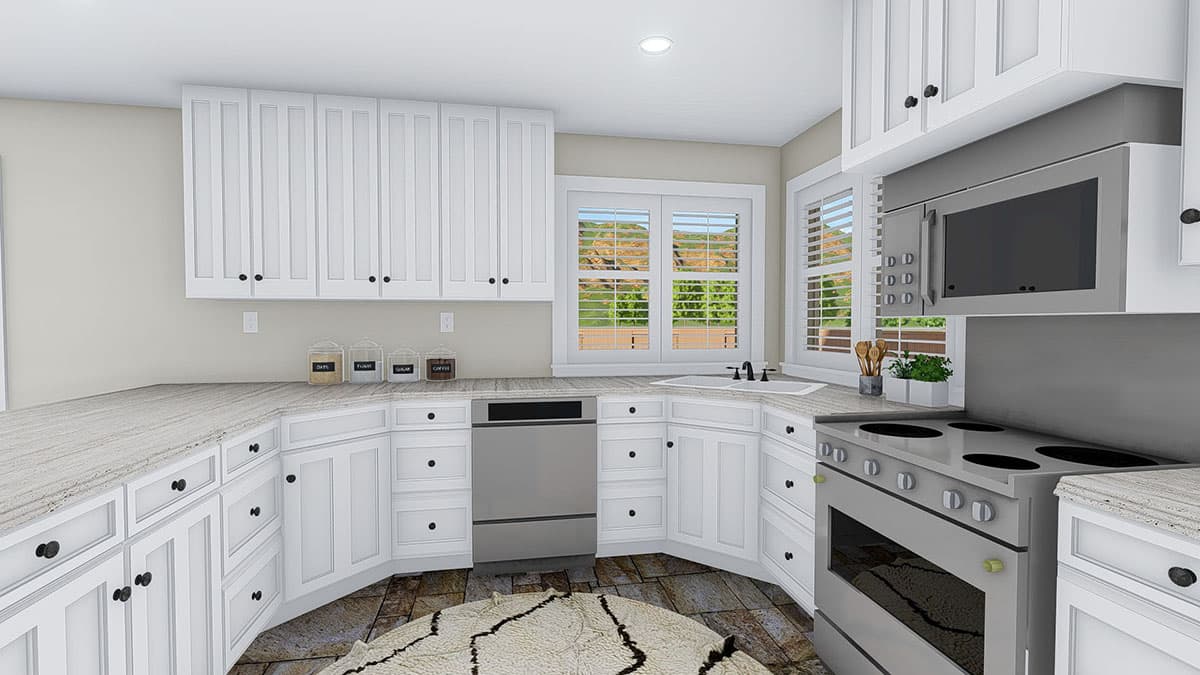

  • The u-shaped cabinets help to define the kitchen, and the corner pantry boosts storage space for dry food or bulky appliances. A half bath sits just inside from the garage as an added convenience.

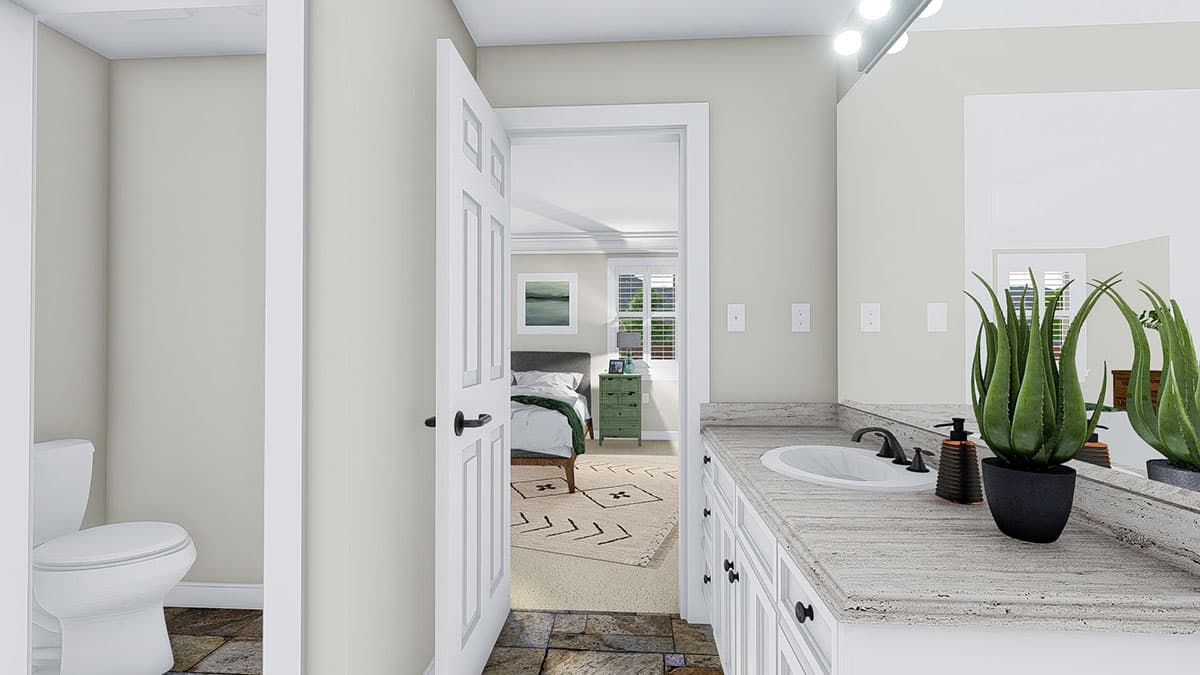

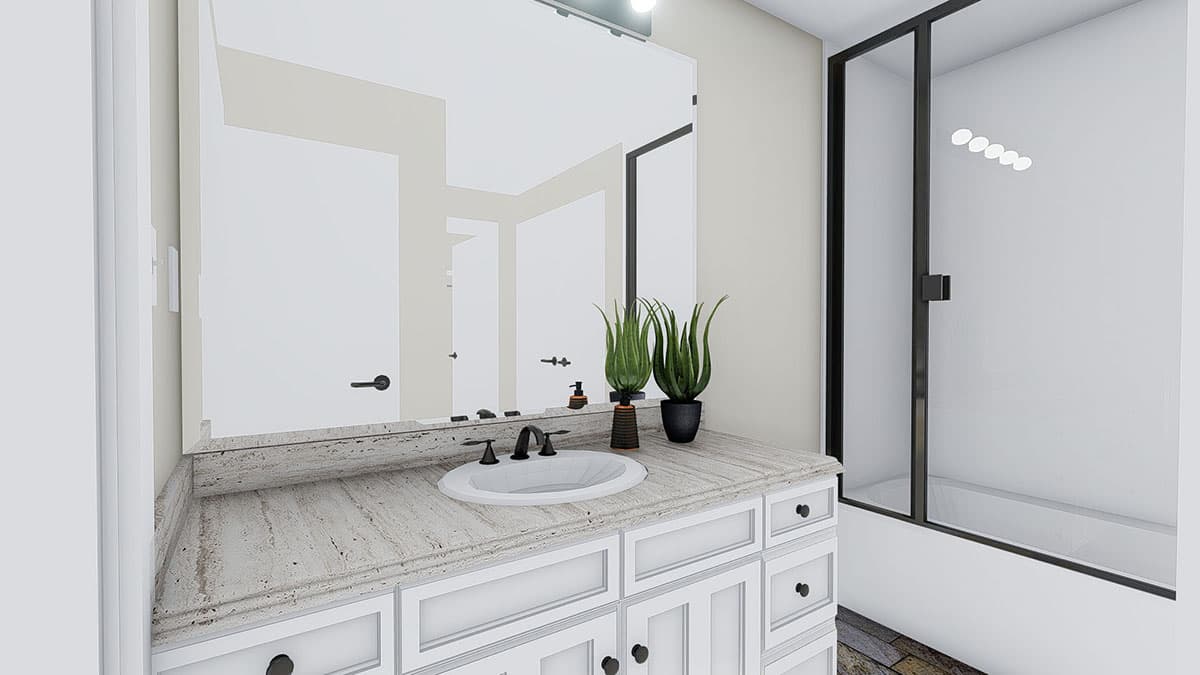

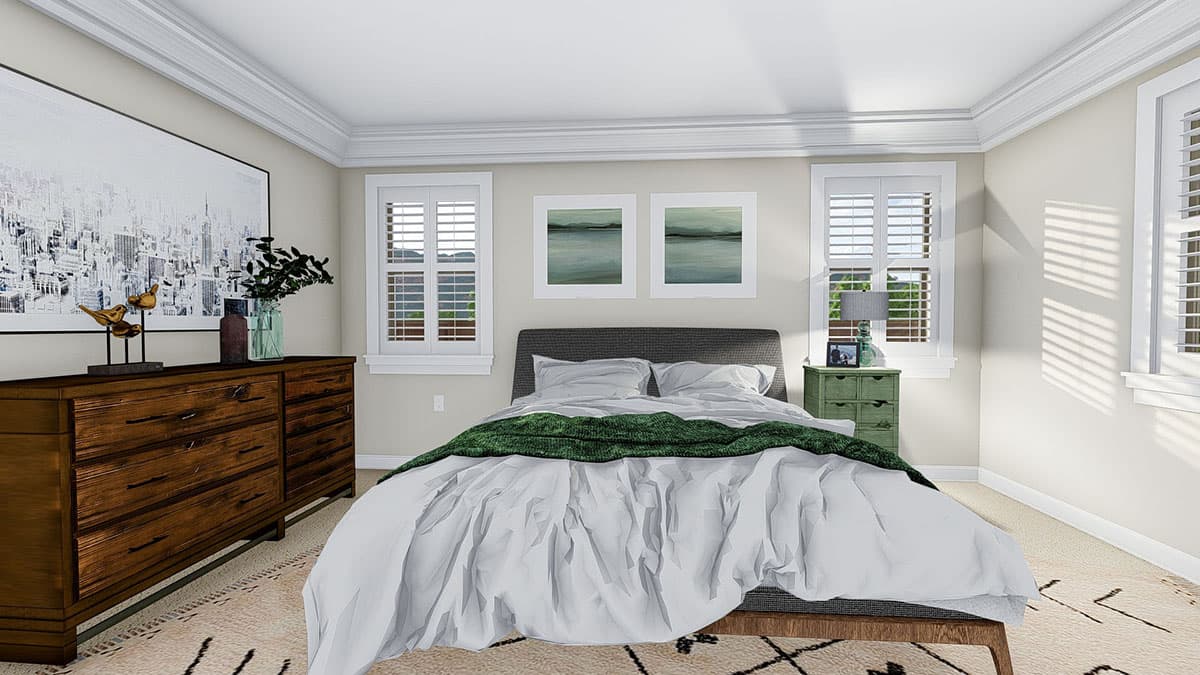

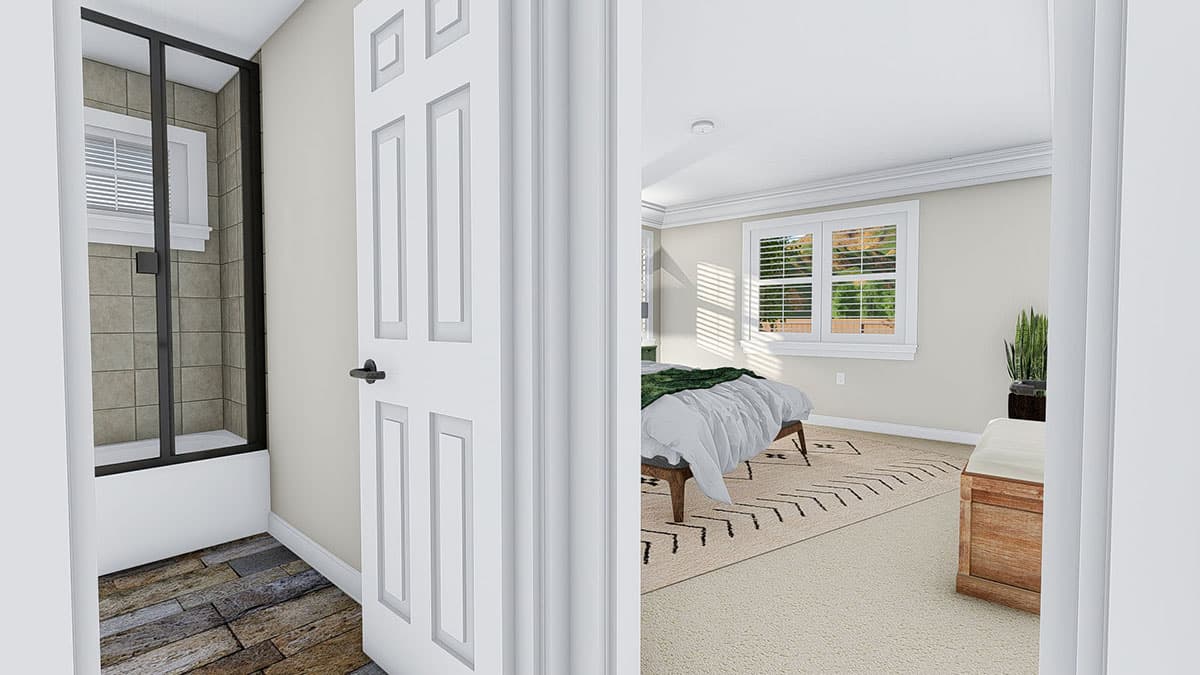

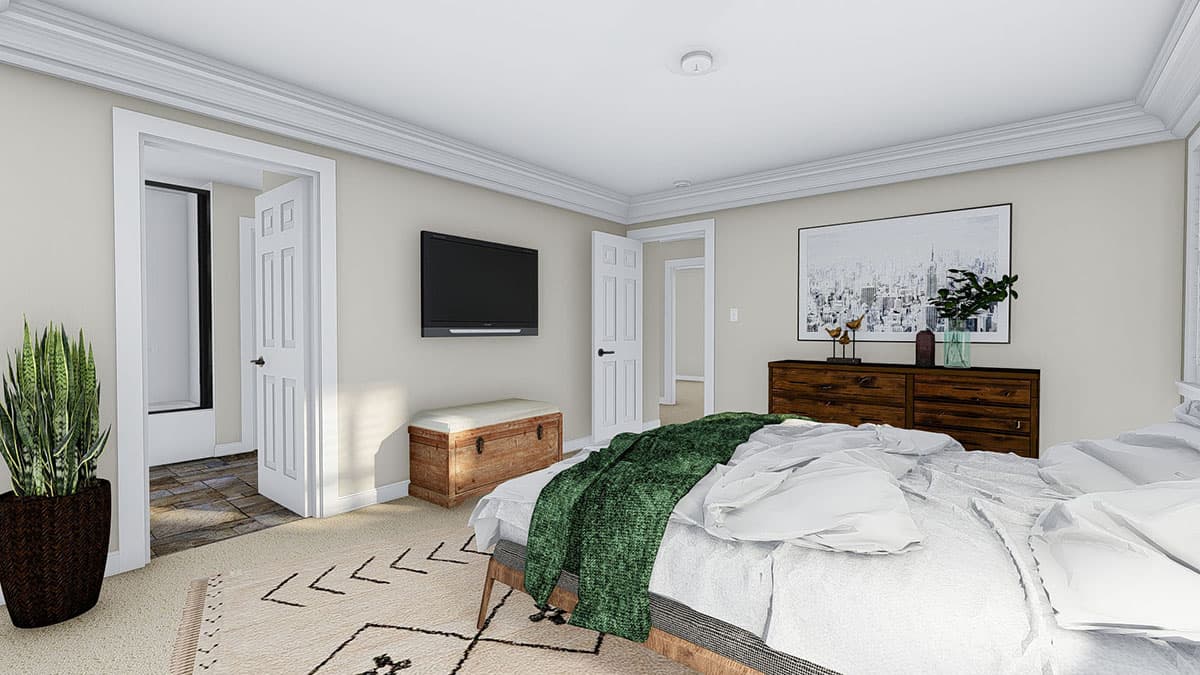

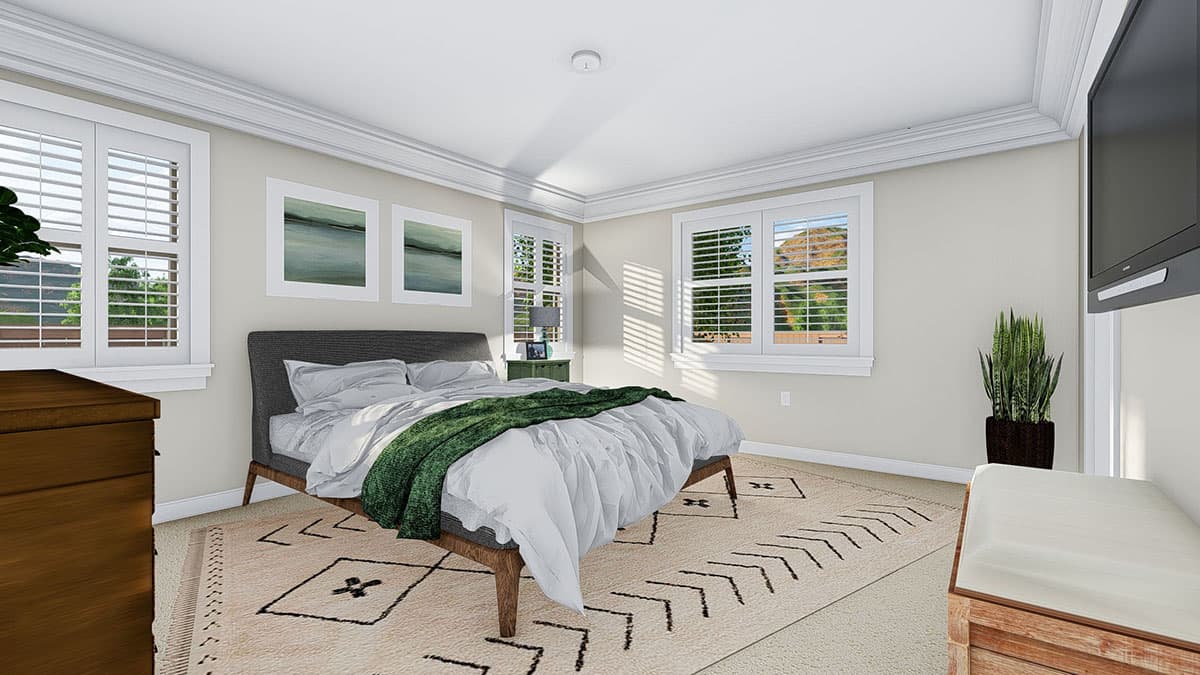

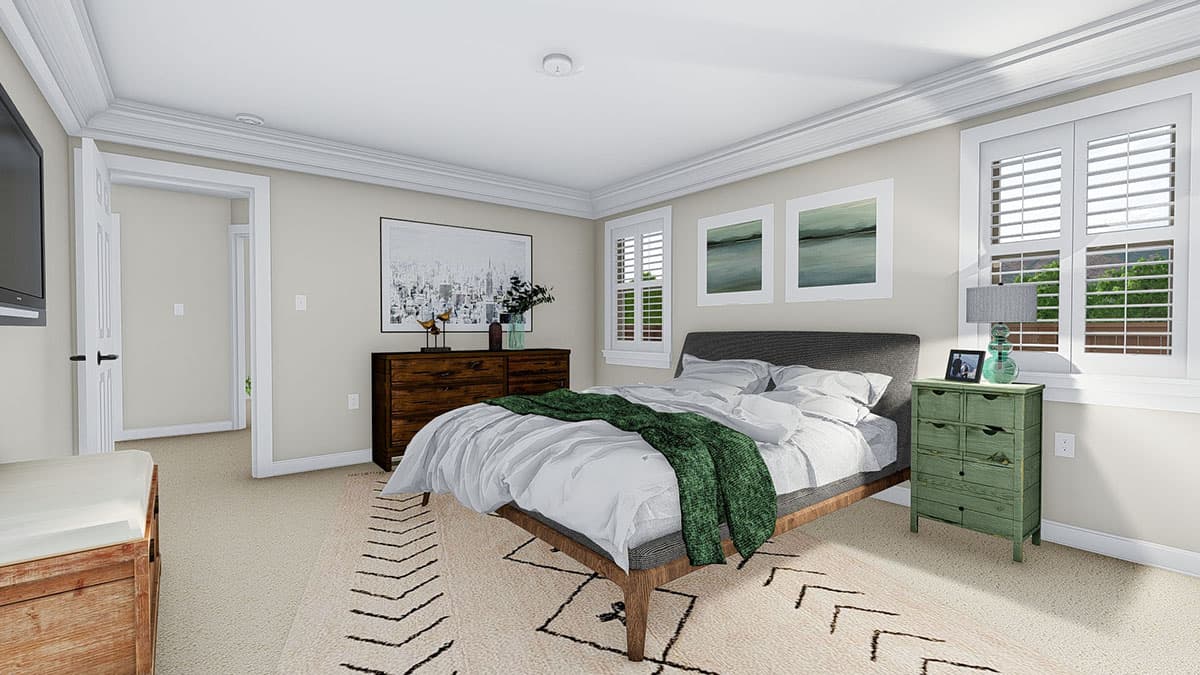

  • Three bedrooms on the main level occupy the left side of the home. The master is the largest, and includes a second layout option for the master bath, while the secondary bedrooms are similar in size and share the hall bath.

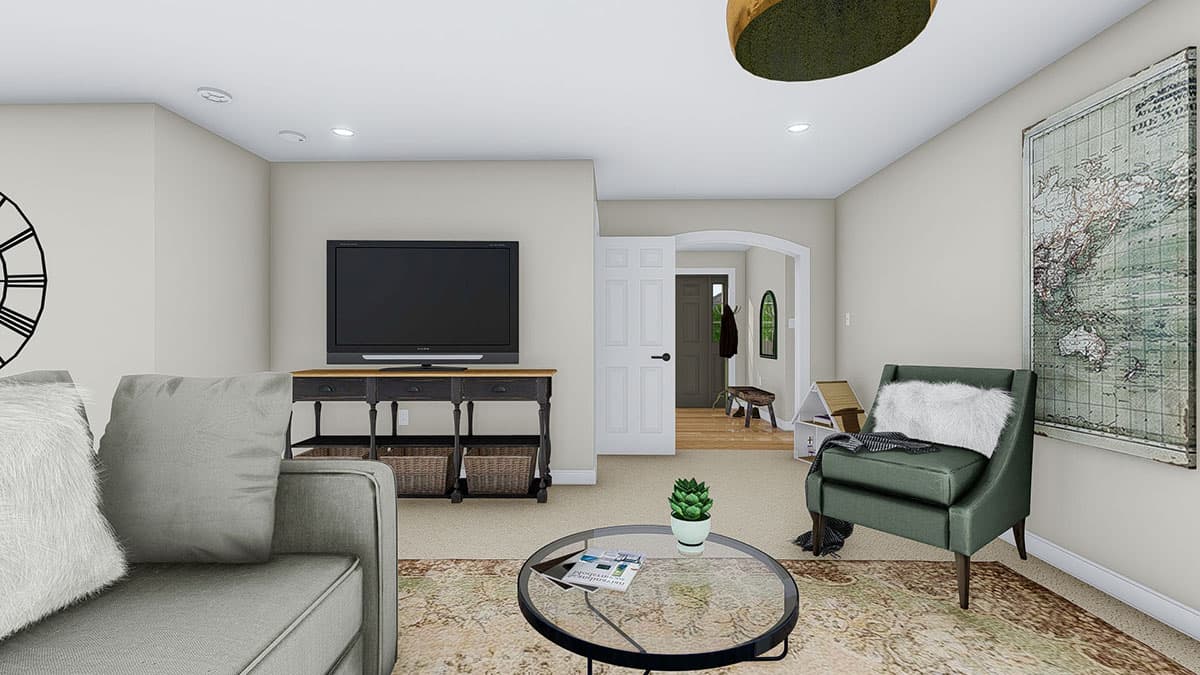

  • Gain 1,615 sq. ft. of living space when you finish the lower level, which includes two identical bedrooms, a sizable family room, and a home office.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

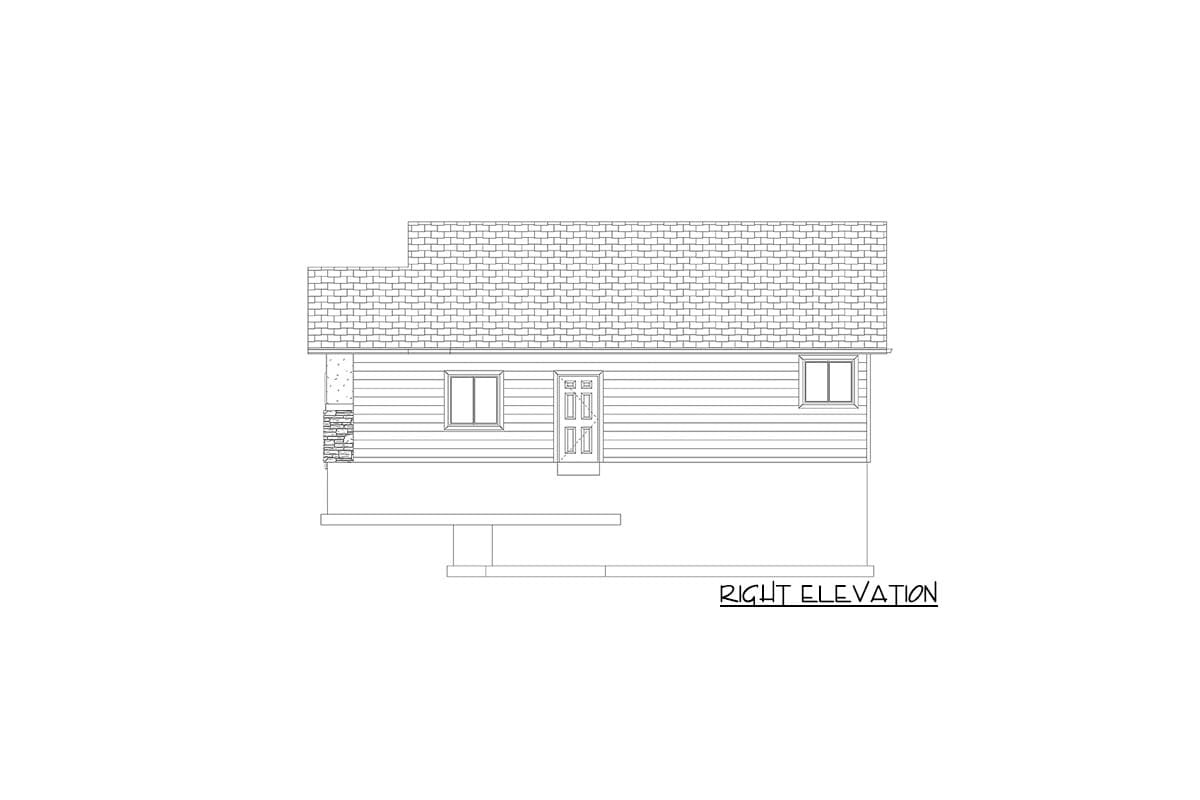

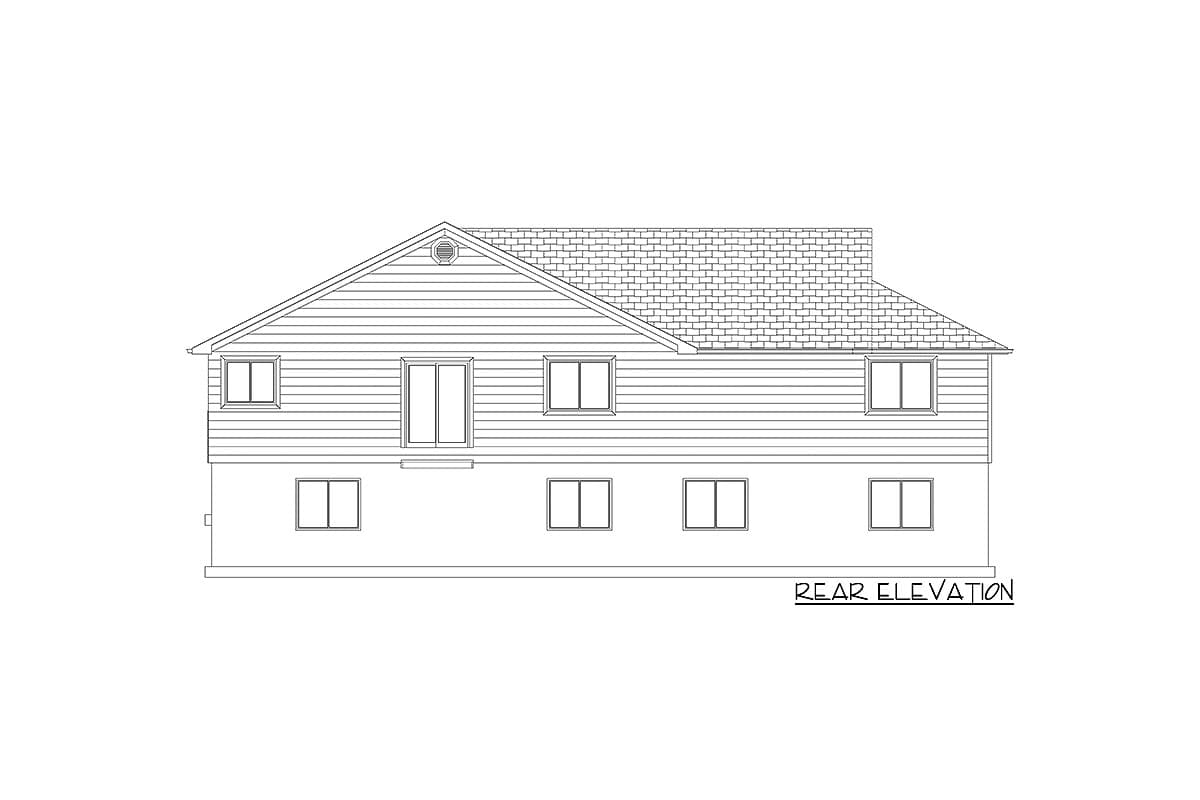

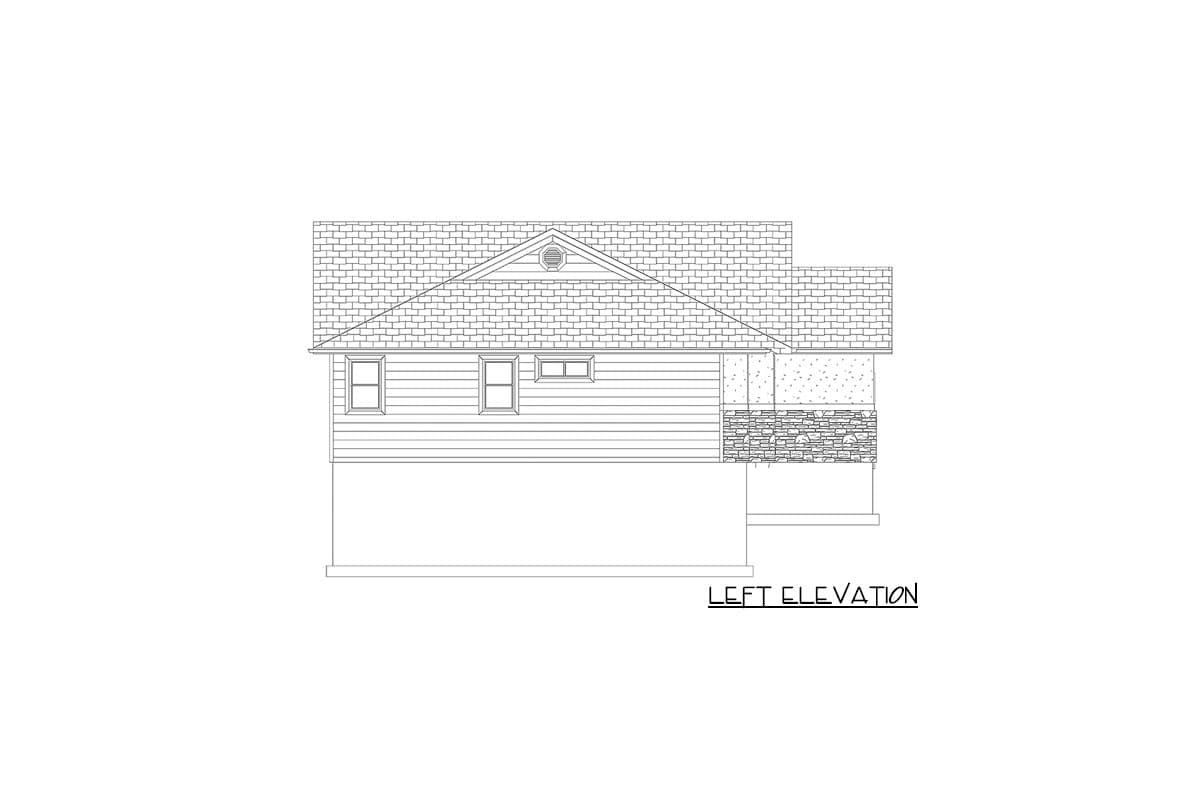

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

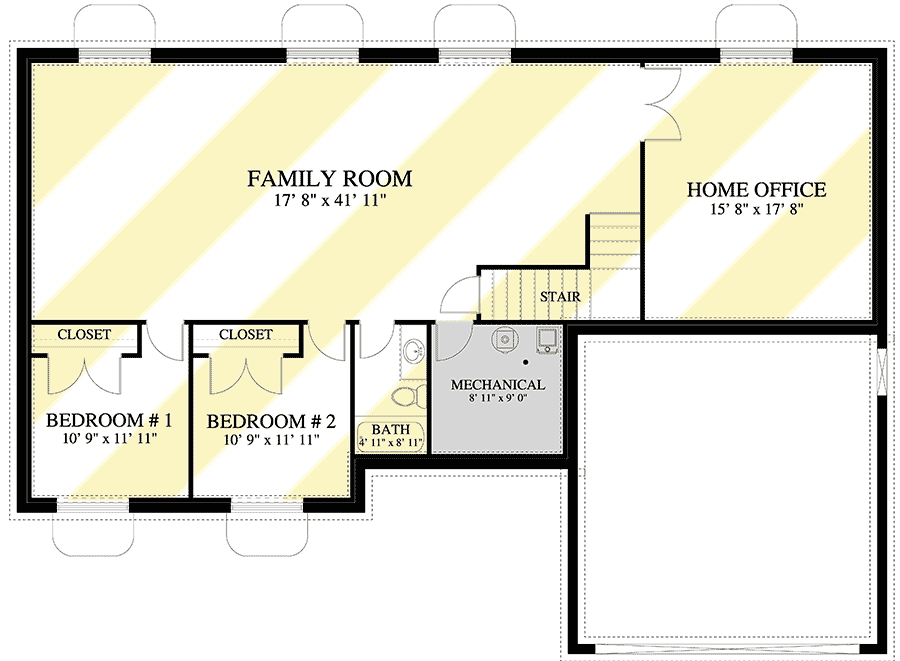

Optional Lower Level

Traditional Ranch Home Plan with Optional Finished Basement - 61351UT floor plan - Optional Lower Level

Optional Master Bath Layout

Traditional Ranch Home Plan with Optional Finished Basement - 61351UT floor plan - Optional Master Bath Layout

Plan details



Traditional Ranch Home Plan with Optional Finished Basement

  • 1,660

    Heated s.f.

  • 3 - 5

    Beds

  • 3 +

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $895
  • PDF - single-use $950
  • CAD $1,675
  • View all purchase option online

About This Plan

  • Brick and stucco adorn the facade of this traditional, ranch home plan, complete with forward-facing gables above the 2-car garage.
  • Once past the threshold, a formal living room greets you, with two coat closets available in the nearby hallway. The open, shared living spaces reside behind the 2-car garage, providing a comfortable flow for everyday living.
  • The u-shaped cabinets help to define the kitchen, and the corner pantry boosts storage space for dry food or bulky appliances. A half bath sits just inside from the garage as an added convenience.
  • Three bedrooms on the main level occupy the left side of the home. The master is the largest, and includes a second layout option for the master bath, while the secondary bedrooms are similar in size and share the hall bath.
  • Gain 1,615 sq. ft. of living space when you finish the lower level, which includes two identical bedrooms, a sizable family room, and a home office.

Floor Plans

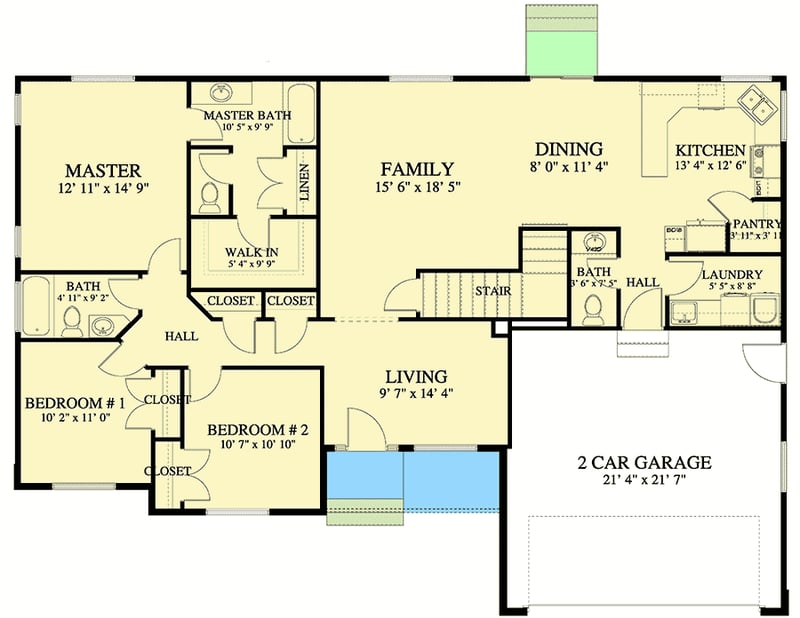

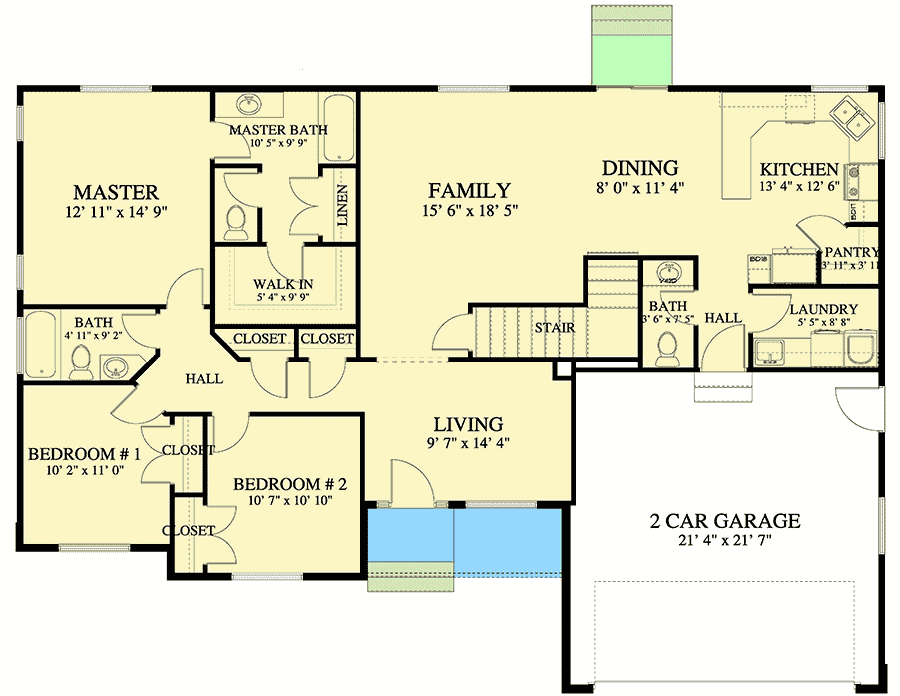

  • Main Level

  • Optional Lower Level

  • Optional Master Bath Layout

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,660 sq. ft.
  • 1st Floor: 1,660 sq. ft.
  • Porch, Combined: 70 sq. ft.
  • Optional Lower Level: 1,615 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Daylight, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 41' 9"
  • Max ridge height: 18' 7"

Garage

  • Type: Attached
  • Area: 482 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
