Plan 790107GLV

Exclusive

Traditional Ranch Home Plan with Split-bed Layout and Study

Heated S.F.
2,189
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 790107GLV

Main Level
Main Level

Plan 790107GLV

M-F 9am-5pm EST |

1-203-761-8500

Main Level

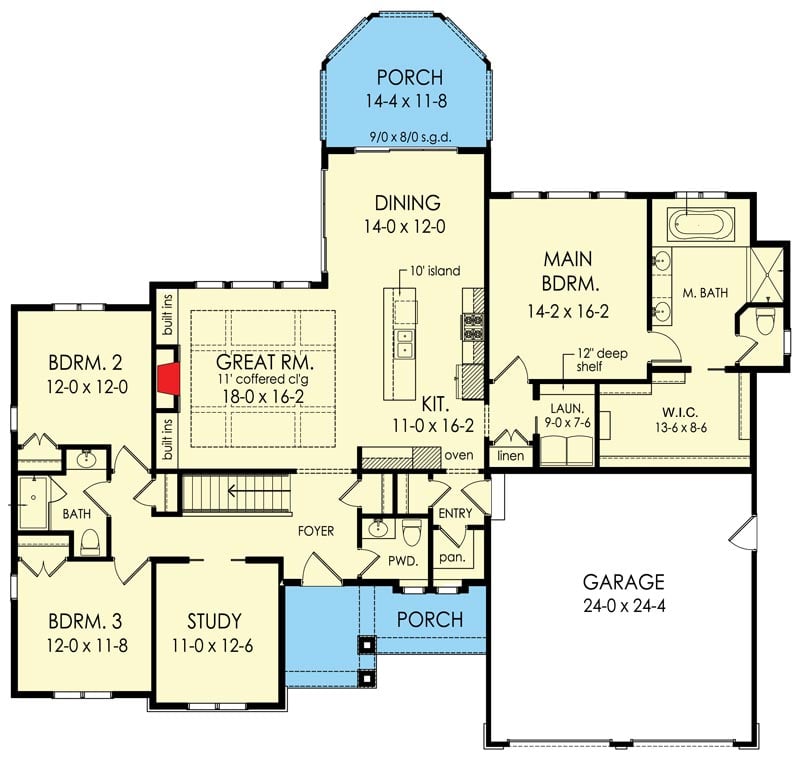

Plan 790107GLV: Traditional Ranch Home Plan with Split-bed Layout and Study - Floor Plan - Main Level - New American, Ranch, Traditional

Plan Details

  • The forward-facing garage of this Traditional Ranch home plan helps with narrow lots. Stone accents, paired with board and batten beneath the gables, add to the charming curb appeal.
  • A powder bath and coat closet are conveniently located just inside the front entrance, while pocket doors reveal a study nearby.
  • Elegant coffered ceilings (11 ft) define the great room that seamlessly flows into the kitchen. The 10 ft island provides plenty of workspace and sliding doors around the dining room allow natural light to permeate the living area.
  • The main bedroom is located behind the double garage and next door to the laundry room. A spacious master bathroom includes a toilet room and large closet for even the most sizable of wardrobes.
  • Bedrooms 2 and 3 are equal in size and separated by a full bath.

What's Included

  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes

What's Not Included

  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,189 sq. ft.

1st Floor

2,189 sq. ft.

Basement Unfinished

1,976 sq. ft.

Porch, Front

132 sq. ft.

Porch, Rear

160 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

69' 4"

Depth

65' 4"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

576 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

New American

Ranch

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,189 sq. ft.

1st Floor

2,189 sq. ft.

Basement Unfinished

1,976 sq. ft.

Porch, Front

132 sq. ft.

Porch, Rear

160 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

69' 4"

Depth

65' 4"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

576 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

New American

Ranch

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Exclusive
