Plan 40543DB

Traditional Ranch House Plan with 2 Bedrooms and a Flex Room

Heated S.F.
1,423
Beds
1 - 2
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 40543DB

Main Level
Main Level
Basement Stairs
Basement Stairs

Plan 40543DB

M-F 9am-5pm EST |

1-203-761-8500

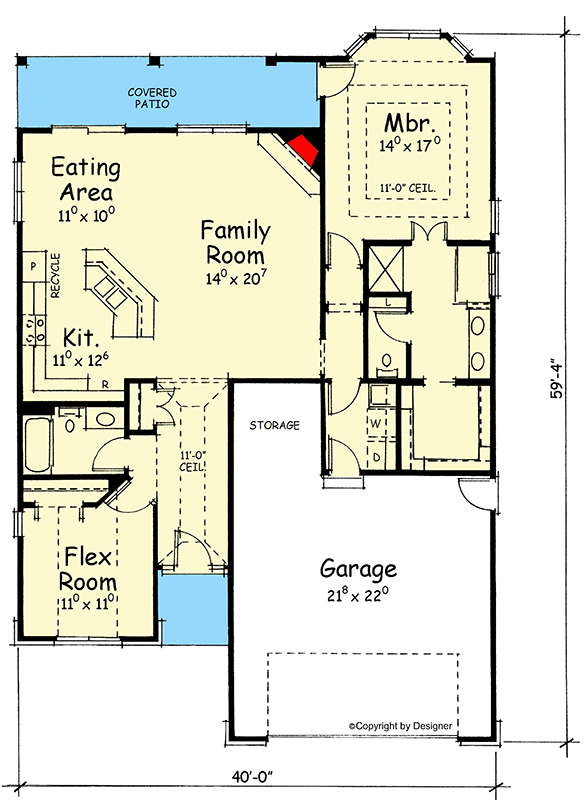

Main Level

Plan 40543DB: Traditional Ranch House Plan with 2 Bedrooms and a Flex Room - Floor Plan - Main Level - Ranch, Traditional

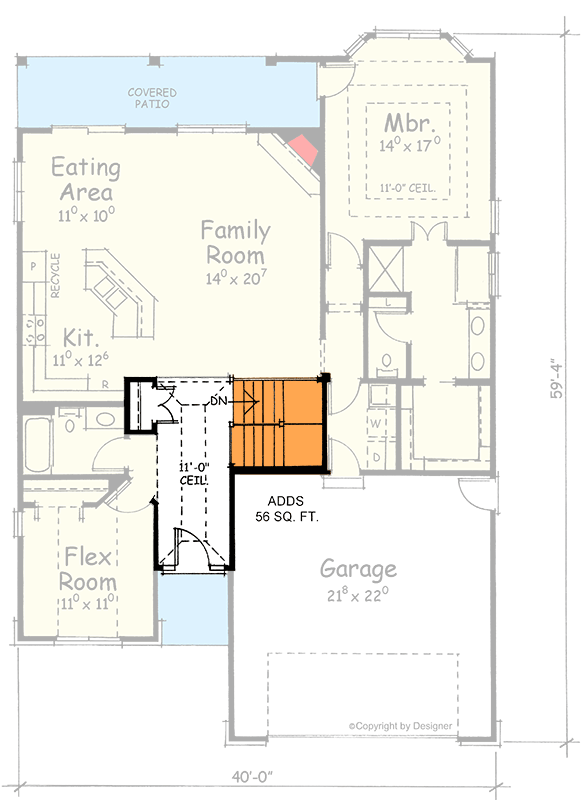

Basement Stairs

Plan 40543DB: Traditional Ranch House Plan with 2 Bedrooms and a Flex Room - Floor Plan - Basement Stairs - Ranch, Traditional

Plan Details

  • Offering 1,423 finished sq ft, this charming Traditional Ranch House Plan features 1-2 bedrooms, 2 full baths, and an attached 552 sq ft 2-car garage.
  • Upon arrival, a welcoming entry leads directly into the main living spaces, complemented by a practical mudroom and main-level laundry for everyday convenience.
  • The main living area with 9-foot ceilings flows seamlessly into a cozy breakfast nook and a versatile flex room, ideal for a home office or hobby space.
  • The primary suite, located on the first floor, offers a private retreat, while the secondary bedrooms are thoughtfully split for optimal privacy and comfort.

What's Included

  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,423 sq. ft.

1st Floor

1,423 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

59' 4"

Max Ridge Height

23' 6"

Garage

Type

Attached, Standard

Area

552 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,423 sq. ft.

1st Floor

1,423 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

59' 4"

Max Ridge Height

23' 6"

Garage

Type

Attached, Standard

Area

552 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
