Traditional Ranch House Plan with 3 Bedrooms and Vaulted Living

Name: Plan 720180DA: Traditional Ranch House Plan with 3 Bedrooms and Vaulted Living
Brand: Architectural Designs
SKU: 720180DA
Price: 1930.0 USD
Availability: InStock

Heated S.F.

1,562

Beds

2 - 3

Baths

Stories

Cars

Floor Plan

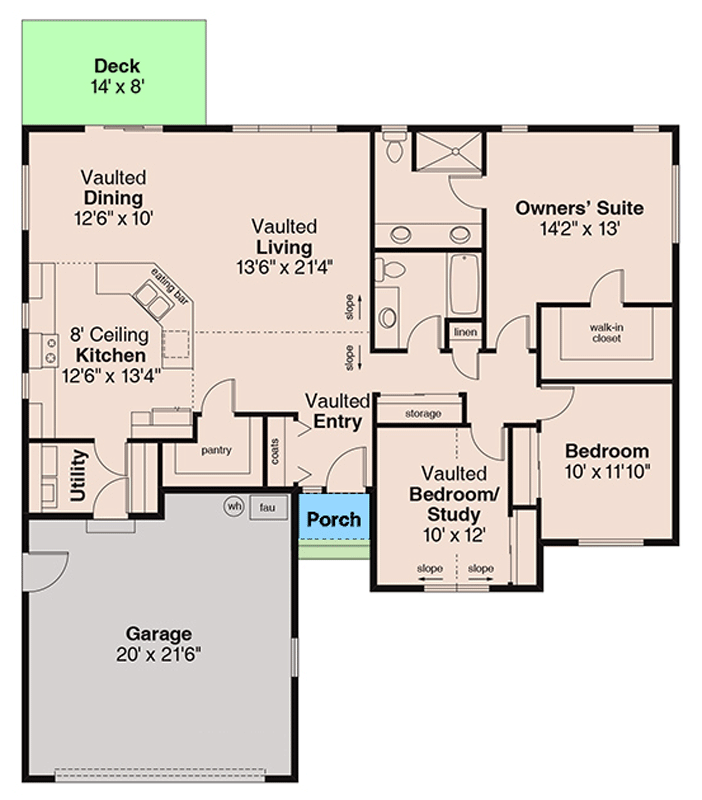

Main Level

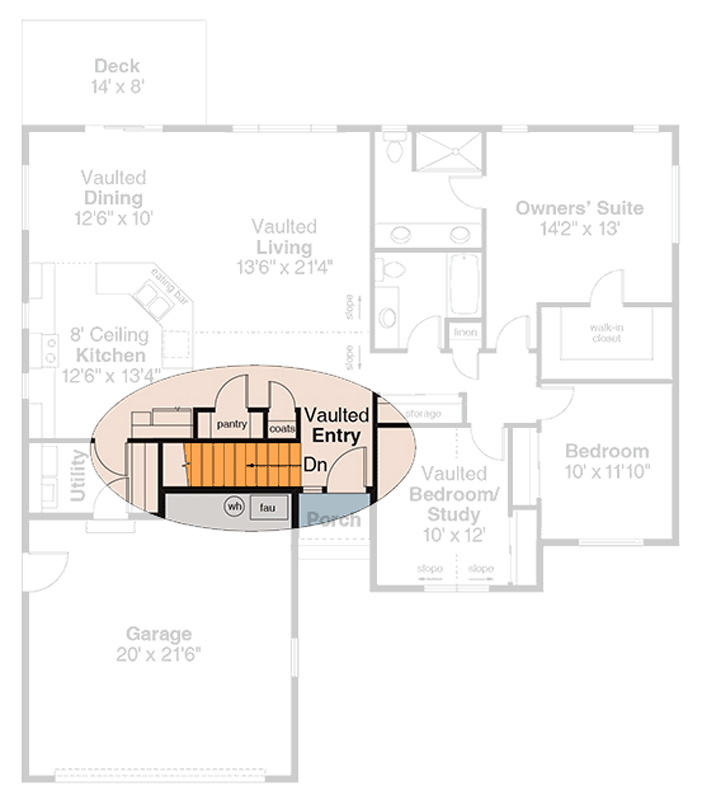

Alternate Basement Stairs

Plan Details

Boasting 1,562 finished sq ft, this 2 or 3-bedroom, 2-bath Traditional Ranch house plan features a 440 sq ft 2-car front-entry garage and classic Northwest styling.
Step into a welcoming entry that leads to the main living areas, with a flex room conveniently located near the front for whatever you need.
The heart of the home features an open-concept flow connecting the main living area, kitchen, and a charming breakfast nook, complemented by a walk-in pantry for culinary convenience.
The private primary bedroom suite is situated for ease of access, while two secondary bedrooms are thoughtfully clustered with a shared bath, ensuring comfort and privacy for all.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

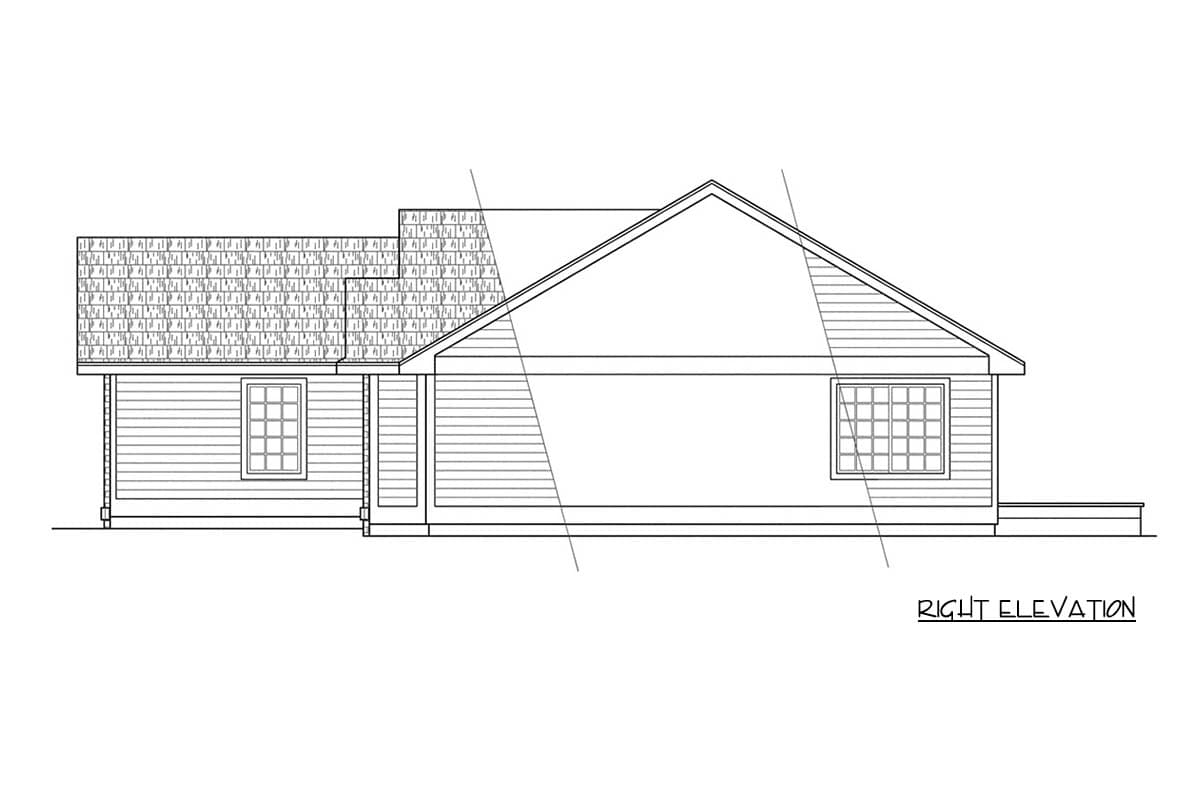

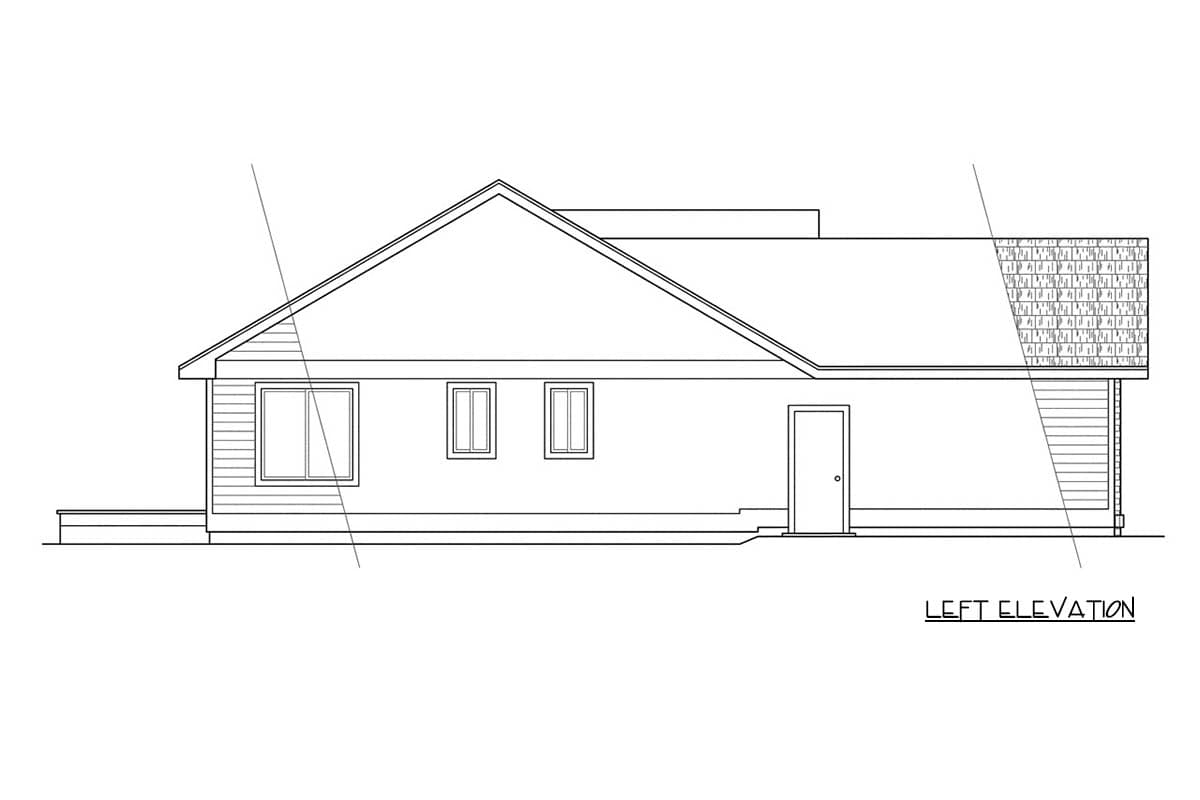

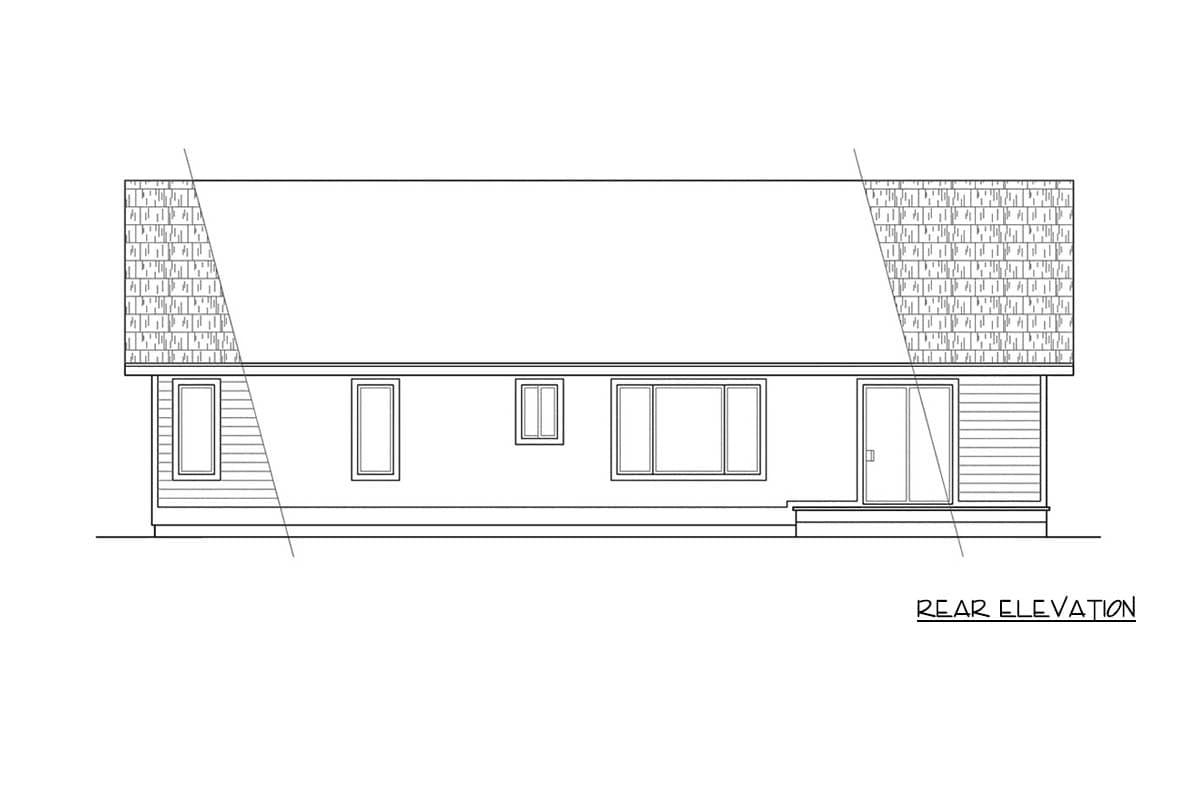

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
