Plan 59405ND

Traditional Ranch House Plan with 3 Beds, Split Layout, 2-Car Garage

Heated S.F.
1,734
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59405ND

Main Level
Main Level

Plan 59405ND

M-F 9am-5pm EST |

1-203-761-8500

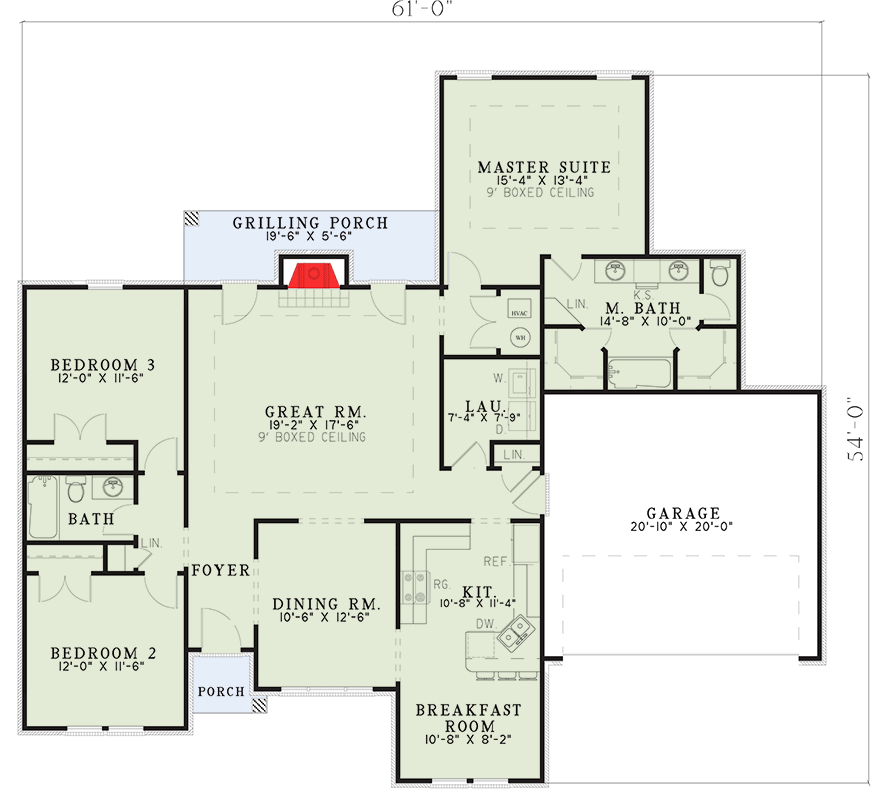

Main Level

Plan 59405ND: Traditional Ranch House Plan with 3 Beds, Split Layout, 2-Car Garage - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This inviting 1,734 sq. ft. Traditional Ranch House Plan offers 3 bedrooms, 2 full bathrooms, and a spacious 437 sq. ft. attached 2-car garage. Its classic exterior, featuring a warm stucco finish and gabled rooflines, presents a timeless curb appeal.
  • Step inside to discover a thoughtfully designed single-story layout, emphasizing comfortable living with 8' ceilings. The entry immediately leads into the main living areas, which include a distinct formal dining space, perfect for hosting elegant dinners.
  • The heart of the home flows seamlessly, connecting the main living area with a dedicated formal dining room, allowing for both intimate family moments and larger gatherings. A conveniently located main-level laundry room and mudroom provide practical everyday functionality just off the garage.
  • Experience privacy and comfort in the master suite, strategically placed on the first floor and separate from the secondary bedrooms, a hallmark of the desirable split-bedroom layout. This arrangement creates a peaceful retreat for homeowners, while the additional bedrooms offer versatile space for family or guests.
  • Enjoy the outdoors with a combined 135 sq. ft. of porch space, offering a welcoming spot for morning coffee or a quiet evening relaxation.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,734 sq. ft.

1st Floor

1,734 sq. ft.

Porch, Combined

135 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 0"

Depth

54' 0"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

437 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Closed Floor Plans

Square Footage Breakdown

Total Heated Area

1,734 sq. ft.

1st Floor

1,734 sq. ft.

Porch, Combined

135 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 0"

Depth

54' 0"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

437 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Closed Floor Plans
