Plan 42738DB

Traditional Ranch House Plan with Flexible Living and Private Suite

Heated S.F.
1,663
Beds
1 - 2
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 42738DB

Main Level
Main Level
Basement Stairs Location
Basement Stairs Location

Plan 42738DB

M-F 9am-5pm EST |

1-203-761-8500

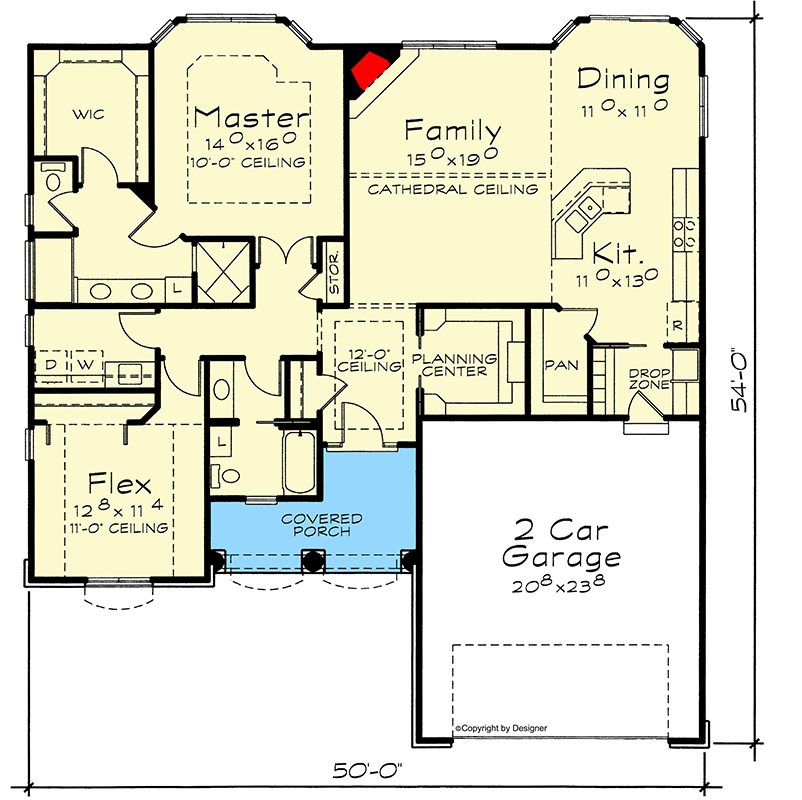

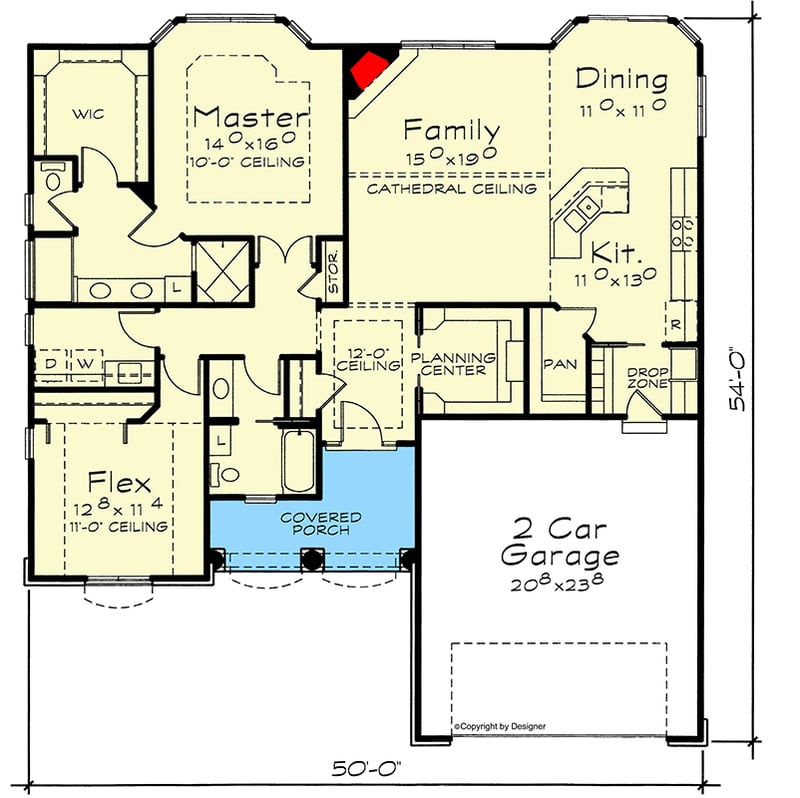

Main Level

Plan 42738DB: Traditional Ranch House Plan with Flexible Living and Private Suite - Floor Plan - Main Level - Ranch, Traditional

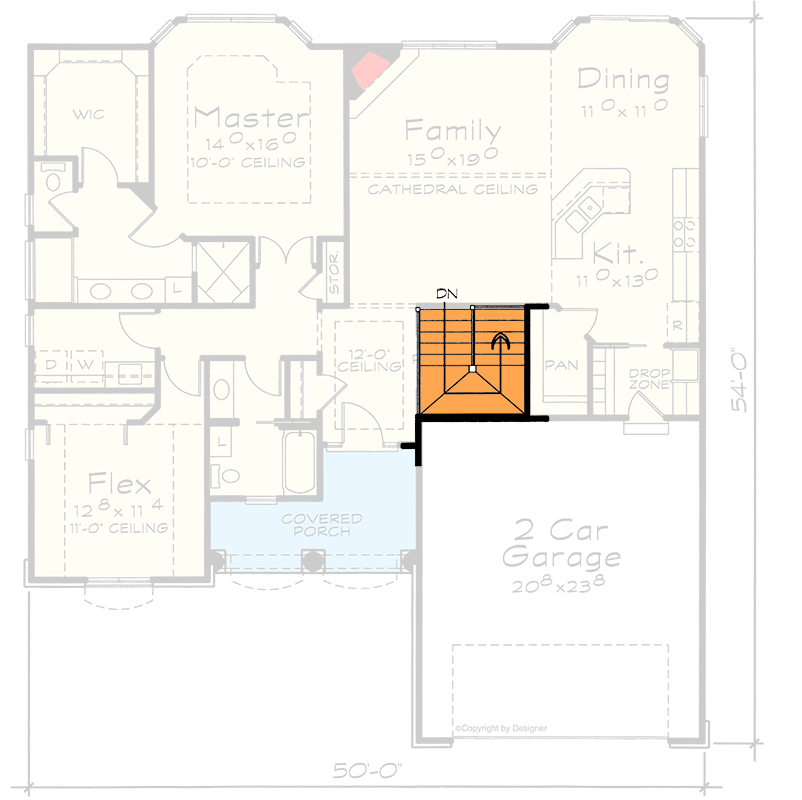

Basement Stairs Location

Plan 42738DB: Traditional Ranch House Plan with Flexible Living and Private Suite - Floor Plan - Basement Stairs Location - Ranch, Traditional

Plan Details

  • This Traditional Ranch House Plan offers 1,663 sq. ft. of comfortable living, featuring 1 or 2 bedrooms, 2 full baths, and an attached 2-car garage.
  • Step onto the inviting front porch and through the entry, where 9' ceilings immediately create an open flow and a sense of spaciousness, drawing you into the home's core.
  • The kitchen serves as the central gathering spot, complete with a functional island perfect for casual meals and entertaining, complemented by a convenient butler walk-in pantry and open sightlines to the main living area.
  • Enjoy the privacy of the primary suite, thoughtfully placed in its own private wing, while a flexible second bedroom, which could also serve as a home office, offers versatility and comfort for guests or family.
  • A practical mudroom and main-level laundry room provide a dedicated drop zone for daily essentials, ensuring organization and easy access right off the garage entry.
  • The design includes provisions for a rear porch, offering a natural outdoor extension of your living space for relaxation or entertaining, seamlessly blending indoor comfort with open-air enjoyment.

What's Included

  • General Notes

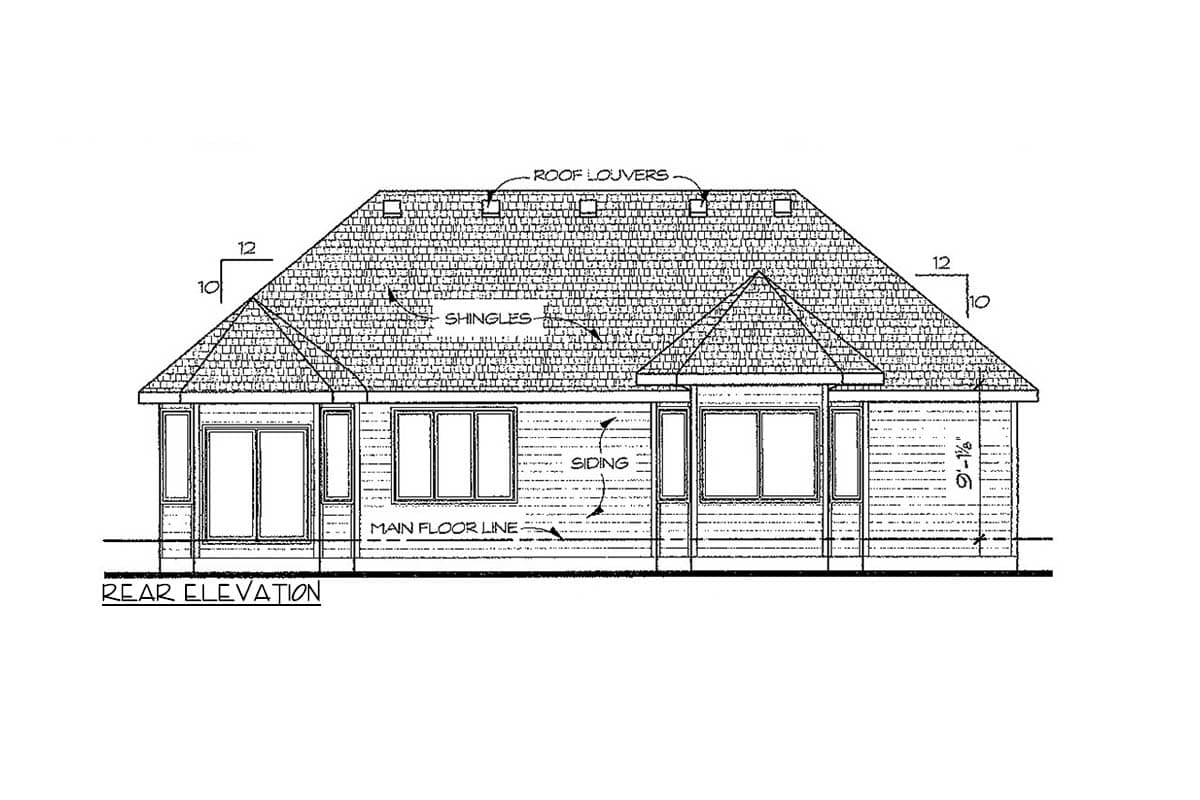

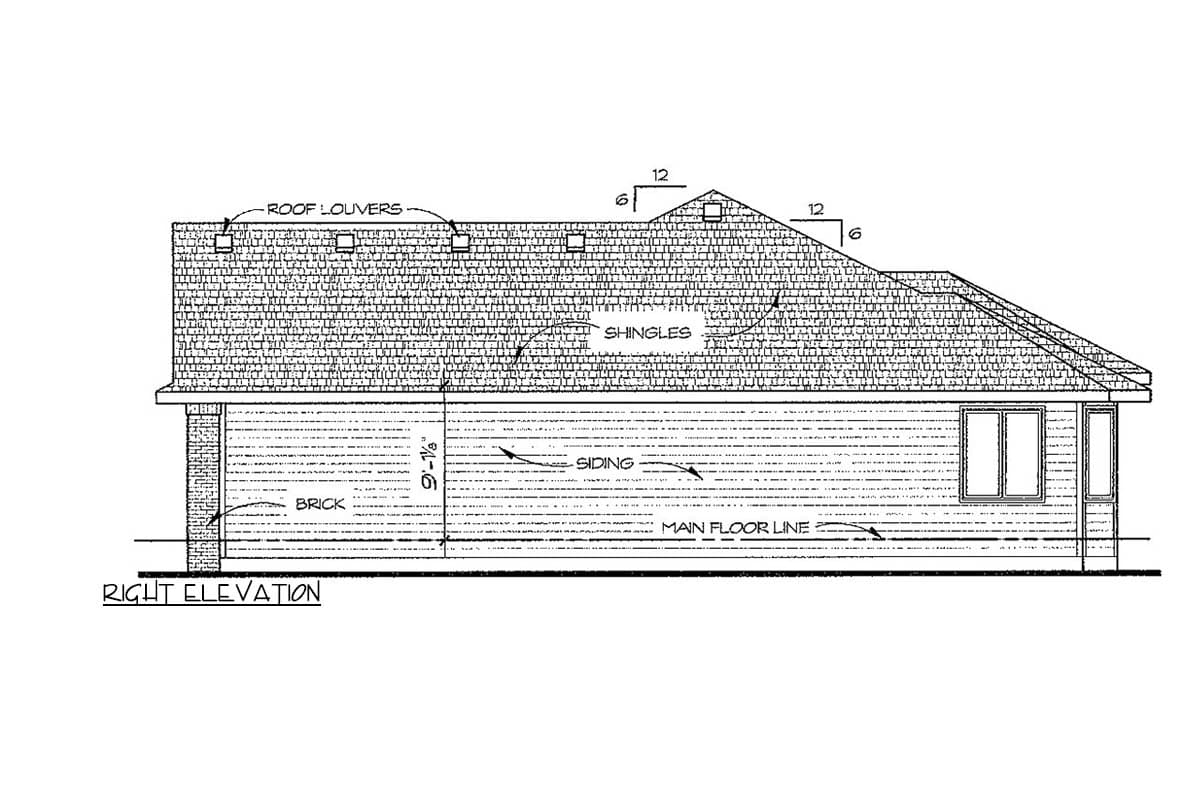

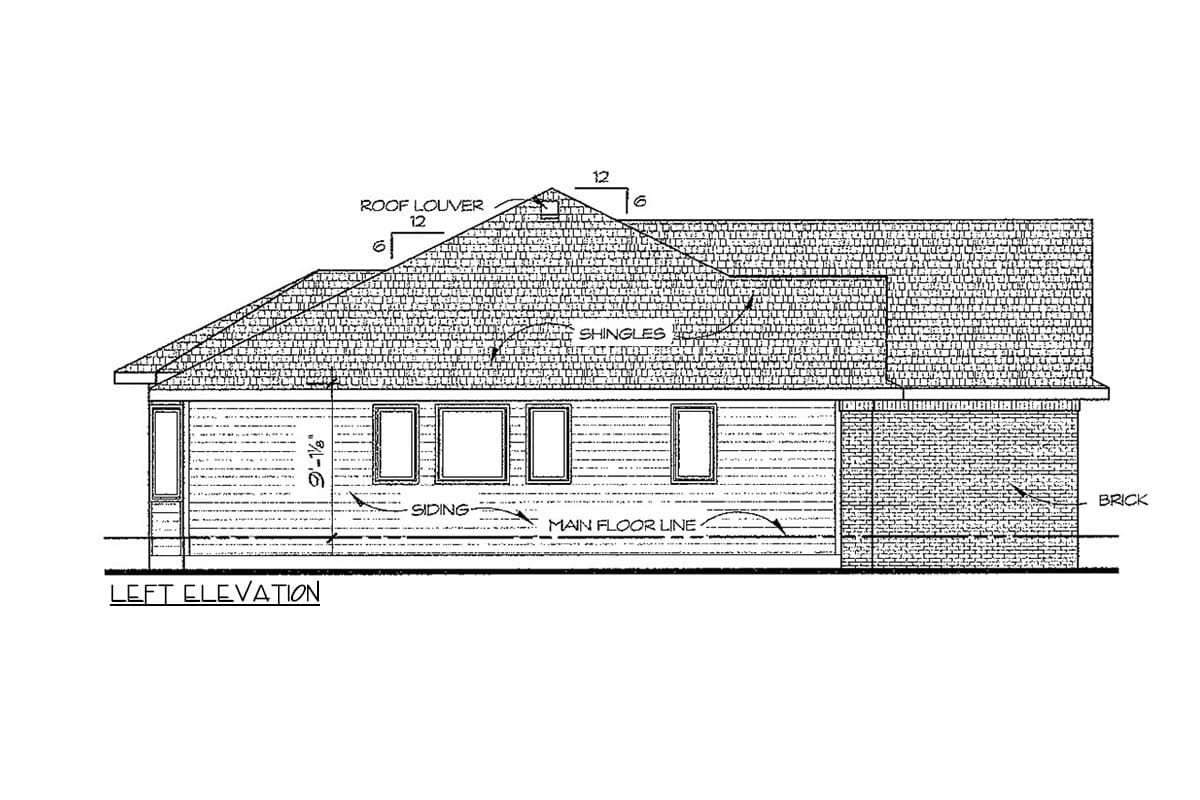

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,663 sq. ft.

1st Floor

1,663 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

50' 0"

Depth

54' 0"

Max Ridge Height

20' 9"

Garage

Type

Standard, Attached

Area

511 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,663 sq. ft.

1st Floor

1,663 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

50' 0"

Depth

54' 0"

Max Ridge Height

20' 9"

Garage

Type

Standard, Attached

Area

511 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
