Plan 42746DB

Traditional Ranch House Plan with Split 3 Bedrooms and 2-Car Garage

Heated S.F.
1,291
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 42746DB

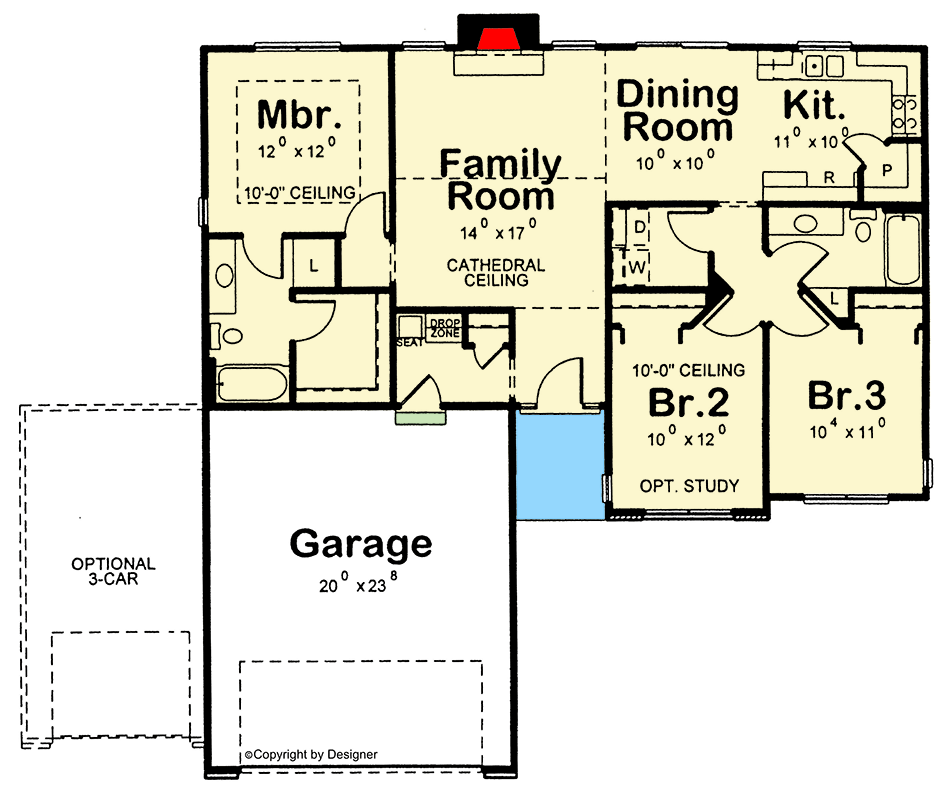

Floor Plan 1
Expanded Master and Optional Dining Room Bay
Expanded Master and Optional Dining Room Bay
Alternate Master Bath and Optional Basement Stairs
Alternate Master Bath and Optional Basement Stairs

Plan 42746DB

M-F 9am-5pm EST |

1-203-761-8500

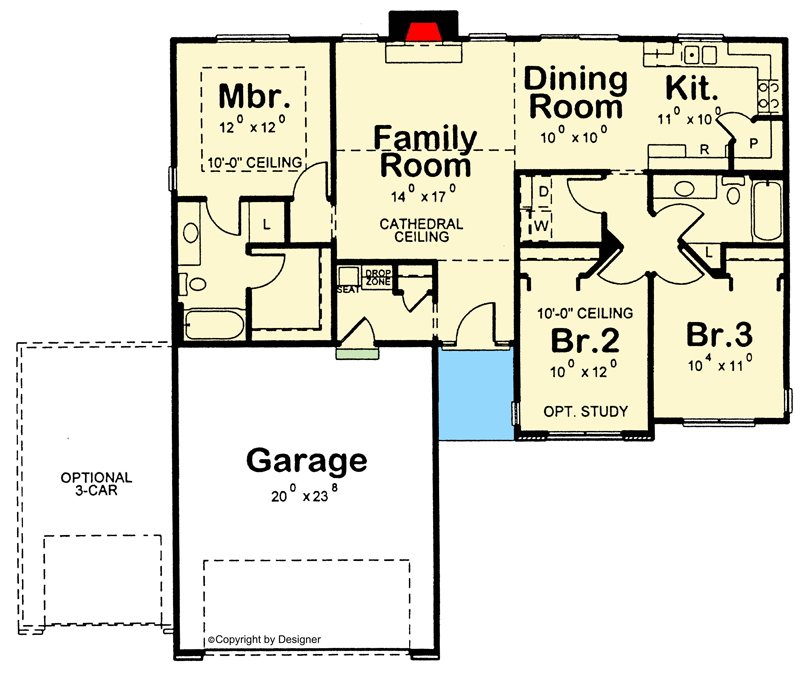

Plan 42746DB: Traditional Ranch House Plan with Split 3 Bedrooms and 2-Car Garage - Floor Plan - - Ranch, Traditional

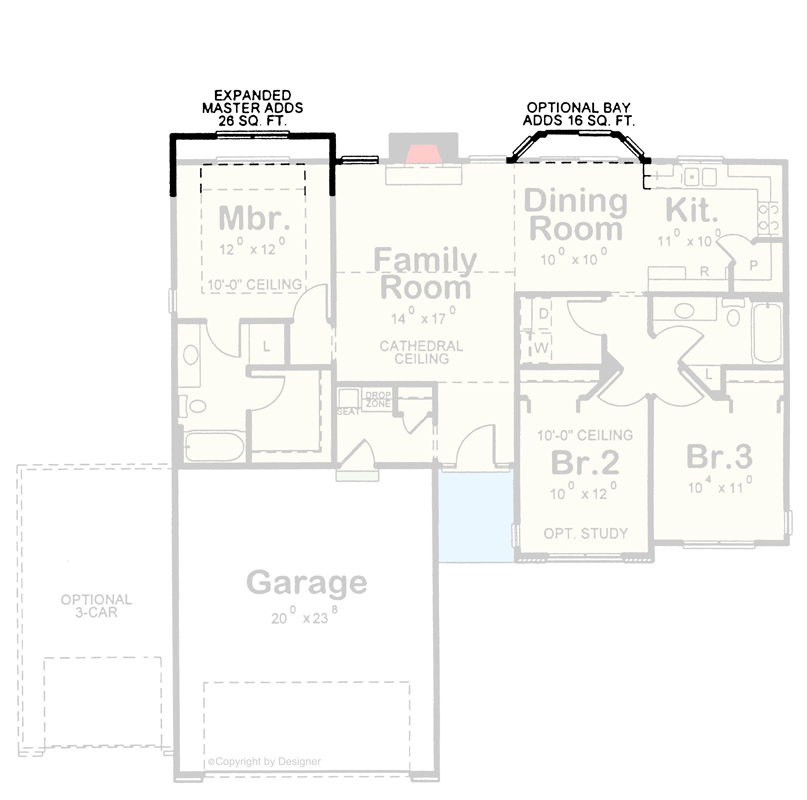

Expanded Master and Optional Dining Room Bay

Plan 42746DB: Traditional Ranch House Plan with Split 3 Bedrooms and 2-Car Garage - Floor Plan - Expanded Master and Optional Dining Room Bay - Ranch, Traditional

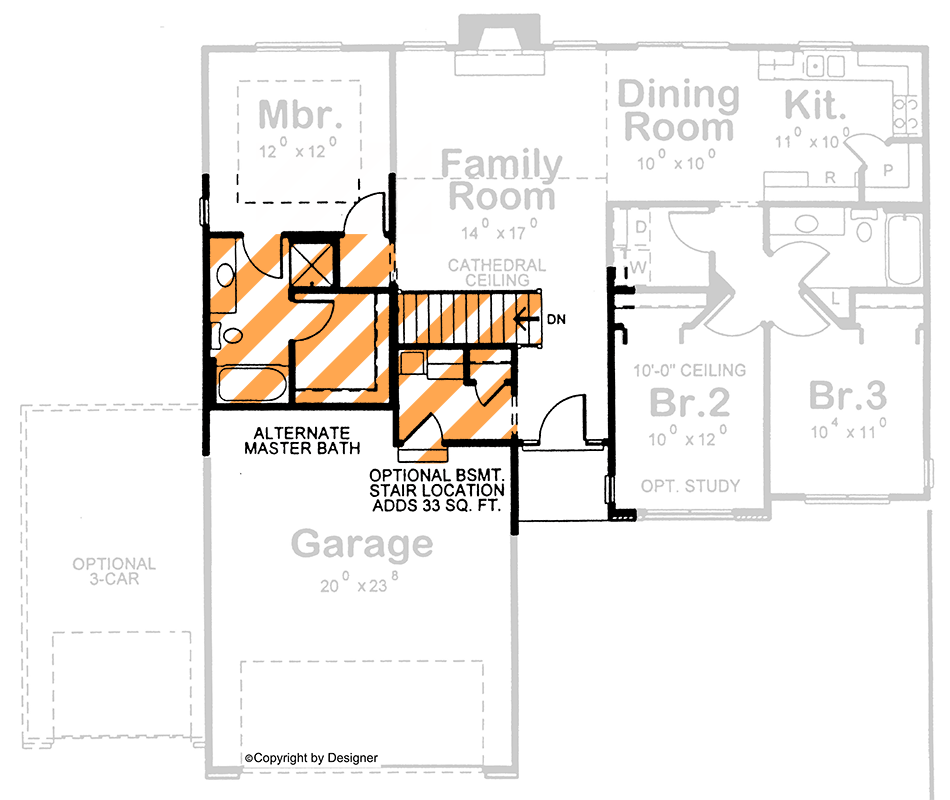

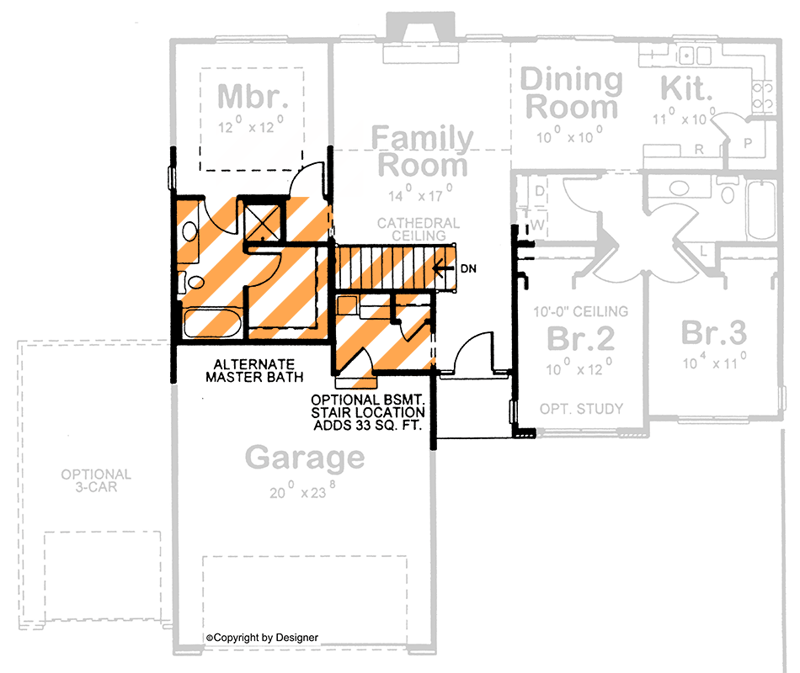

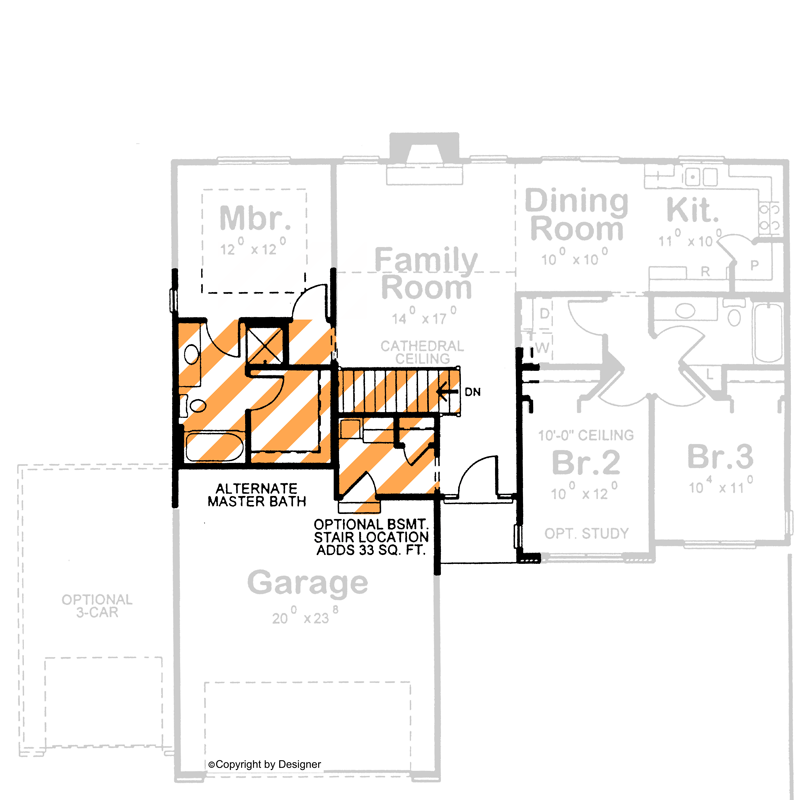

Alternate Master Bath and Optional Basement Stairs

Plan 42746DB: Traditional Ranch House Plan with Split 3 Bedrooms and 2-Car Garage - Floor Plan - Alternate Master Bath and Optional Basement Stairs - Ranch, Traditional

Plan Details

  • Boasting 1,291 finished sq ft, 3 bedrooms, 2 full baths, and a 496 sq ft 2-car garage, this traditional ranch house plan offers comfortable single-level living.
  • Step inside through the welcoming front door, framed by brick accents, into a layout designed for practical living, including a dedicated formal dining area.
  • The main living areas flow effortlessly, providing distinct yet connected spaces for everyday life, with the convenience of a main-level laundry room.
  • The private first-floor master suite is thoughtfully separated from two secondary bedrooms, ensuring a peaceful retreat for homeowners.
  • The charming exterior, combining horizontal siding and brick accents, presents appealing curb appeal with a neatly landscaped front yard.

What's Included

  • General Notes

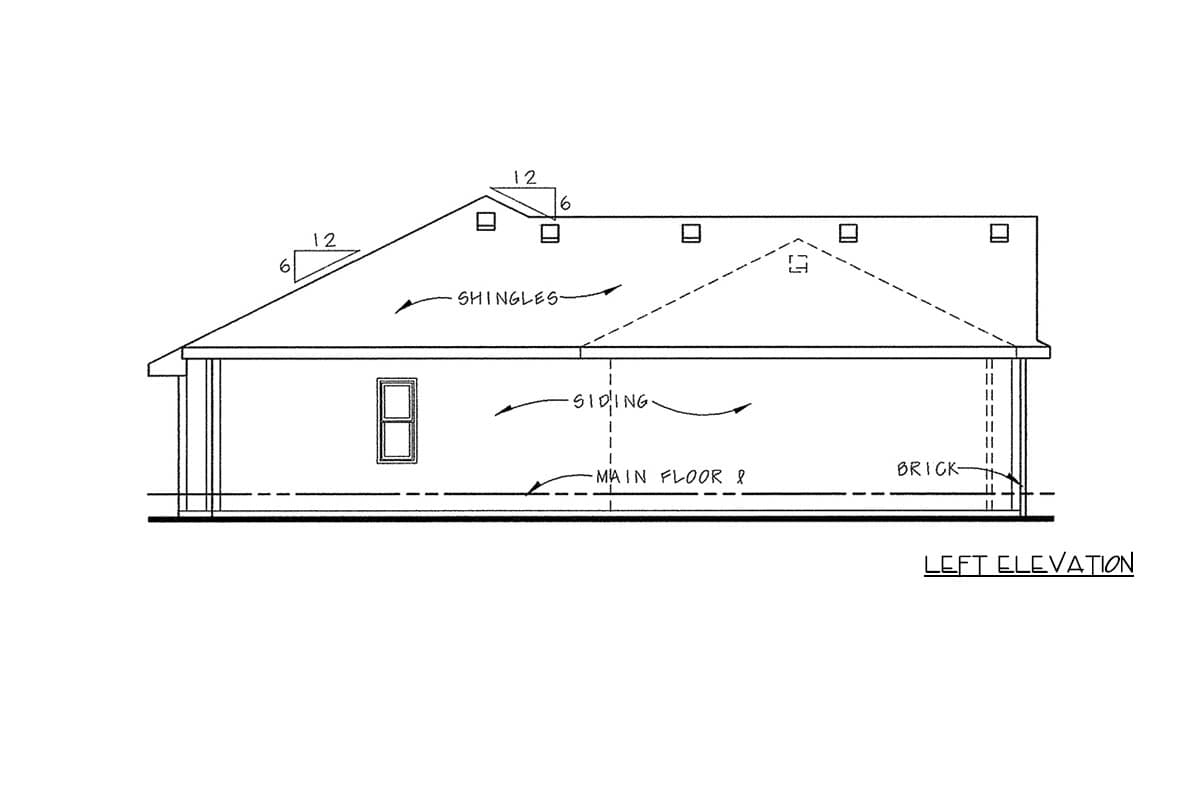

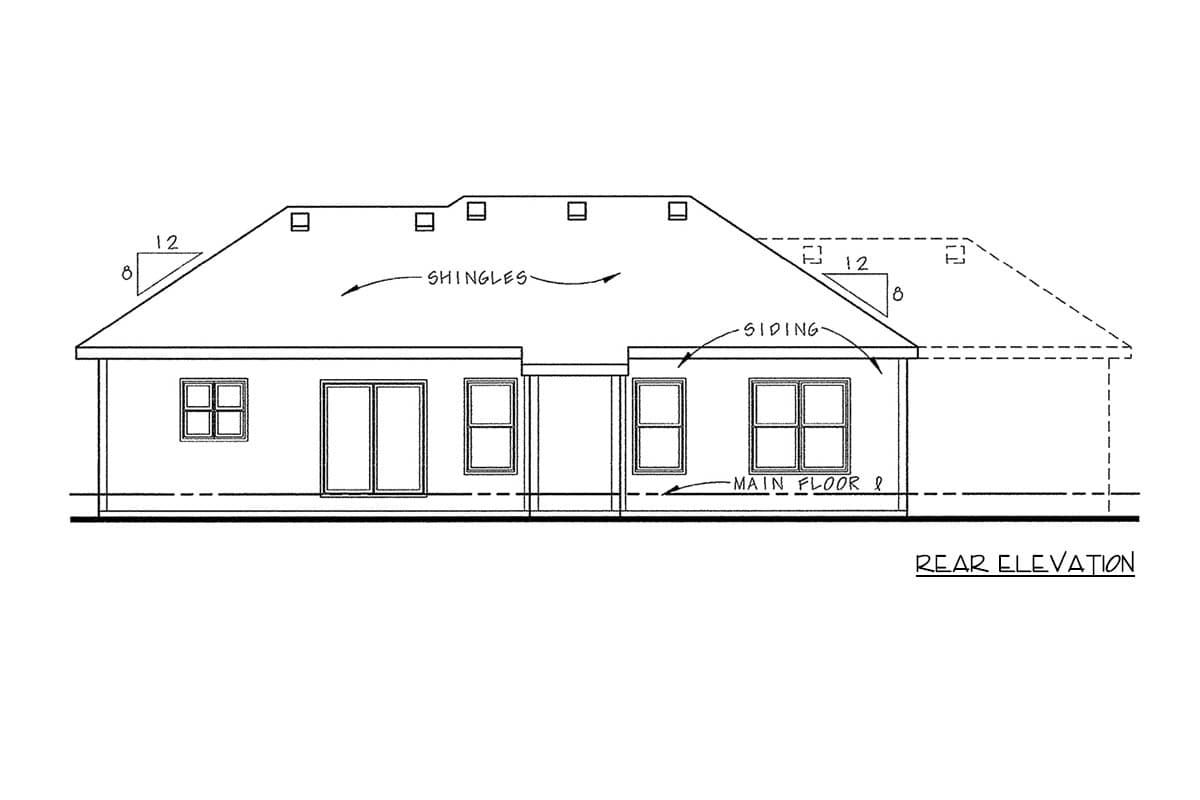

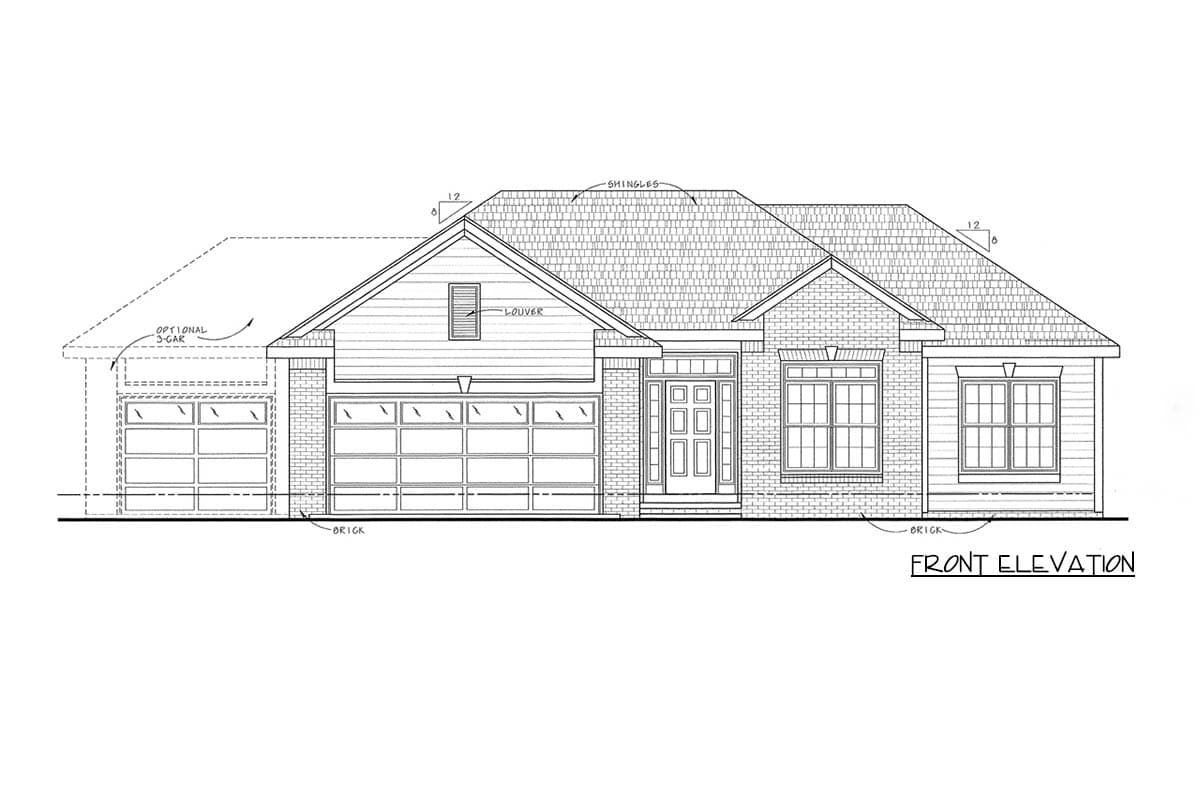

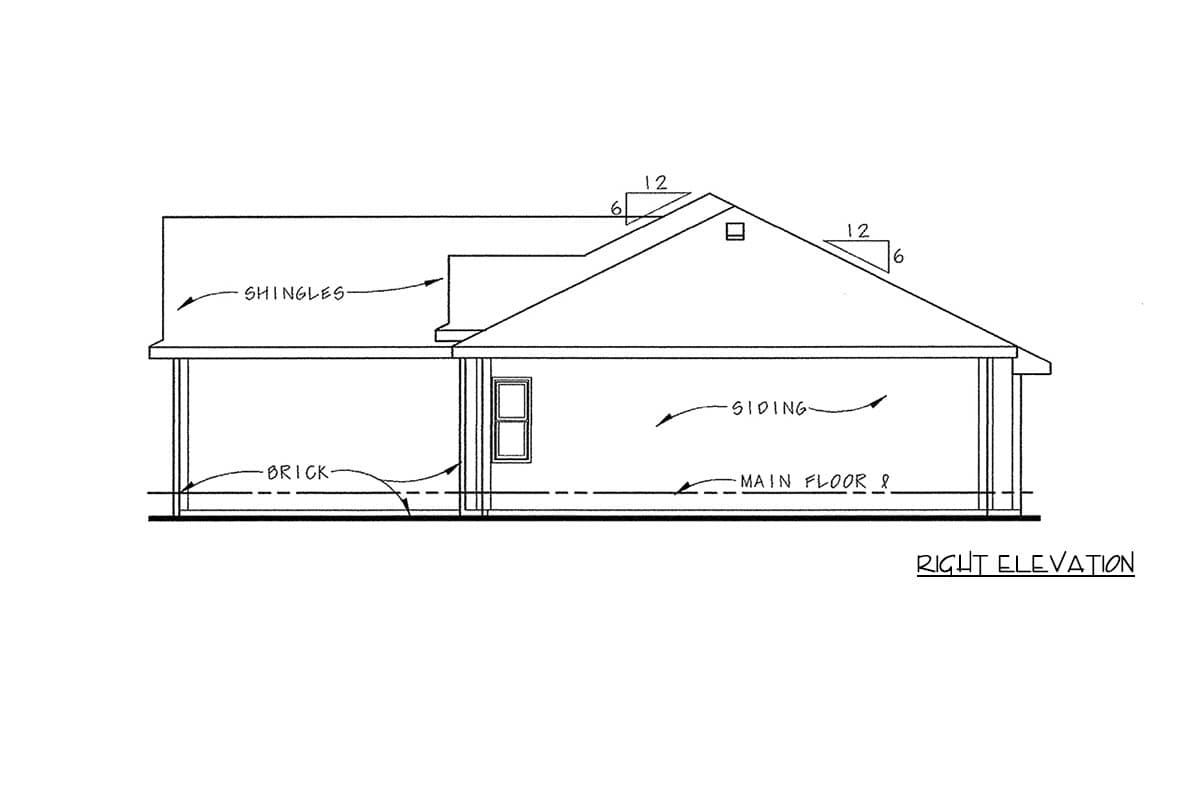

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,291 sq. ft.

1st Floor

1,291 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

48' 0"

Depth

48' 0"

Max Ridge Height

20' 0"

Garage

Type

Standard

Area

496 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,291 sq. ft.

1st Floor

1,291 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

48' 0"

Depth

48' 0"

Max Ridge Height

20' 0"

Garage

Type

Standard

Area

496 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
