Plan 52495WM

Traditional Ranch House Plan with Split Bedrooms and Butler Pantry

Heated S.F.
1,684
Beds
3
Baths
2
Stories
1

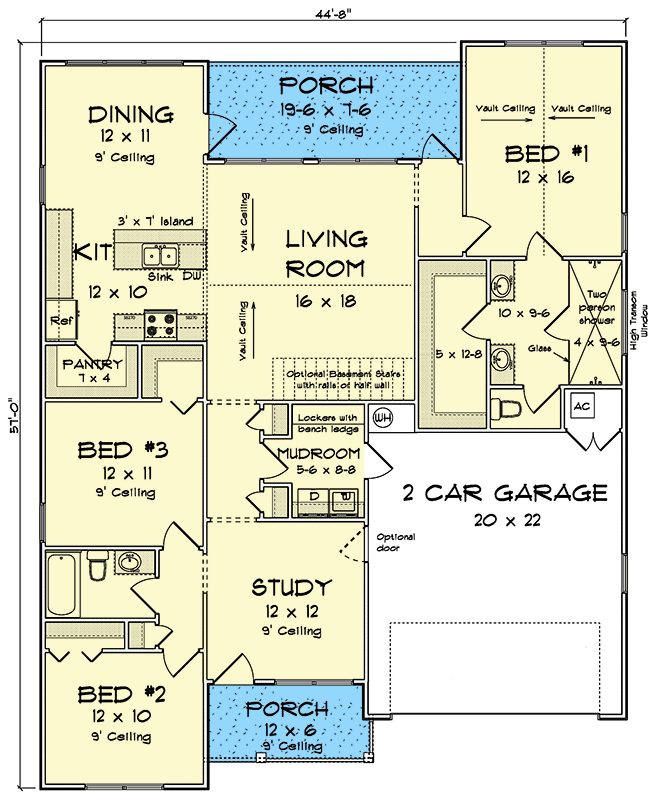

Floor Plan

Plan 52495WM

Main Level
Main Level

Plan 52495WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 52495WM: Traditional Ranch House Plan with Split Bedrooms and Butler Pantry - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This inviting 1,684 sq. ft. Traditional Ranch house plan offers 3 bedrooms, 2 full bathrooms, and a convenient 2-car garage, all wrapped in a charming-inspired exterior.
  • Step inside from the welcoming front porch to discover an intuitive, open-concept layout designed for seamless daily living and comfortable entertaining.
  • The open-concept design guides you through the main living areas, where the kitchen, featuring a generous Butler Walk-in Pantry, seamlessly connects to the dining space and a comfortable great room, perfect for daily life and hosting.
  • The private primary bedroom suite, thoughtfully located on the main level, provides a tranquil retreat, separated from the two secondary bedrooms for ultimate comfort and privacy.
  • Practicality meets style with a dedicated mudroom, ideal for organizing daily essentials, and a conveniently located main-level laundry room, streamlining household chores.
  • Enjoy morning coffee on the inviting 74 sq. ft. front porch or unwind on the spacious 146 sq. ft. rear porch, offering ample space for outdoor relaxation and alfresco dining.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,684 sq. ft.

1st Floor

1,684 sq. ft.

Porch, Front

74 sq. ft.

Porch, Rear

146 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 8"

Depth

57' 0"

Max Ridge Height

20' 8"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,684 sq. ft.

1st Floor

1,684 sq. ft.

Porch, Front

74 sq. ft.

Porch, Rear

146 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 8"

Depth

57' 0"

Max Ridge Height

20' 8"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
