Traditional Ranch House Plan with Vaulted Great Room and Library

Name: Plan 720174DA: Traditional Ranch House Plan with Vaulted Great Room and Library
Brand: Architectural Designs
SKU: 720174DA
Price: 1150.0 USD
Availability: InStock

Heated S.F.

1,569

Beds

Baths

Stories

Cars

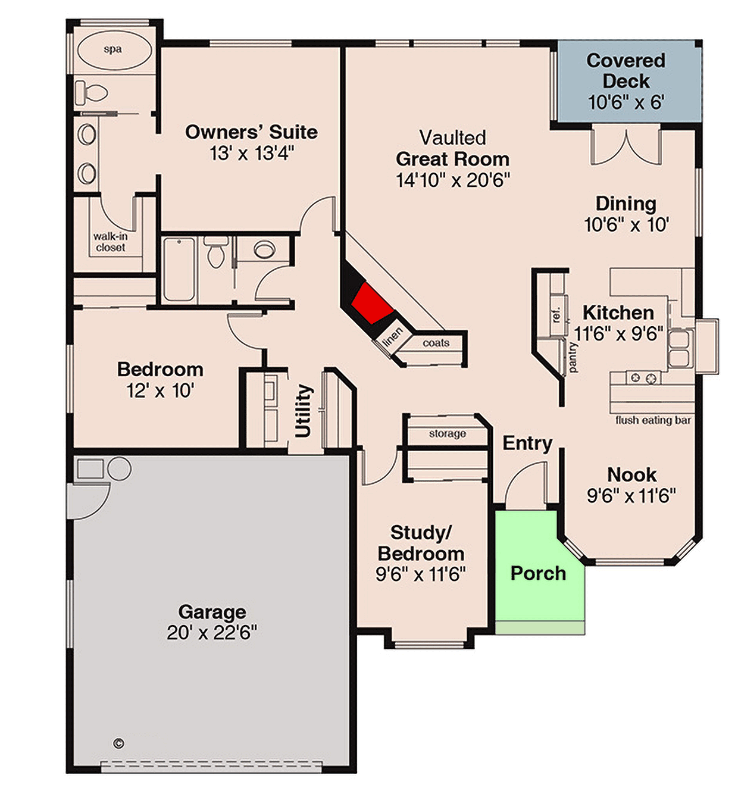

Floor Plan

Main Level

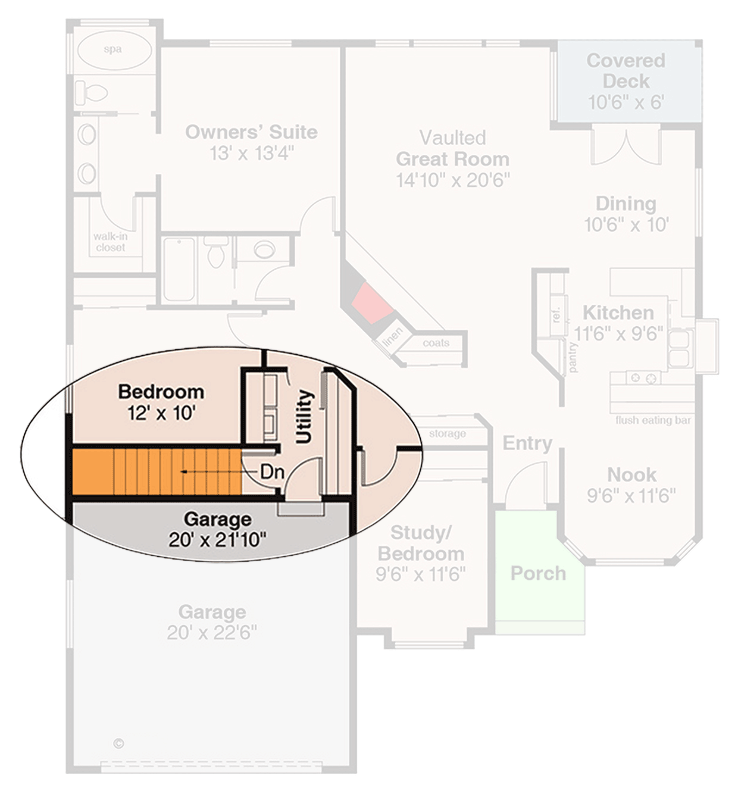

Optional Basement Stairs

Plan Details

This single-level ranch plan features 1,569 square feet of living space, three bedrooms, two full baths, and a standard two-car front-entry garage, all wrapped in a timeless traditional exterior.
A welcoming front porch and bold entry provide a bright, airy introduction, with immediate sightlines into the main living areas and abundant natural light setting a warm tone.
The kitchen acts as the central gathering spot, anchored by an island for easy conversation, ample pantry storage, and seamless flow into both the dining area and two-story great room.
All three bedrooms are clustered together, creating convenient access for families and guests, while the primary suite remains tucked away for added privacy.
Everyday organization is a breeze with a designated mudroom drop zone and a main-level laundry keeping clutter out of main living spaces.
Step out to the rear for an outdoor extension of your living space, ideal for quiet mornings or relaxed evenings surrounded by nature.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

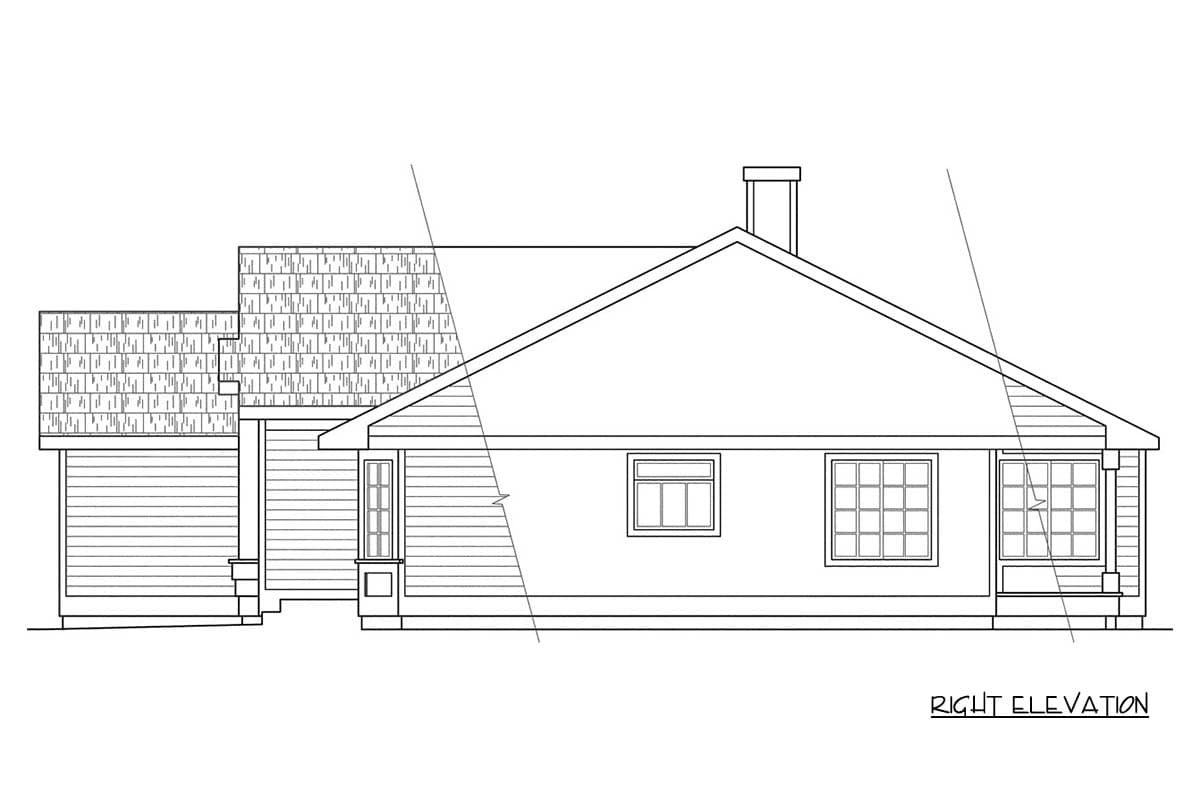

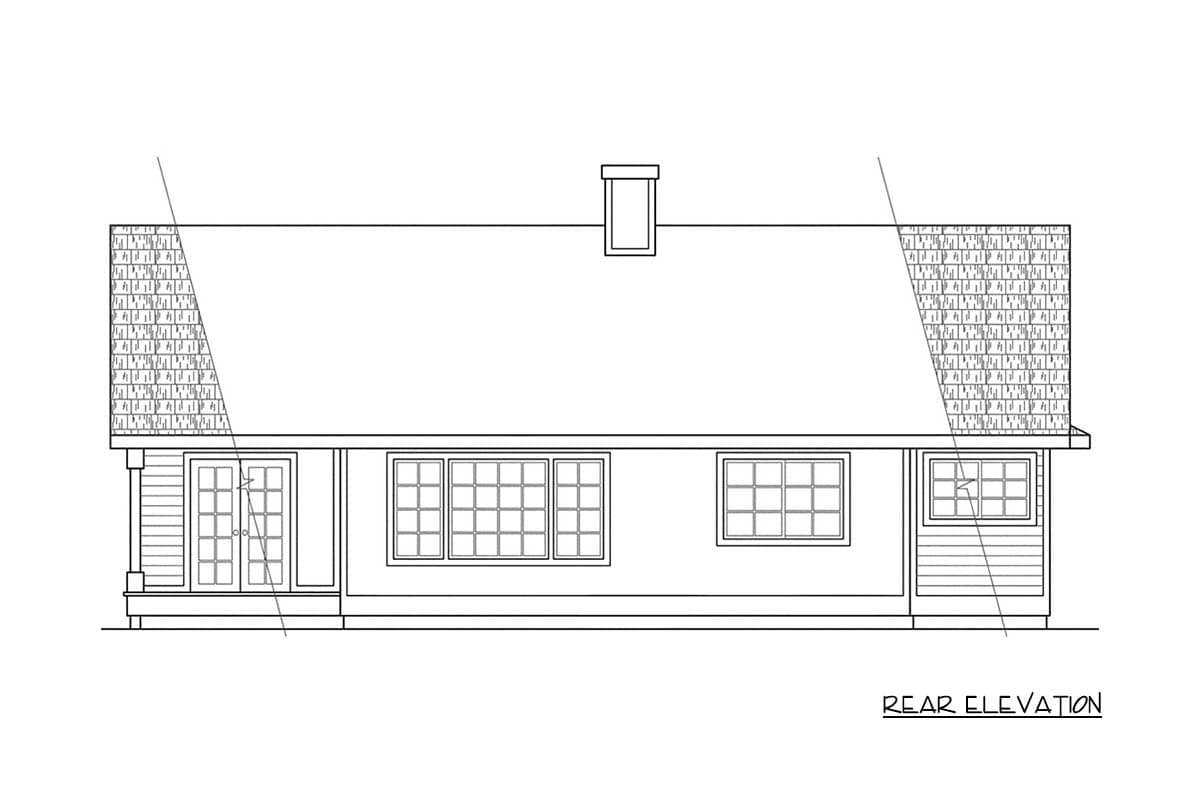

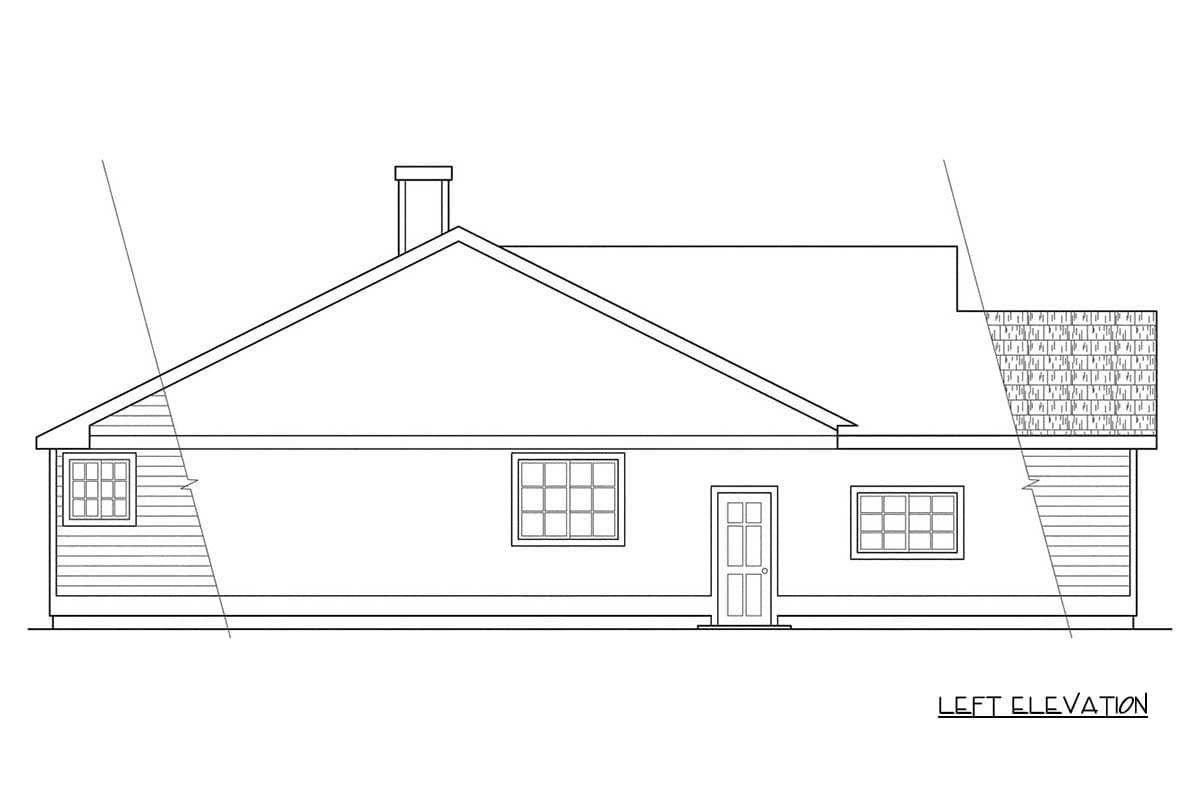

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
