Plan 82283KA

Traditional Ranch Plan with Vaulted Ceiling and Carport

Heated S.F.
1,625
Beds
3
Baths
2.5
Stories
1
Cars
2

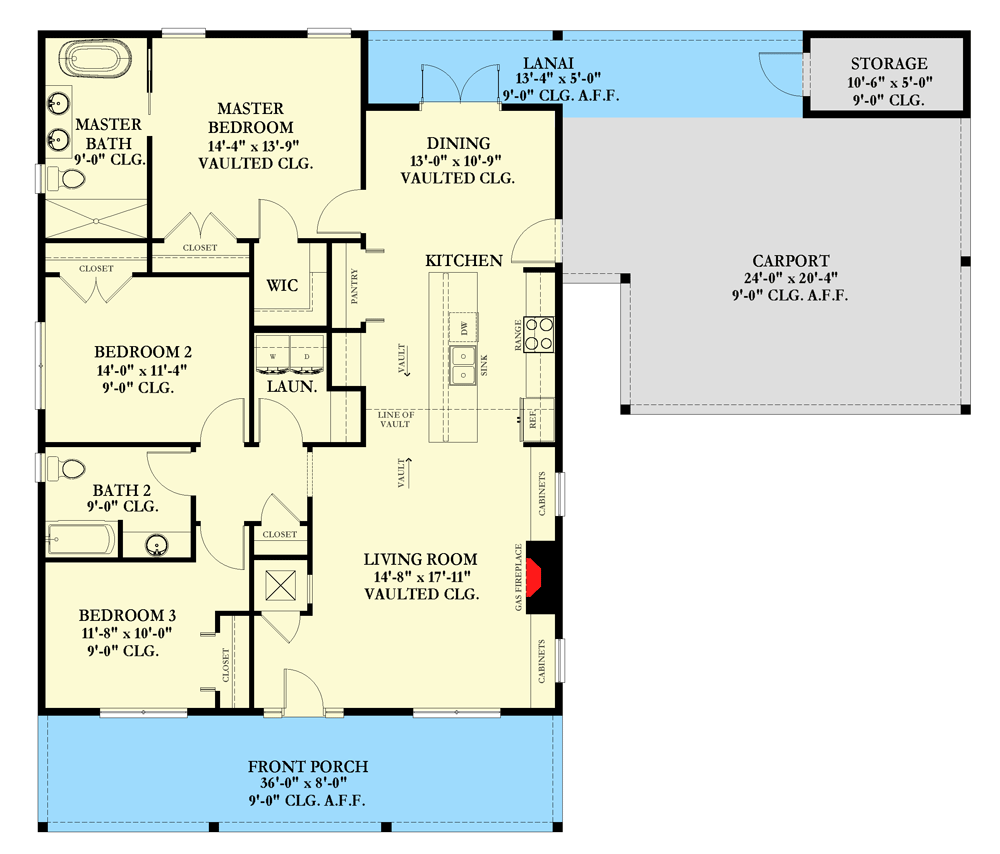

Floor Plan

Plan 82283KA

Main Level
Main Level

Plan 82283KA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 82283KA: Traditional Ranch Plan with Vaulted Ceiling and Carport - Floor Plan - Main Level - Country, Ranch, Southern, Traditional

Plan Details

  • Enjoy one-level living in this Traditional Ranch home plan, complete with an elongated front porch to welcome family and friends.
  • Inside, the heart of the home is bordered by vaulted family and dining rooms with a fireplace surrounded by builtins adding a cozy element.
  • The master bedroom is rear facing with a 5-fixture bathroom resting behind a pocket door.
  • Bedrooms 2 and 3 are separated by a full bathroom and the laundry room is centrally located for convenience.
  • Accessible from the dining area, discover a covered lanai and 2-vehicle carport with a storage room available for lawn supplies.

What's Included

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,625 sq. ft.

1st Floor

1,625 sq. ft.

Carport

701 sq. ft.

Porch, Front

288 sq. ft.

Porch, Rear

67 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

64' 0"

Depth

55' 0"

Max Ridge Height

20' 0"

Garage

Type

Carport, Attached

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Ranch

Southern

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,625 sq. ft.

1st Floor

1,625 sq. ft.

Carport

701 sq. ft.

Porch, Front

288 sq. ft.

Porch, Rear

67 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

64' 0"

Depth

55' 0"

Max Ridge Height

20' 0"

Garage

Type

Carport, Attached

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Ranch

Southern

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
