Plan 25929GE

Traditional Ranch Triplex House Plan with Three Private Units

Heated S.F.
2,564
Units
3
Width
Depth

Floor Plan

Plan 25929GE

Main Level
Main Level

Plan 25929GE

M-F 9am-5pm EST |

1-203-761-8500

Main Level

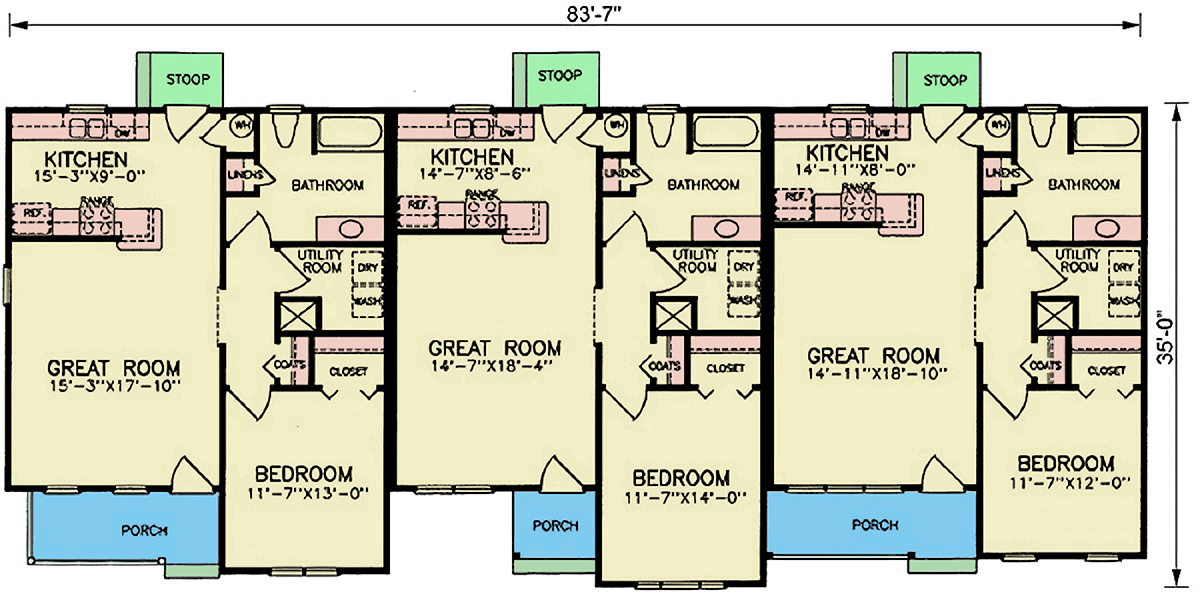

Plan 25929GE: Traditional Ranch Triplex House Plan with Three Private Units - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This inviting 2,564 sq. ft. Traditional Ranch triplex house plan features a total of 3 bedrooms and 3 full bathrooms, thoughtfully divided into three self-contained living units.
  • Each charming unit welcomes residents into a comfortable great room, setting a warm and functional tone for efficient single-level living. The layout emphasizes privacy while maintaining an intuitive flow.
  • From the great room, each unit transitions seamlessly into a well-appointed kitchen, complete with ample counter space and a cozy dining area, perfect for daily meals or morning coffee. A dedicated utility room in each unit conveniently houses a washer and dryer.
  • Each unit features a private, spacious bedroom designed as a comfortable retreat, conveniently located near its dedicated full bathroom. With a focus on privacy, these suites offer a tranquil haven for residents.
  • Each unit enjoys its own charming front porch, offering a delightful spot for outdoor relaxation and welcoming guests. Small stoops at the rear provide convenient secondary access.
Unit A
Heated Area
864Sq. Ft.
864 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
26'width
39'depth
Unfinished Areas
75 Sq. Ft. Porch, Front
21 Sq. Ft. Porch, Rear
Unit B
Heated Area
859Sq. Ft.
859 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
26'width
39'depth
Unfinished Areas
30 Sq. Ft. Porch, Front
21 Sq. Ft. Porch, Rear
Unit C
Heated Area
841Sq. Ft.
841 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
26'width
39'depth
Unfinished Areas
77 Sq. Ft. Porch, Front
21 Sq. Ft. Porch, Rear

What's Included

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
