Plan 135092GRA Traditional Ranch with Finished Basement

Traditional Ranch with Finished Basement

Plan 135092GRA

  • 3,020

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • The low-maintenance facade of this Traditional Ranch plan features stone accents, shake shingles, and a forward-facing garage.
  • Inside, the foyer leads into the great room where a fireplace is framed by windows that overlook the covered patio.
  • The kitchen hosts a flush eating bar and a pocket door that leads to the laundry room. The adjoining dining room offers sliding doors to the porch.
  • Three bedrooms line the left side of the main level, including the master bedroom tucked towards the rear. A tray ceiling crowns the master, which includes a 5-fixture bath and walk-in closet.
  • Downstairs, a sizable family room features a wet bar and a fourth bedroom neighbors a full bath. Dedicated storage space and a hobby / workout room round out this design.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

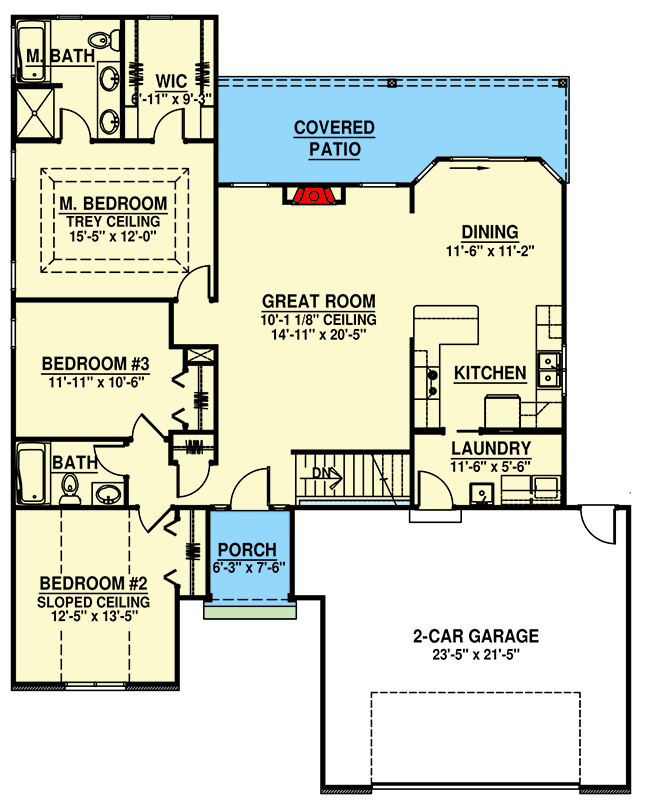

Traditional Ranch with Finished Basement - 135092GRA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

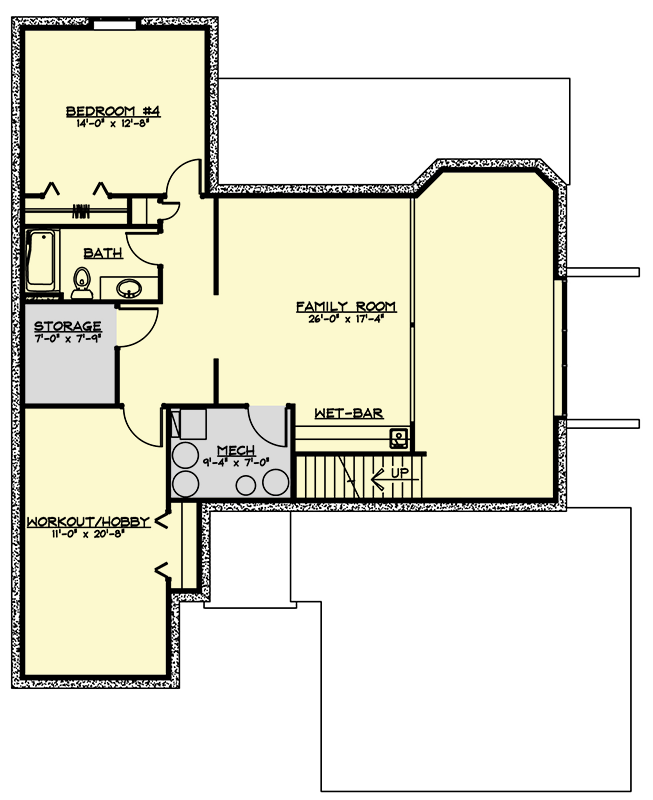

Traditional Ranch with Finished Basement - 135092GRA floor plan -  Lower Level

Plan details

Traditional Ranch with Finished Basement

  • 3,020

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,250
  • 5 Sets $1,425
  • 5 Sets + PDF $1,500
  • PDF - Unlimited Build $1,750
  • CAD + PDF - Single-Build $2,500
  • CAD - Unlimited Build $3,000
  • View all purchase option online

About This Plan

  • The low-maintenance facade of this Traditional Ranch plan features stone accents, shake shingles, and a forward-facing garage.
  • Inside, the foyer leads into the great room where a fireplace is framed by windows that overlook the covered patio.
  • The kitchen hosts a flush eating bar and a pocket door that leads to the laundry room. The adjoining dining room offers sliding doors to the porch.
  • Three bedrooms line the left side of the main level, including the master bedroom tucked towards the rear. A tray ceiling crowns the master, which includes a 5-fixture bath and walk-in closet.
  • Downstairs, a sizable family room features a wet bar and a fourth bedroom neighbors a full bath. Dedicated storage space and a hobby / workout room round out this design.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,020 sq. ft.
  • Lower Level: 1,510 sq. ft.
  • 1st Floor: 1,510 sq. ft.
  • Porch, Combined: 252 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 48' 0"
  • Depth: 60' 0"
  • Max ridge height: 20' 0"

Garage

  • Type: Attached
  • Area: 539 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
