Traditional Southern House Plan with Open Living Space

Plan 915040CHP

  • 2,568

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Drenched in character-rich curb appeal, this traditional Southern house plan presents an arched entryway, painted brick exterior, and natural wood accents.
  • The dining room neighbors the foyer, and offers access to the front porch through French doors, while the heart of the home combines the family room and kitchen. The homeowner will appreciate the ample work / storage space in the kitchen.
  • A tray ceiling exposes rustic beams above the living room, and a rear porch includes a fireplace for four seasons of enjoyment.
  • The master suite is adjacent the 2-car garage and boasts French doors to the side yard, a 4-fixture bath, and a walk-in closet. A second bedroom on the main level includes a full bath, and is located just off the foyer.
  • Upstairs, a loft with a built-in desk resides between bedrooms 3 and 4, which share a 4-fixture bath.

Plan includes the following elements:

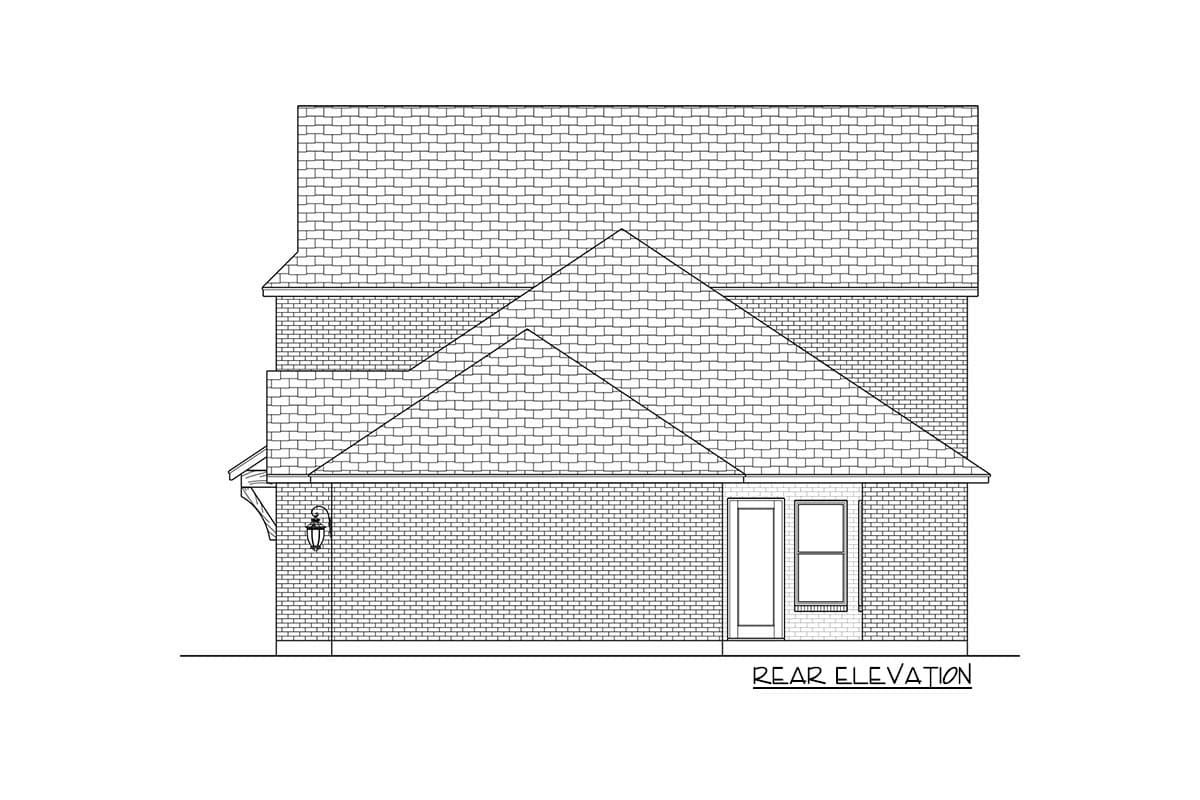

  • All four elevations
  • Detailed floor plans
  • Roof plans
  • Foundation plans
  • Electrical schematics
  • Cross section(s)
  • Rafter plan and ceiling joist plans
  • Interior elevations
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

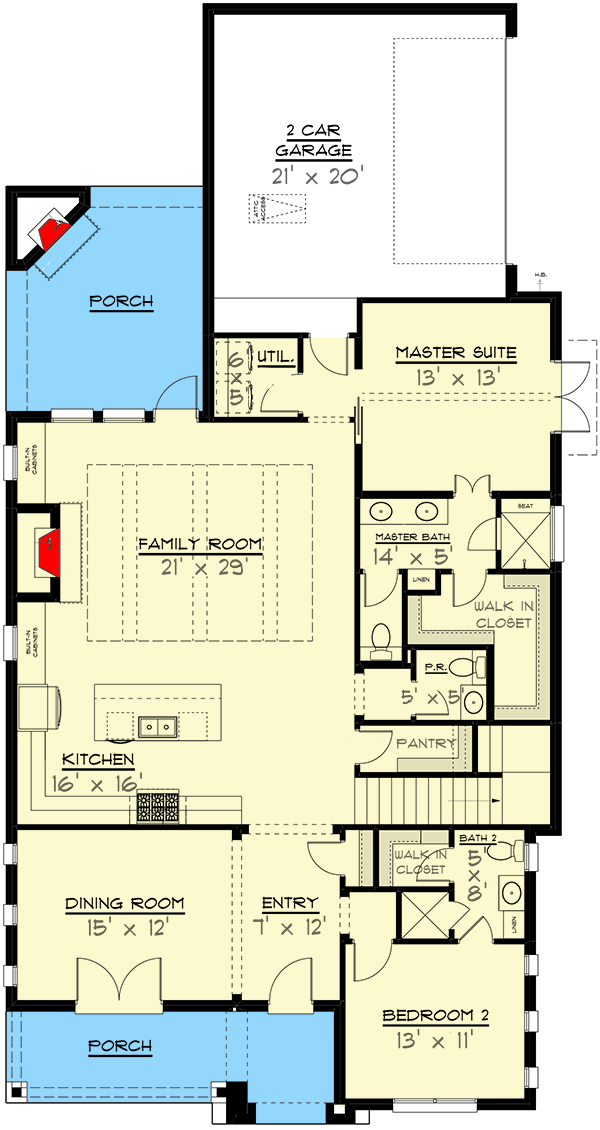

Traditional Southern House Plan with Open Living Space - 915040CHP floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

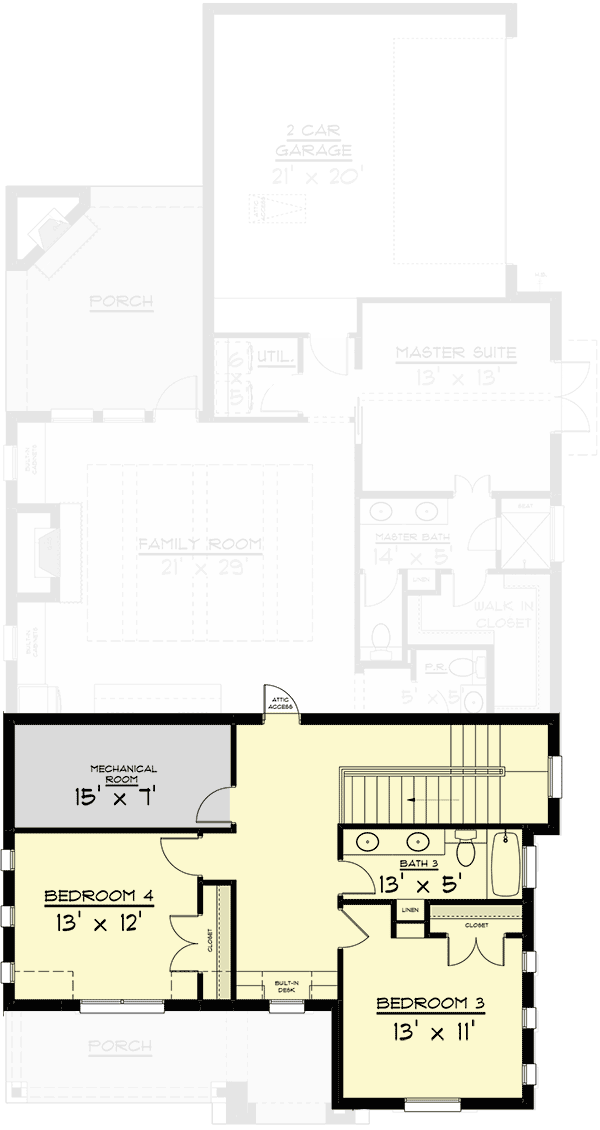

Traditional Southern House Plan with Open Living Space - 915040CHP floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,568 sq. ft.
  • 1st Floor: 1,933 sq. ft.
  • 2nd Floor: 634 sq. ft.
  • Porch, Combined: 391 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 39' 0"
  • Depth: 79' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 504 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Traditional Southern House Plan with Open Living Space

  • 2,568

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets $1,445
  • 5 Sets + PDF $1,545
  • CAD+PDF - Single-Build $2,495
  • View all purchase option online

About This Plan

  • Drenched in character-rich curb appeal, this traditional Southern house plan presents an arched entryway, painted brick exterior, and natural wood accents.
  • The dining room neighbors the foyer, and offers access to the front porch through French doors, while the heart of the home combines the family room and kitchen. The homeowner will appreciate the ample work / storage space in the kitchen.
  • A tray ceiling exposes rustic beams above the living room, and a rear porch includes a fireplace for four seasons of enjoyment.
  • The master suite is adjacent the 2-car garage and boasts French doors to the side yard, a 4-fixture bath, and a walk-in closet. A second bedroom on the main level includes a full bath, and is located just off the foyer.
  • Upstairs, a loft with a built-in desk resides between bedrooms 3 and 4, which share a 4-fixture bath.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,568 sq. ft.
  • 1st Floor: 1,933 sq. ft.
  • 2nd Floor: 634 sq. ft.
  • Porch, Combined: 391 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 39' 0"
  • Depth: 79' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 504 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 915040CHP
View this and more for this plan by visiting www.architechtecturaldesigns.com/915040CHP
|
