Plan 580102DFT

Exclusive

Traditional-Style Craftsman Ranch Home Plan with Great Room and Split Beds - 1957 Sq Ft

Heated S.F.
1,957
Beds
3
Baths
2
Stories
1
Cars
2

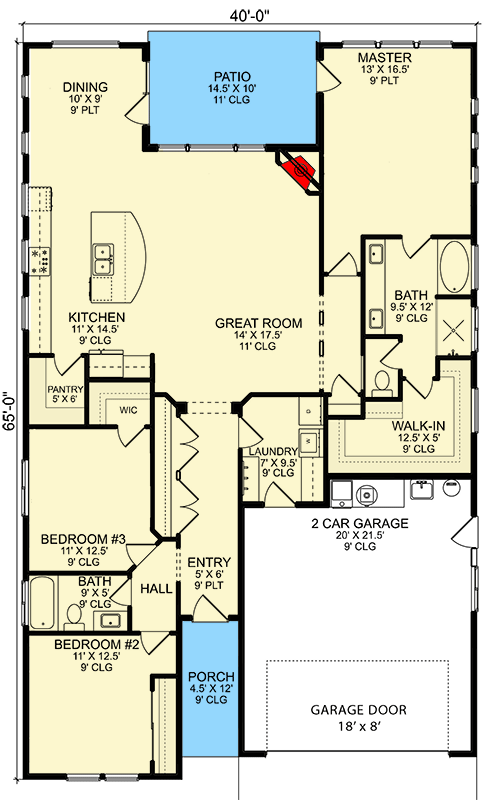

Floor Plan

Plan 580102DFT

Main Level
Main Level

Plan 580102DFT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 580102DFT: Traditional-Style Craftsman Ranch Home Plan with Great Room and Split Beds - 1957 Sq Ft - Floor Plan - Main Level - Craftsman, Ranch, Traditional

Plan Details

  • This 3 bed, 2 bath traditional craftsman house plan gives you 1,957 square feet of heated living and 2 car front load garage (494 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

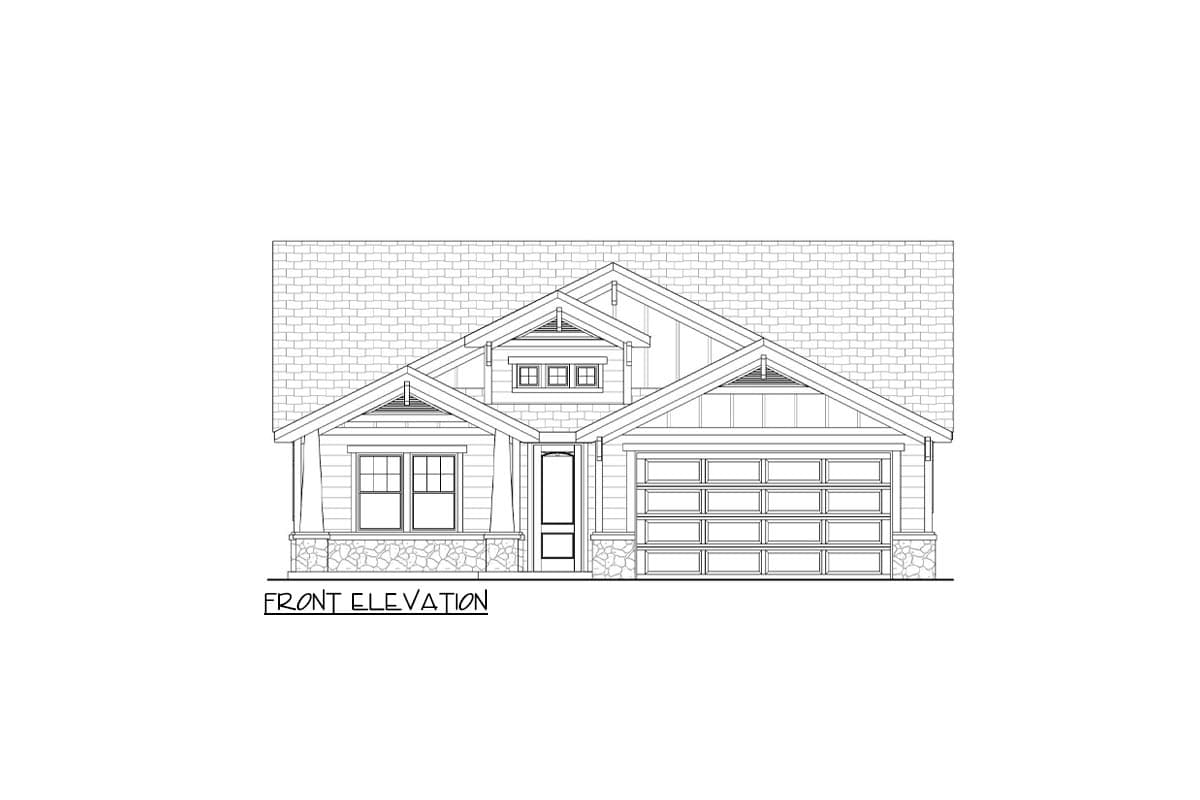

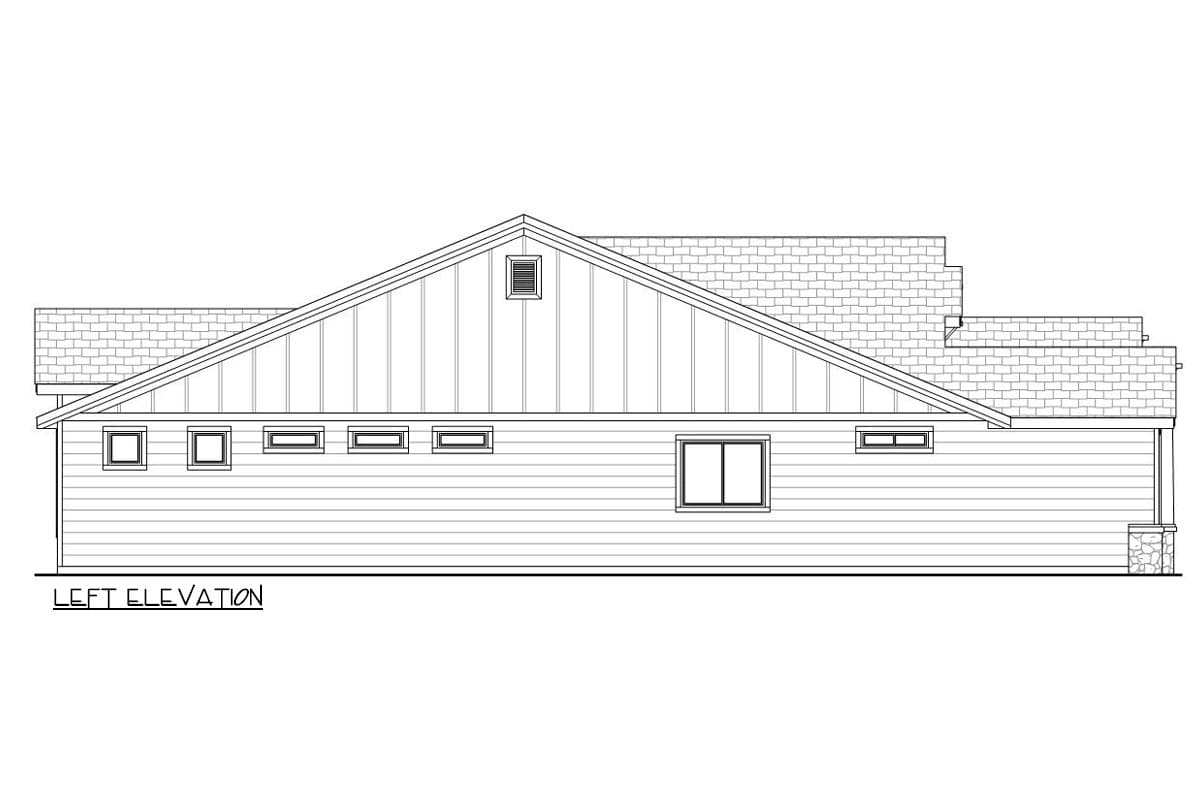

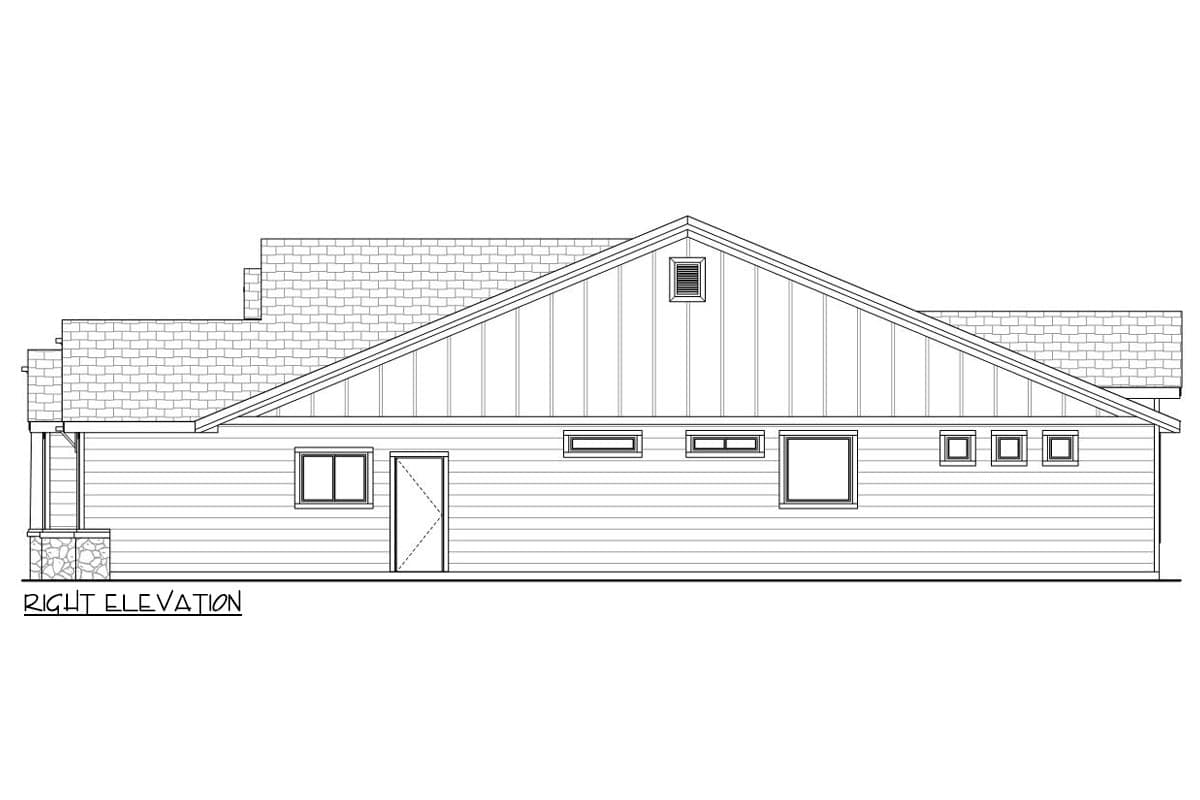

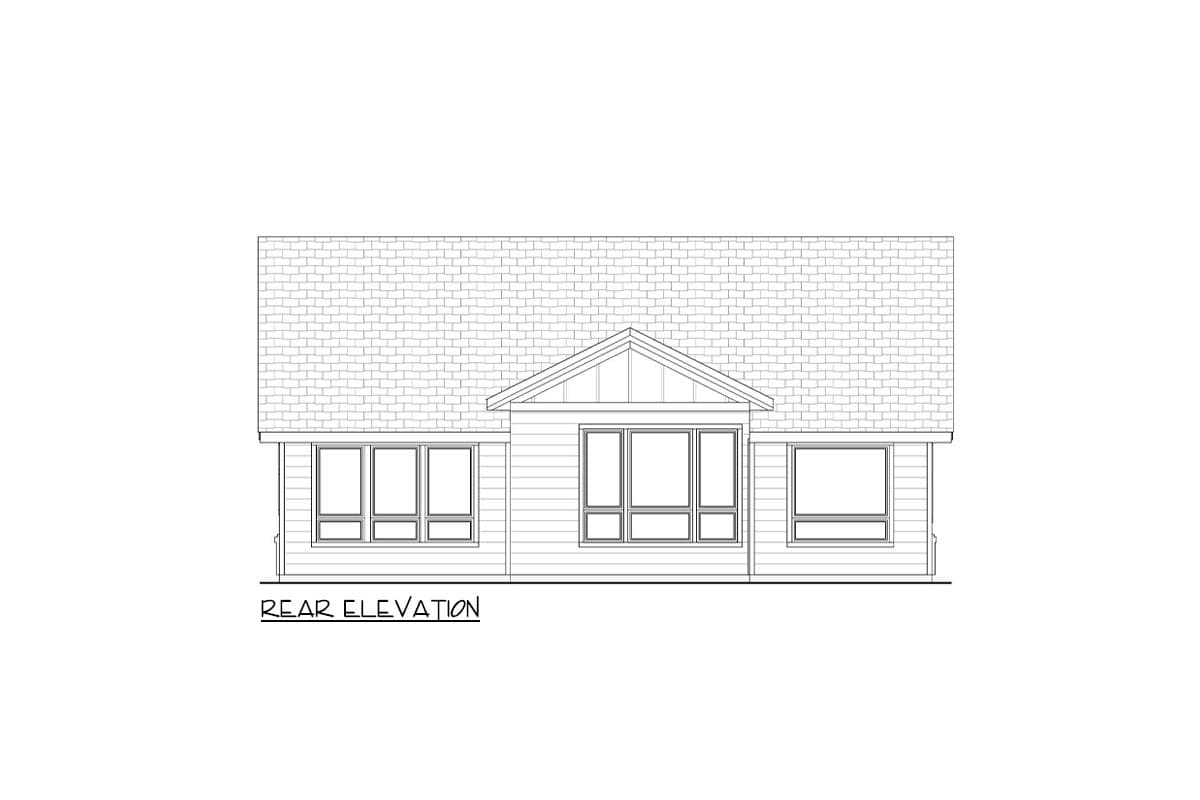

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,957 sq. ft.

1st Floor

1,957 sq. ft.

Porch, Front

30 sq. ft.

Covered Patio

207 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

70' 0"

Garage

Type

Attached

Area

494 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,957 sq. ft.

1st Floor

1,957 sq. ft.

Porch, Front

30 sq. ft.

Covered Patio

207 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

70' 0"

Garage

Type

Attached

Area

494 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Exclusive
