Plan 29831RL
Traditional Style Ranch
Heated S.F.
3,120
Beds
3-5
Baths
3
Stories
1
Cars
3
What's Included
Plan Details

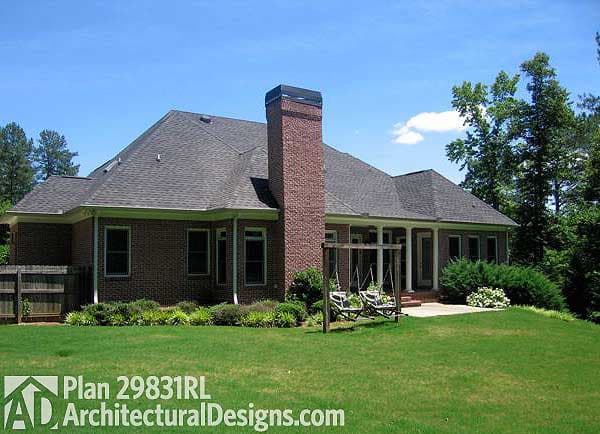

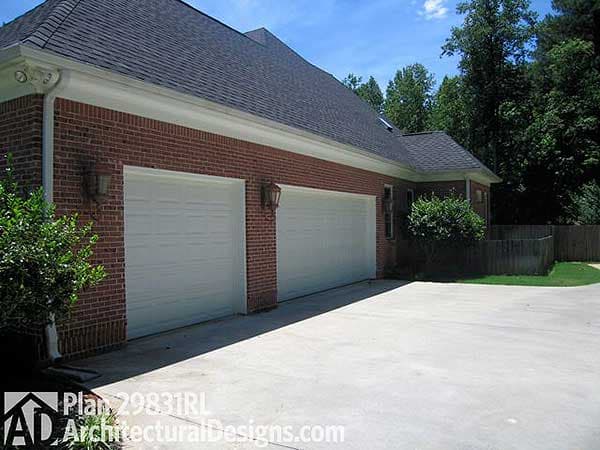

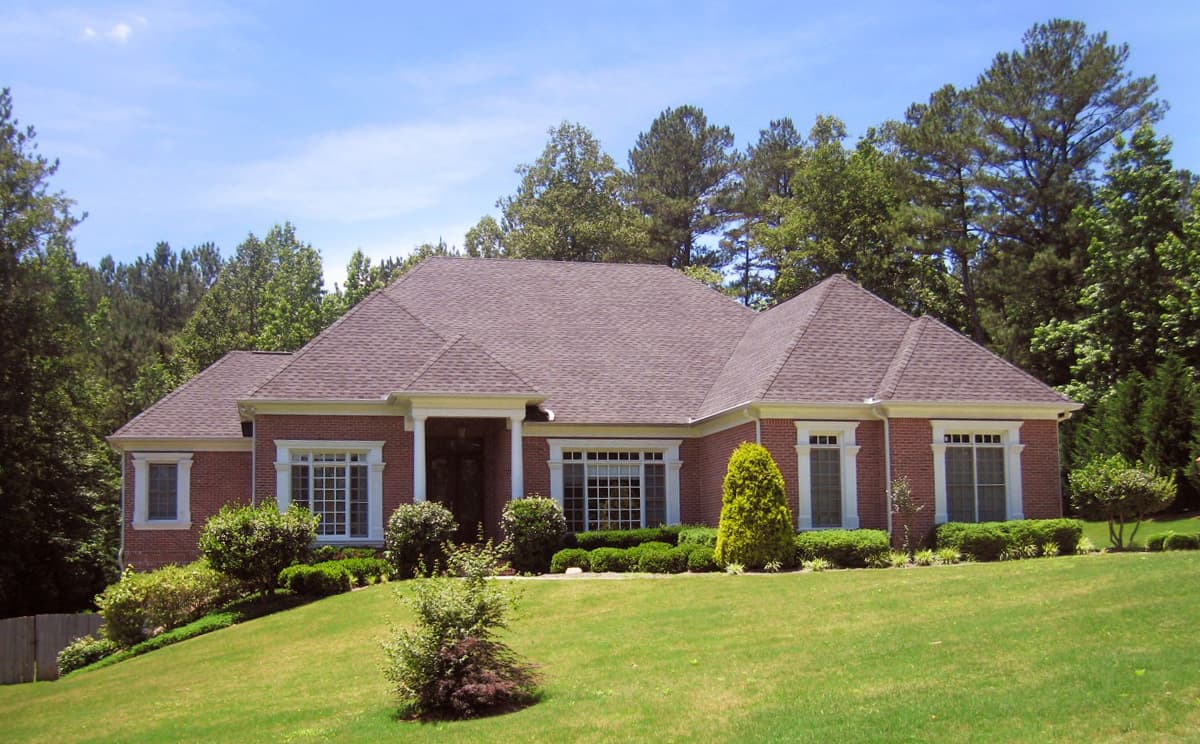

  • This is a traditional style ranch with 4 sided brick on a basement foundation.

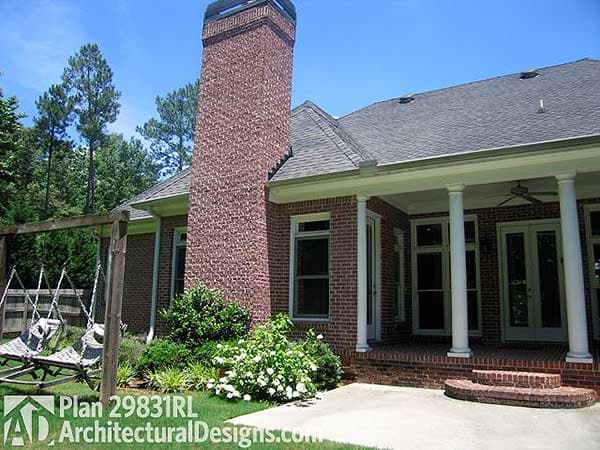

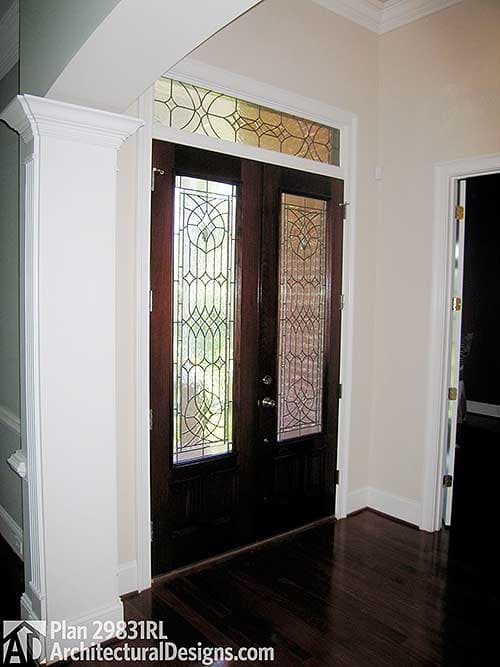

  • Tasteful covered entryways welcome you on both the front and rear of the house.
  • The main level is a split bedroom floor plan with the master bedroom on the opposite side of the house from the kitchen.

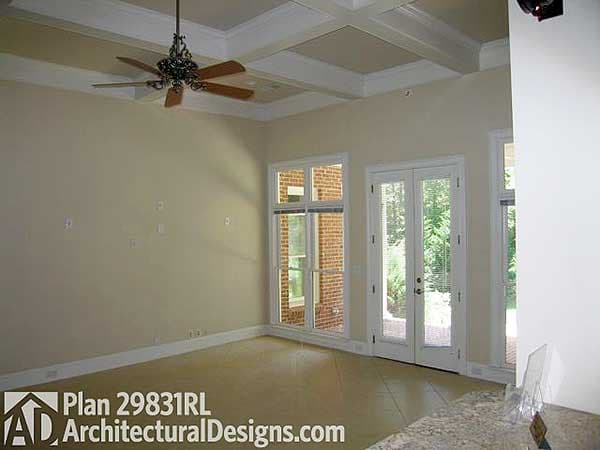

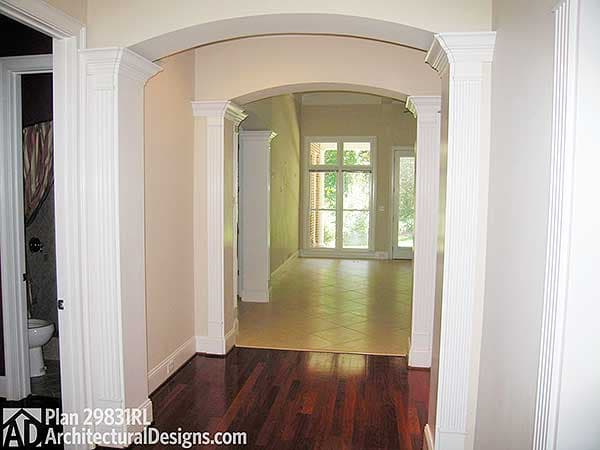

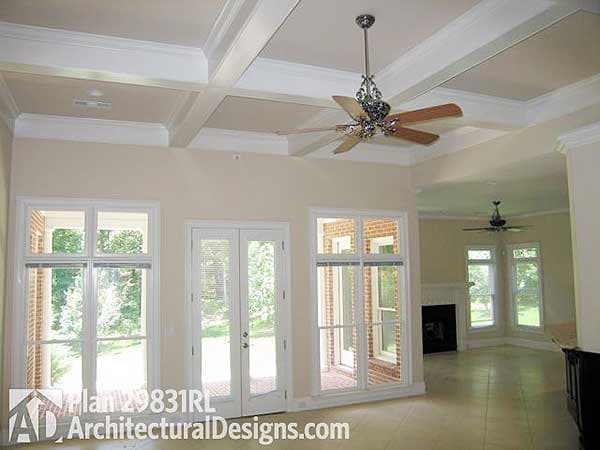

  • The dining room and foyer welcome visitors with arched entryways and the 12' high great room is decorated with a coffered ceiling.

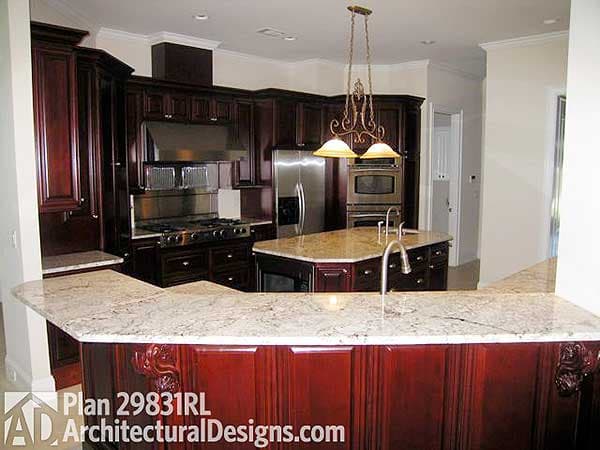

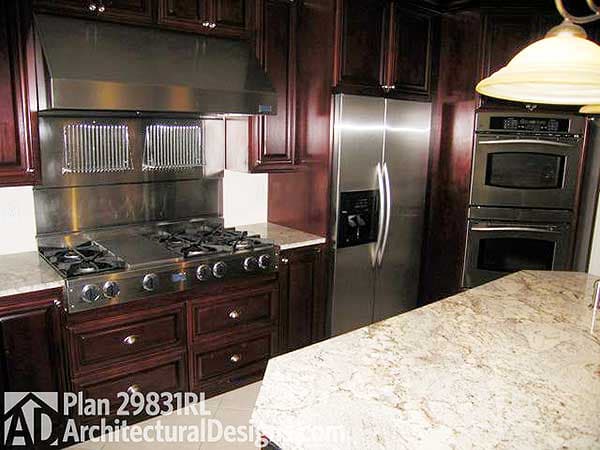

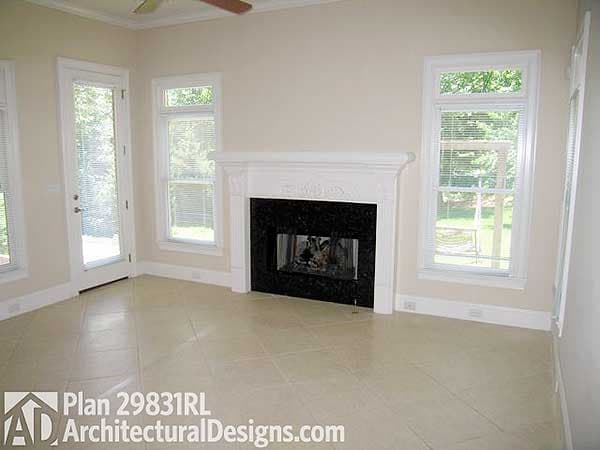

  • The large kitchen has an island and is open to the keeping room, breakfast nook and great room. A butler's pantry helps keep the dining room well serviced.
  • Bedrooms 2 and 3 have good sized closets and are joined by a jack and jill bath.
  • The study opens into the foyer and could easily be a 4th bedroom as it has a full bath.

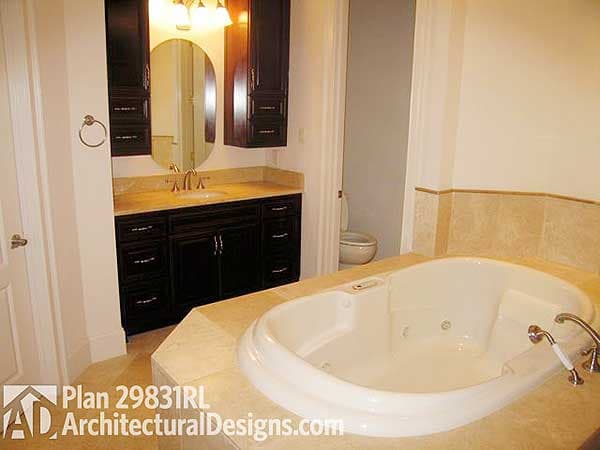

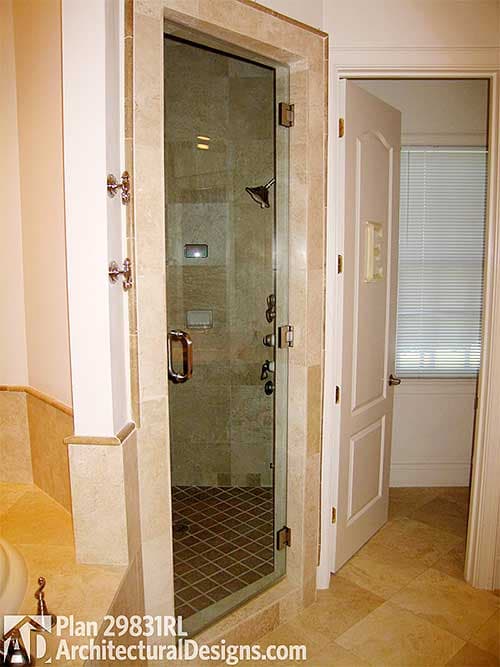

  • The master suite has 2 walk in closets, a large shower with a seat, separate vanities and garden tub.
What's Included

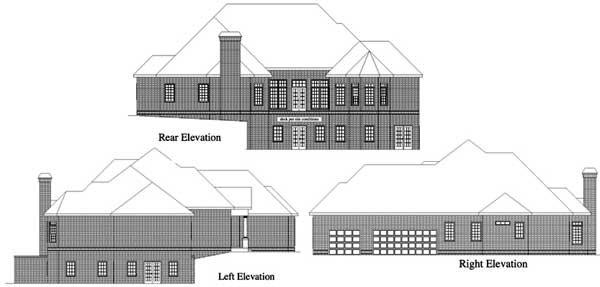

  • All 4 elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section
  • Typical Details

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional Style Ranch

  • 3,120

    Heated s.f.

  • 3-5

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

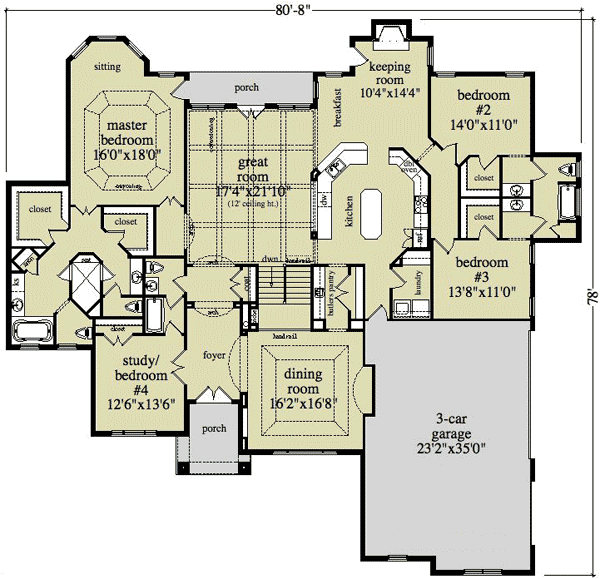

  • Main Level

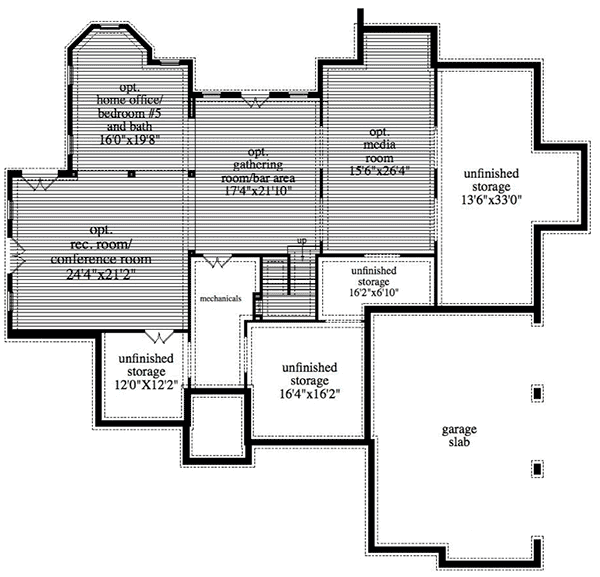

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 3,120 sq. ft.
  • 1st Floor: 3,120 sq. ft.

Dimensions

  • Width: 80' 8"
  • Depth: 78' 0"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 775 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement, Daylight
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
