Traditional Three Bedroom Duplex House Plan with Split Bedroom Layout

Heated S.F.
3,124
Units
2
Width
Depth

Floor Plan

Plan 52560WM

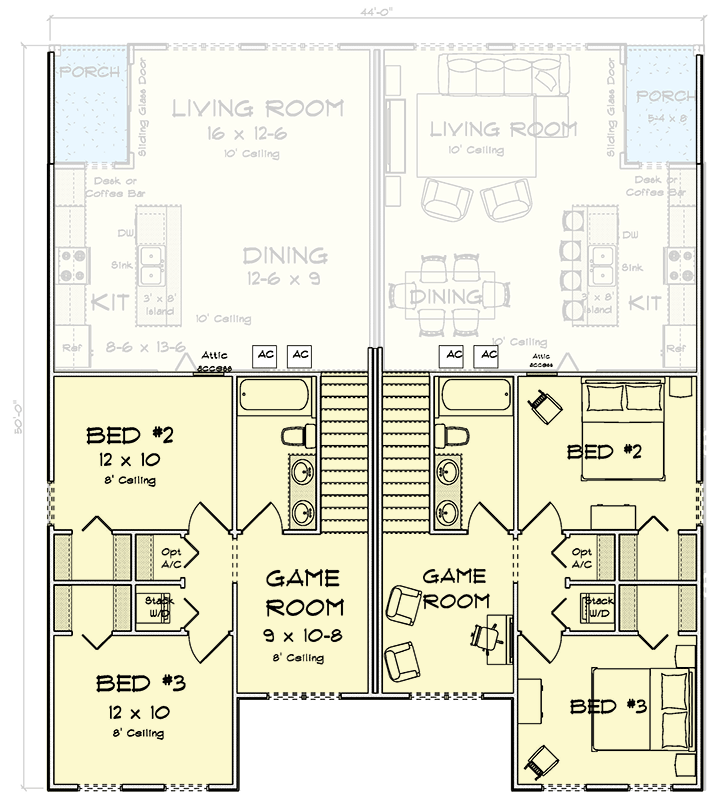

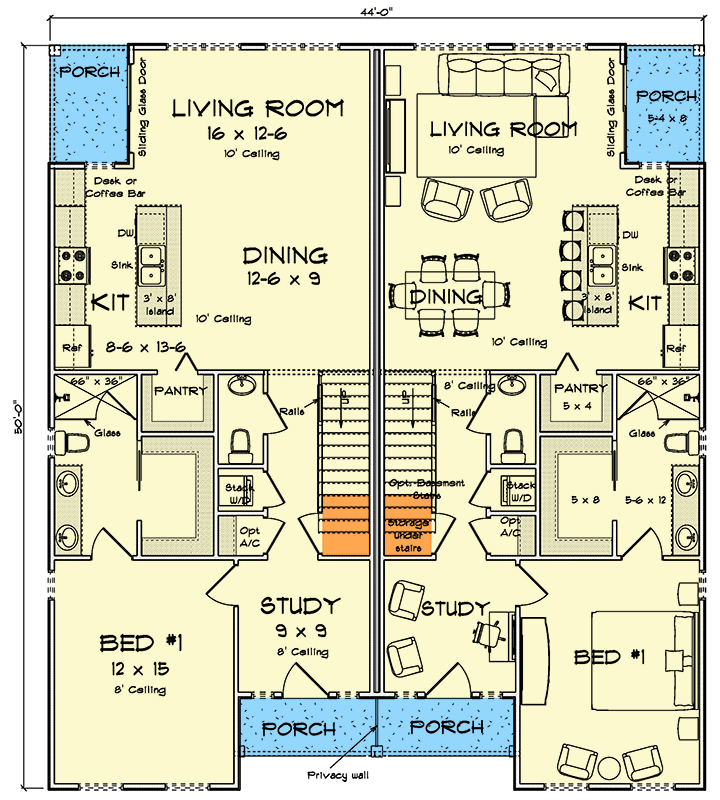

Floor Plan 1
Floor Plan 2

Plan 52560WM

M-F 9am-5pm EST |

1-203-761-8500

Plan 52560WM: Traditional Three Bedroom Duplex House Plan with Split Bedroom Layout - Floor Plan - - Traditional

Plan 52560WM: Traditional Three Bedroom Duplex House Plan with Split Bedroom Layout - Floor Plan - - Traditional

Plan Details

  • This charming traditional duplex offers 1,562 square feet of finished living space across two levels, featuring three bedrooms and 2.5 bathrooms.
  • The welcoming front porch invites you into a thoughtfully designed floor plan that maximizes comfort and functional living.
  • The main level centers around an open-concept living area that flows effortlessly, providing an ideal setting for daily life and casual gatherings.
  • A private master suite is conveniently tucked away on the first floor, offering a peaceful retreat separate from the secondary bedrooms located upstairs.
  • Upstairs, a versatile loft space serves as a perfect game or recreation area, complemented by the added convenience of an upper-level laundry nook.
  • Outdoor enjoyment is extended through the inviting front porch and a private rear porch, creating seamless transitions between indoor and outdoor spaces.
Unit A & B
Heated Area
1,562Sq. Ft.
1000 Sq. Ft. 1st
562 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
22'width
50'depth
Unfinished Areas
37 Sq. Ft. Porch, Front
43 Sq. Ft. Porch, Rear

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,124 sq. ft.

1st Floor

2,000 sq. ft.

2nd Floor

1,124 sq. ft.

Porch, Front

74 sq. ft.

Porch, Rear

86 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

50' 0"

Max Ridge Height

25' 0"

Architectural Style

Traditional

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,124 sq. ft.

1st Floor

2,000 sq. ft.

2nd Floor

1,124 sq. ft.

Porch, Front

74 sq. ft.

Porch, Rear

86 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

50' 0"

Max Ridge Height

25' 0"

Architectural Style

Traditional

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor
