Plan 72854DA

Traditional Three Bedroom Home

Pageloader

Traditional Three Bedroom Home

Plan 72854DA

  • 2,281

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Three gables above and cultured stone columns below give a traditional look to this 3 bedroom traditional homeWide windows front and rear, fewer and smaller windows on the sides, make this home well suited to a neighborhood where lot lines are fairly close together.
  • Inside, the foyer passes a den and bathroom before arriving at the relaxed gathering spaces. The den is ideally located for a home office. It could even be built with a direct entry from the covered porch.
  • In the great room, high windows flank the mess-free gas fireplace. More light washes in through a wide window at the rear that offers views across the covered patio.
  • The great room is fully open to the comfortably large kitchen and dining area. An eating bar rims the kitchen’s work island, where it fronts the dining room.
  • Three bedrooms and a bonus room are upstairs, along with a large utility room and two bathrooms. The owners’ suite boasts a large walk-in closet, plus a bathroom with a dual vanity and totally private toilet. Secondary bedrooms share a two-section bathroom.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Traditional Three Bedroom Home

  • 2,281

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $870
  • PDF Light $1,110
  • 5 Sets $1,110
  • 5 Sets PLUS $1,230
  • 8 Sets $1,290
  • PDF - single-use $2,165
  • CAD $2,345
  • CAD - multi-use $2,595
  • View all purchase option online

About This Plan

  • Three gables above and cultured stone columns below give a traditional look to this 3 bedroom traditional homeWide windows front and rear, fewer and smaller windows on the sides, make this home well suited to a neighborhood where lot lines are fairly close together.
  • Inside, the foyer passes a den and bathroom before arriving at the relaxed gathering spaces. The den is ideally located for a home office. It could even be built with a direct entry from the covered porch.
  • In the great room, high windows flank the mess-free gas fireplace. More light washes in through a wide window at the rear that offers views across the covered patio.
  • The great room is fully open to the comfortably large kitchen and dining area. An eating bar rims the kitchen’s work island, where it fronts the dining room.
  • Three bedrooms and a bonus room are upstairs, along with a large utility room and two bathrooms. The owners’ suite boasts a large walk-in closet, plus a bathroom with a dual vanity and totally private toilet. Secondary bedrooms share a two-section bathroom.

Floor Plans

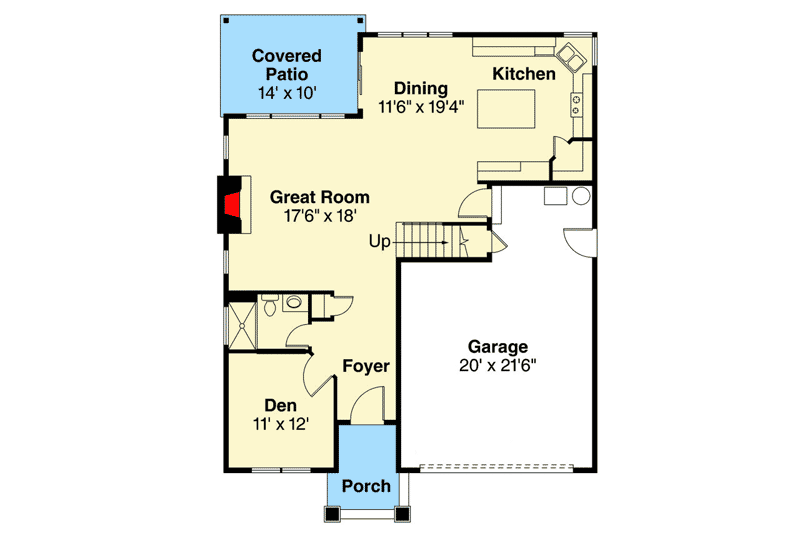

  • Main Level

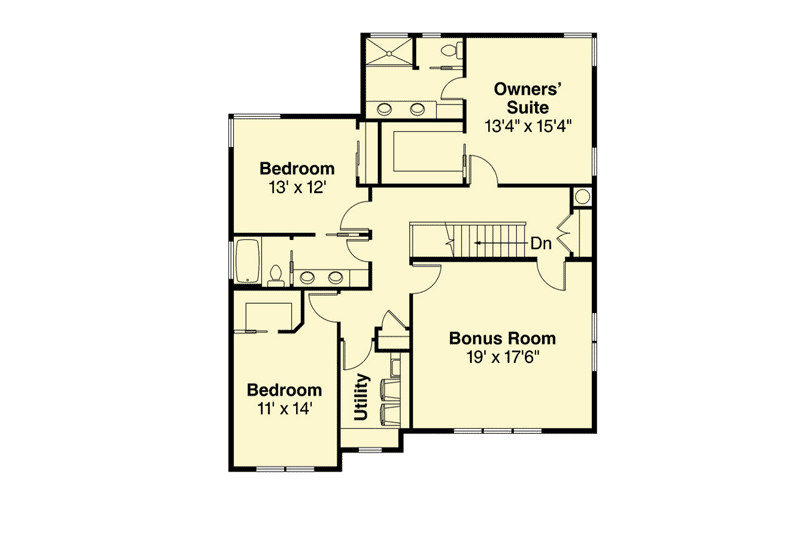

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,281 sq. ft.
  • 1st Floor: 1,107 sq. ft.
  • 2nd Floor: 1,174 sq. ft.
  • Bonus: 367 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 8"
  • Depth: 52' 6"
  • Max ridge height: 29' 8"

Garage

  • Type: Attached
  • Area: 542 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Stick
