Plan 100374GHR

Exclusive

Traditional Triplex House Plan Featuring Three Modern Two-Bedroom Units

Heated S.F.
2,896
Units
3
Width
Depth

Floor Plan

Plan 100374GHR

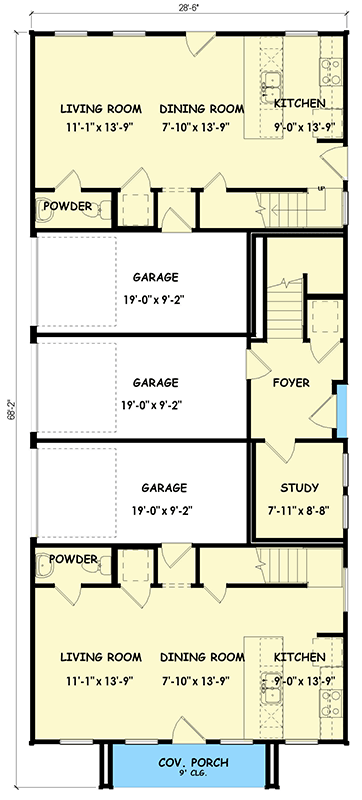

Floor Plan 1

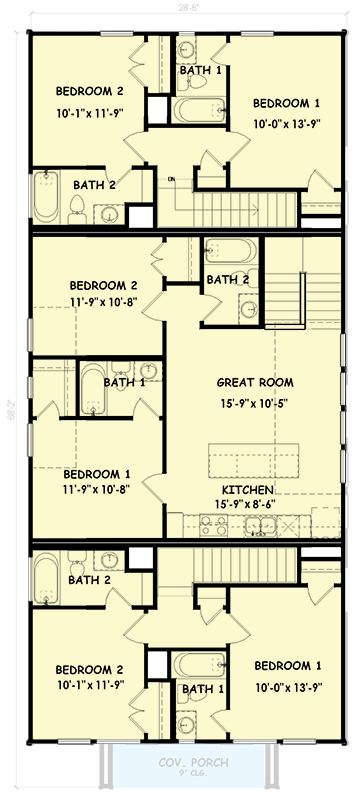

Floor Plan 2

Plan 100374GHR

M-F 9am-5pm EST |

1-203-761-8500

Plan 100374GHR: Traditional Triplex House Plan Featuring Three Modern Two-Bedroom Units - Floor Plan - - Traditional

Plan 100374GHR: Traditional Triplex House Plan Featuring Three Modern Two-Bedroom Units - Floor Plan - - Traditional

Plan Details

  • This traditional triplex house plan offers a versatile multi-family living solution, featuring three separate units with a combined 2,896 square feet of heated living space.
  • Each residence is thoughtfully designed with two bedrooms and two full baths, while the end units include the added convenience of a main-level half bath.
  • The floor plans emphasize efficient use of space with nine-foot ceilings on both levels, creating an airy and open atmosphere throughout the living areas.
  • Primary bedroom suites are situated on the second floor, providing a quiet retreat separated from the main living spaces below.
  • Laundry facilities are conveniently located on the main level of each unit, streamlining daily chores for residents.
  • The building includes an attached 550 square foot, three-car garage with side-entry access, ensuring ample parking and storage for all occupants.
Unit 1
Heated Area
971Sq. Ft.
513 Sq. Ft. 1st
458 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
56' 6"width
54' 6"depth
52' 9"height
Unfinished Areas
64 Sq. Ft. Porch, Front
Unit 2
Heated Area
954Sq. Ft.
223 Sq. Ft. 1st
731 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Dimensions
56' 6"width
54' 10"depth
52' 9"height
Unit 3
Heated Area
971Sq. Ft.
513 Sq. Ft. 1st
458 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
56' 6"width
54' 6"depth
52' 9"height

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,896 sq. ft.

1st Floor

1,249 sq. ft.

2nd Floor

1,647 sq. ft.

Porch, Front

64 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 6"

Depth

68' 2"

Max Ridge Height

26' 9"

Garage

Type

Standard, Attached

Area

550 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,896 sq. ft.

1st Floor

1,249 sq. ft.

2nd Floor

1,647 sq. ft.

Porch, Front

64 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 6"

Depth

68' 2"

Max Ridge Height

26' 9"

Garage

Type

Standard, Attached

Area

550 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Exclusive
