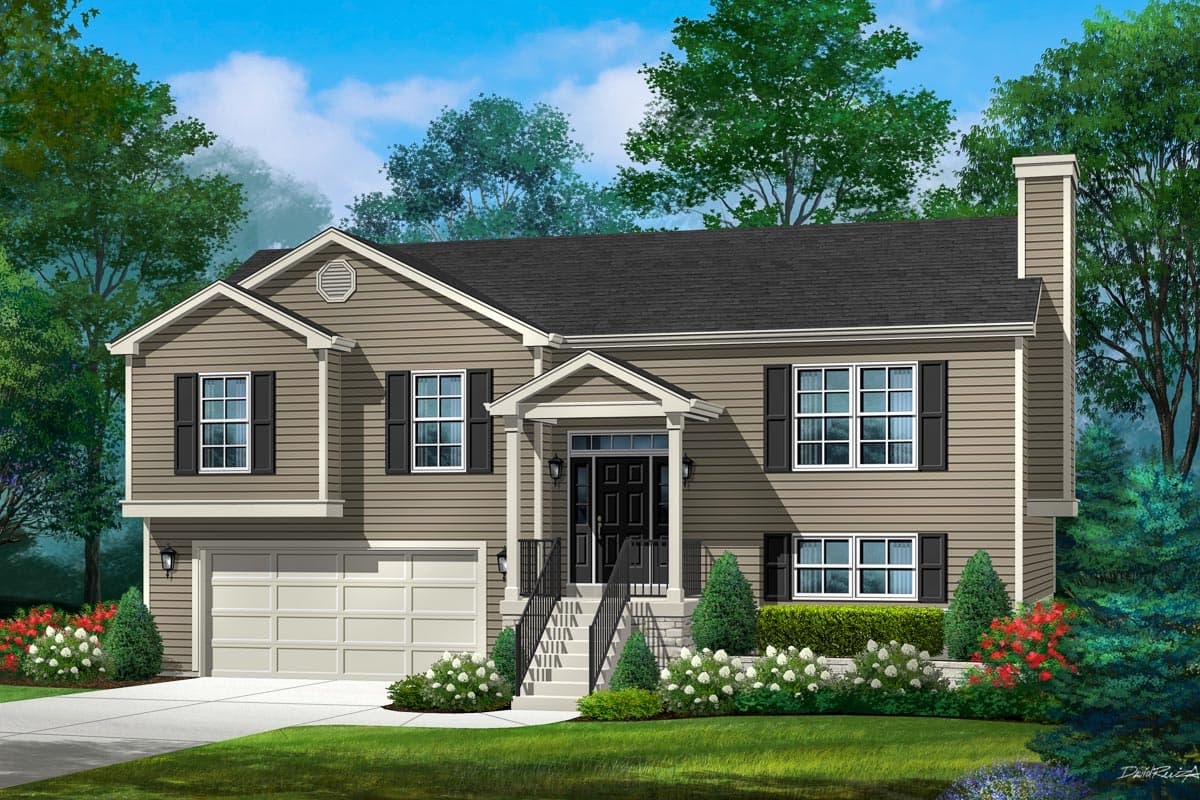

Traditional Two-story Home Plan with Open Living Space

Plan 22170SL

  • 2,041

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

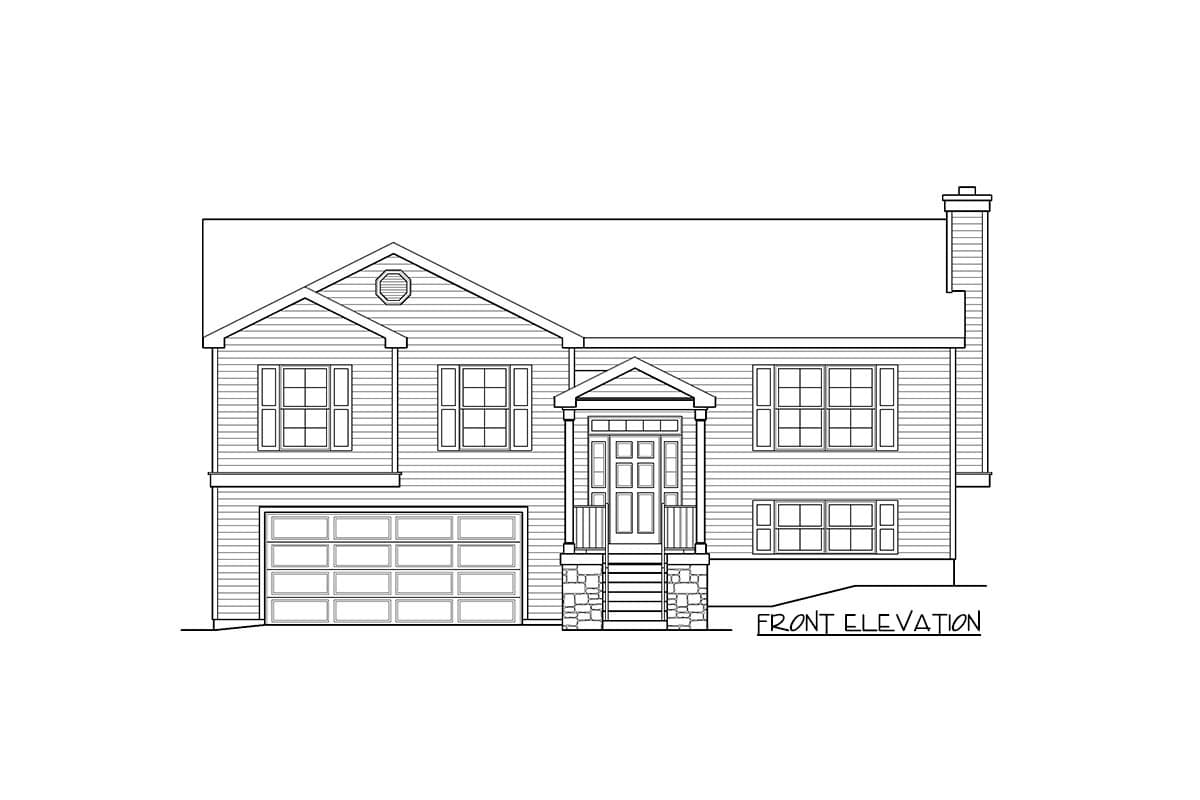

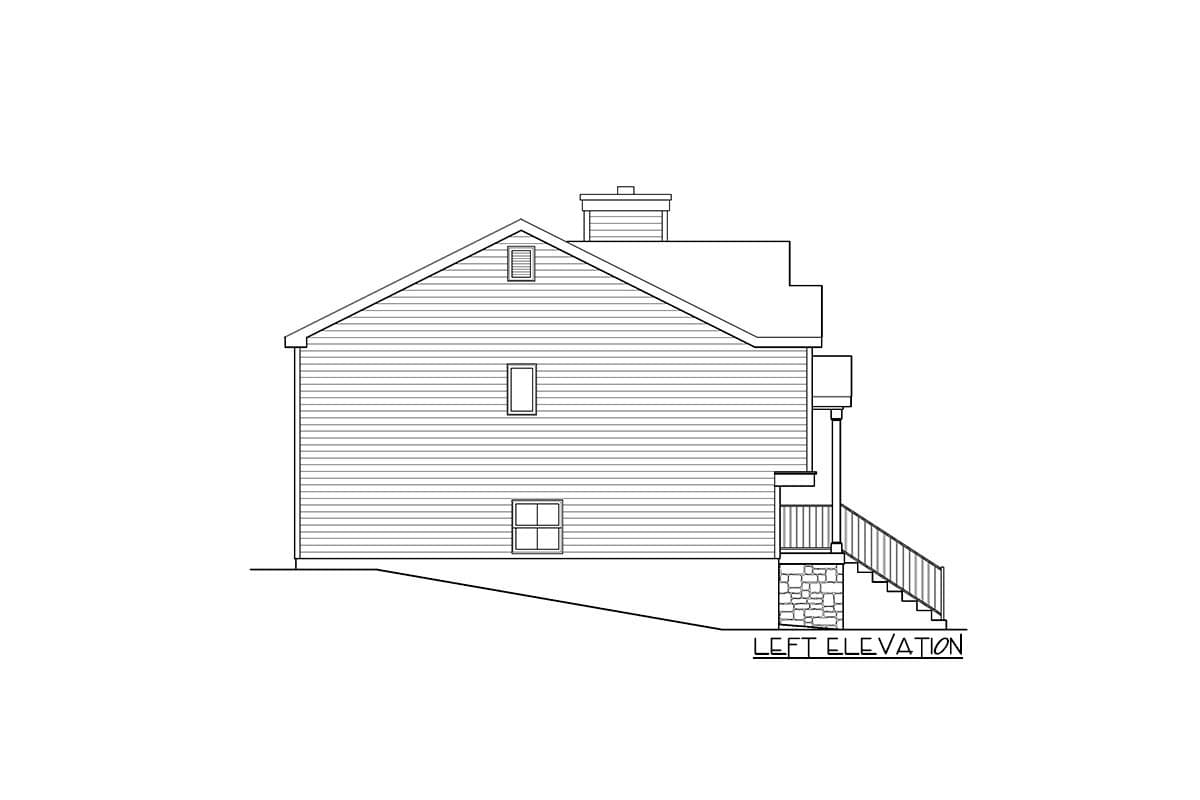

  • This traditional, two-story home plan presents a split-level foyer that leads down to the ground level garage and recreation room, or up to the main living area.

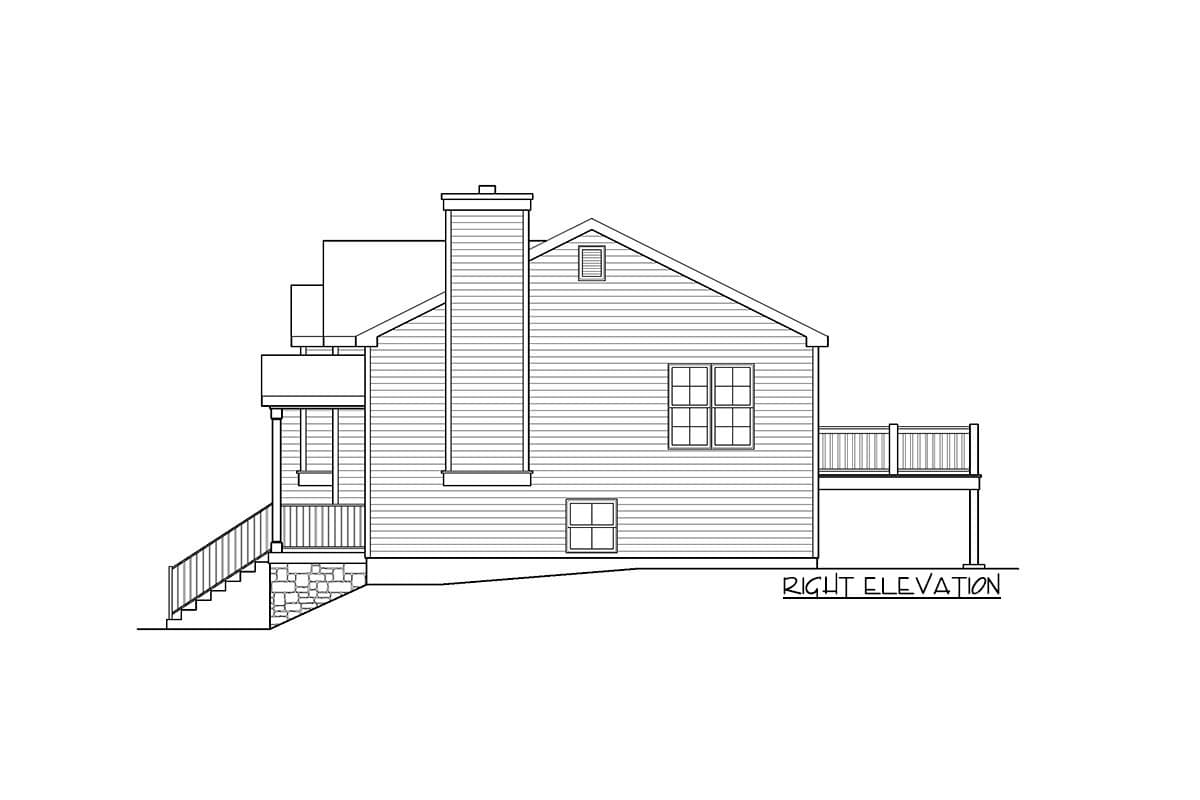

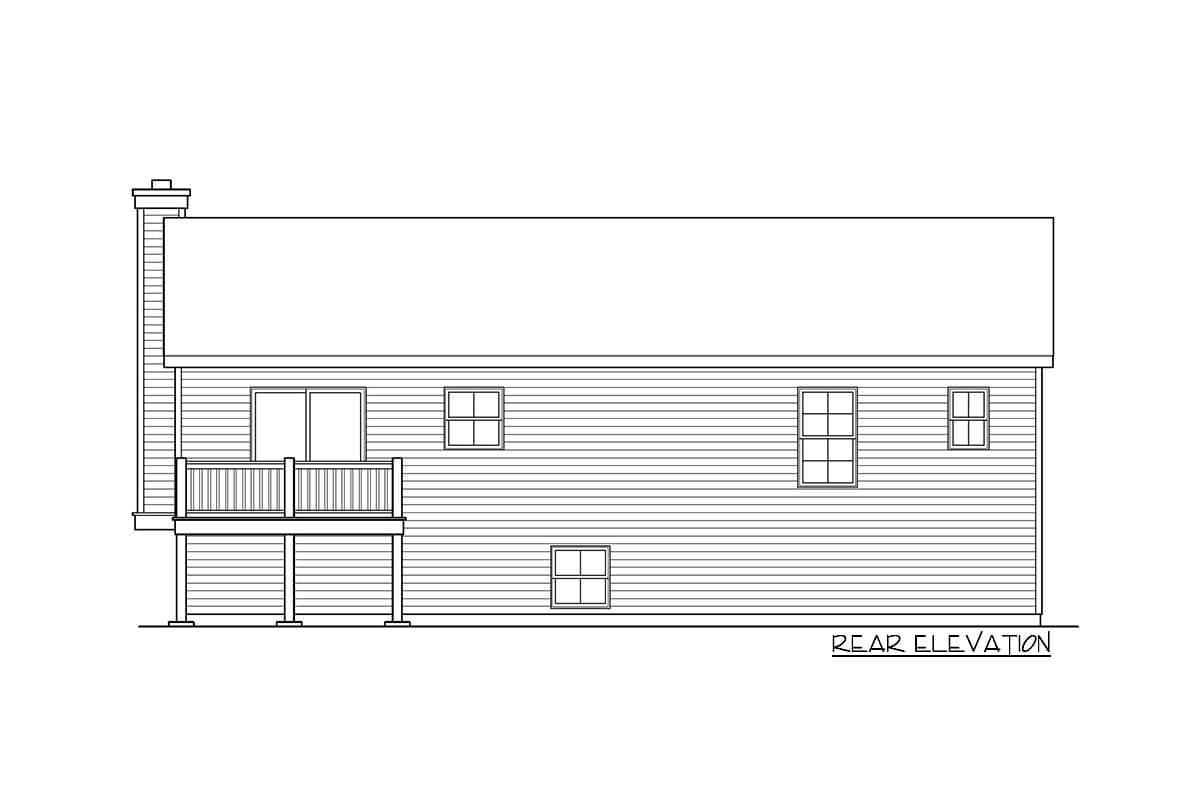

  • The family room features a warm fireplace and opens to the kitchen and dining area. A prep island anchors the space and sliding doors lead to the perfect grilling deck.
  • Retreat to the master bedroom to find a walk-in closet, full bath, and linen closet.
  • Bedrooms 2 and 3 are identical in size and can be found across the hall, next to a shared bath.
  • The laundry room is located next to the double garage on the ground level, and a 15' by 27' basement can be utilized as a secondary family room, home office, or media room.
  • Related Plan: Get an alternate lower level layout with house plan 22171SL.

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

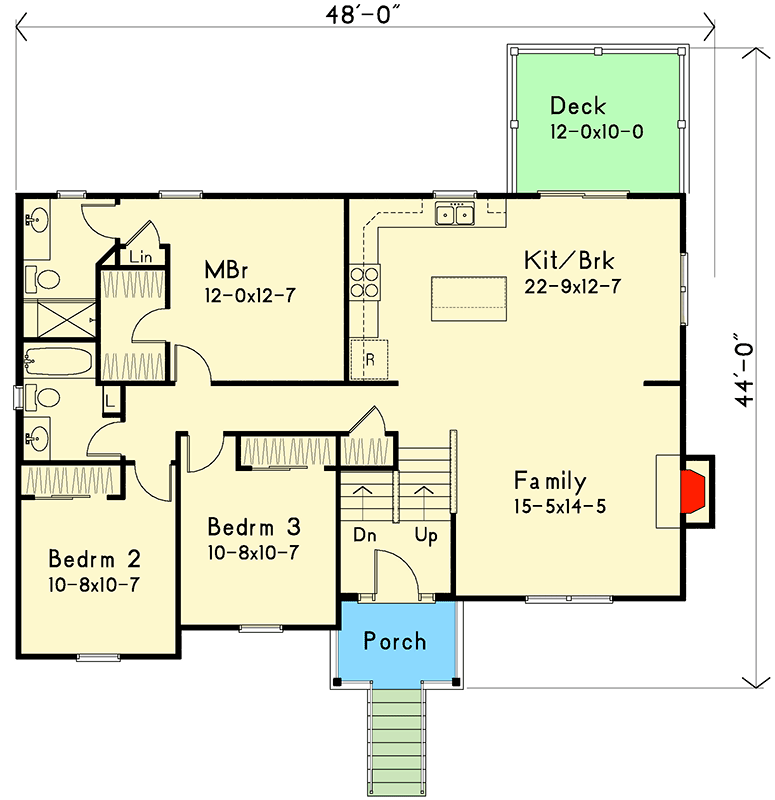

Traditional Two-story Home Plan with Open Living Space - 22170SL floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

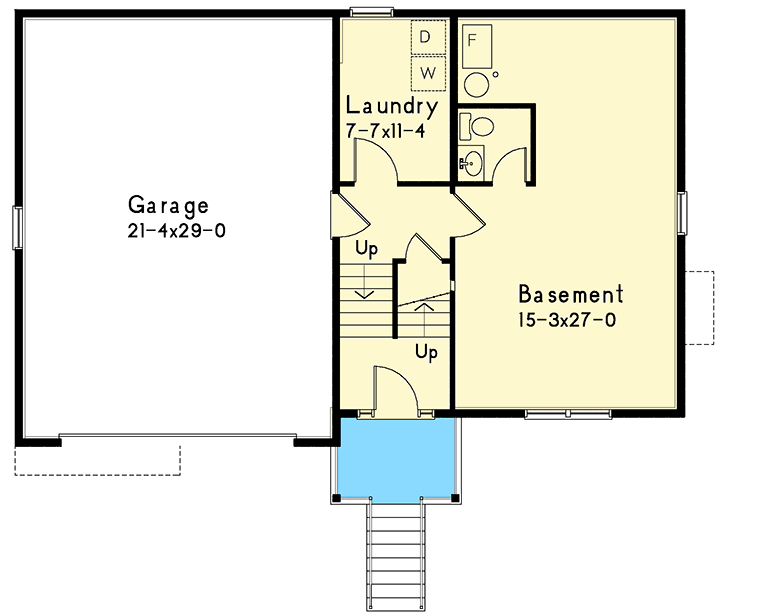

Traditional Two-story Home Plan with Open Living Space - 22170SL floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,041 sq. ft.
  • Lower Level: 676 sq. ft.
  • 1st Floor: 1,365 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 44' 0"
  • Max ridge height: 25' 7"

Garage

  • Type: Drive Under, Attached
  • Area: 618 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Traditional Two-story Home Plan with Open Living Space

  • 2,041

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,041 sq. ft.
  • Lower Level: 676 sq. ft.
  • 1st Floor: 1,365 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 44' 0"
  • Max ridge height: 25' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Drive Under, Attached
  • Area: 618 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
