Traditional Two Story Home with Four Bedrooms

Plan 89928AH

  • 3,123

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This traditional two-story home has been designed with craftsman detailing to enhance its classic style.
  • With a kitchen located to the front of the home, left of the entry, this floor plan provides an option that is unique and not often seen.
  • It features a breakfast bar that overlooks the great room creating a direct line of access to the dining room as well.
  • The master suite is sure to impress with a spacious walk-in closet, dual sinks and close access to the laundry.
  • Three additional bedrooms, each with walk-in closet and private bath are located on the second level.
  • A three-stall side load garage completes this home.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

Plans include the following

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

Framing plans are NOT included.


Floor Plan

Plan details



Traditional Two Story Home with Four Bedrooms

  • 3,123

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,090
  • 8 Sets $1,135
  • Reproducible Set $1,370
  • PDF - single-use $1,370
  • CAD $2,180
  • View all purchase option online

About This Plan

  • This traditional two-story home has been designed with craftsman detailing to enhance its classic style.
  • With a kitchen located to the front of the home, left of the entry, this floor plan provides an option that is unique and not often seen.
  • It features a breakfast bar that overlooks the great room creating a direct line of access to the dining room as well.
  • The master suite is sure to impress with a spacious walk-in closet, dual sinks and close access to the laundry.
  • Three additional bedrooms, each with walk-in closet and private bath are located on the second level.
  • A three-stall side load garage completes this home.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

Floor Plans

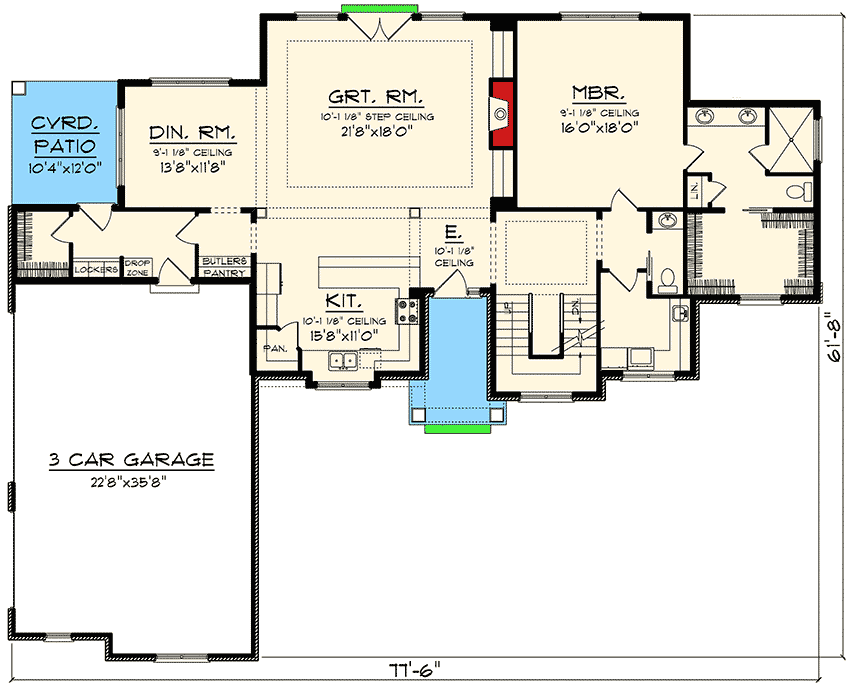

  • Main Level

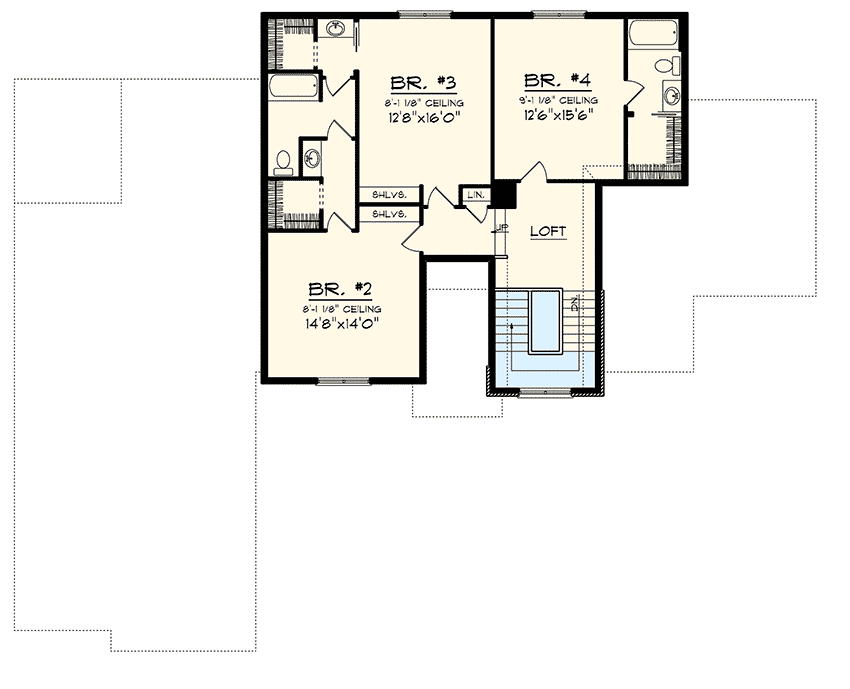

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,123 sq. ft.
  • 1st Floor: 1,990 sq. ft.
  • 2nd Floor: 1,133 sq. ft.
  • Porch, Rear: 120 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 77' 6"
  • Depth: 61' 8"
  • Max ridge height: 31' 1"

Garage

  • Type: Attached
  • Area: 818 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
