Plan 623643DJ

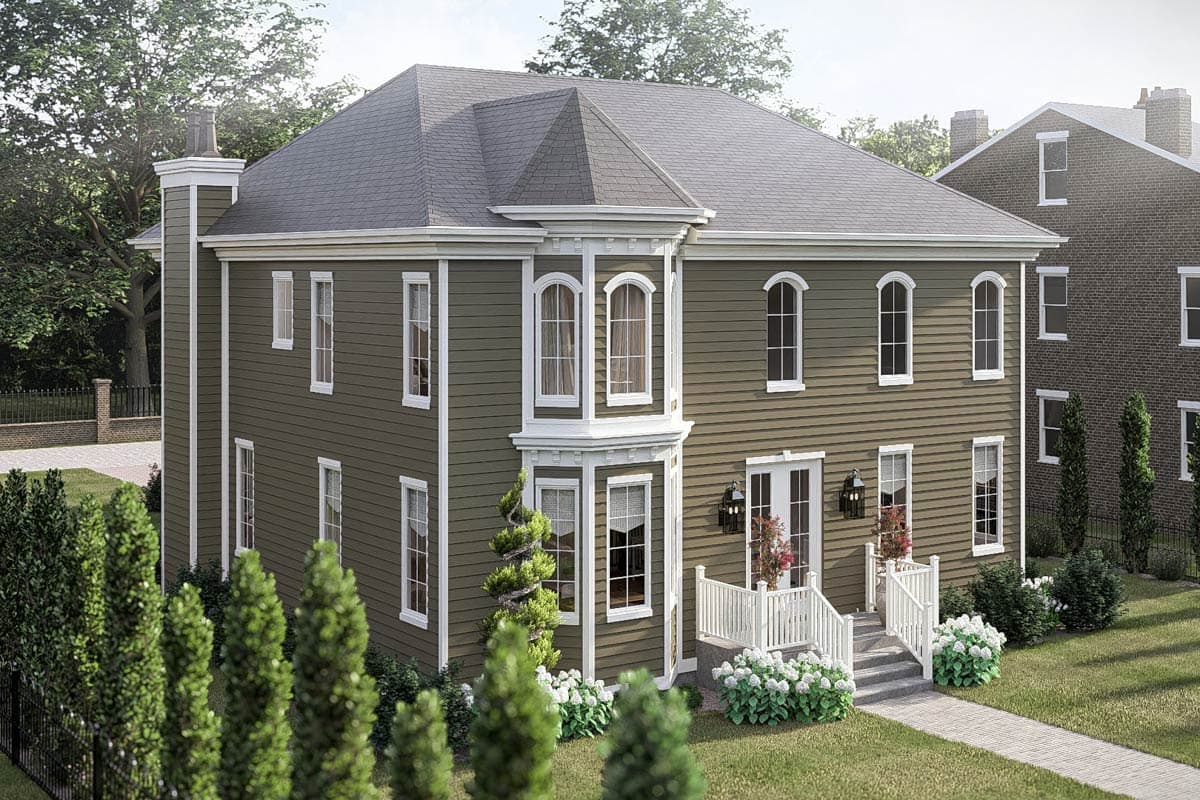

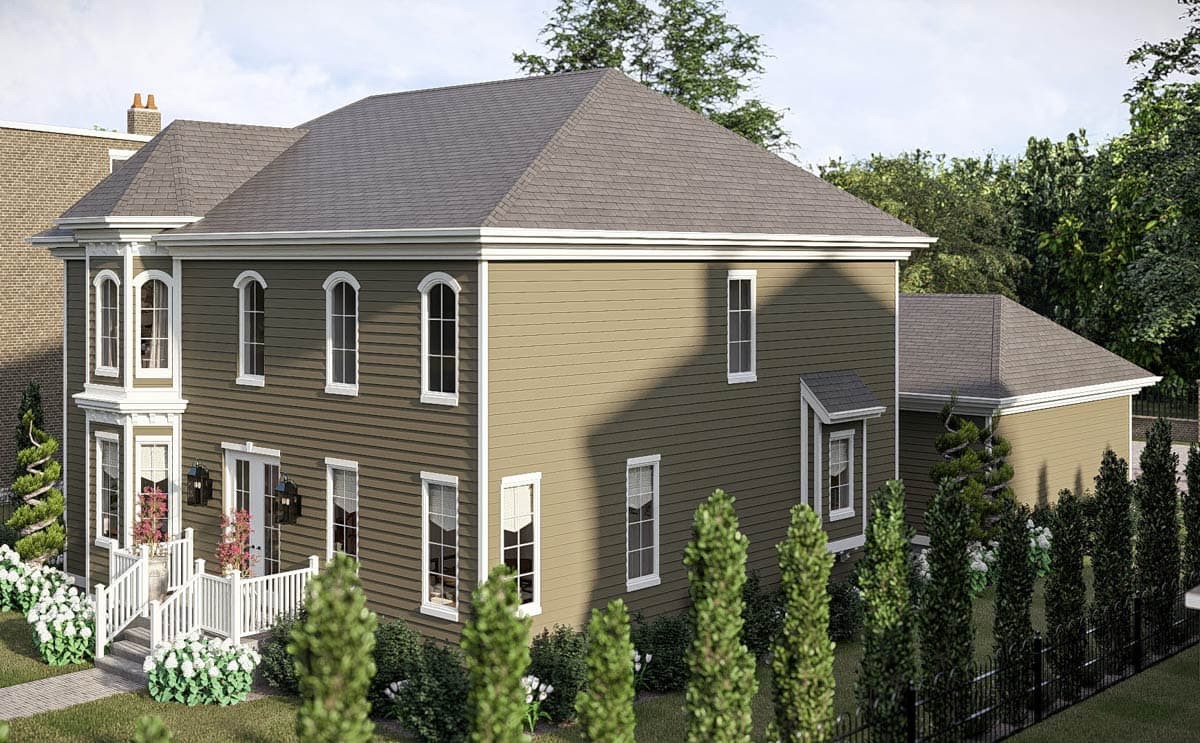

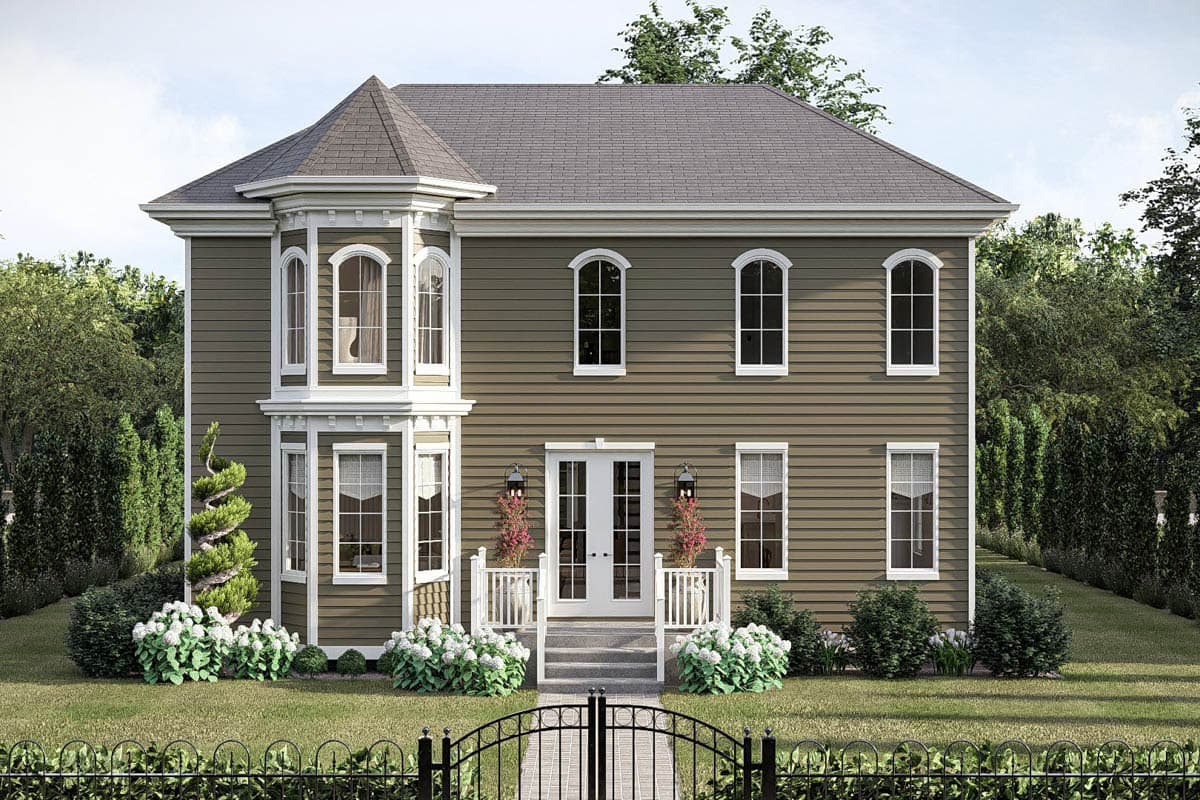

Traditional Victorian House Plan with 4 Bedrooms and Detached Garage

Heated S.F.
2,494
Beds
4
Baths
3.5
Stories
2
Cars
2
Tour

Floor Plan

Plan 623643DJ

Main Level
Main Level

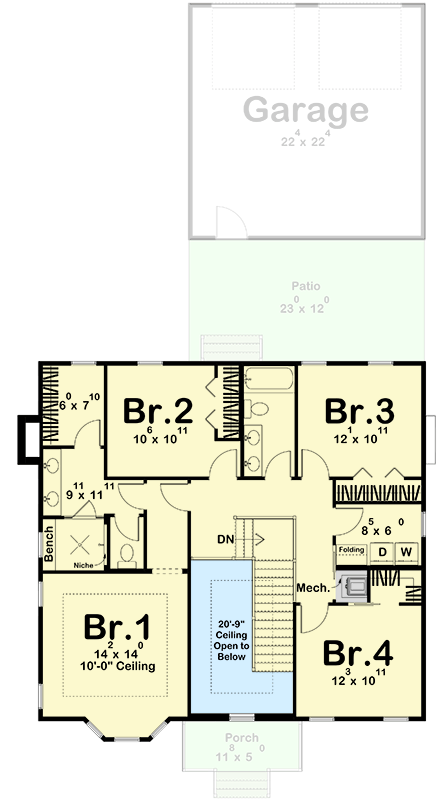

Floor Plan 2
Finished Lower Level Layout Option (+$ Paid Option)
Finished Lower Level Layout Option (+$ Paid Option)
Main Level - Slab/Crawl Option
Main Level - Slab/Crawl Option

Plan 623643DJ

M-F 9am-5pm EST |

1-203-761-8500

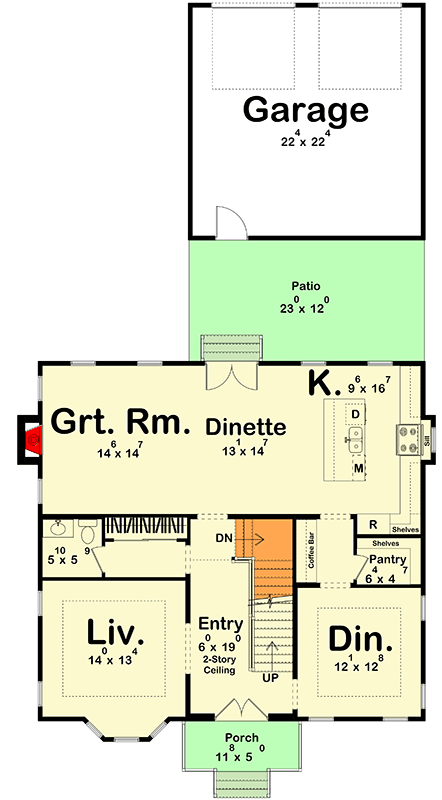

Main Level

Plan 623643DJ: Traditional Victorian House Plan with 4 Bedrooms and Detached Garage - Floor Plan - Main Level - Traditional, Victorian

Plan 623643DJ: Traditional Victorian House Plan with 4 Bedrooms and Detached Garage - Floor Plan - - Traditional, Victorian

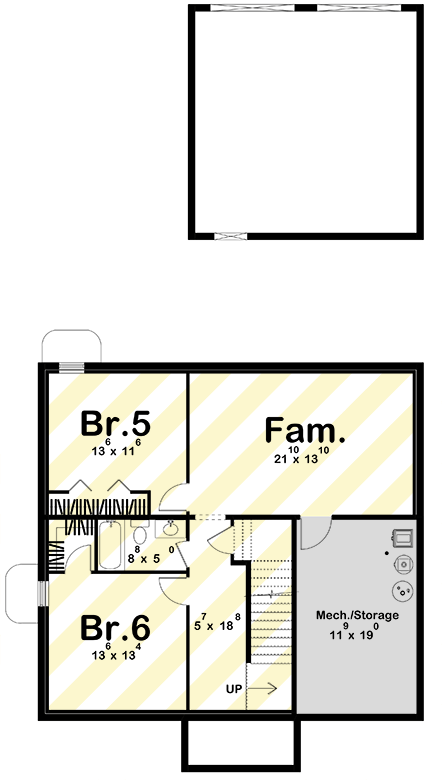

Finished Lower Level Layout Option (+$ Paid Option)

Plan 623643DJ: Traditional Victorian House Plan with 4 Bedrooms and Detached Garage - Floor Plan - Finished Lower Level Layout Option (+$ Paid Option) - Traditional, Victorian

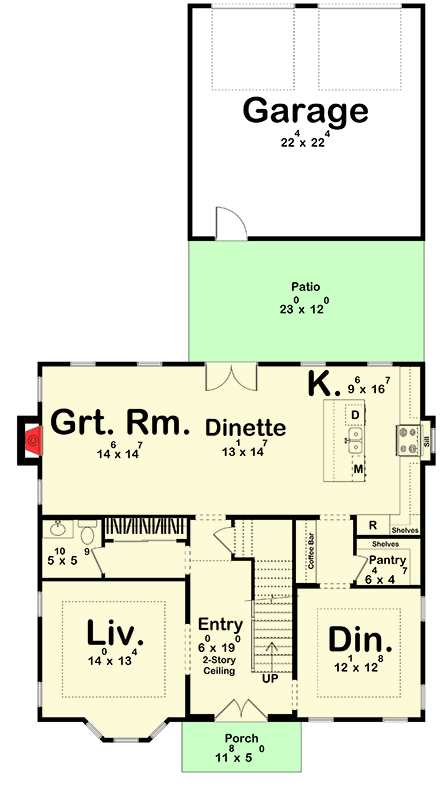

Main Level - Slab/Crawl Option

Plan 623643DJ: Traditional Victorian House Plan with 4 Bedrooms and Detached Garage - Floor Plan - Main Level - Slab/Crawl Option - Traditional, Victorian

Plan Details

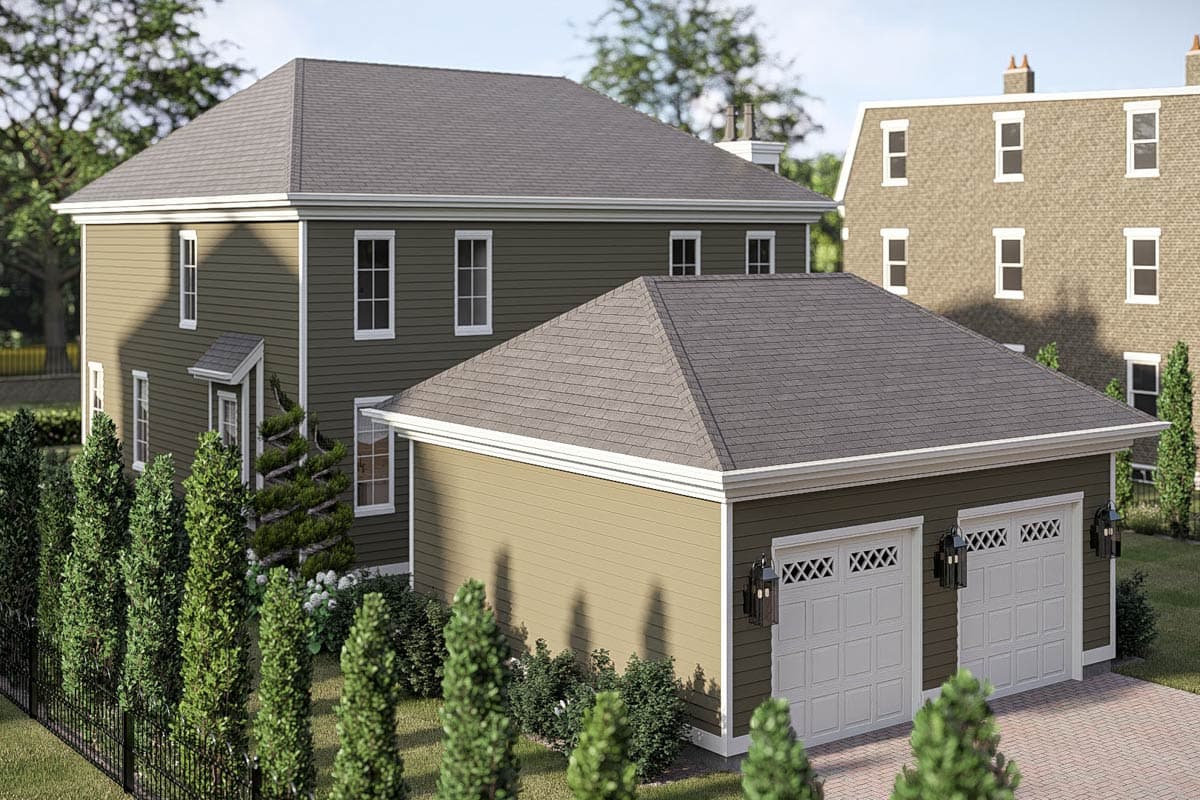

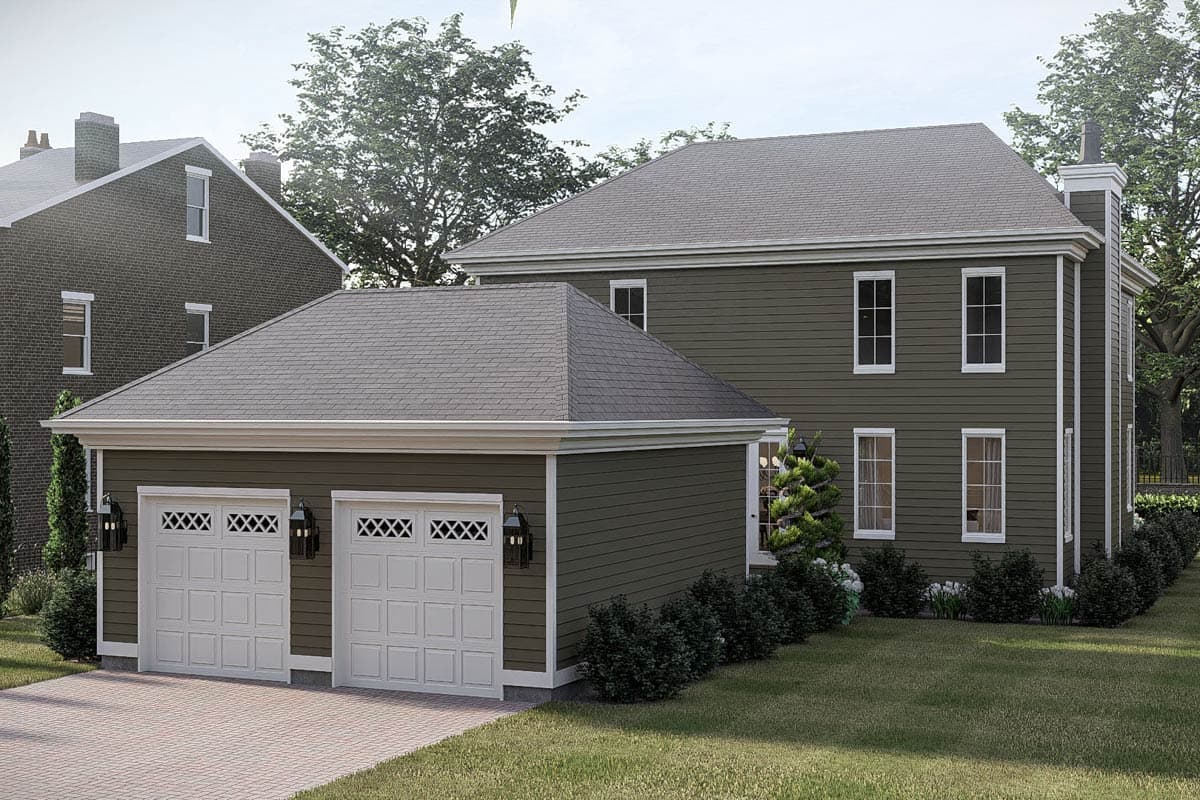

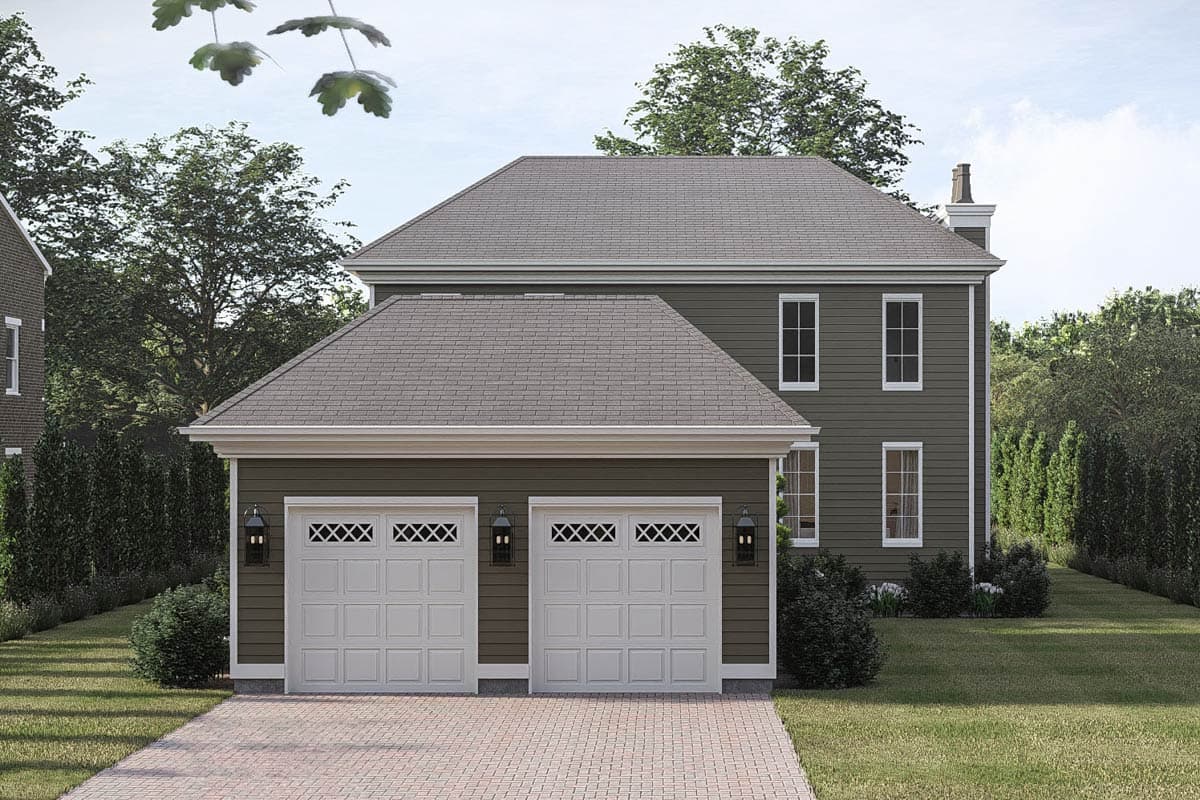

  • This 2,494 sq ft Traditional Victorian House Plan features 4 bedrooms, 3 full baths, 1 half bath, and a detached 529 sq ft 2-car garage with rear entry.
  • Upon entering, discover a layout that includes a dedicated formal dining room, perfect for hosting elegant dinners and special occasions.
  • With 9-foot ceilings on both the first and second floors, the main living areas offer a grand and airy atmosphere throughout the home.
  • The private primary suite is situated upstairs for seclusion, positioned thoughtfully near the clustered secondary bedrooms and a convenient upstairs laundry.
  • An optional 938 sq ft lower level provides significant potential for future customization, ideal for a recreation room, home gym, or additional living areas.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,494 sq. ft.

1st Floor

1,345 sq. ft.

2nd Floor

1,149 sq. ft.

Optional Lower Level

938 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 8"

Depth

75' 0"

Max Ridge Height

29' 3"

Garage

Type

Detached

Area

529 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Traditional

Victorian

Special Features

Bedrooms - Clustered

Formal Dining

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry
