Transitional 2-Story Home Plan with Flex Space and Protected Veranda
Heated S.F.
3,474
Beds
5
Baths
4.5
Stories
2
Cars
2-3
What's Included
Plan Details
  • Deep overhanging eaves extend from the low-pitched roof above this Transitional 2-Story home plan that delivers a smart layout with a flex space and owner's suite on the main level.
  • Exposed beams in the great room add visual interest overhead and a large glass door retracts to encourage outdoor living on the protected veranda.
  • A T-shaped island in the kitchen offers a spot for casual dining and easy access to the 3-car garage makes unloading groceries a breeze.
  • Large windows in the owner's suite allow you to follow circadian rhythms, and the spa-like ensuite connect to a walk-in closet.
  • A bonus room (included in the square footage) and three bedroom suites are located upstairs; two of the bedrooms share a Jack-and-Jill bathroom.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet

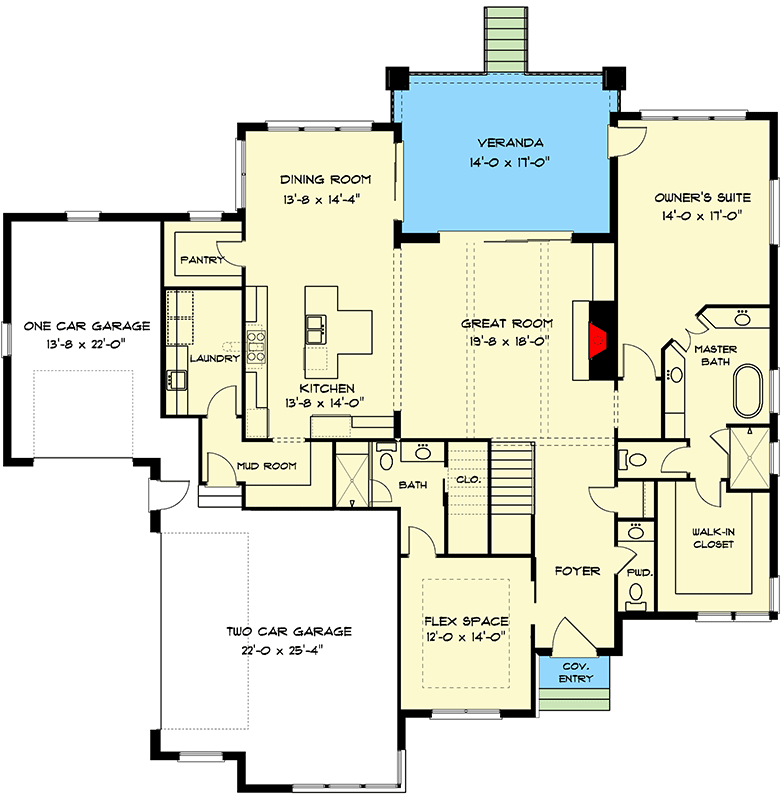

  • First Floor Plan

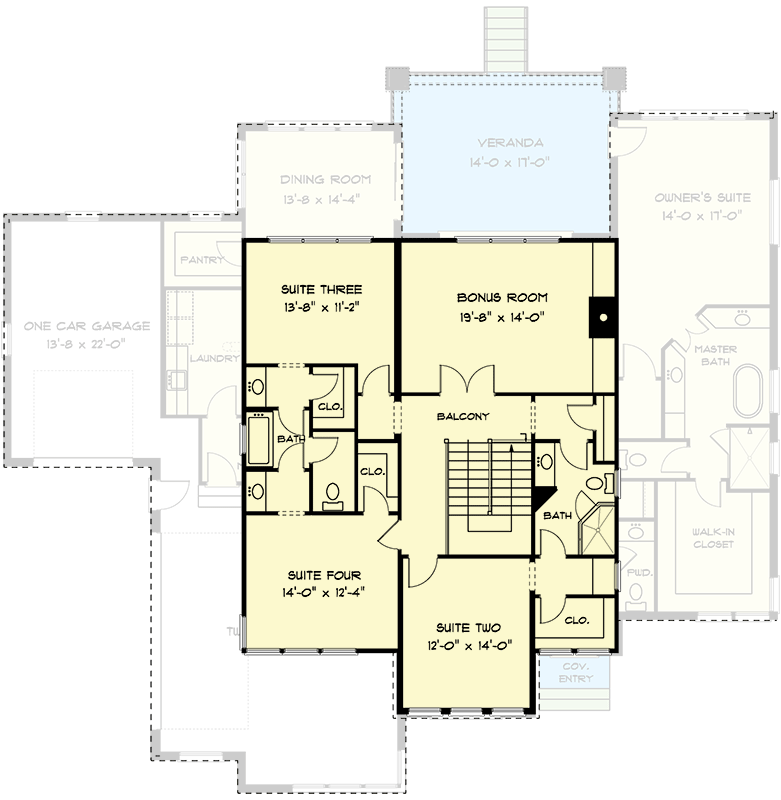

  • Second Floor Plan (if applicable)
  • Roof Framing Plan

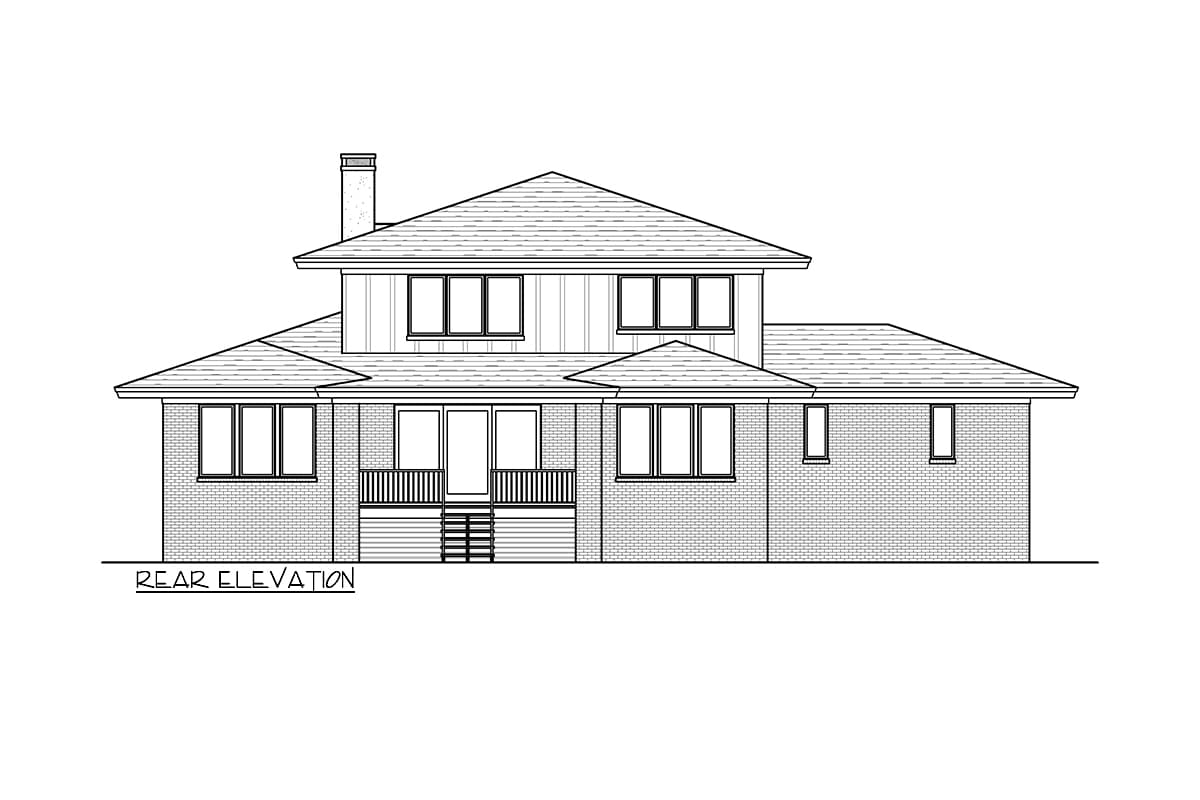

  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
