Transitional 2-Story House Plan with Private Apartment Above Garage

Plan 93175EL

  • 4,308

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

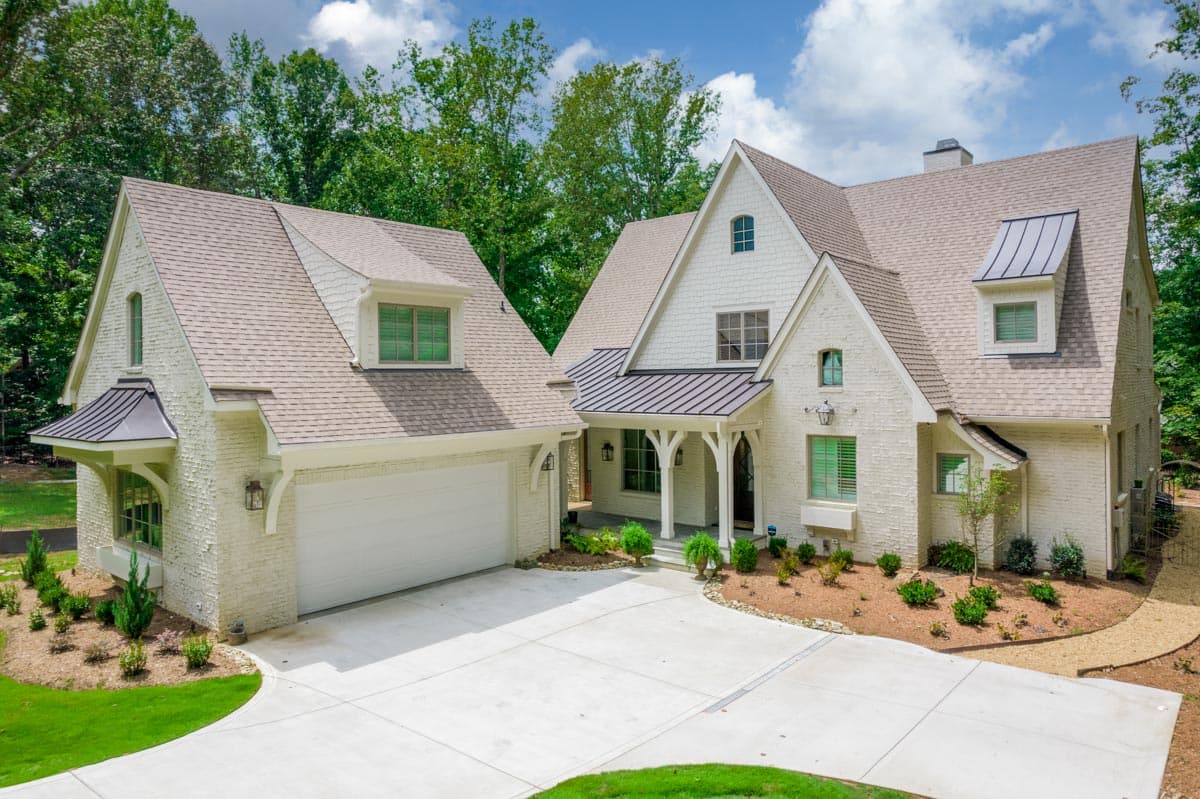

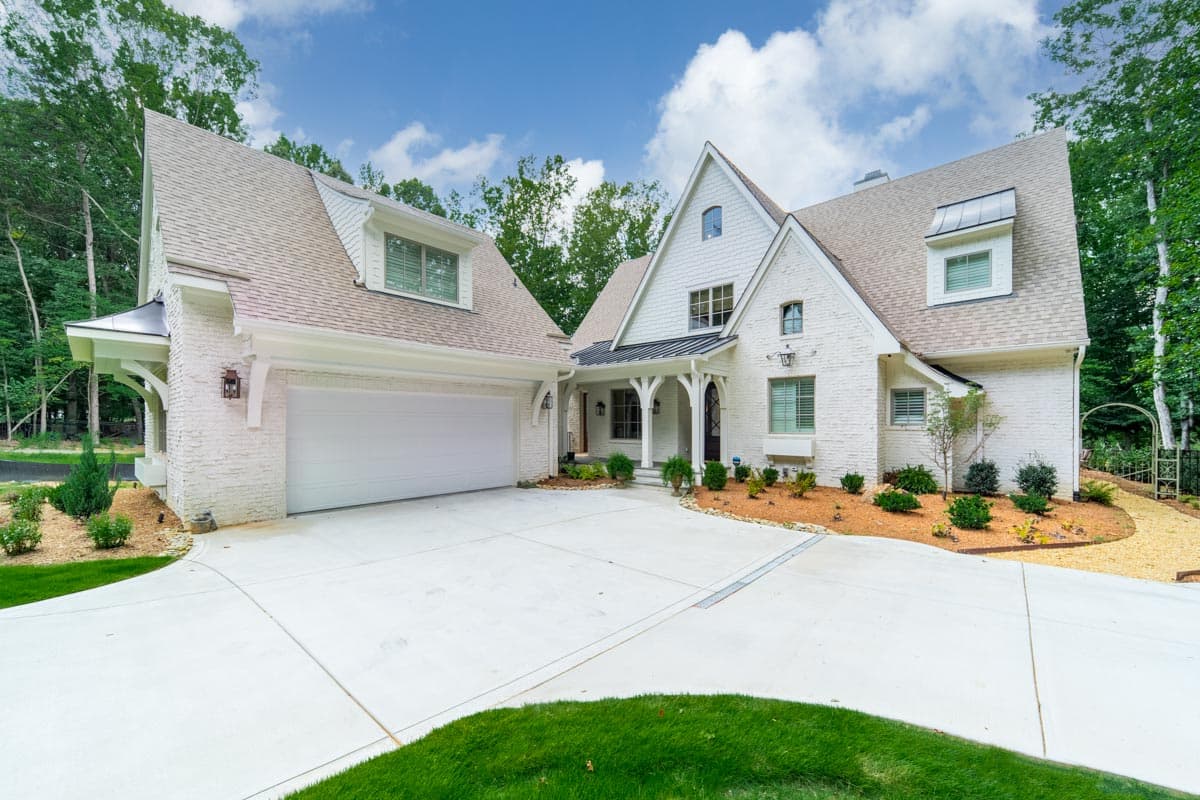

  • This 2-story Transitional house plan gives you 4,308 square feet of heated living space plus 446 square feet of bonus encompassing a private apartment above the garage.

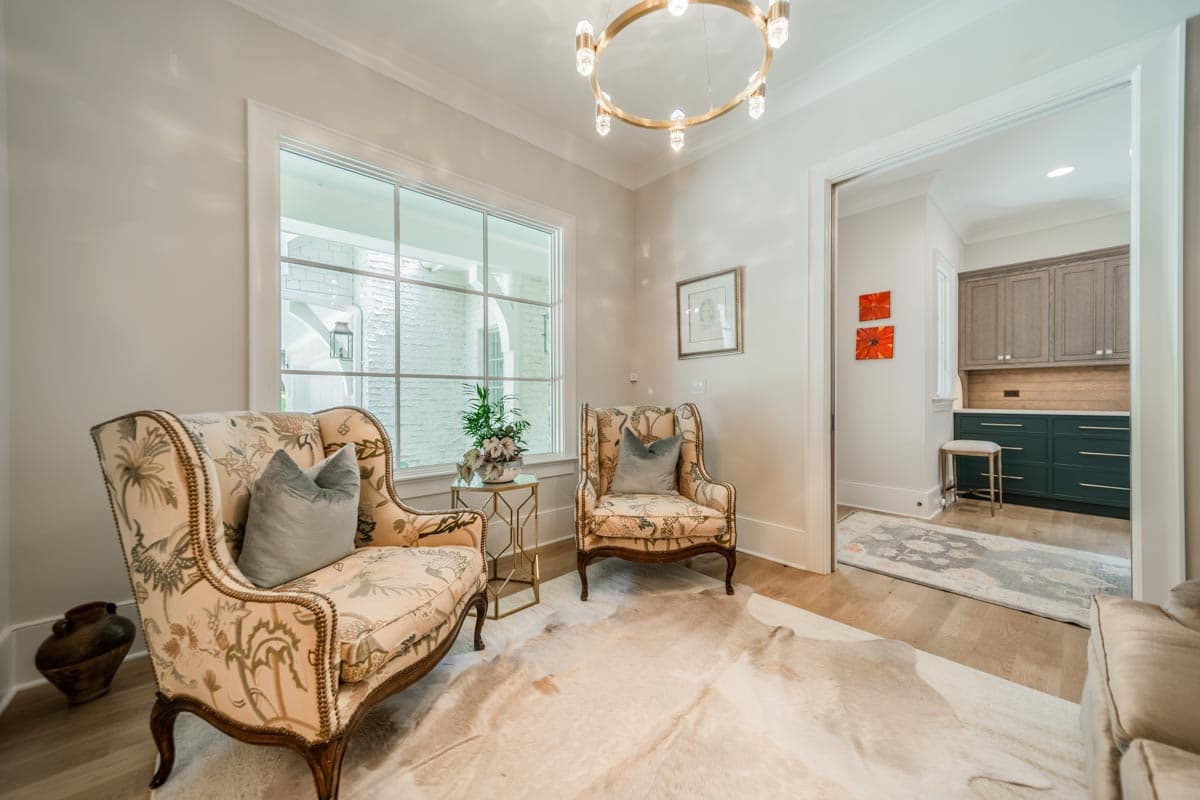

  • The front porch ties the house and the garage together and gives you access to the home on either side of the library with pocket doors on the non-foyer side.

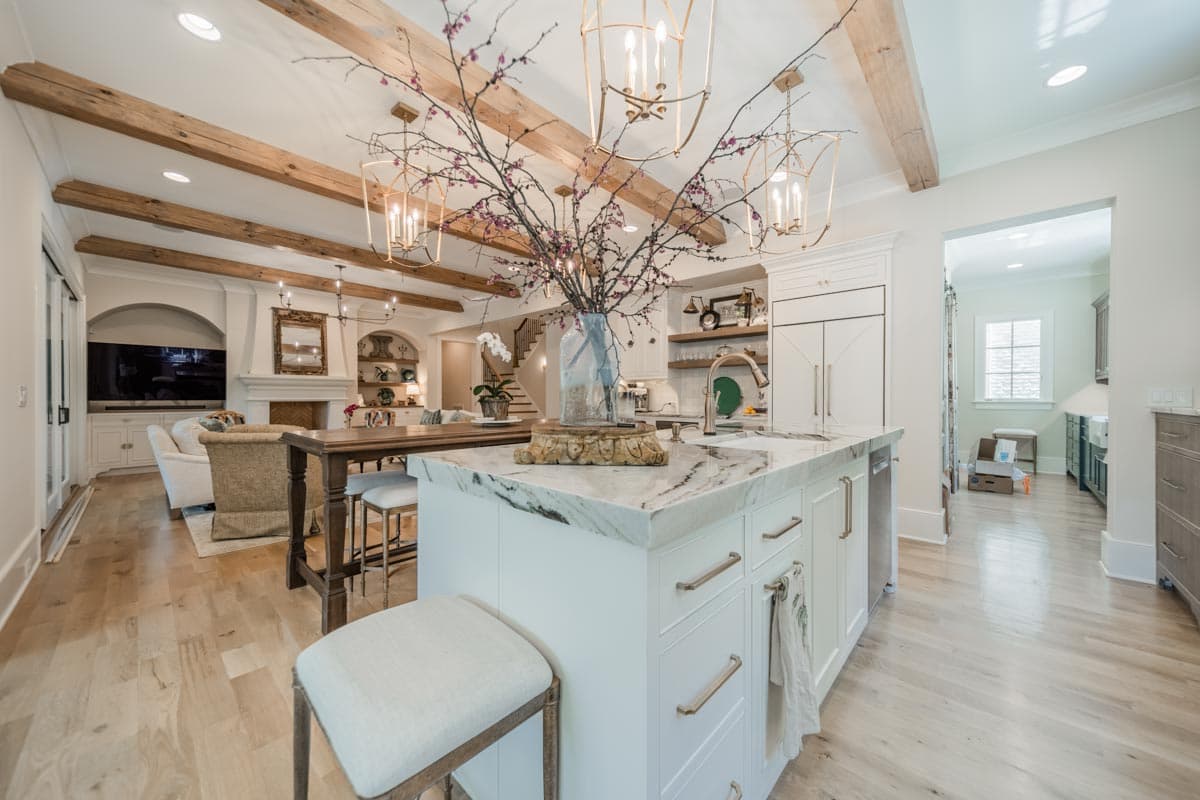

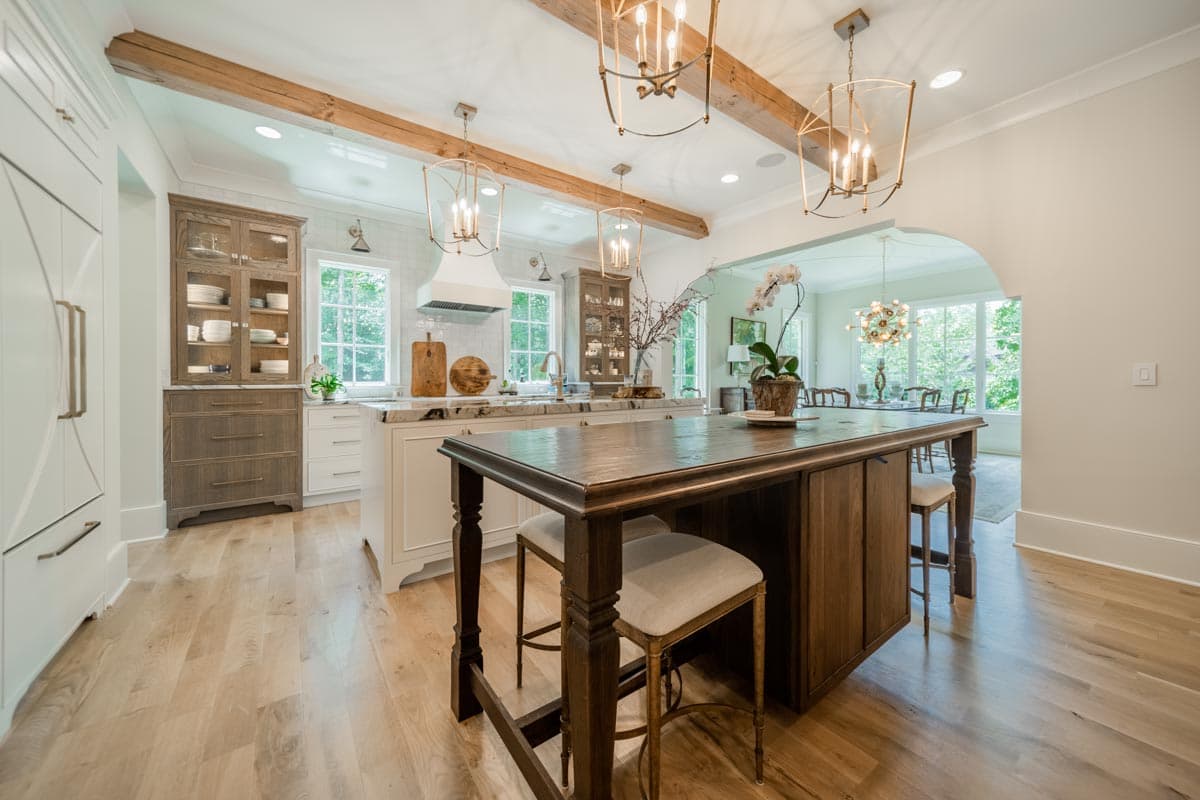

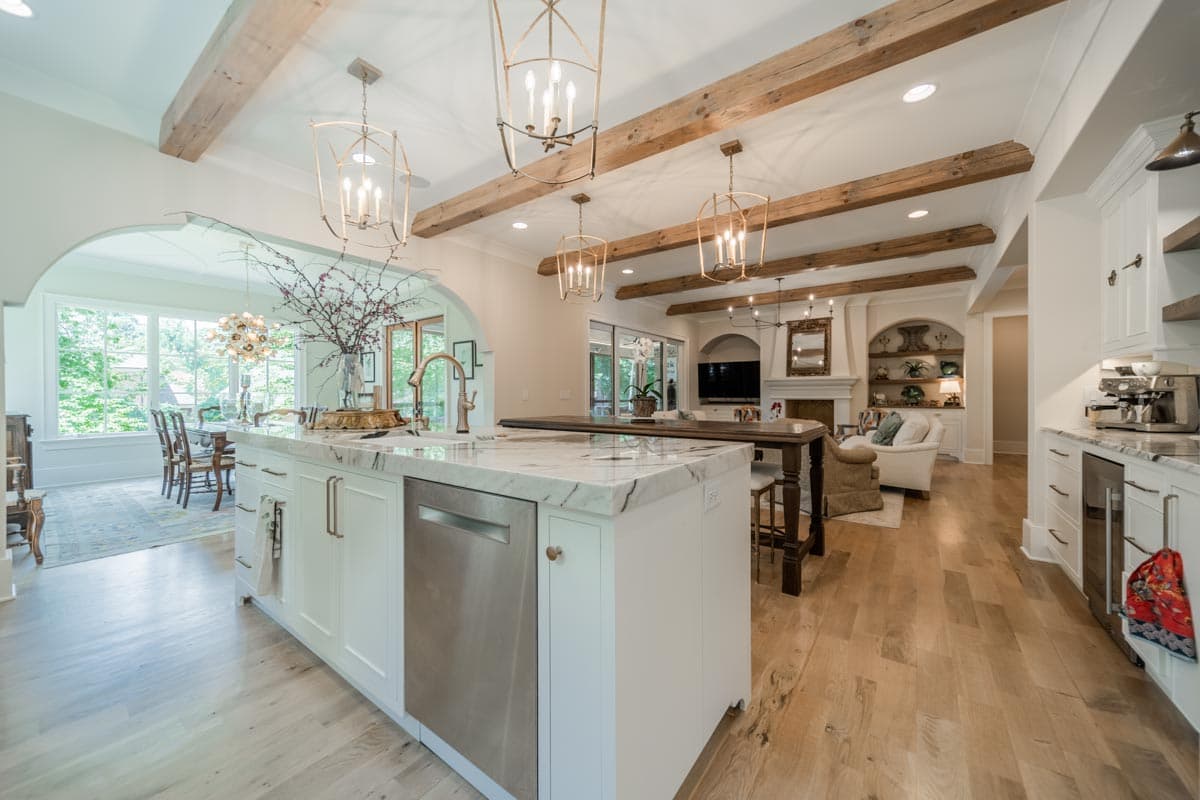

  • Two islands in the kitchen give you great work space plus casual seating. The kitchen is open to the great room with fireplace and the dining room and has access to the scullery with prep sink that gives you even more storage and work space.

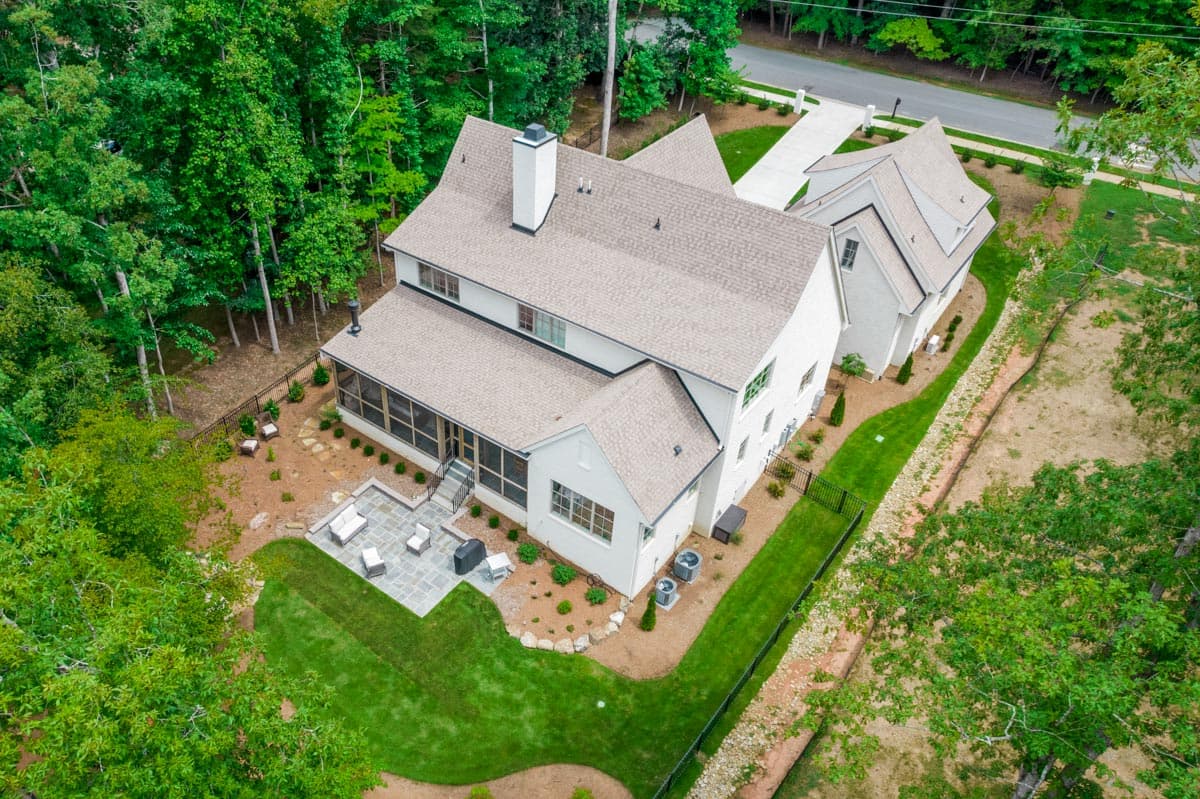

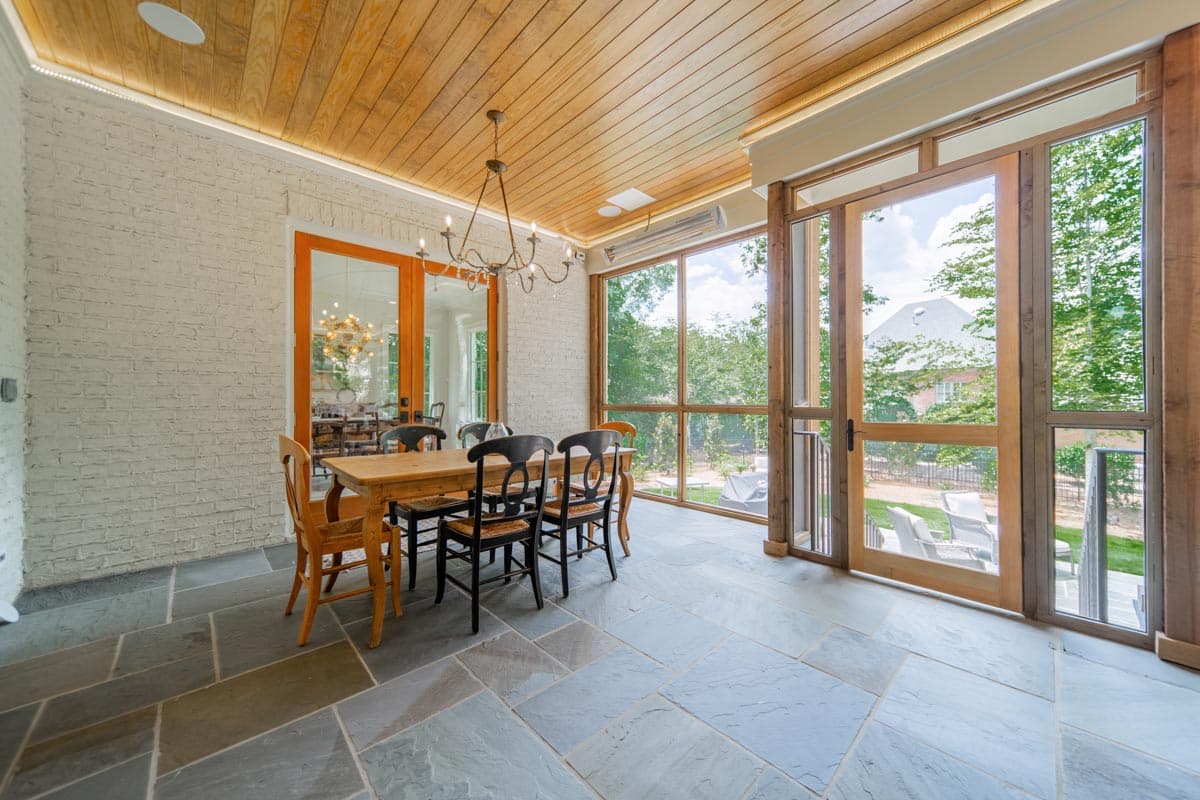

  • Entertain out back on the screened porch with fireplace accessible from both the great room and the dining room.
  • The master suite is conveniently located on the main floor while Beds 2 and 3 are upstairs. A rec room and loft complete the upstairs.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

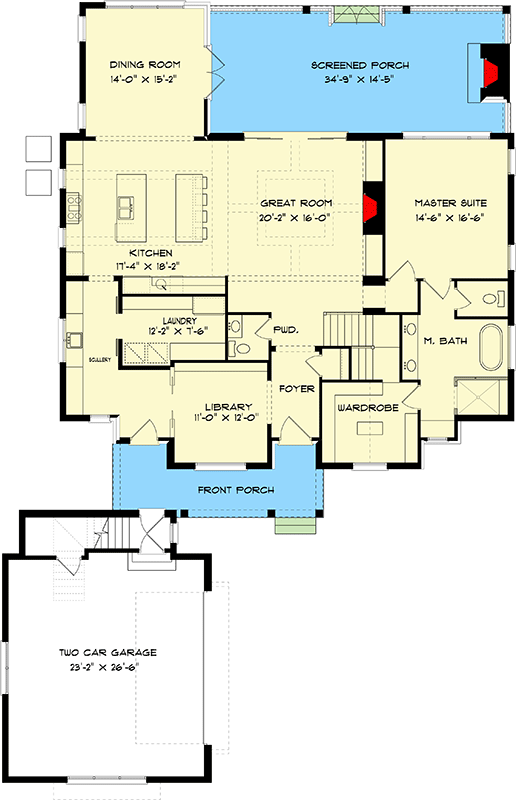

Transitional 2-Story House Plan with Private Apartment Above Garage - 93175EL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

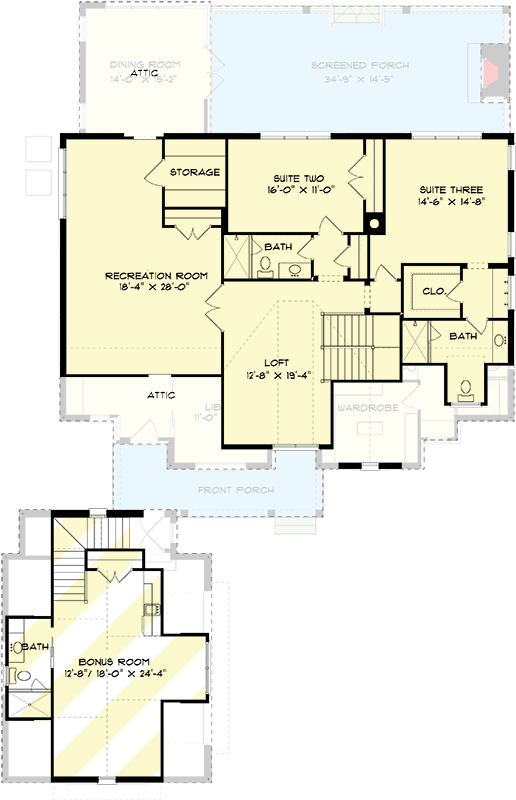

Transitional 2-Story House Plan with Private Apartment Above Garage - 93175EL floor plan - 2nd Floor

Transitional 2-Story House Plan with Private Apartment Above Garage

  • 4,308

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,308 sq. ft.
  • 1st Floor: 2,263 sq. ft.
  • 2nd Floor: 1,599 sq. ft.

Dimensions

  • Width: 53' 5"
  • Depth: 92' 6"
  • Max ridge height: 31' 8"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 771 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
