Plan 330013WLE

Transitional 3-Bed House Plan with Home Office and Pass-Thru Bar

Heated S.F.
2,320
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 330013WLE

Main Level
Main Level

Plan 330013WLE

M-F 9am-5pm EST |

1-203-761-8500

Main Level

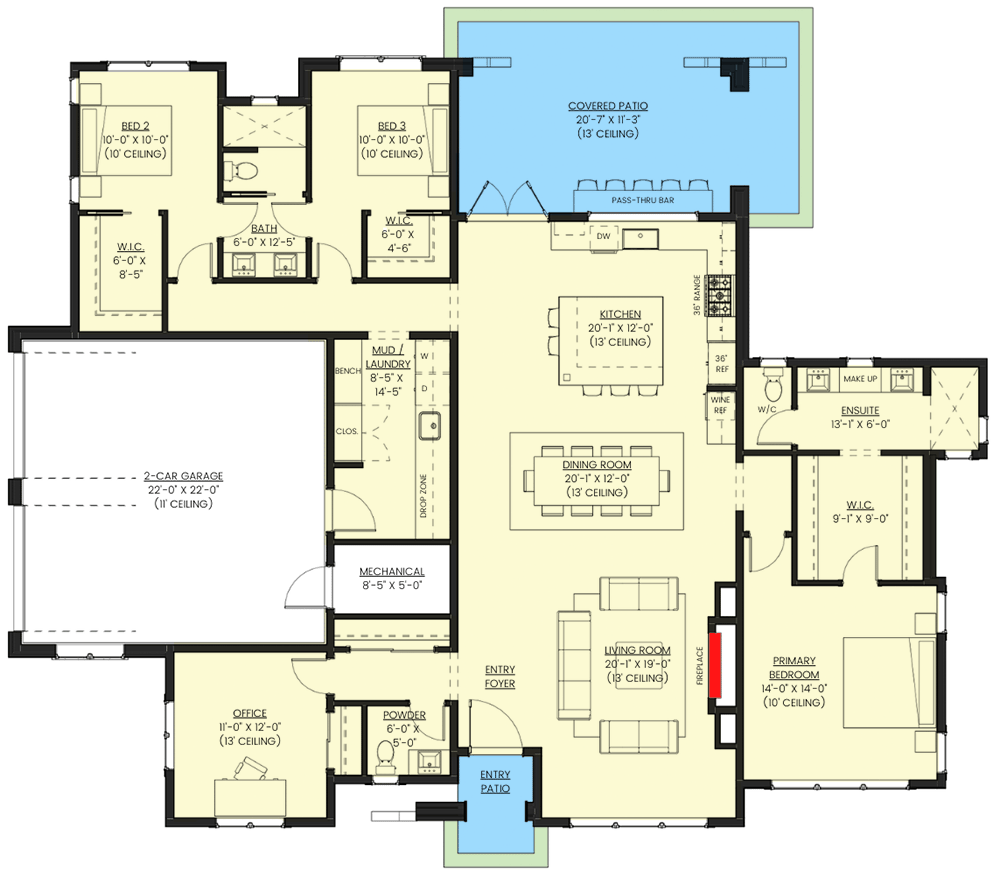

Plan 330013WLE: Transitional 3-Bed House Plan with Home Office and Pass-Thru Bar - Floor Plan - Main Level - Cottage, Country, European, Transitional

Plan Details

  • This one-story Transitional-style house plan gives you 2,320 square feet of heated living with 3 beds in a split layout and 2.5 baths. A 2 car 518 square foot garage has a mechanical closet in back and accesses the home through a large mudroom with a drop zone.
  • The foyer places you in the living room with fireplace and has views that extend all the way through to the back of the home. On your left, a home office gives you a great work from home space.
  • A large island in the kitchen has seating on two sides. The sink is set beneath a window on the back wall where five seats in the covered patio have pass through access.
  • Beds 2 and 3 share a Jack and Jill bath with two vanities and each bedroom has a walk-in closet. Across the home, the master suite occupies the entire right side of the home.

What's Included

  • Foundation Plan - Foundation wall and footing locations
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of the home. Plus material and color legends that align with the renderings.
  • Sections - Full building cross sections.
  • Details - Typical details for foundation, floor framing, roof and any necessary details for specific Architectural elements.
  • Electrical Plans - Basic locations of lights, outlets, switches, panels and switching diagrams.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  • Plumbing Drawings
  • Framing and roof framing layouts with beam sizes and locations
  • Footing sizing, depths and rebar calculations
  • Material lists
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown
