Plan 93176EL Transitional Acadian House Plan with First-floor Office and Owner's Suite

3,547 5 5.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Transitional Acadian House Plan with First-floor Office and Owner's Suite

Plan 93176EL

  • 3,547

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Steeply-pitched gables with clipped fronts pair with brick and natural wood elements to form this stunning Transitional Acadian house plan; a floor plan that is exclusive to Architectural Designs.
  • The central family room freely flows into the kitchen and covered porch through oversized glass doors. The open-concept allows the fireplace to be enjoyed from the family room, as well as the adjoining kitchen.
  • The owner's suite privately occupies the right side of the main level and is accompanied by a 5-fixture bathroom and walk-in closet.
  • A mudroom, laundry room, and working pantry provide plenty of storage space, and a guest suite near the 2-car garage can double as a home office.
  • Discover three bedroom suites upstairs, along with a built-in bar in the media room and the option to finish the storage space above the garage.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

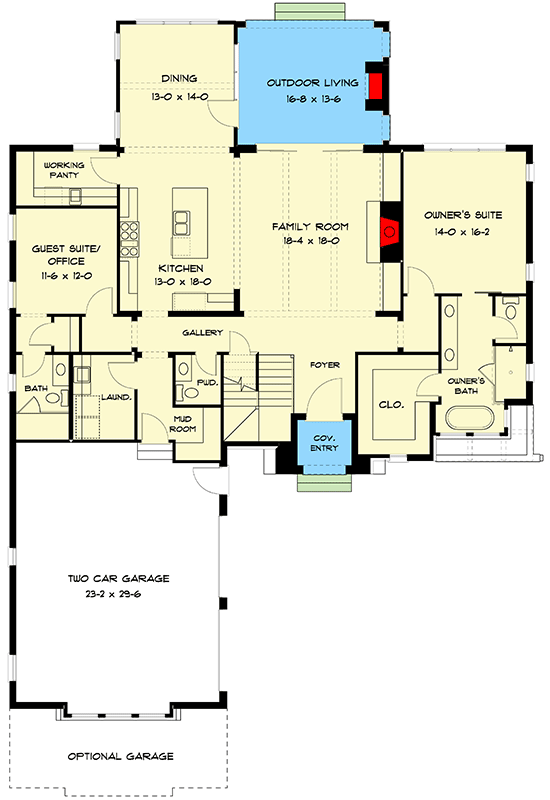

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional Acadian House Plan with First-floor Office and Owner's Suite - 93176EL floor plan - Main Level

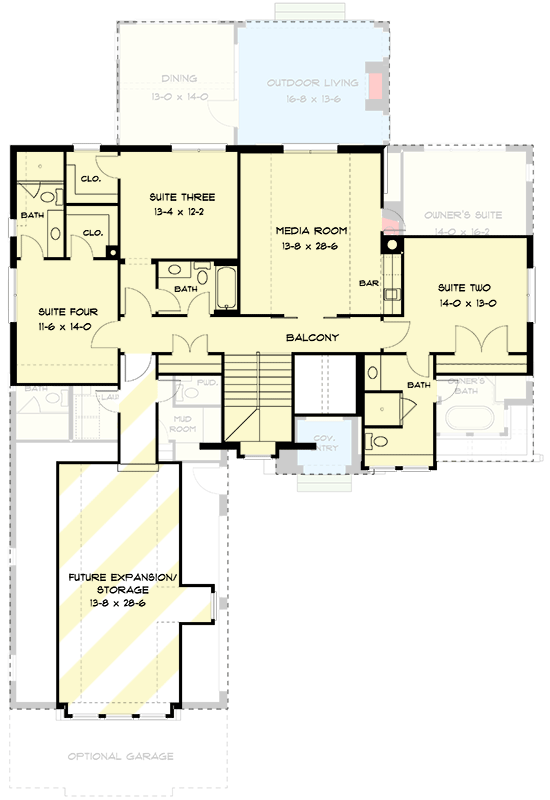

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional Acadian House Plan with First-floor Office and Owner's Suite - 93176EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,547 sq. ft.
  • 1st Floor: 2,152 sq. ft.
  • 2nd Floor: 1,395 sq. ft.
  • Porch, Rear: 244 sq. ft.
  • Porch, Front: 44 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 59' 8"
  • Depth: 81' 5"
  • Max ridge height: 31' 4"

Garage

  • Type: Attached
  • Area: 730 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Architectural Style

Special features

Plan Collections

Transitional Acadian House Plan with First-floor Office and Owner's Suite

  • 3,547

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,600
  • CAD+PDF - Single-Build $1,900
  • PDF - Unlimited Build $2,450
  • CAD - Unlimited Build $2,750
  • View all purchase option online

About This Plan

  • Steeply-pitched gables with clipped fronts pair with brick and natural wood elements to form this stunning Transitional Acadian house plan; a floor plan that is exclusive to Architectural Designs.
  • The central family room freely flows into the kitchen and covered porch through oversized glass doors. The open-concept allows the fireplace to be enjoyed from the family room, as well as the adjoining kitchen.
  • The owner's suite privately occupies the right side of the main level and is accompanied by a 5-fixture bathroom and walk-in closet.
  • A mudroom, laundry room, and working pantry provide plenty of storage space, and a guest suite near the 2-car garage can double as a home office.
  • Discover three bedroom suites upstairs, along with a built-in bar in the media room and the option to finish the storage space above the garage.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,547 sq. ft.
  • 1st Floor: 2,152 sq. ft.
  • 2nd Floor: 1,395 sq. ft.
  • Porch, Rear: 244 sq. ft.
  • Porch, Front: 44 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 59' 8"
  • Depth: 81' 5"
  • Max ridge height: 31' 4"

Garage

  • Type: Attached
  • Area: 730 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Plan 93176EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/93176EL
|
Need Help? 800-854-7852
|
Plan 93176EL
