Plan 849002PGE Transitional Craftsman Home Plan with Optional Lower Level

6,134 5-7 3.5 - 5.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Transitional Craftsman Home Plan with Optional Lower Level

Plan 849002PGE

  • 6,134

    Heated s.f.

  • 5-7

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Shakes and stone team up with board and batten to complete the exquisite exterior of this Transitional Craftsman home plan.

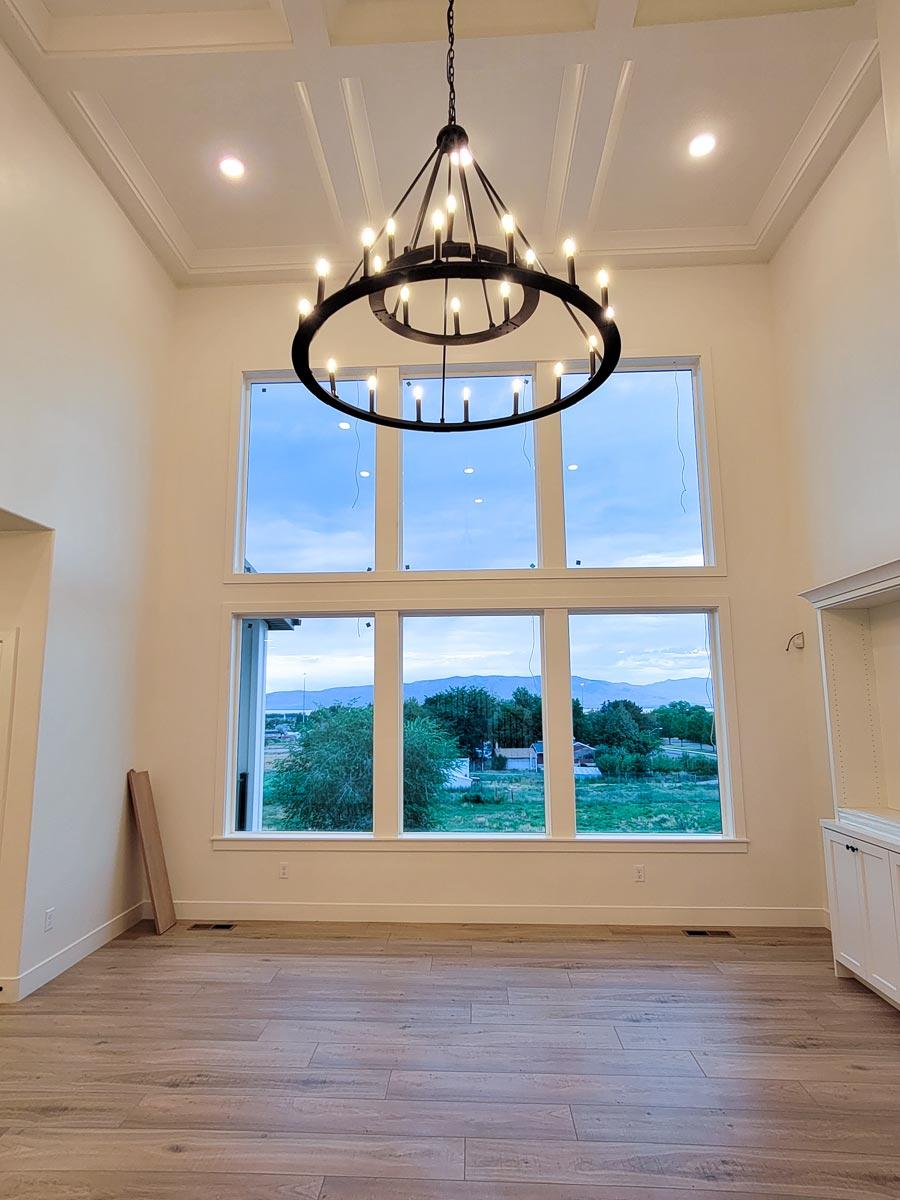

  • An 8'-deep front porch invites you inside, where a home office and den frame the entryway. A few steps further, tall ceilings offer a dramatic touch to the great room, anchored by a fireplace on the right wall.
  • The kitchen opens to the breakfast nook and great room, and hosts a large prep island and 6-burner range. The adjacent covered deck provides the perfect space for a grill and outdoor entertaining area.
  • The master suite is conveniently located on the main level, while the remaining four bedrooms can be found upstairs surrounding a central loft.
  • Gain over 2,600 square feet of living space when you finish the walk-out basement, and enjoy a family room, two additional bedrooms, and a home gym. An exterior staircase allows you to convert a portion of the basement into a 1-bedroom apartment, if preferred.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

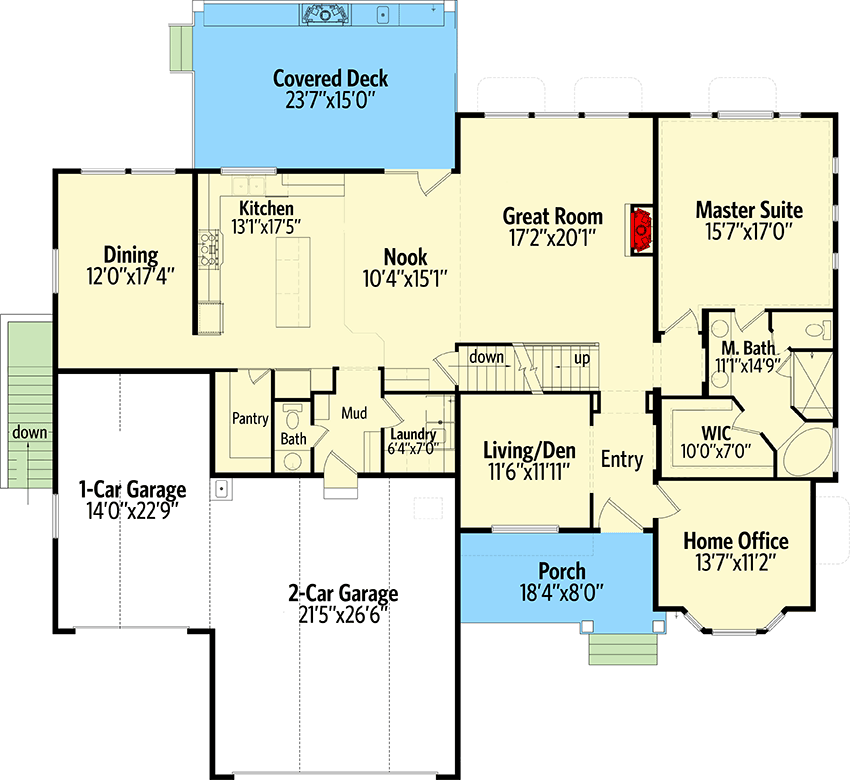

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional Craftsman Home Plan with Optional Lower Level - 849002PGE floor plan - Main Level

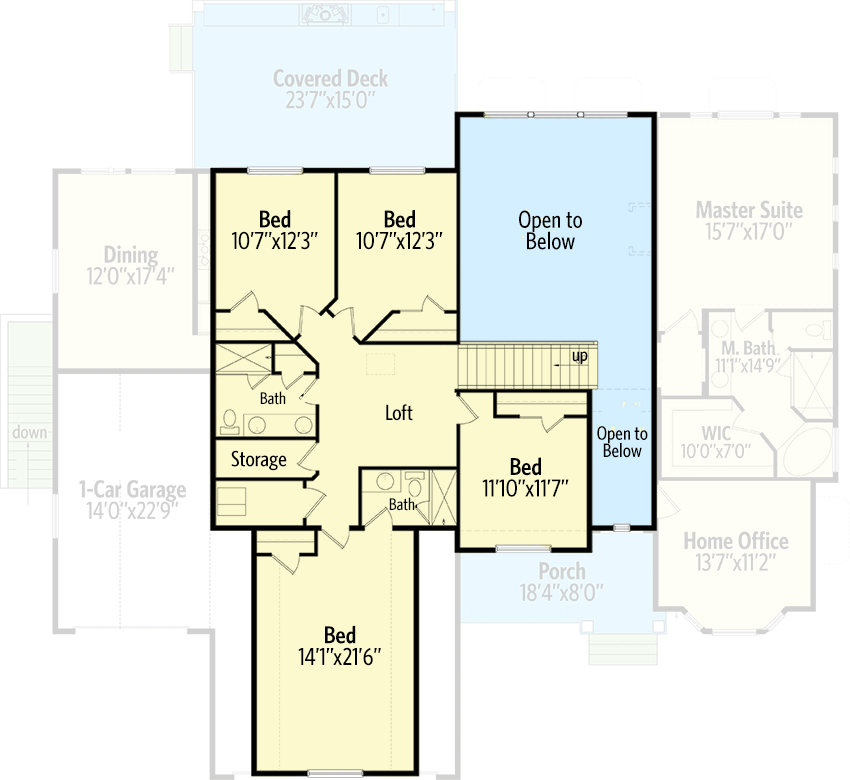

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional Craftsman Home Plan with Optional Lower Level - 849002PGE floor plan - Second Level

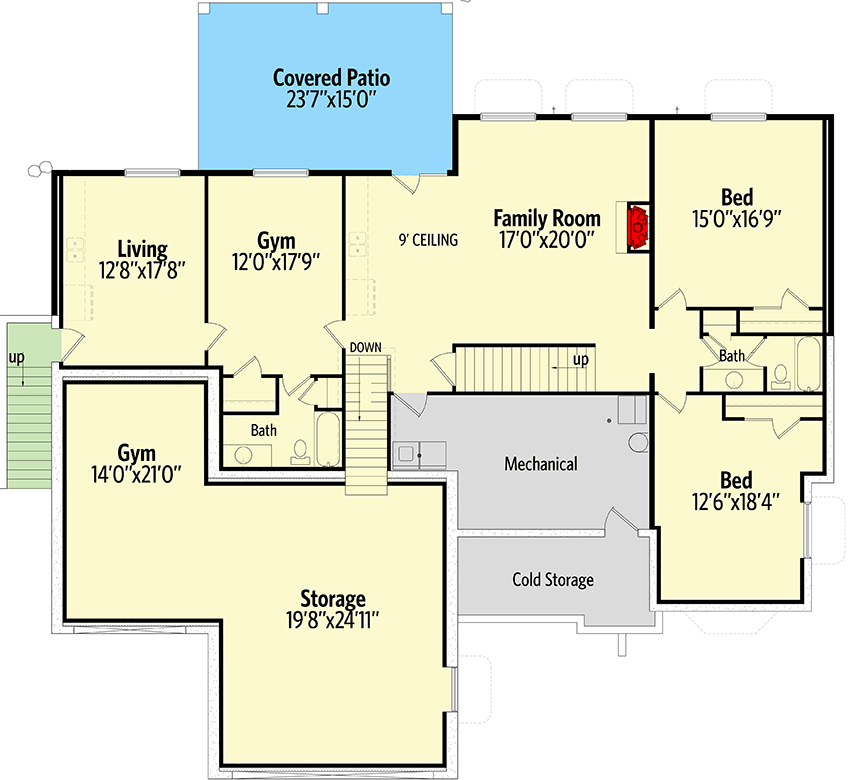

Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional Craftsman Home Plan with Optional Lower Level - 849002PGE floor plan - Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,134 sq. ft.
  • Lower Level: 2,657 sq. ft.
  • 1st Floor: 2,247 sq. ft.
  • 2nd Floor: 1,230 sq. ft.

Beds/Baths

  • Bedrooms: 5, 6, or 7
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 69' 6"
  • Max ridge height: 30' 8"

Garage

  • Type: Attached
  • Area: 950 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Transitional Craftsman Home Plan with Optional Lower Level

  • 6,134

    Heated s.f.

  • 5-7

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,900
  • CAD - Single-Build $3,600
  • View all purchase option online

About This Plan

  • Shakes and stone team up with board and batten to complete the exquisite exterior of this Transitional Craftsman home plan.
  • An 8'-deep front porch invites you inside, where a home office and den frame the entryway. A few steps further, tall ceilings offer a dramatic touch to the great room, anchored by a fireplace on the right wall.
  • The kitchen opens to the breakfast nook and great room, and hosts a large prep island and 6-burner range. The adjacent covered deck provides the perfect space for a grill and outdoor entertaining area.
  • The master suite is conveniently located on the main level, while the remaining four bedrooms can be found upstairs surrounding a central loft.
  • Gain over 2,600 square feet of living space when you finish the walk-out basement, and enjoy a family room, two additional bedrooms, and a home gym. An exterior staircase allows you to convert a portion of the basement into a 1-bedroom apartment, if preferred.

Floor Plans

  • Main Level

  • Second Level

  • Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,134 sq. ft.
  • Lower Level: 2,657 sq. ft.
  • 1st Floor: 2,247 sq. ft.
  • 2nd Floor: 1,230 sq. ft.

Beds/Baths

  • Bedrooms: 5, 6, or 7
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 69' 6"
  • Max ridge height: 30' 8"

Garage

  • Type: Attached
  • Area: 950 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
