Plan 100307GHR

Exclusive

Transitional Duplex House Plan with 1329 Square Foot 3 Bed Units

Heated S.F.
2,658
Units
2
Width
Depth

Floor Plan

Plan 100307GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100307GHR

M-F 9am-5pm EST |

1-203-761-8500

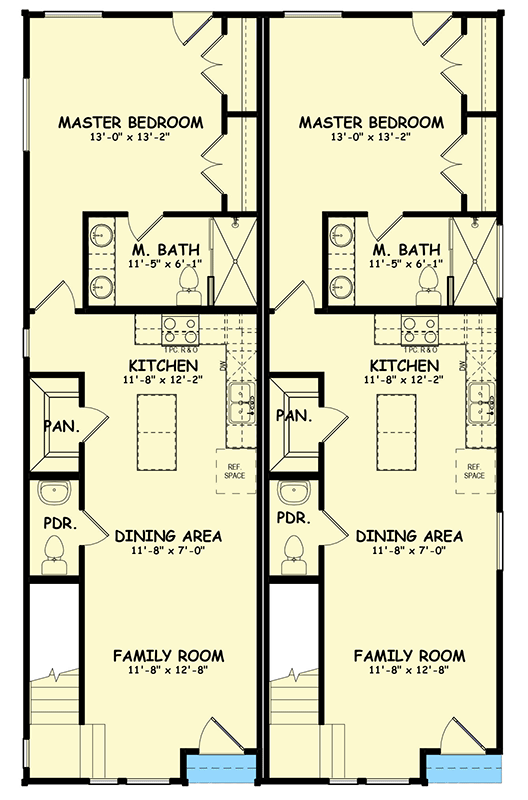

Main Level

Plan 100307GHR: Transitional Duplex House Plan with 1329 Square Foot 3 Bed Units - Floor Plan - Main Level - Contemporary, Modern, Northwest, Transitional

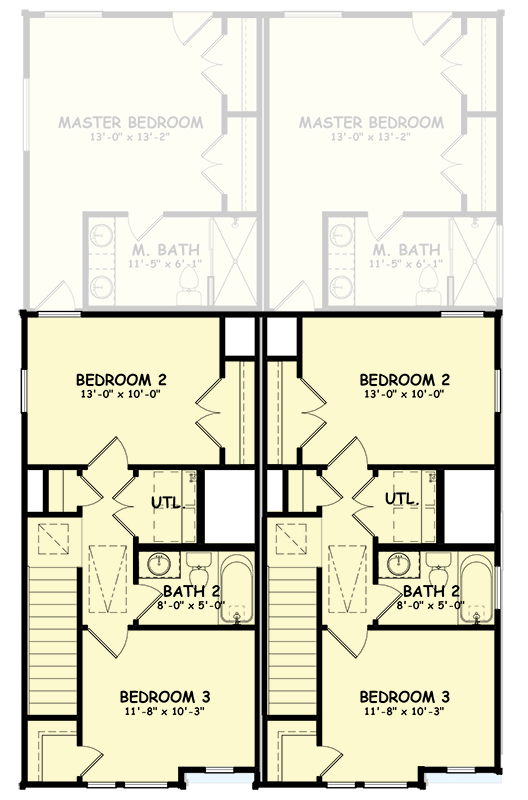

2nd Floor

Plan 100307GHR: Transitional Duplex House Plan with 1329 Square Foot 3 Bed Units - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest, Transitional

Plan Details

  • This Transitional two-family house plan gives you matching 3 bed units with 1,329 square feet of heated living each (822 sq. ft. on the main floor, 507 sq. ft. on the second floor).
  • Upon entering the home, you are greeted by an open floor plan that flows from the family room to the dining area to the kitchen.
  • A private master suite with two closets and a four fixture bath is the only bedroom on the main floor. Upstairs, two bedrooms share a bath and laundry is conveniently located between them.
Unit A
Heated Area
1,329Sq. Ft.
822 Sq. Ft. 1st
507 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
16' 1"width
50'depth
27'height
Unit B
Heated Area
1,329Sq. Ft.
822 Sq. Ft. 1st
1014 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
16' 1"width
52'depth
27'height

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

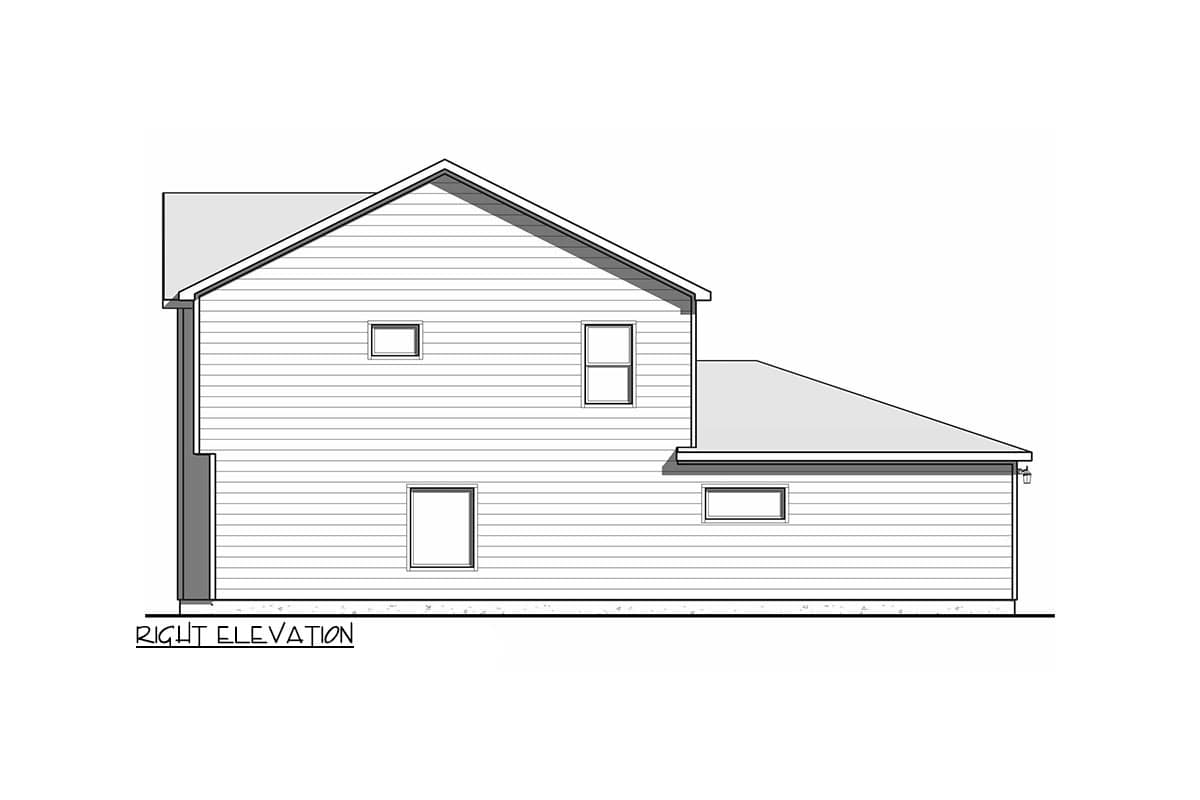

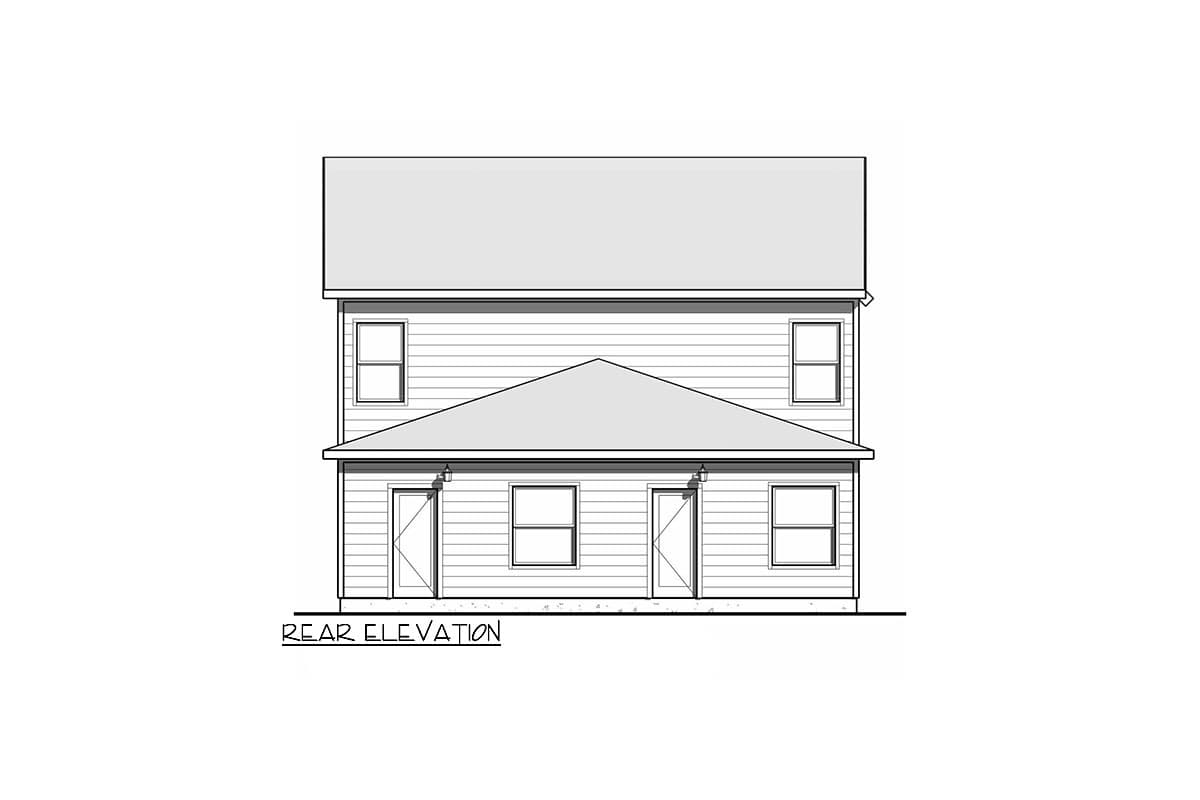

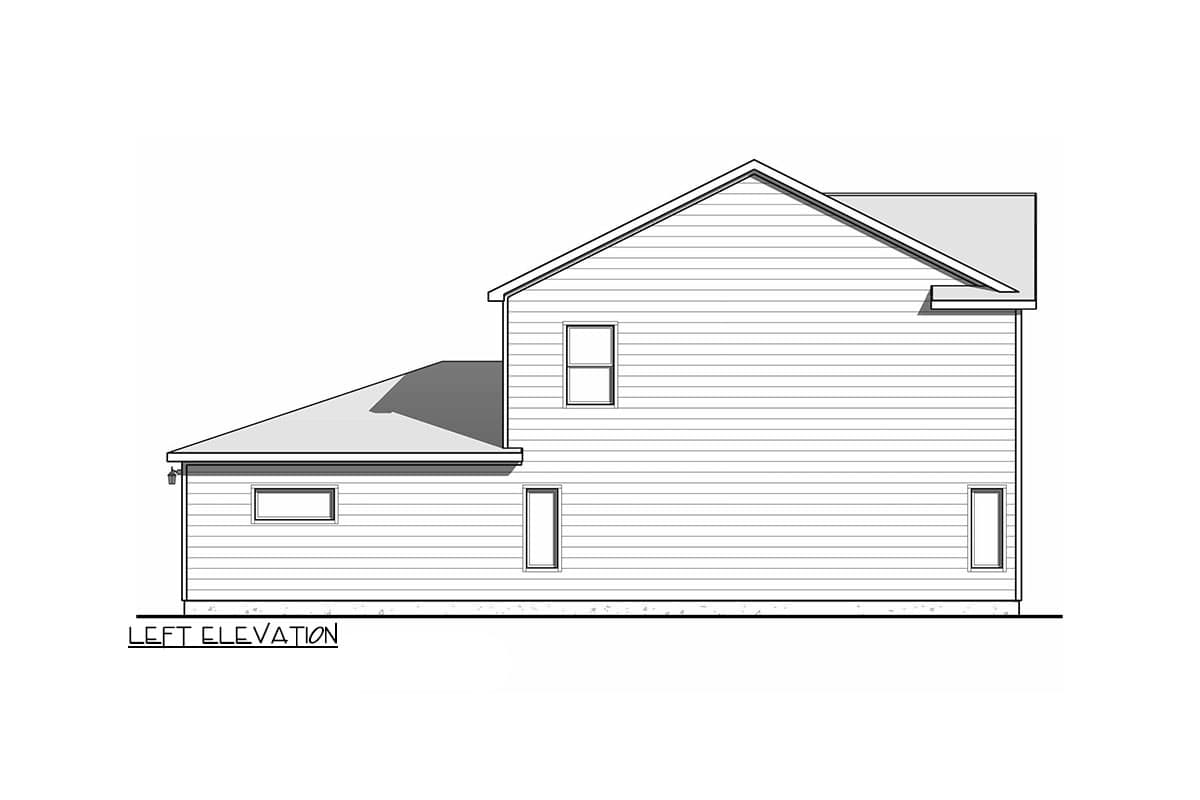

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,658 sq. ft.

1st Floor

1,644 sq. ft.

2nd Floor

1,014 sq. ft.

Porch, Front

19 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 2"

Depth

52' 0"

Max Ridge Height

27' 5"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Northwest

Transitional

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,658 sq. ft.

1st Floor

1,644 sq. ft.

2nd Floor

1,014 sq. ft.

Porch, Front

19 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 2"

Depth

52' 0"

Max Ridge Height

27' 5"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Northwest

Transitional

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 1st Floor

Plan Collections

Exclusive
