Plan 860057MCD Transitional European Home Plan with Office and Boat Storage

Transitional European Home Plan with Office and Boat Storage

Plan 860057MCD

  • 3,196

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 4

    Cars

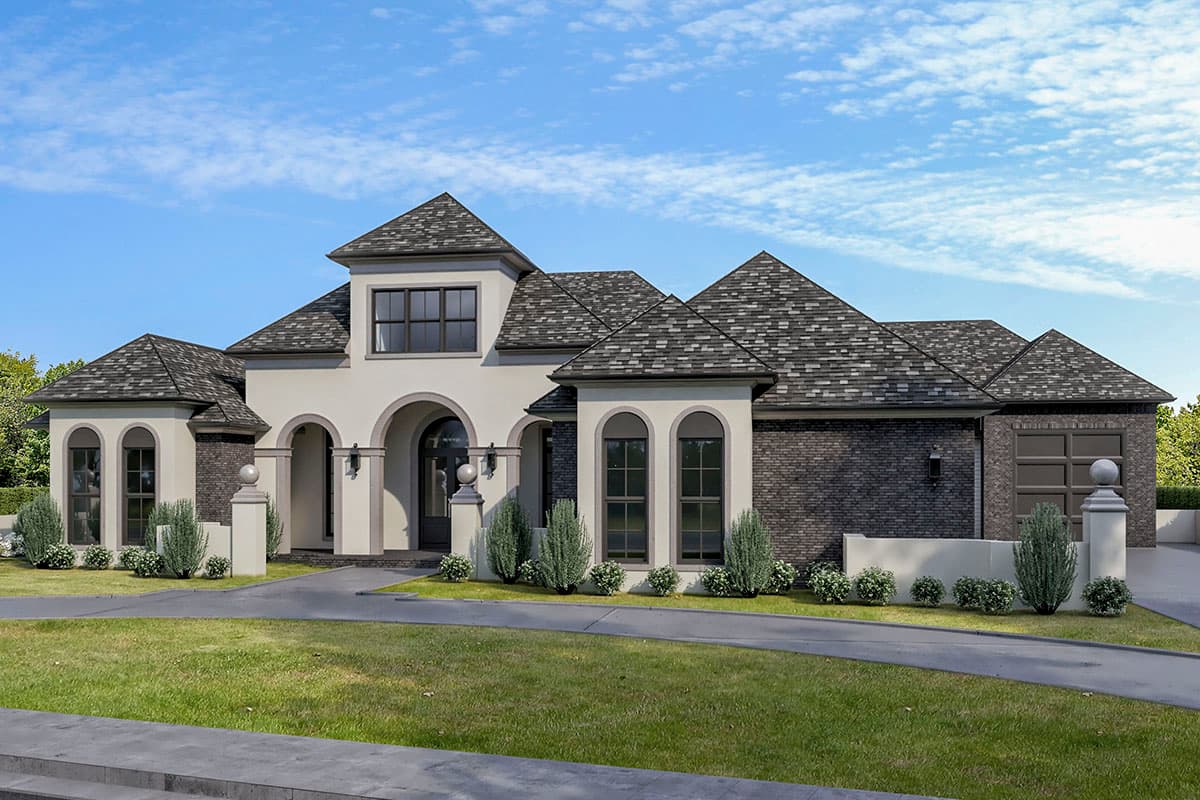

  • Arched entryways and complimentary windows line the front elevation of this Transitional European home plan, while inside, 12 foot ceilings throughout the shared spaces make this 3,200 square foot home feel even larger.
  • Warmed by a fireplace and centered below an elegant tray ceiling, this living room was designed with entertaining in mind. An oversized opening leads to the spacious kitchen, which hosts an island, walk-in pantry, and plenty of workspace.
  • The dining table of your dreams will fit perfectly in the dining room, which leads to the rear porch, complete with a fireplace and summer kitchen.
  • Tucked away in the back corner, discover the master bedroom, joined by a deluxe 5-fixture ensuite with a pass-through closet that connects with the laundry room. Two additional bedrooms rest on either side of the home.
  • A three car garage protrudes from the front of the home, while dedicated storage space can be found in a fourth bay for boats.

This set of working drawings contains the following components
  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional European Home Plan with Office and Boat Storage - 860057MCD floor plan - Main Level

Plan details

Transitional European Home Plan with Office and Boat Storage

  • 3,196

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,850
  • 5 Sets $1,930
  • CAD - Single-Build $2,650
  • PDF - Unlimited Build $2,850
  • View all purchase option online

About This Plan

  • Arched entryways and complimentary windows line the front elevation of this Transitional European home plan, while inside, 12 foot ceilings throughout the shared spaces make this 3,200 square foot home feel even larger.
  • Warmed by a fireplace and centered below an elegant tray ceiling, this living room was designed with entertaining in mind. An oversized opening leads to the spacious kitchen, which hosts an island, walk-in pantry, and plenty of workspace.
  • The dining table of your dreams will fit perfectly in the dining room, which leads to the rear porch, complete with a fireplace and summer kitchen.
  • Tucked away in the back corner, discover the master bedroom, joined by a deluxe 5-fixture ensuite with a pass-through closet that connects with the laundry room. Two additional bedrooms rest on either side of the home.
  • A three car garage protrudes from the front of the home, while dedicated storage space can be found in a fourth bay for boats.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,196 sq. ft.
  • 1st Floor: 3,196 sq. ft.
  • Porch, Combined: 928 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 86' 4"
  • Depth: 97' 0"
  • Max ridge height: 28' 10"

Garage

  • Type: Attached
  • Area: 1563 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
