Plan 86373HH
Transitional European House Plan with Finished Basement and Large Rear Porches
Heated S.F.
5,283
Beds
3
Baths
3.5
Stories
1
Cars
2
What's Included
Plan Details
  • The stone-clad exterior of this Transitional European house plan adds to the old-world charm, while inside, modern conveniences make this home perfect for families or empty nesters.
  • A vaulted ceiling with exposed beams crowns the family room, which extends onto the partially-screened porch. The open concept connects the living space with the dine-in kitchen to create a family-friendly environment.
  • The double garage provides a drop zone just inside, next to the walk-in pantry with a shortcut to the kitchen.
  • Retreat to the serene master bedroom to find french doors that open to the porch, a deluxe ensuite with a 2-person shower, and walk-in closet that connects to the laundry room.
  • The fun continues on the lower level that boasts a game room, home theater, kitchen that caters to the covered porch, and a bedroom suite.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Transitional European House Plan with Finished Basement and Large Rear Porches

  • 5,283

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

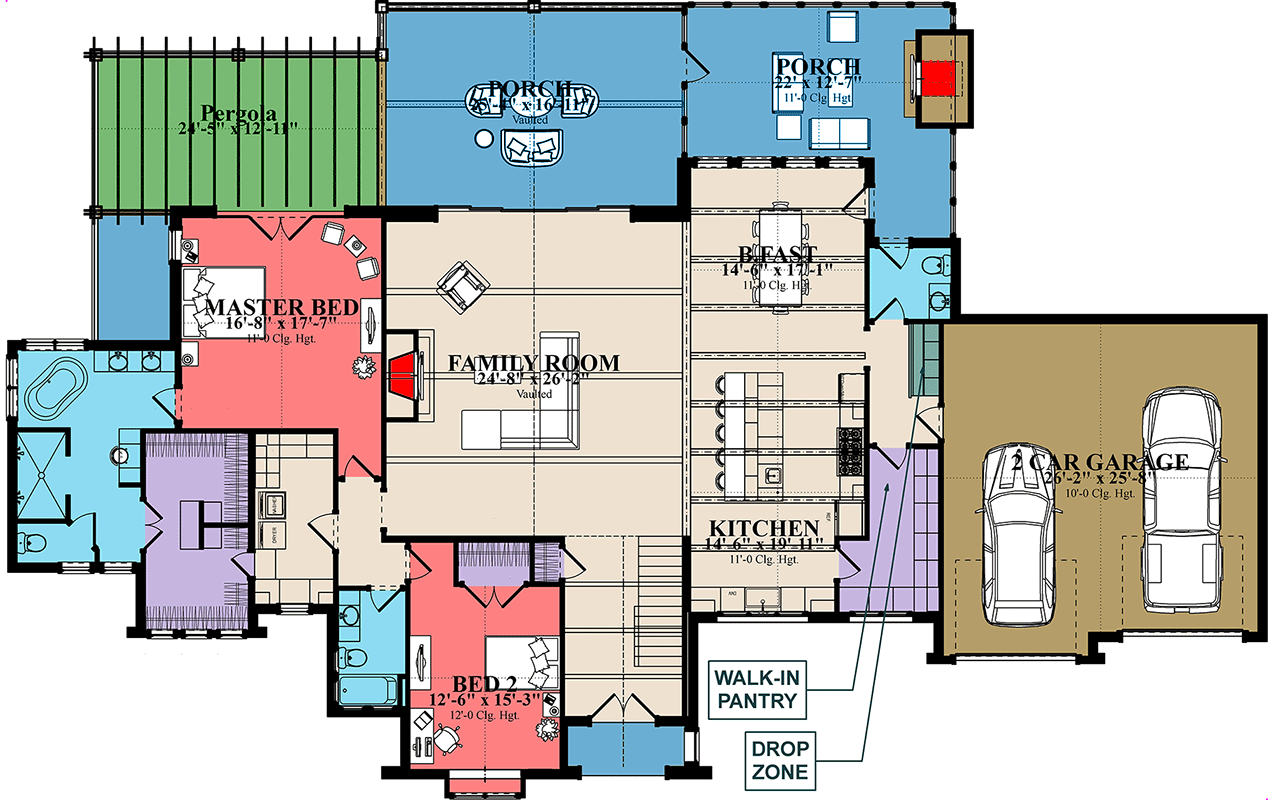

  • Main Level

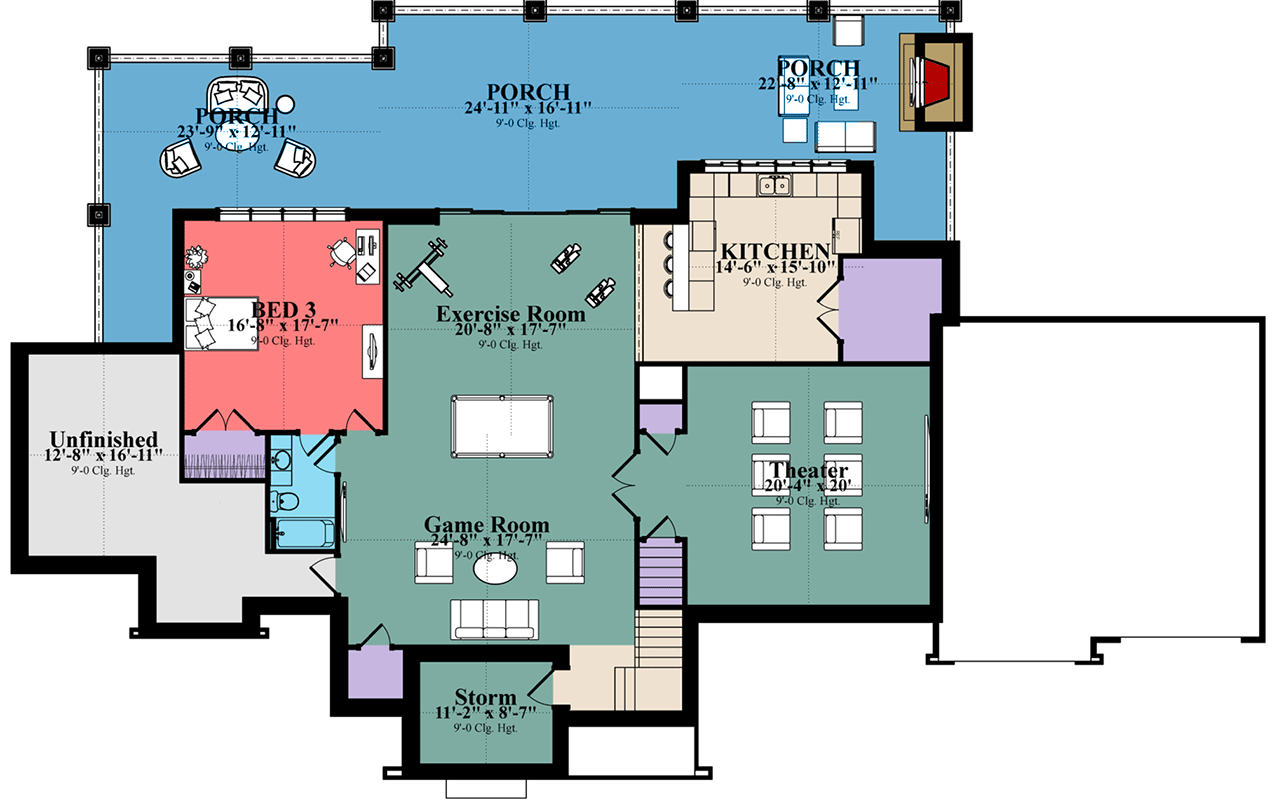

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 5,283 sq. ft.
  • Lower Level: 2,408 sq. ft.
  • 1st Floor: 2,875 sq. ft.

Dimensions

  • Width: 104' 8"
  • Depth: 66' 1"
  • Max ridge height: 31' 1"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 757 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof

  • Primary Pitch: 10 on 12
